Connect bare power wires to an XT60-compatible connection without soldering using this XT60 female to 2-pin screw terminal power adapter.

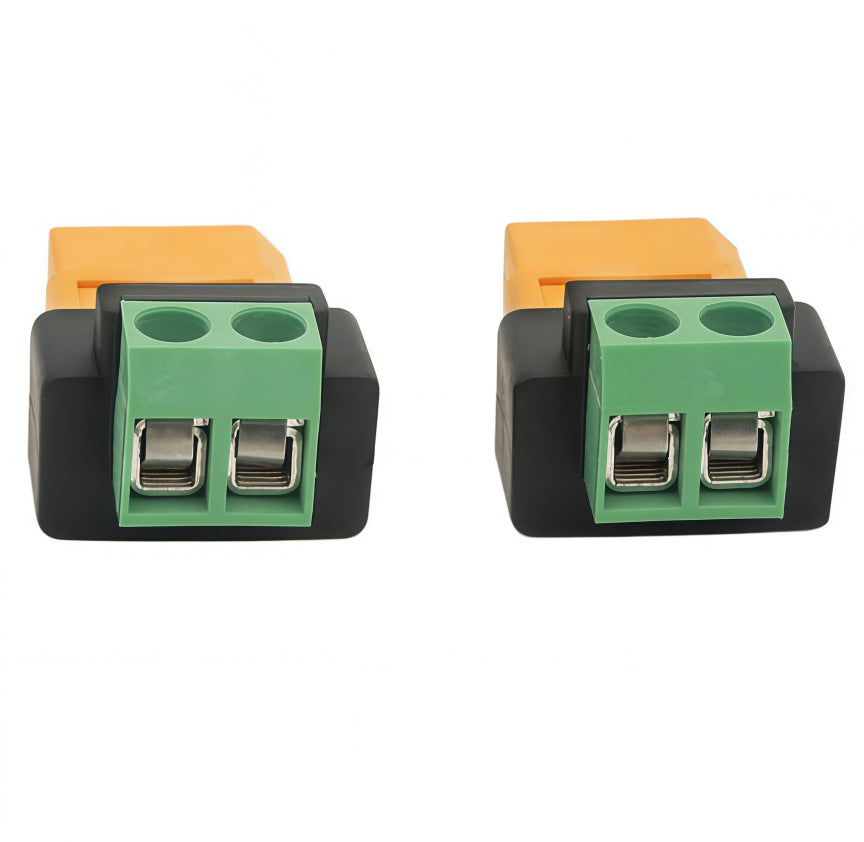

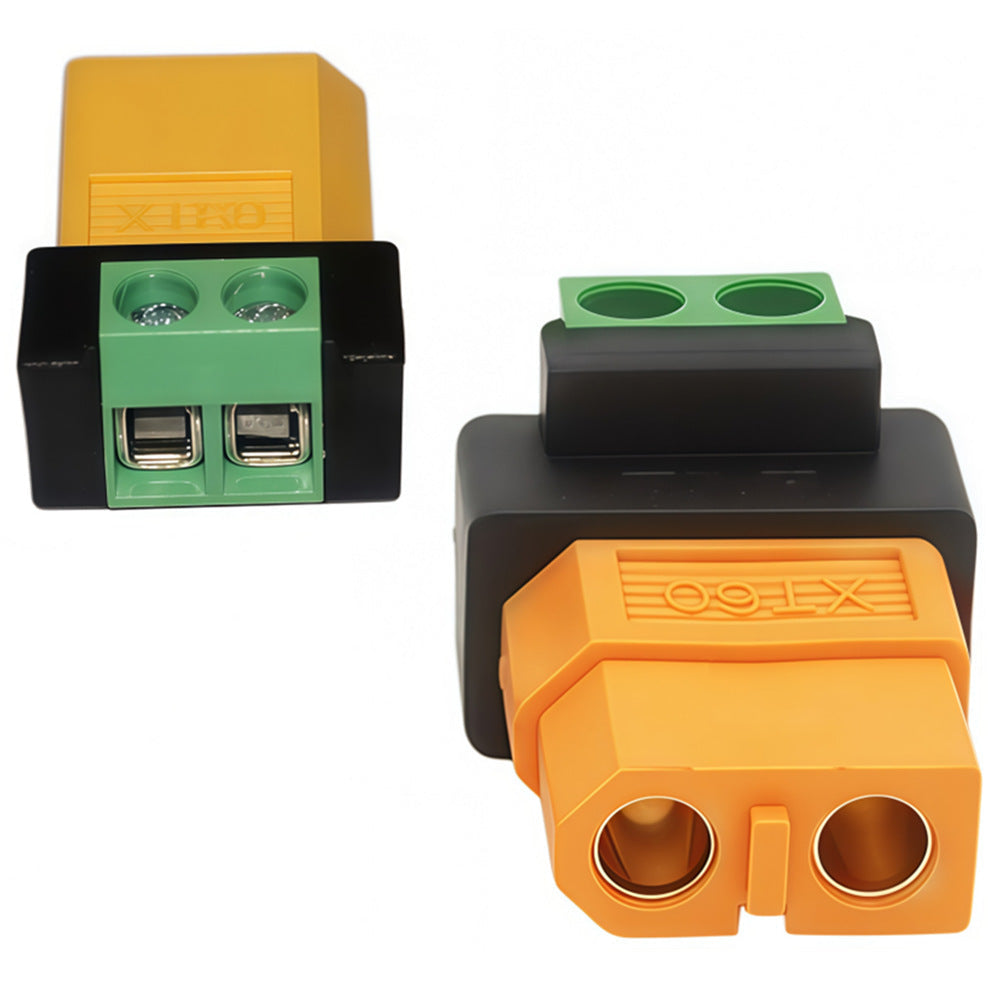

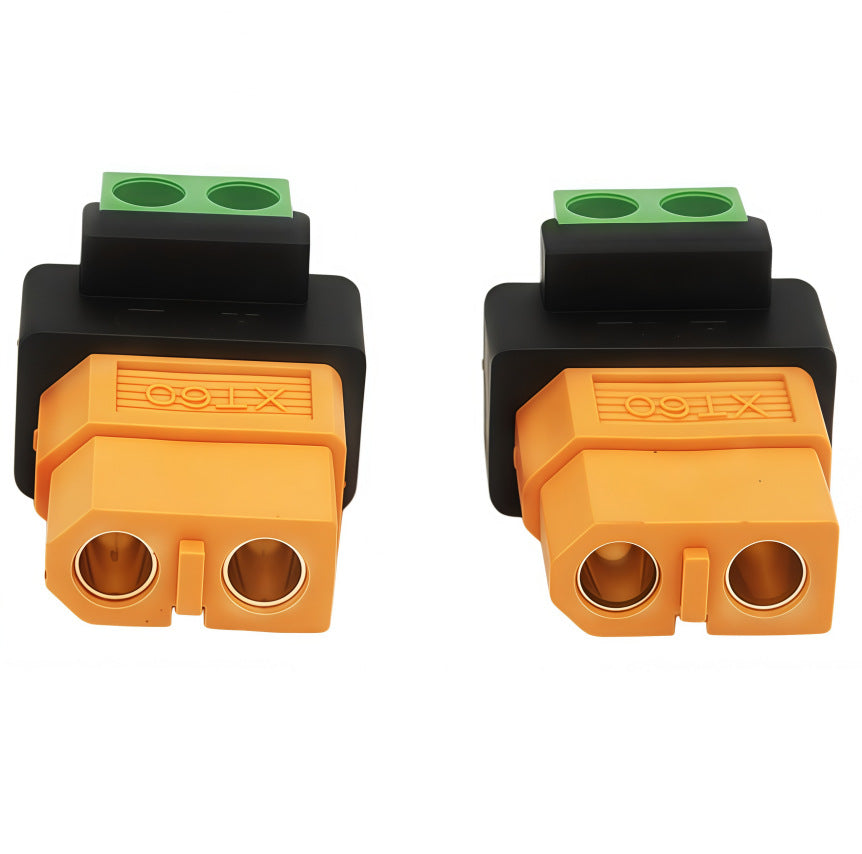

The adapter features an XT60 female connector on one side and a green 2-pin screw terminal block on the other. Insert the stripped positive and negative wires into the terminal openings, then tighten the screws to create a secure and removable power connection.
This is a passive power-only adapter. The input voltage passes directly through the adapter without conversion, regulation or protection.
Key features:
• XT60 female connector
• 2-pin screw terminal connection
• Solder-free wire installation
• Supports power transmission only
• Bidirectional straight-through connection
• Maximum stated current: 10A
• Maximum stated voltage: 300V
• Accepts copper wire up to approximately 14 AWG
• Reusable screw-clamp terminal design
• Compact PVC housing
• Suitable for temporary or permanent DC wiring
Typical applications:
• RC models and drones
• Battery and power-system wiring
• Portable power and energy-storage projects
• DC equipment and test setups
• Temporary power connections
• Motor, inverter and electronic equipment wiring
• DIY power-distribution projects
Installation:
Strip a suitable length of insulation from each wire.
Insert the positive and negative conductors into the correct terminal openings, then tighten both screws securely.
Check the polarity and make sure that no exposed copper can touch the opposite terminal before connecting the XT60 plug.
Important safety information:
• Confirm that you require an XT60 female connector before ordering
• Check positive and negative polarity before applying power
• Reversed polarity may permanently damage batteries and connected equipment
• The adapter does not convert or regulate voltage
• The output voltage is the same as the input voltage
• Do not exceed the stated current or voltage rating
• Current capacity may also be limited by the connected wire, equipment and installation
• This adapter does not provide battery charging control, cell balancing, overcurrent protection or short-circuit protection
• Do not use it as a substitute for a dedicated battery charger or balance charger
• Ensure both terminal screws are secure before use
• Disconnect the power before fitting or removing wires
