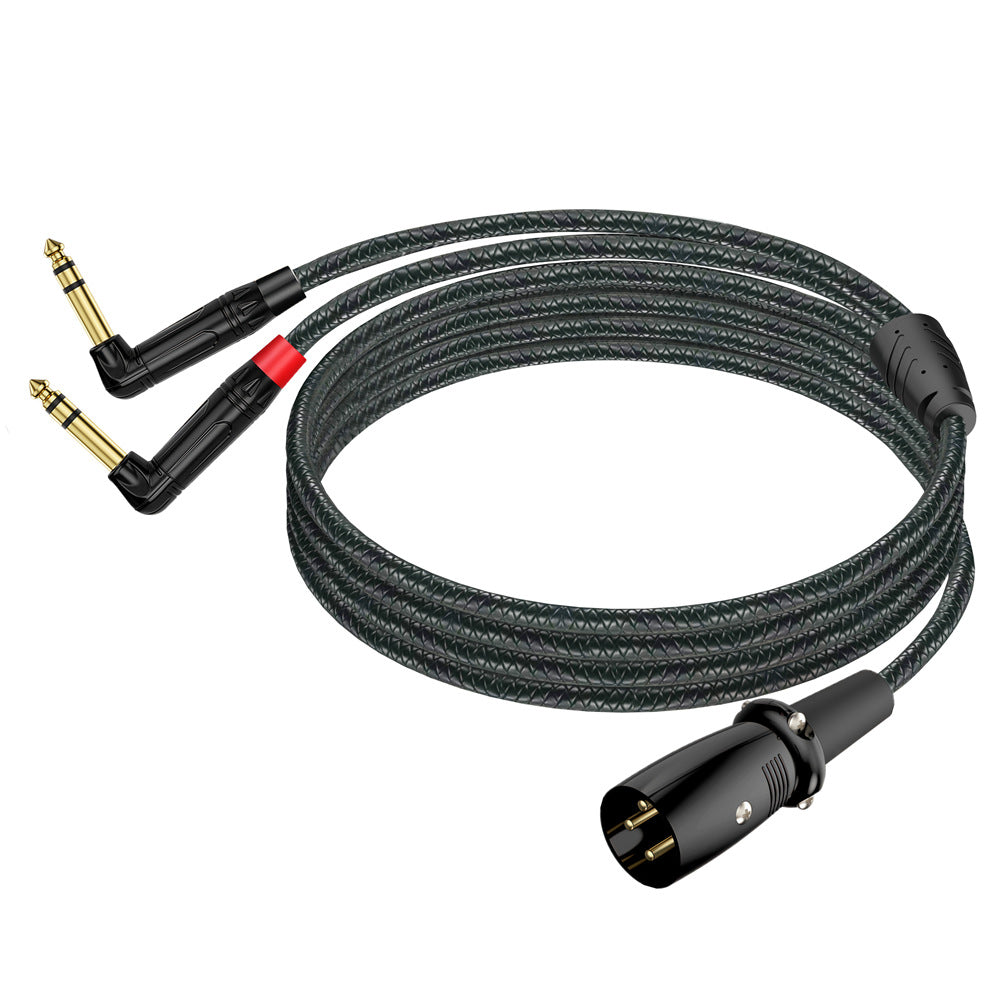

Connect compatible professional audio equipment with this 3-pin XLR male to dual right-angle 6.35mm TRS male audio splitter and breakout cable.

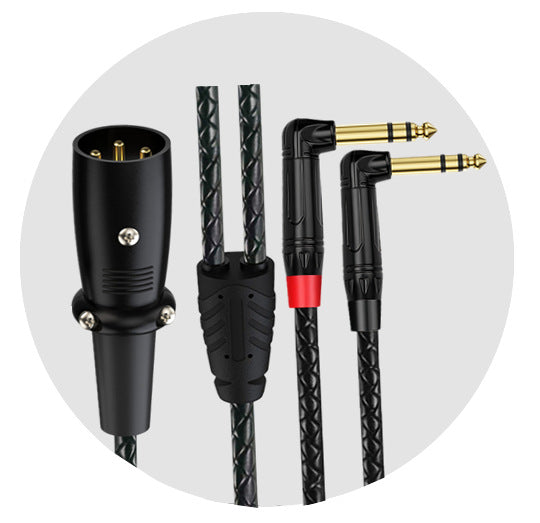

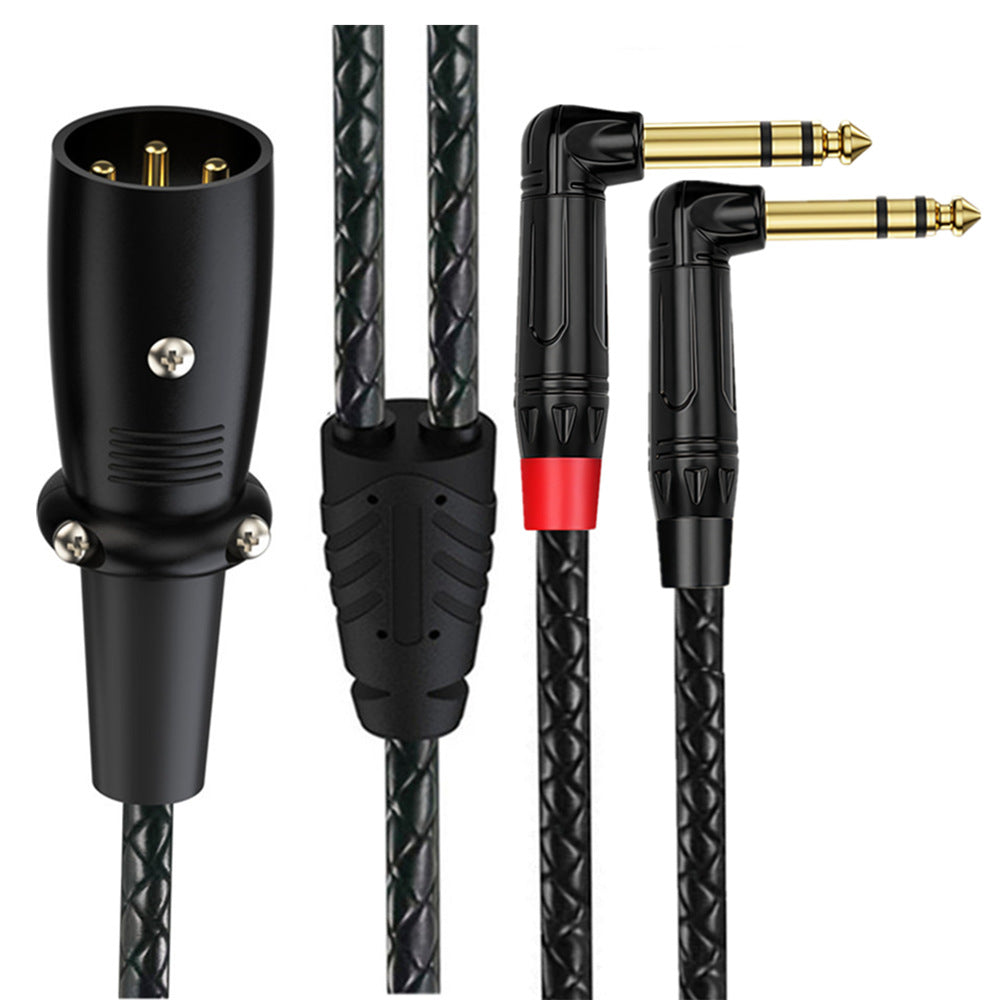

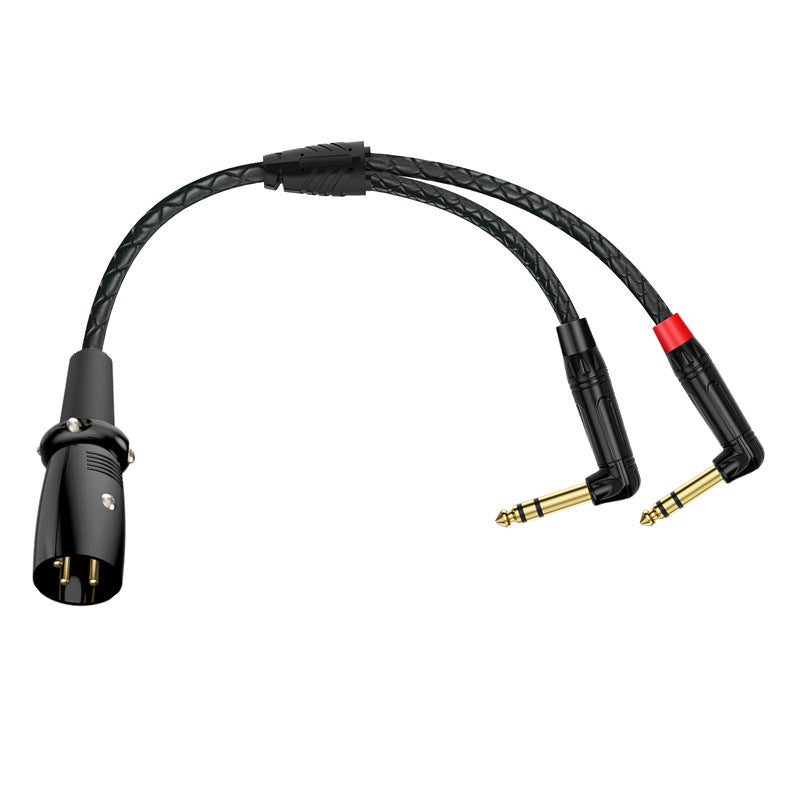

The cable features a straight 3-pin XLR male connector at one end and two space-saving 90-degree 6.35mm (1/4-inch) TRS male plugs at the other. The angled jack connectors are suitable for mixers, amplifiers, audio interfaces and other equipment positioned close to walls, inside racks or in restricted installation spaces.
A braided outer jacket helps protect the cable during regular studio, stage and live sound use. The reinforced splitter section and moulded connector housings provide additional strain relief for frequent setup and transport.
Key features:
• Straight 3-pin XLR male connector
• Dual right-angle 6.35mm TRS male plugs
• Red and black identification sleeves
• Space-saving 90-degree jack design
• Passive audio splitter and breakout cable
• Durable braided outer jacket
• Reinforced splitter section and strain relief
• Suitable for compatible studio, stage and professional audio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Mixing desks and audio interfaces
• Recording studio equipment
• Stage and live sound systems
• Amplifiers and audio processors
• Professional monitoring equipment
• Broadcast and signal-routing applications
Important compatibility information:
A standard 3-pin XLR connection normally carries one balanced mono audio signal rather than separate left and right stereo channels.
Although the two 6.35mm connectors are TRS plugs, TRS may carry balanced mono or stereo depending on the connected equipment. This cable should not automatically be described as producing two independent stereo outputs.
The exact function of each 6.35mm plug depends on the internal wiring. Please confirm the required pinout and equipment compatibility before ordering.
This is a passive cable. It does not amplify, mix, isolate or independently control the two connections.
