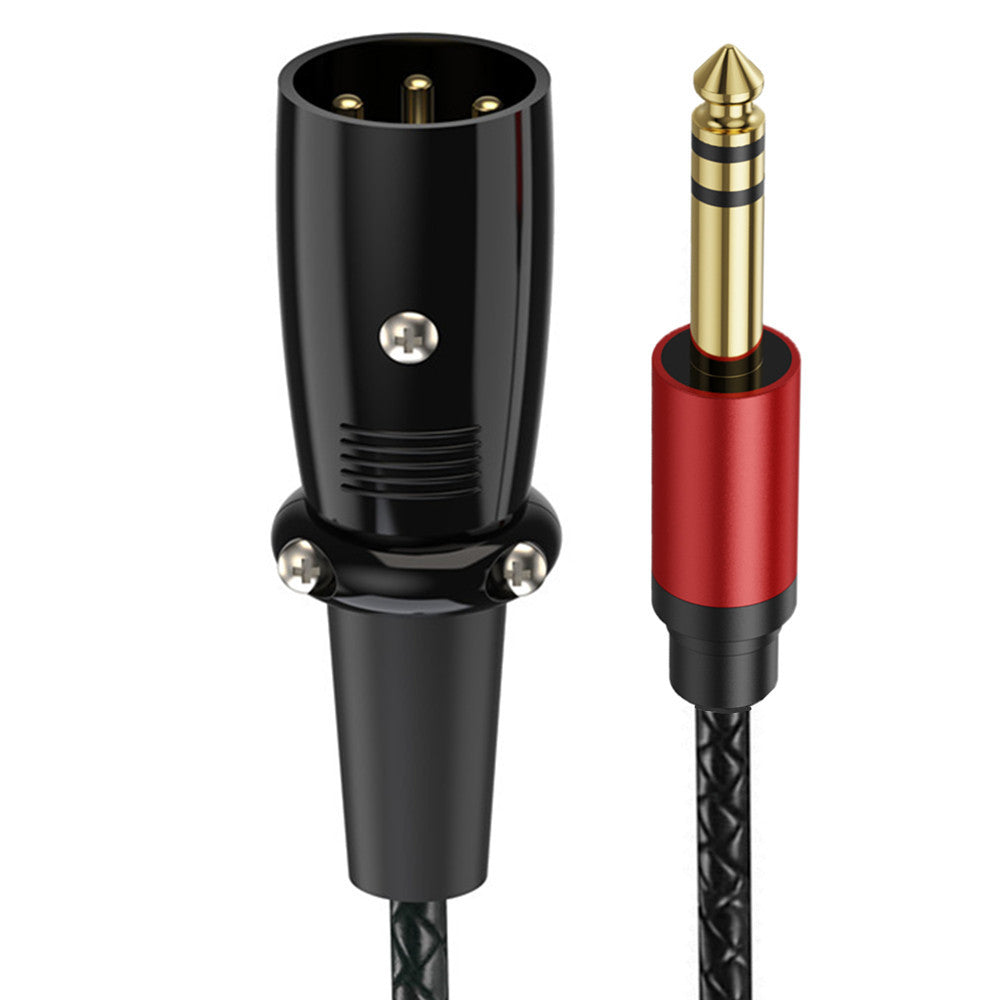

Connect mixers, audio interfaces, signal processors, powered speakers and other professional audio equipment with this XLR male to 6.35mm TRS male balanced audio cable.
The cable features one straight 3-pin XLR male connector and one straight gold-plated 6.35mm (1/4-inch) TRS male plug. It is designed to carry one balanced mono audio signal between compatible balanced audio connections.
The braided outer jacket provides improved resistance to wear, bending and tangling, while the reinforced connector housings and strain relief help protect the internal conductors during regular studio, stage and live sound use.
Key features:

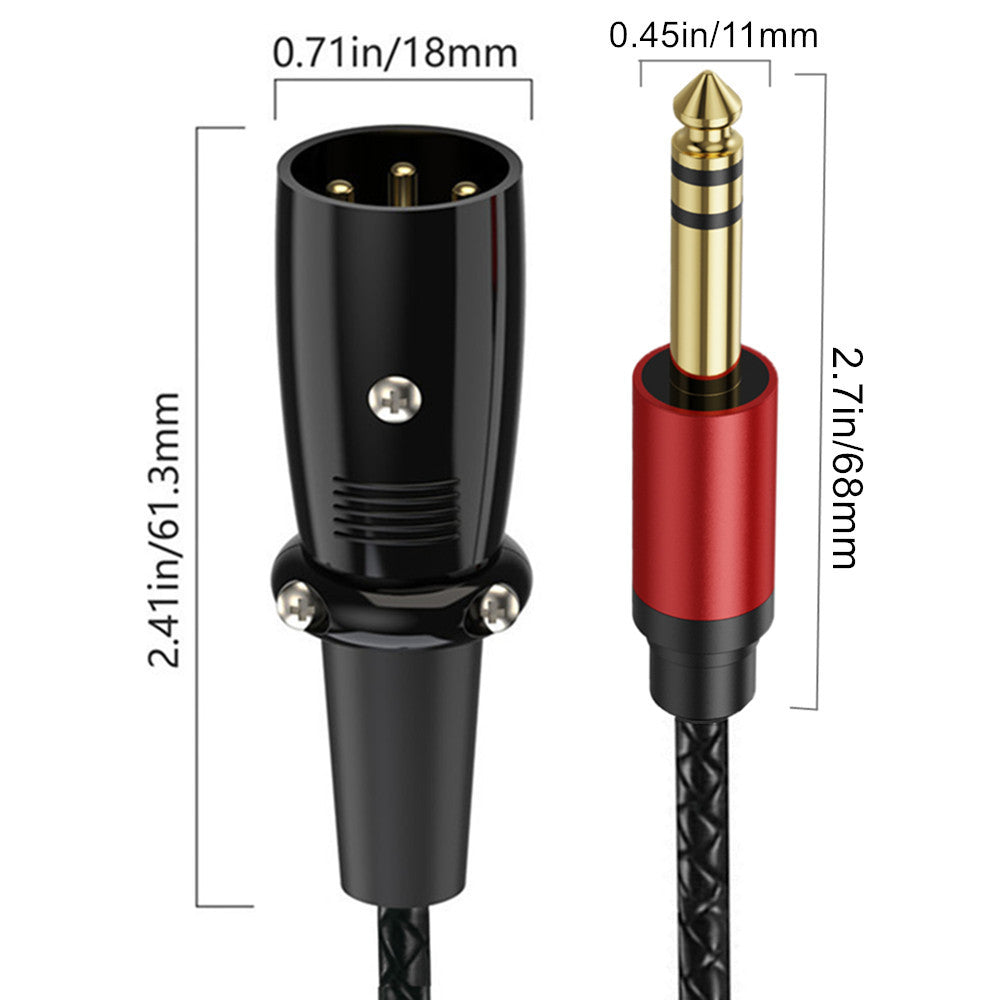

• Straight 3-pin XLR male connector
• Straight 6.35mm TRS male plug
• Carries one balanced mono audio signal

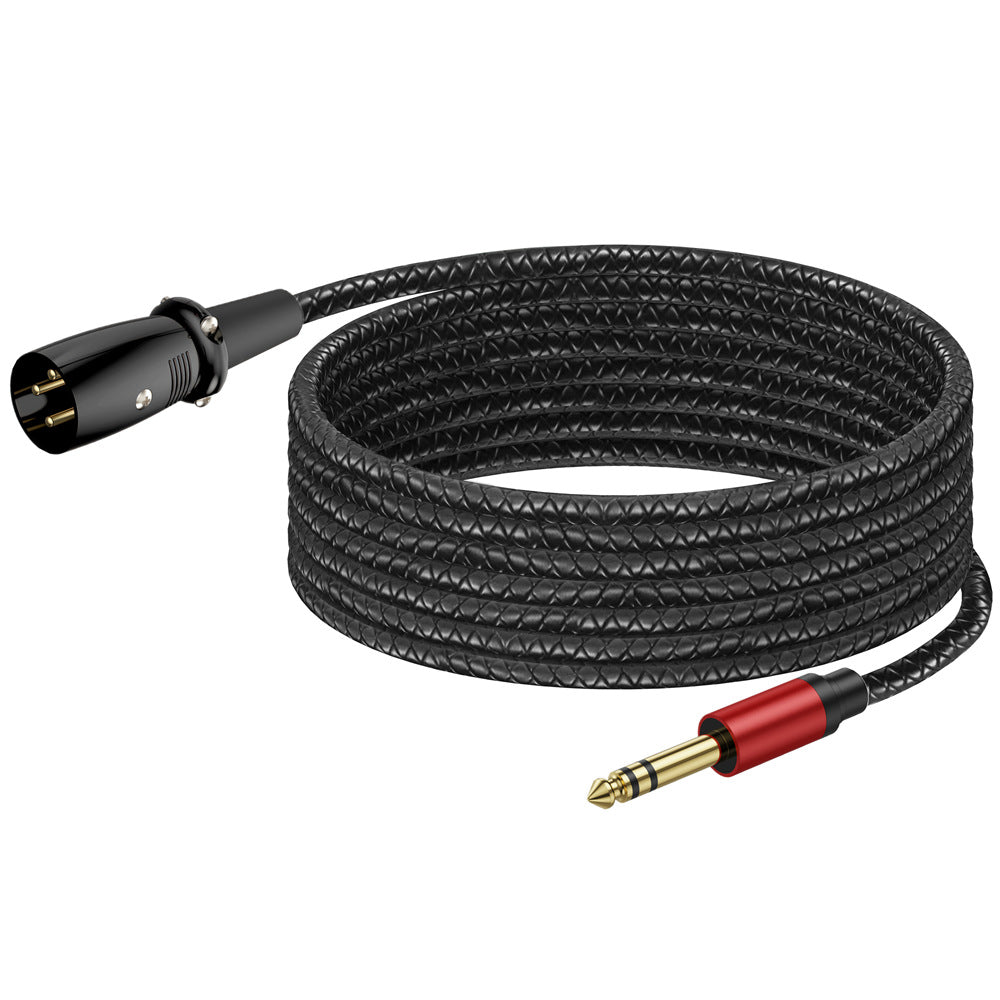

• Gold-plated 6.35mm connector for reliable signal contact
• Durable XLR connector housing

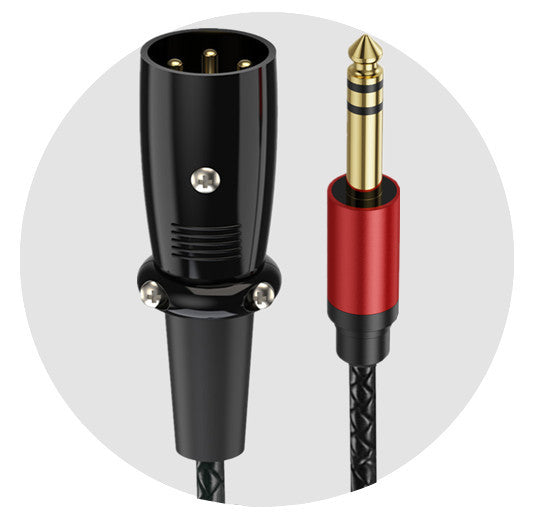

• Braided outer cable jacket
• Reinforced strain relief at both ends
• Passive plug-and-play audio cable
• Suitable for studio, stage and professional audio equipment
• Available in 0.3m, 2m, 3m and 5m lengths
Suitable applications:
• Mixing desks and digital mixers
• Audio interfaces and external sound cards
• Microphone preamplifiers
• Effects processors and signal processors
• Powered studio monitors
• Stage amplifiers and monitor speakers
• Recording and broadcasting equipment
• Livestreaming and live sound systems
Compatibility information:
This cable is intended for one balanced mono audio connection. Standard balanced wiring normally uses:
• XLR pin 1 to TRS sleeve: ground or shield
• XLR pin 2 to TRS tip: positive or hot
• XLR pin 3 to TRS ring: negative or cold
Although the 6.35mm plug has three contacts, it does not carry separate left and right stereo channels in this application. The tip, ring and sleeve carry one balanced mono signal.
Please confirm that both connected devices support balanced audio. This passive cable does not amplify, convert, split or process the audio signal.
