Connect a compatible 3-pin XLR male audio output to two 6.35mm TS mono connections with this XLR female to dual right-angle 6.35mm male audio splitter cable.

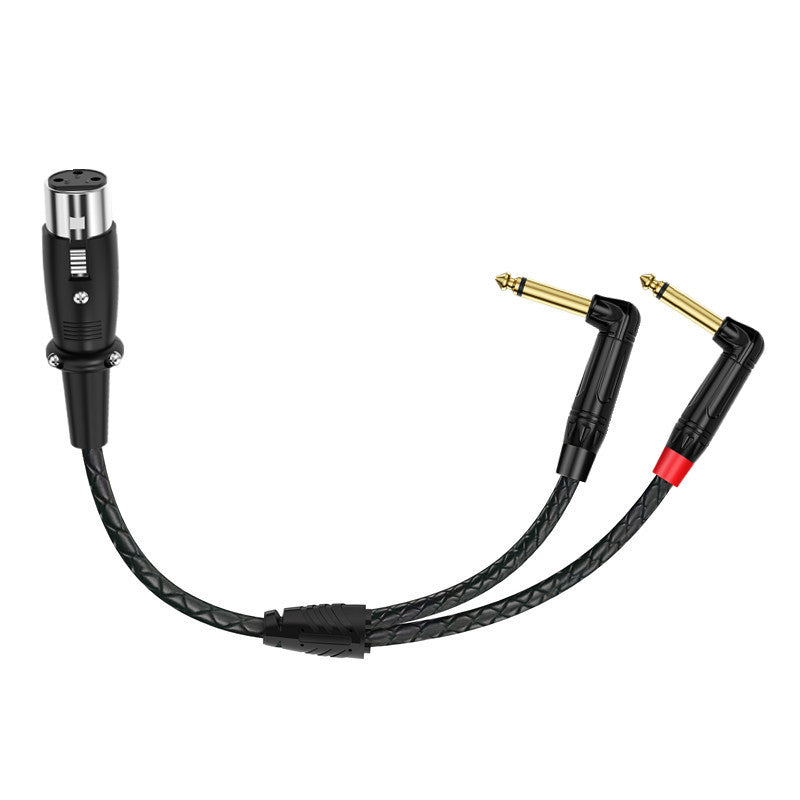

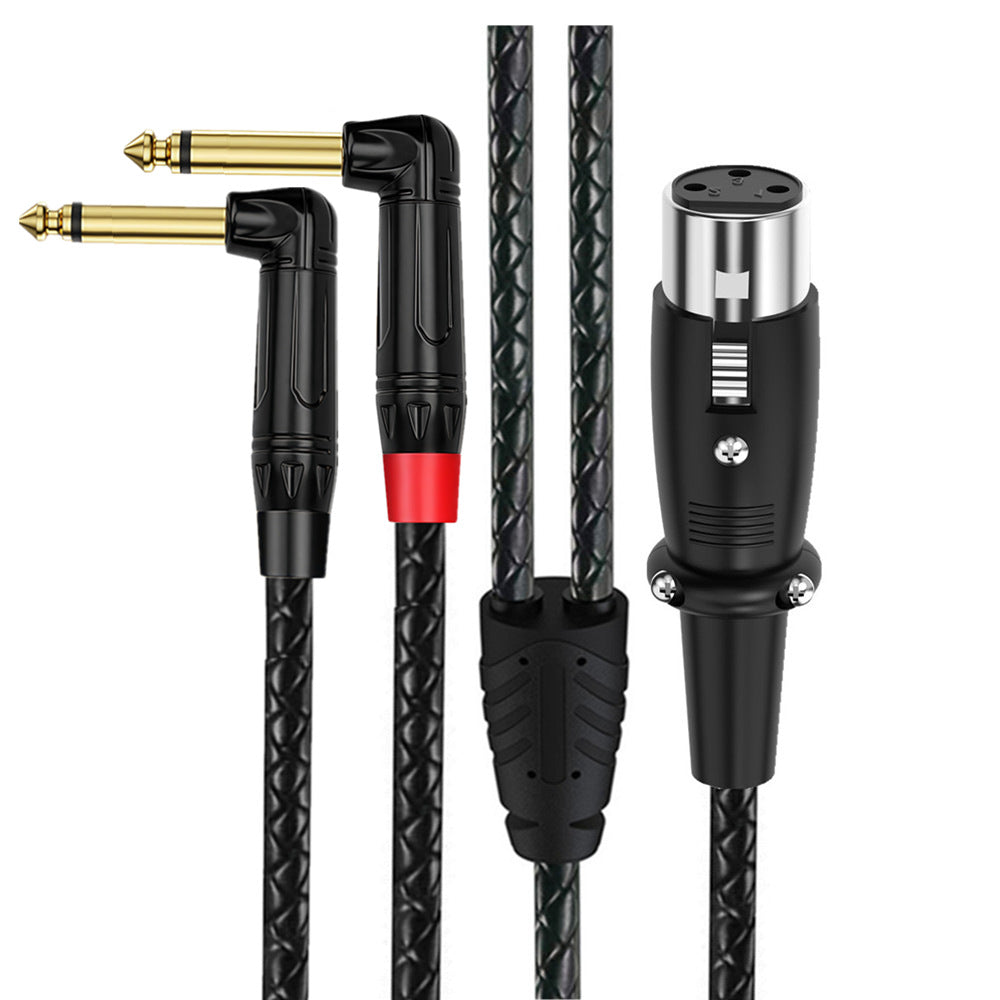

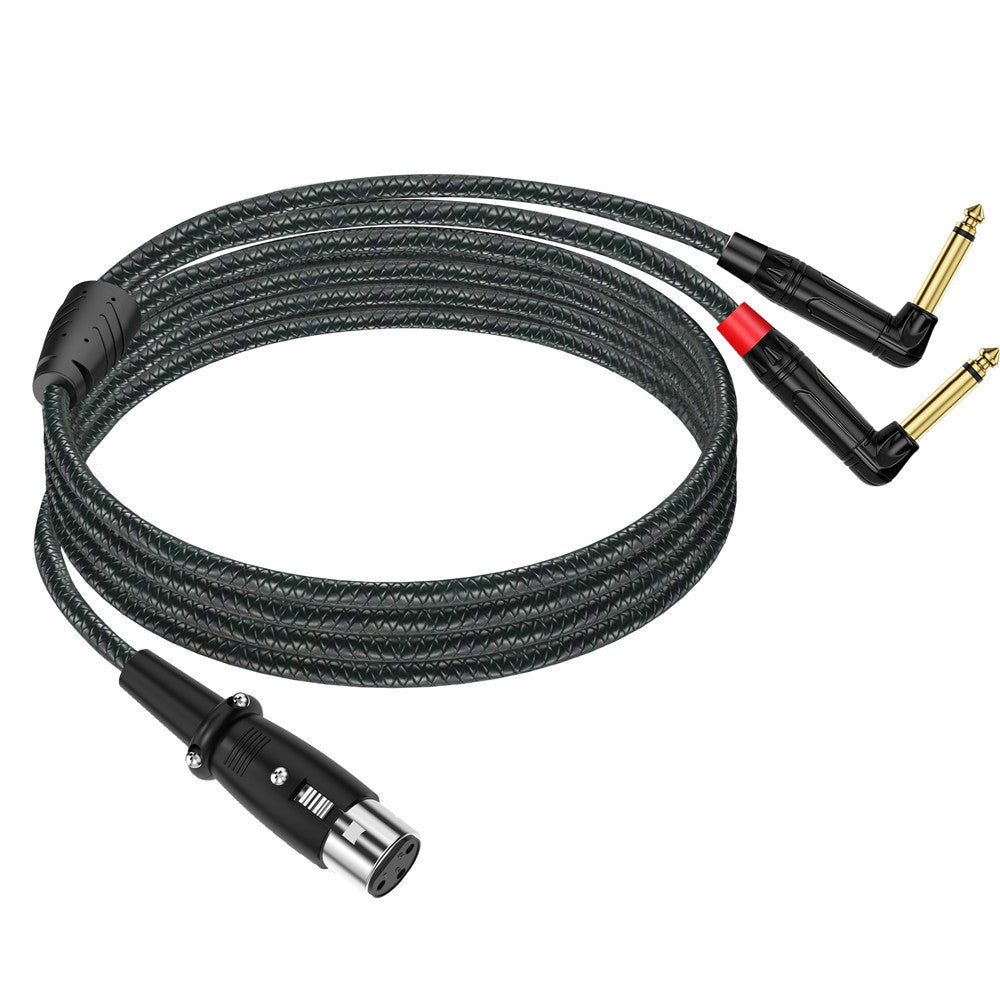

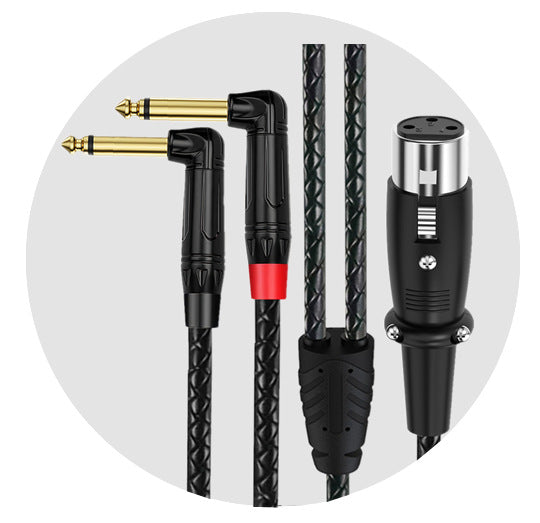

The cable features a straight 3-pin XLR female connector at one end and two 90-degree 6.35mm TS mono male plugs at the other. The angled jack connectors help save space and reduce cable strain when equipment is positioned close to a wall, inside a rack or on a crowded stage setup.
Its braided outer jacket and reinforced connector housings provide added protection for recording, live sound and professional audio applications.
Key features:
• Straight 3-pin XLR female connector
• Dual 6.35mm TS mono male plugs
• 90-degree right-angle 6.35mm connectors
• Passive one-to-two audio splitter design
• One output marked with a red identification band
• Braided cable jacket
• Reinforced connector housings and strain relief
• Suitable for compatible mixers, amplifiers and audio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Mixing desks and audio interfaces
• Wireless microphone receivers
• Stage amplifiers and powered speakers
• Recording studio equipment
• Public-address and live sound systems
• Audio testing and signal-routing installations
Important compatibility information:
A standard 3-pin XLR connector normally carries one balanced mono signal rather than separate left and right stereo channels.
The exact function of the two 6.35mm TS plugs depends on the cable’s internal wiring. They may duplicate one mono signal or connect separately to the positive and negative conductors of the XLR connection.
Please confirm the required wiring and the specifications of your equipment before ordering. Incorrect use may result in reduced volume, phase cancellation, noise or no audio.
This passive cable does not amplify, mix, isolate or independently control the two connections.
