Connect microphones, mixers, audio interfaces and other professional audio equipment with this XLR female to 6.35mm TRS male balanced audio cable.

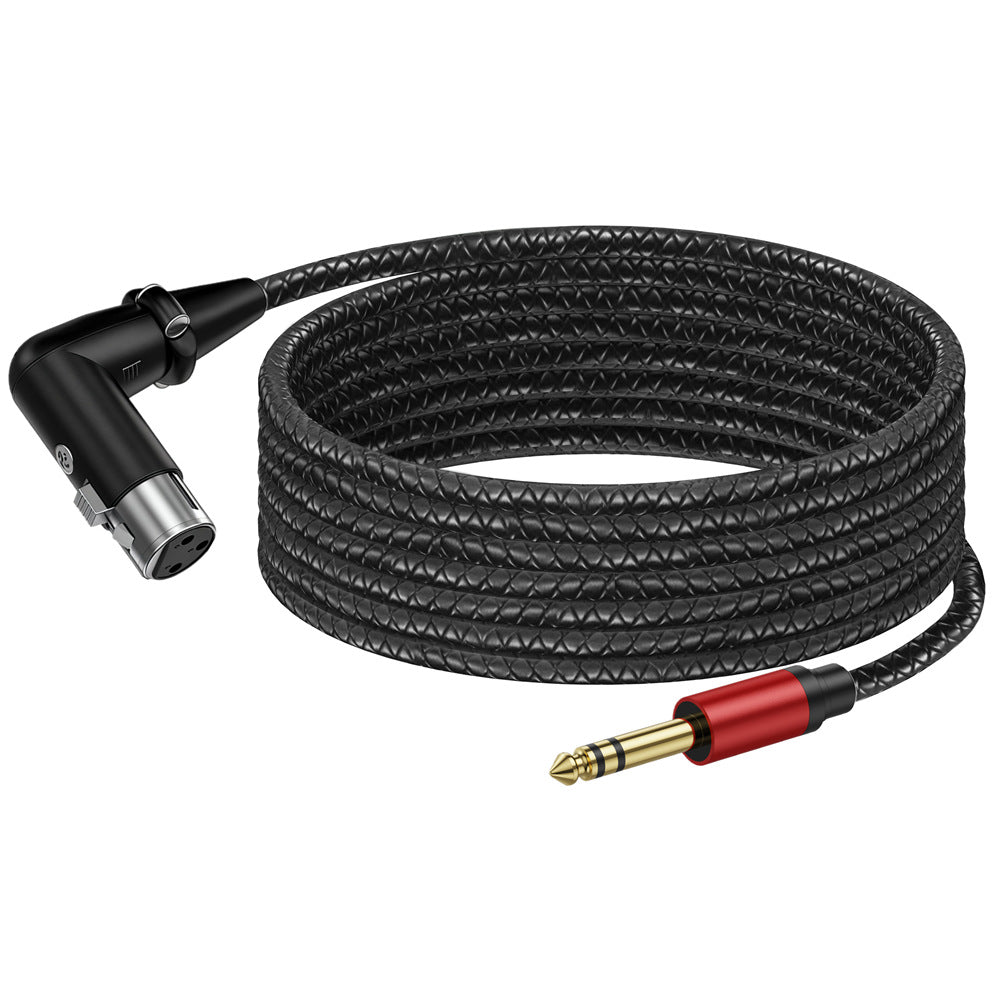

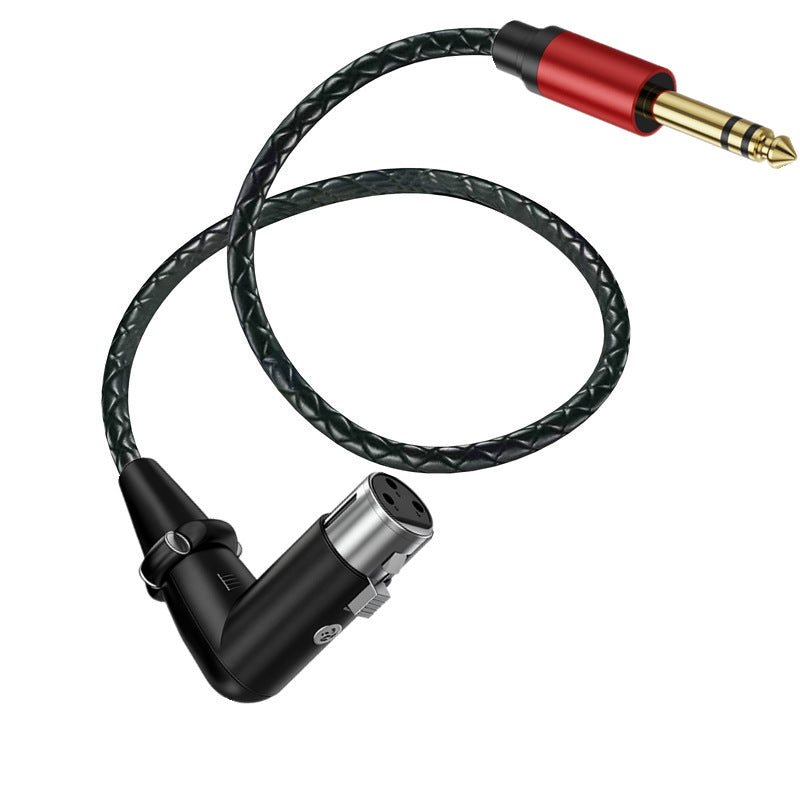

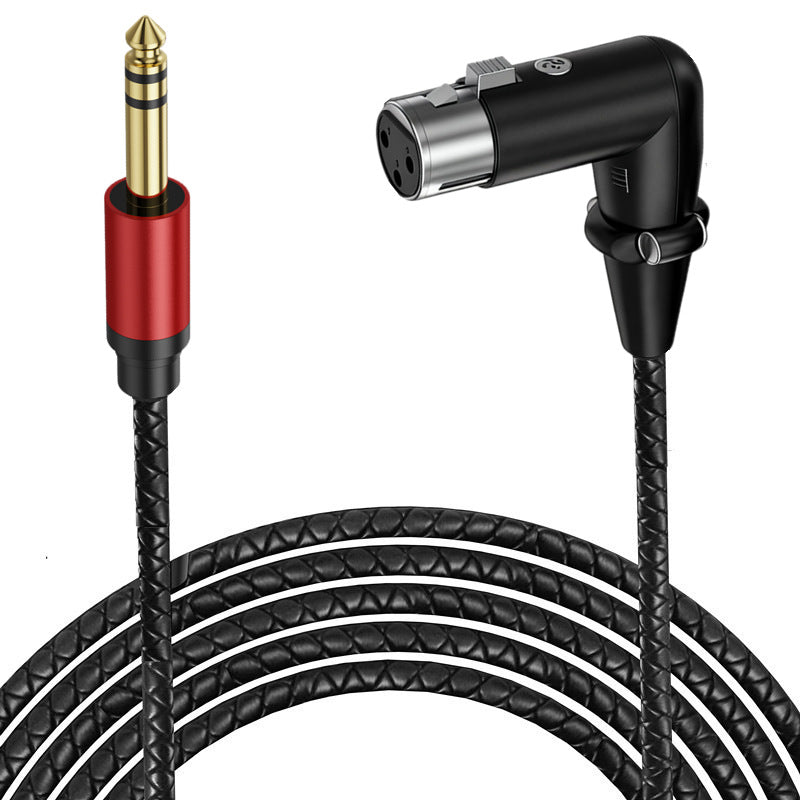

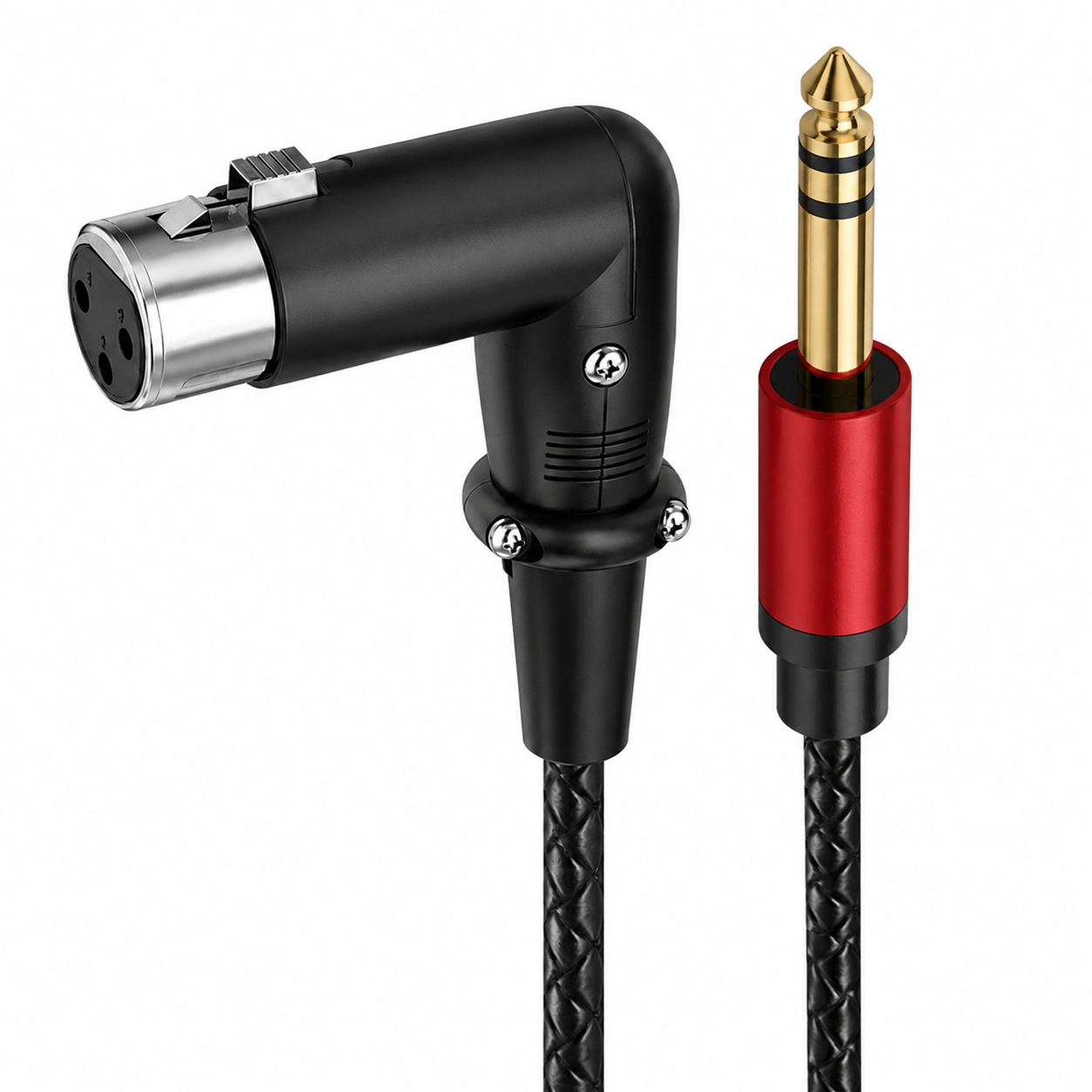

The cable features a space-saving 90-degree 3-pin XLR female connector at one end and a straight gold-plated 6.35mm (1/4-inch) TRS male plug at the other. It carries one balanced mono audio signal between compatible balanced audio connections.
The right-angle XLR connector is ideal for equipment installed close to walls, inside racks or in other restricted spaces. It helps reduce pressure on the socket and prevents the cable from bending sharply behind connected equipment.
A durable braided outer jacket, reinforced connector housings and moulded strain relief provide protection against pulling, bending and repeated use in studios, live performances and professional audio installations.
Key features:
• 3-pin right-angle XLR female connector
• Straight 6.35mm TRS male plug
• Carries one balanced mono audio signal
• Space-saving 90-degree XLR design
• Locking XLR connector helps prevent accidental disconnection
• Gold-plated 6.35mm plug for reliable signal contact
• Durable braided outer jacket
• Reinforced strain relief at both connectors
• Passive plug-and-play audio cable
• Available in 0.3m, 2m, 3m and 5m lengths
Suitable applications:
• Dynamic and condenser microphones
• Wireless microphone receivers
• Mixing desks and audio mixers
• Audio interfaces and external sound cards
• Microphone preamplifiers
• Audio processors and effects equipment
• Powered speakers and studio monitors
• Recording studios, stages and live sound systems
Compatibility information:
This cable is designed for balanced mono audio connections. Standard balanced wiring is normally:
• XLR pin 1 to TRS sleeve: ground or shield
• XLR pin 2 to TRS tip: positive or hot
• XLR pin 3 to TRS ring: negative or cold
Although the 6.35mm plug has three contacts, it does not carry separate left and right stereo channels in this application. The tip, ring and sleeve are used for one balanced mono signal.
Please confirm that both connected devices support balanced audio. This passive cable does not amplify, convert or process the audio signal.
