Connect compatible microphones, mixers, audio interfaces and professional audio equipment with this 3-pin XLR female to 6.35mm TRS male balanced audio cable.

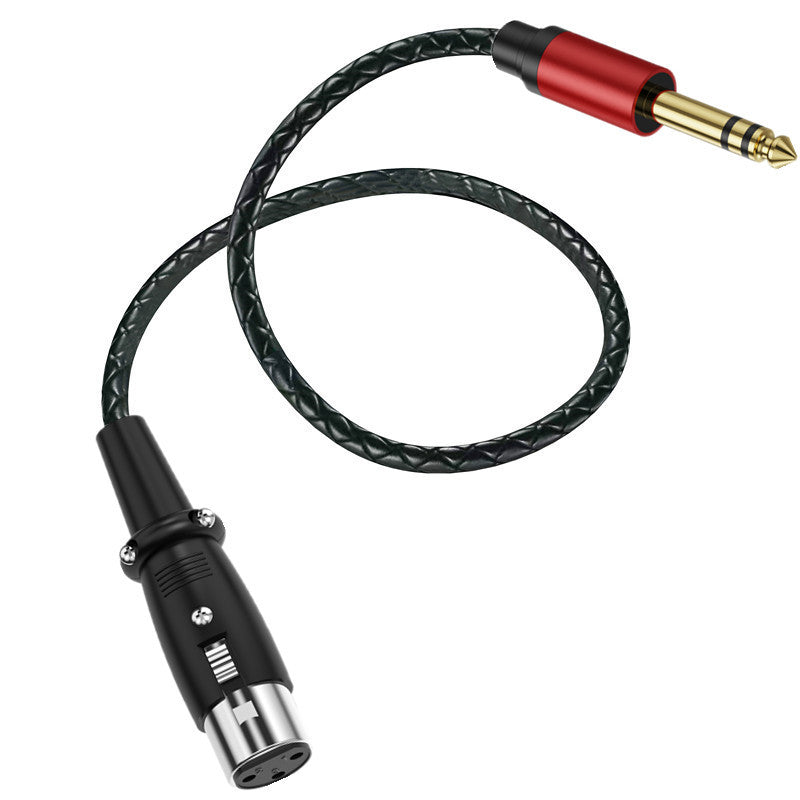

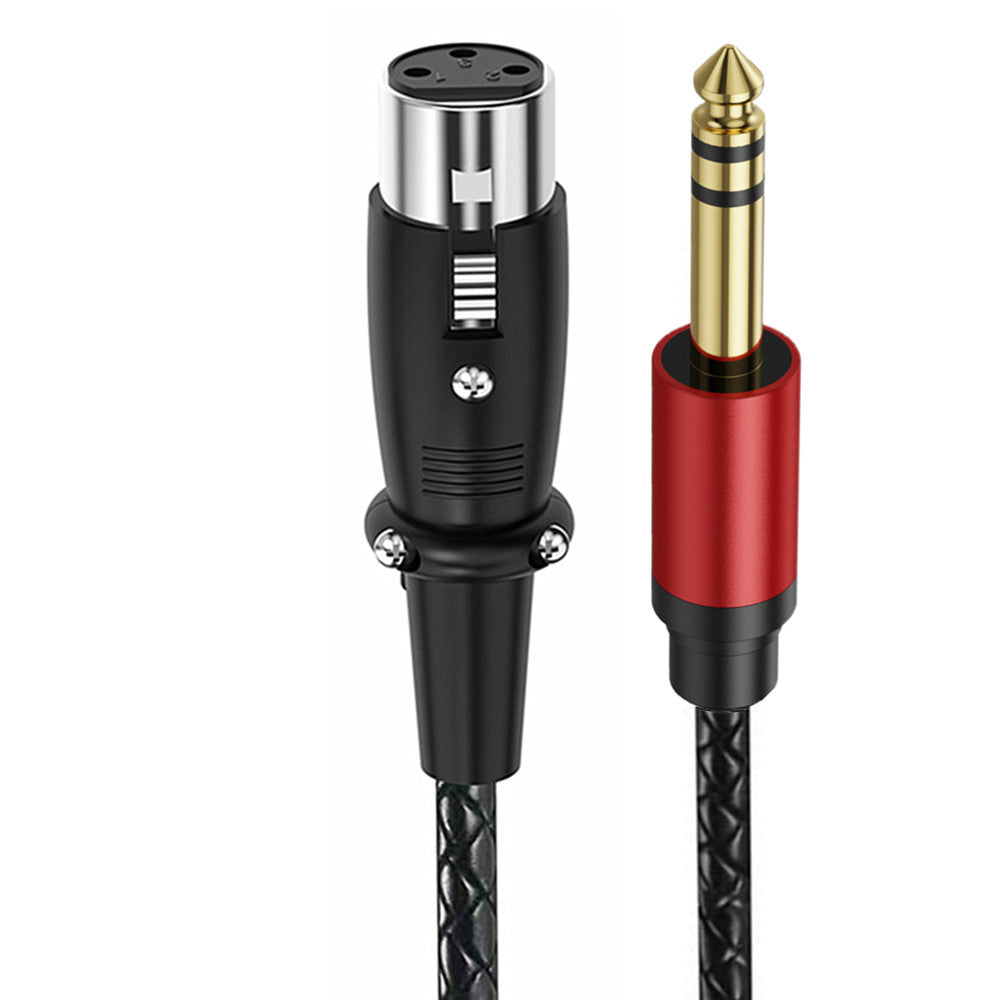

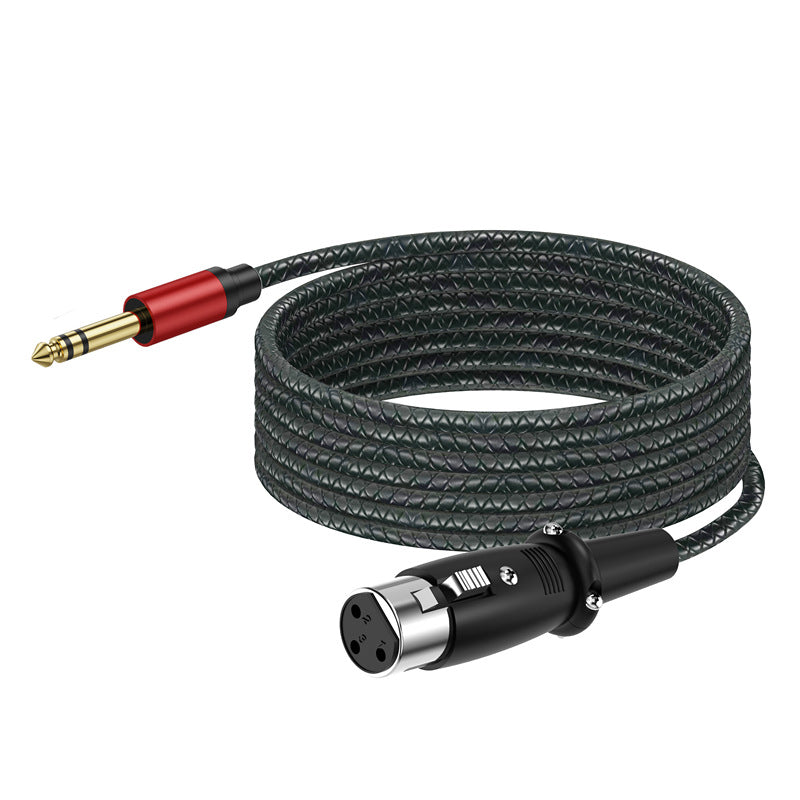

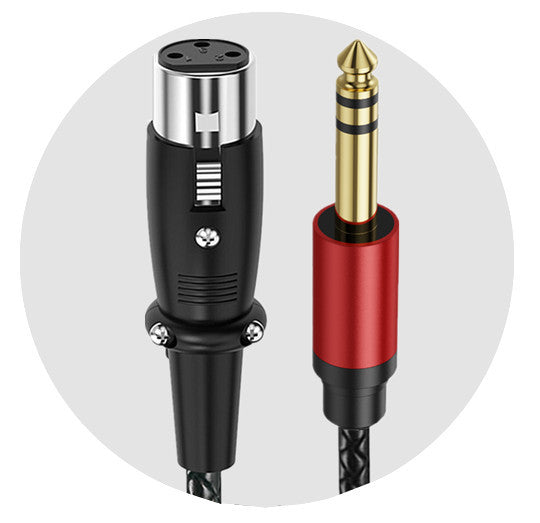

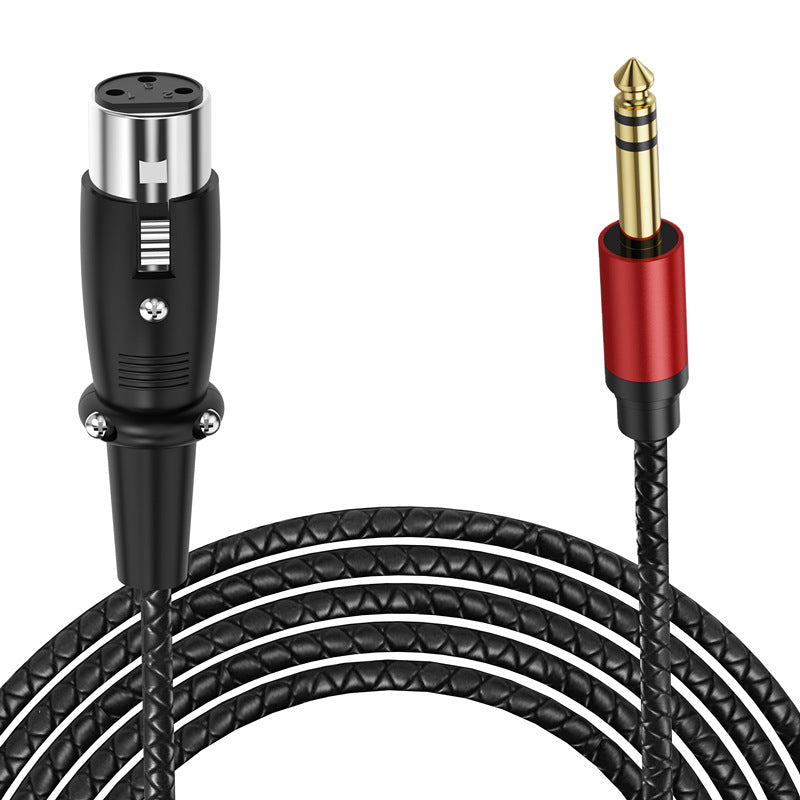

The cable features a locking 3-pin XLR female connector at one end and a gold-plated 6.35mm (1/4-inch) TRS male plug at the other. It is designed to carry a single balanced mono audio signal between compatible balanced audio connections.
The braided outer jacket provides improved resistance to wear, bending and tangling, while the reinforced connector housings help reduce strain during regular studio, stage and live sound use.
Key features:
• 3-pin XLR female connector
• 6.35mm TRS male plug
• Carries one balanced mono audio signal
• Gold-plated 6.35mm connector for reliable contact
• Locking XLR connector helps prevent accidental disconnection
• Braided outer jacket for improved durability
• Reinforced strain relief at both ends
• Passive plug-and-play audio cable
• Available in 0.3m, 2m, 3m and 5m lengths
Suitable applications:
• Microphones and wireless microphone receivers
• Mixing desks and audio mixers
• Audio interfaces and sound cards
• Microphone preamps and audio processors
• Powered speakers and studio monitors
• Stage amplifiers and professional sound equipment
• Recording studios, live performances and broadcasting
Important compatibility information:
This cable is intended for balanced mono audio connections.
Standard balanced wiring normally uses:
• XLR pin 1 to TRS sleeve: ground/shield
• XLR pin 2 to TRS tip: positive/hot
• XLR pin 3 to TRS ring: negative/cold
Although the 6.35mm plug has three contacts, it should not be described as carrying left and right stereo channels in this application. TRS connectors can carry either stereo unbalanced audio or balanced mono audio depending on the equipment and wiring.
Please confirm that both connected devices support balanced audio before ordering. This cable does not convert an unbalanced stereo signal into balanced audio and does not provide amplification.
