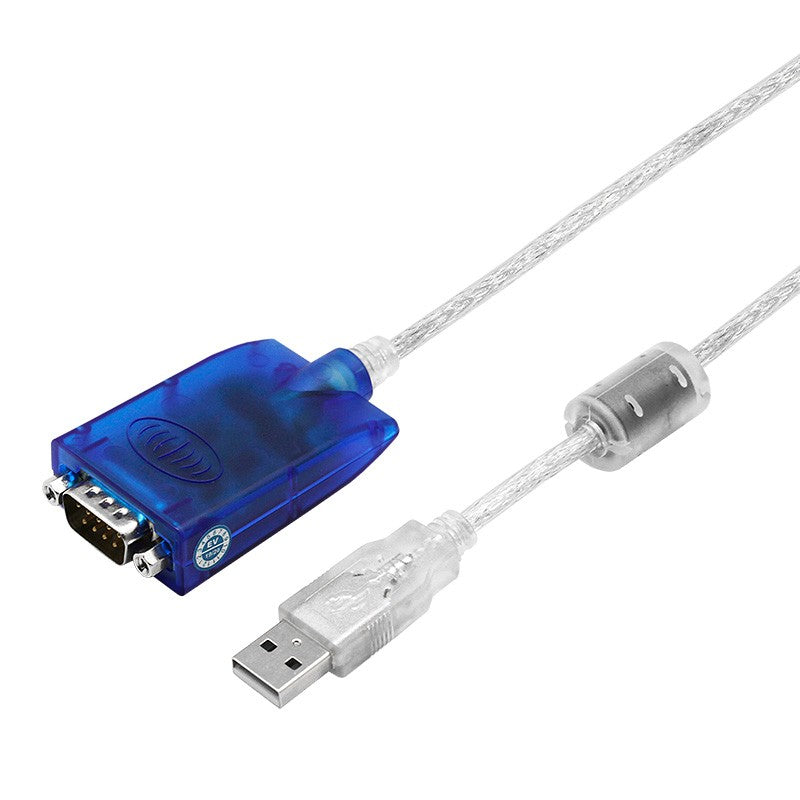

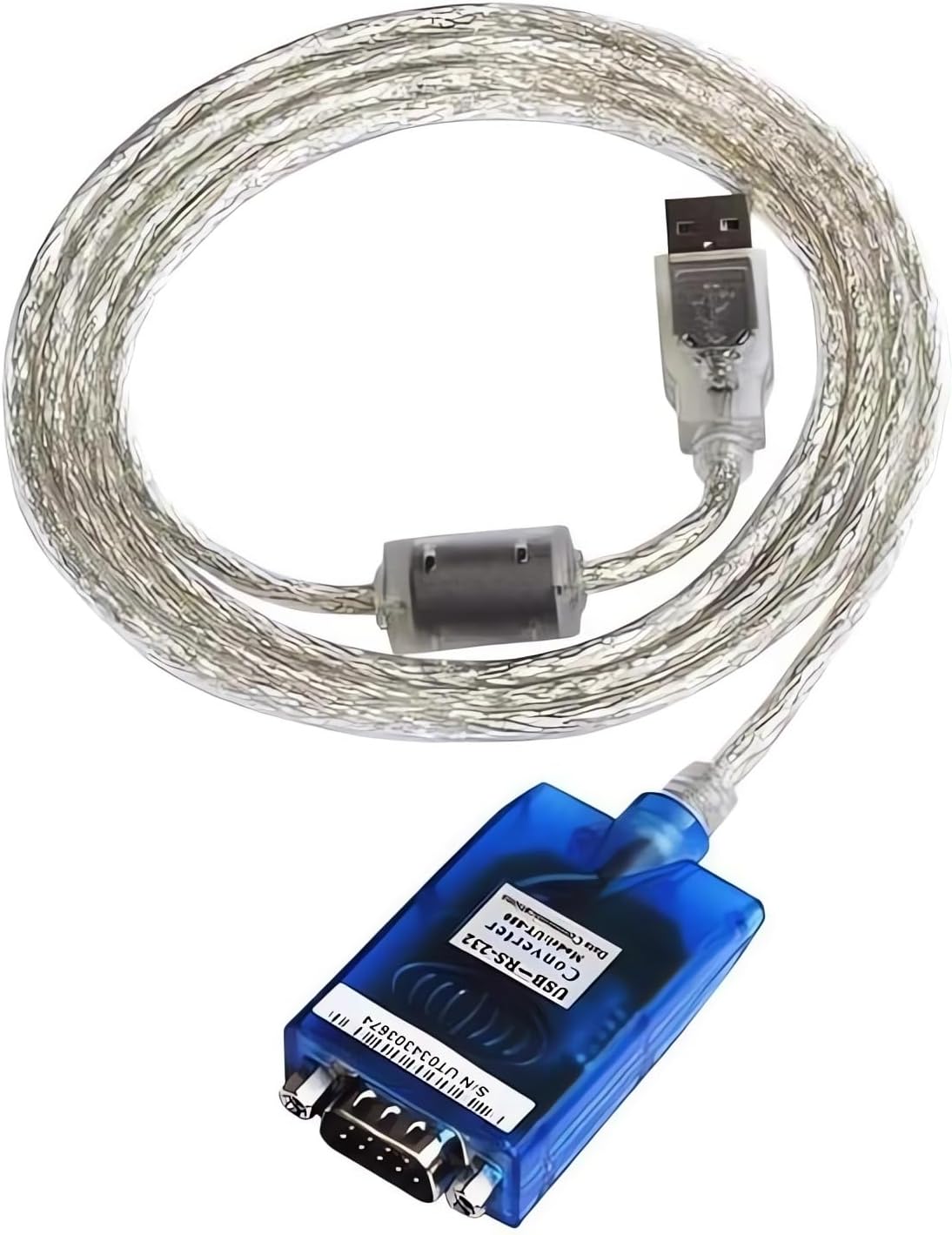

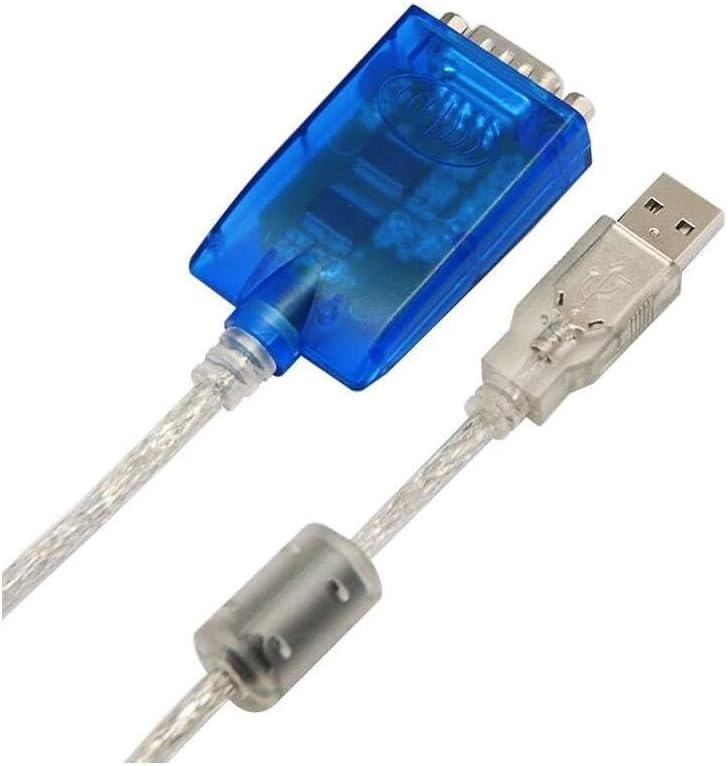

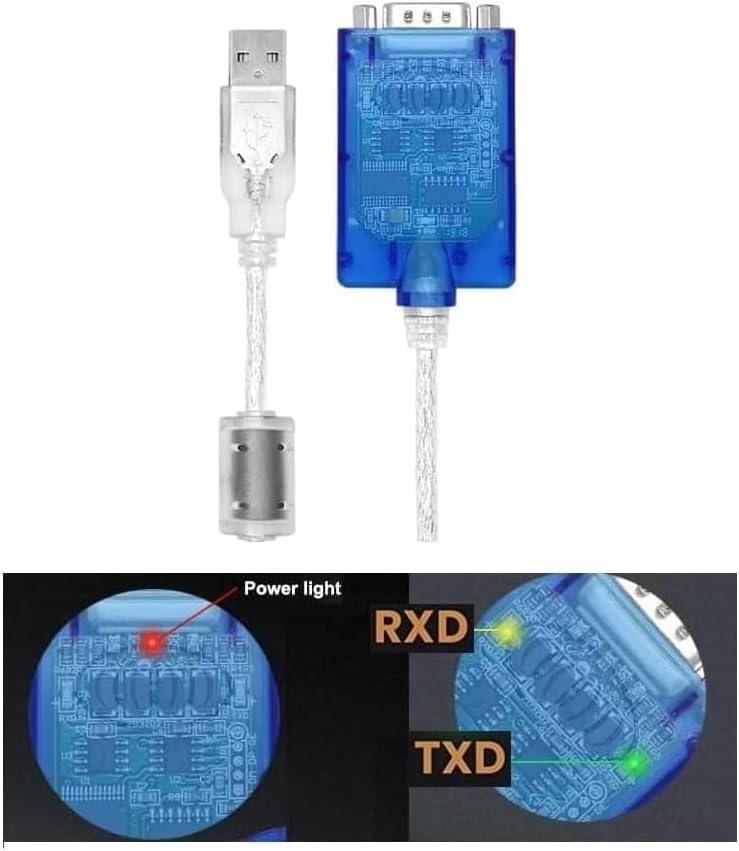

The Innov8 USB to RS232 adapter cable allows computers and laptops with a USB-A port to connect to equipment using a standard DB9 RS232 serial interface.
Ideal for industrial equipment, control systems, POS equipment, networking hardware, diagnostic devices and other legacy serial equipment.
The built-in converter supports RS232 communication with data rates from 300 to 460,800 bps, while integrated LED indicators provide a clear view of power, transmit and receive activity.
Key Features:
- USB-A male to DB9 RS232 male
- USB 2.0 interface
- RS232 serial converter
- Supports baud rates from 300 to 460,800 bps

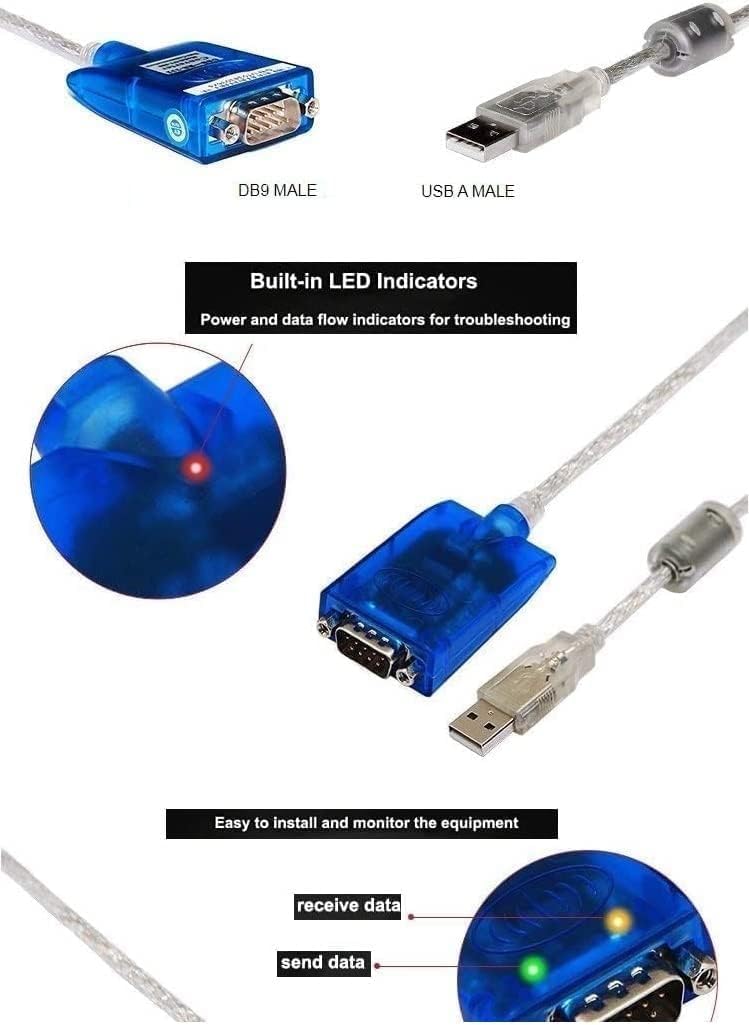

- PWR, TXD and RXD LED indicators
- ±15kV ESD port protection
- No external power supply required
- Supports point-to-point RS232 communication
- Shielded cable construction
- Suitable for industrial and commercial equipment
- Cable length: 1.5m

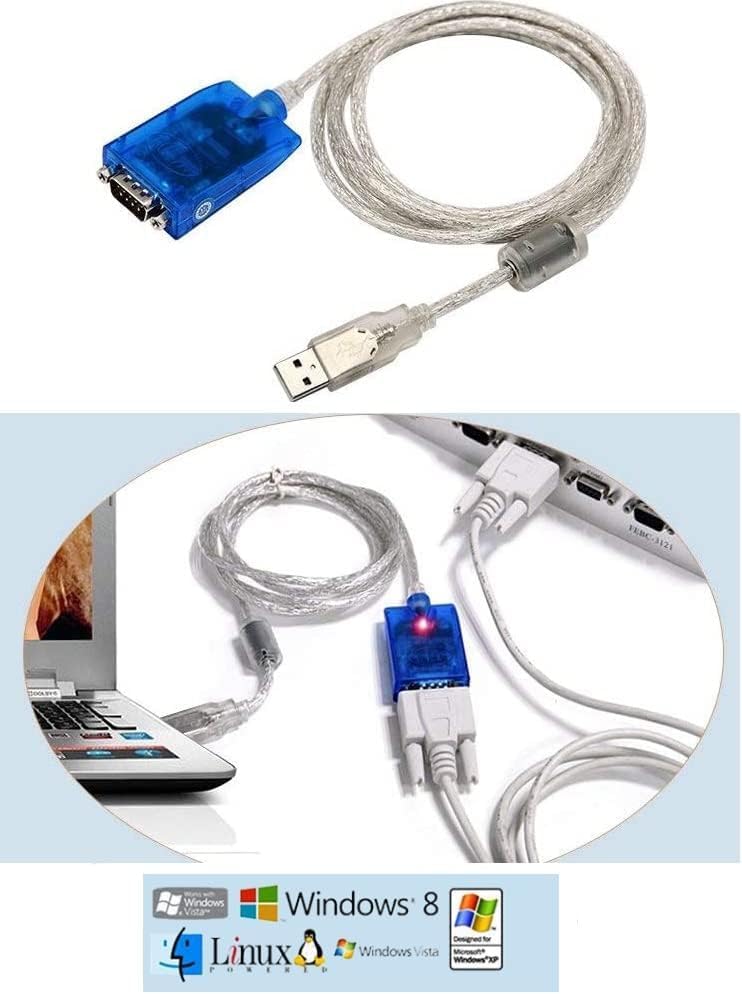

- Compatible with Windows, macOS and Linux systems where suitable drivers are supported
Specifications
Connector 1: USB Type-A Male
Connector 2: DB9 Male RS232
USB Standard: USB 2.0
Serial Standard: RS232 EIA
Baud Rate: 300–460,800 bps

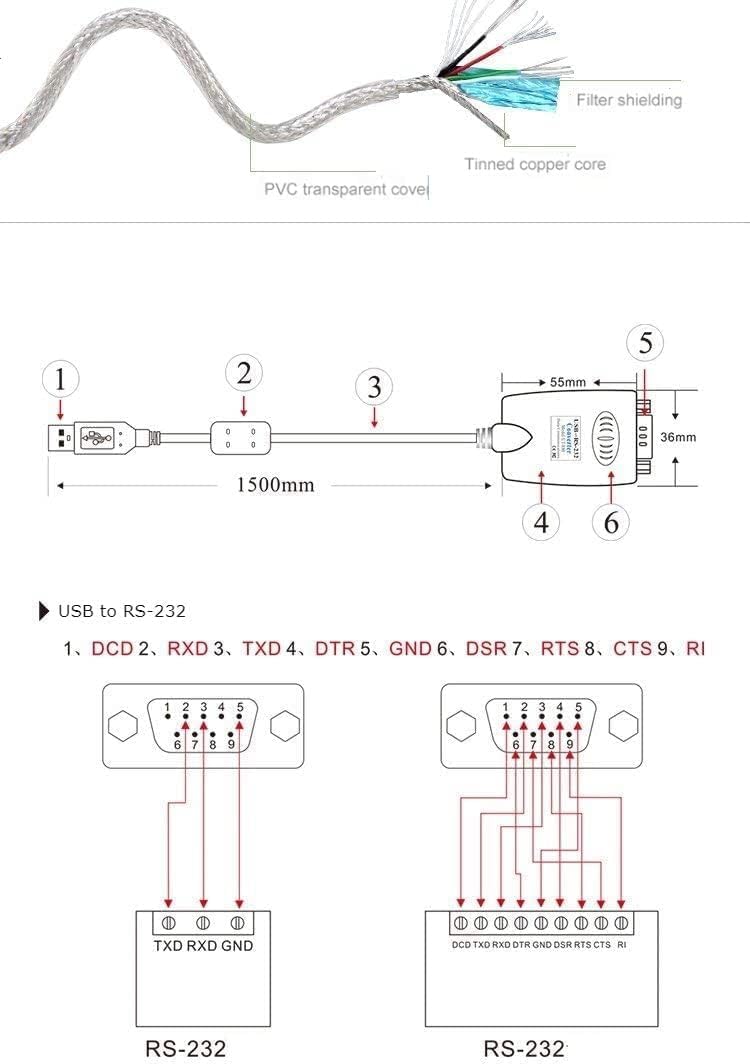

RS232 Signals: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Communication: Asynchronous, point-to-point
Protection: ±15kV ESD
Indicators: Power, TXD and RXD
Cable Length: 1.5m
Operating Temperature: -25°C to 70°C
