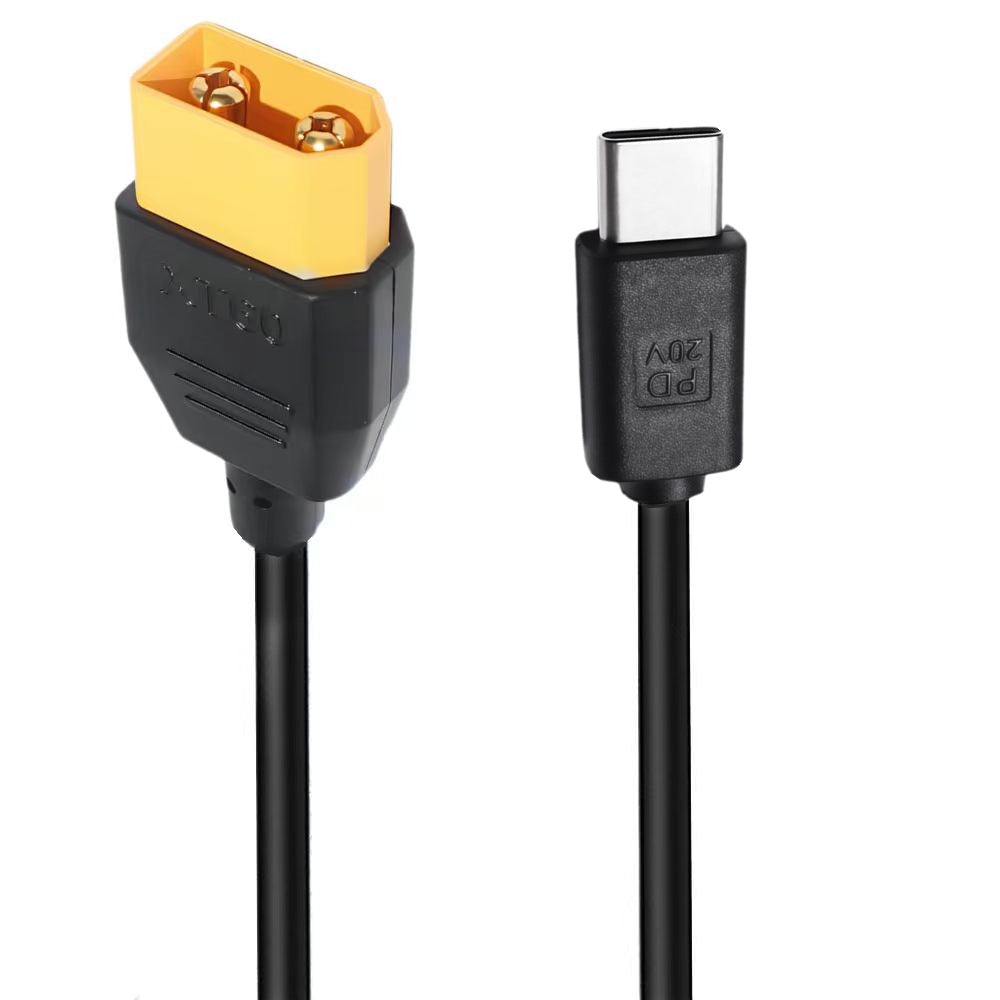

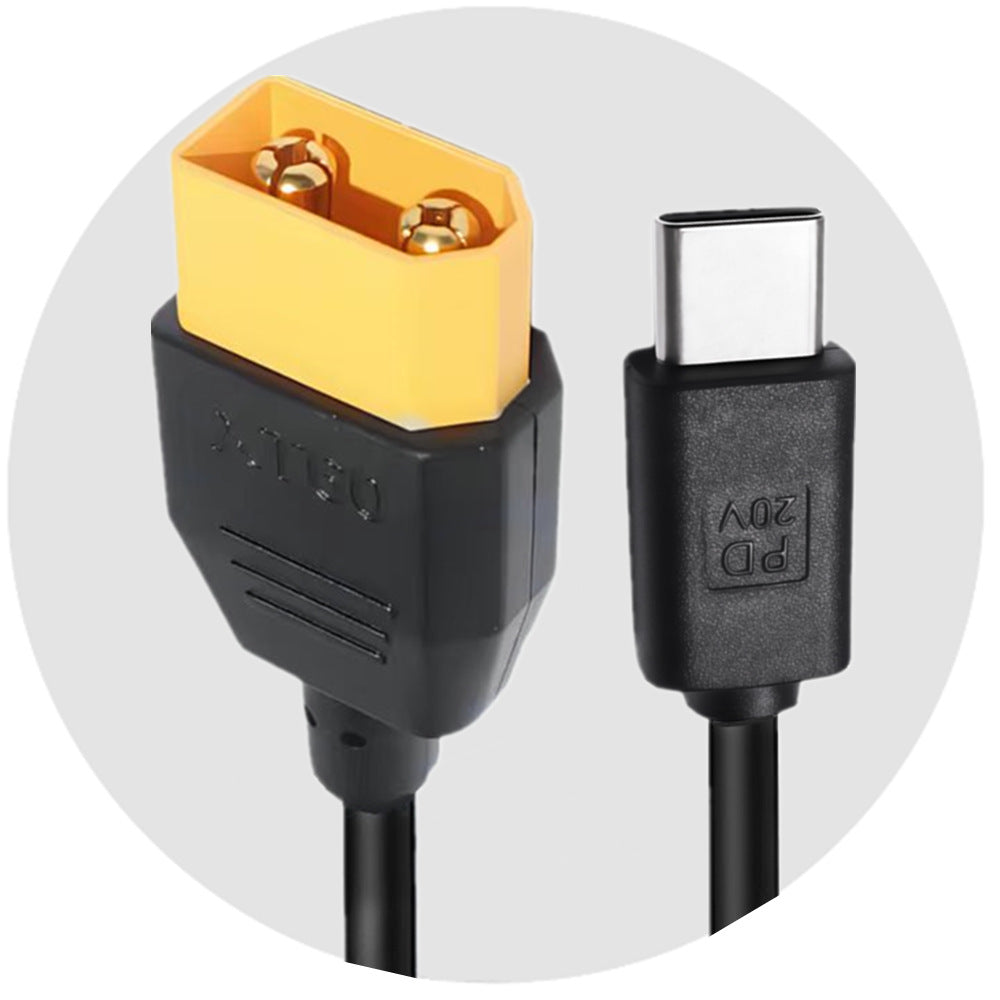

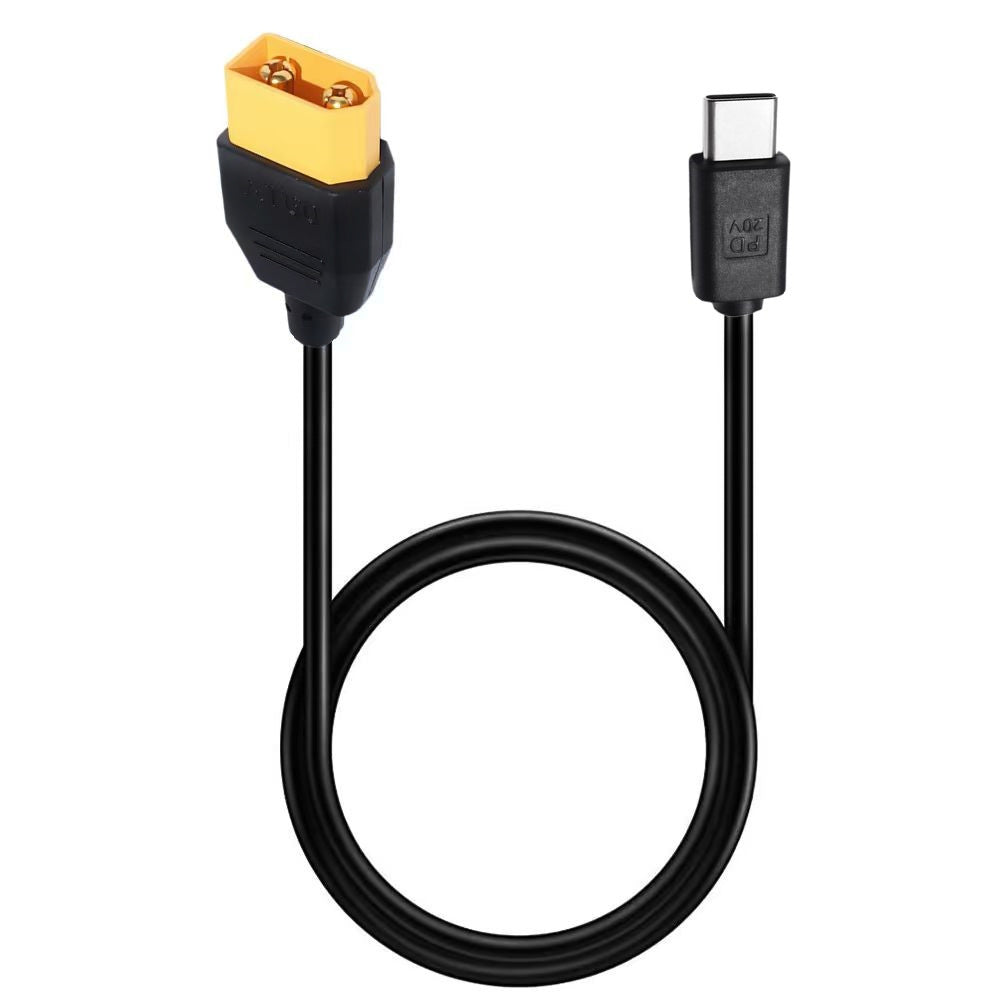

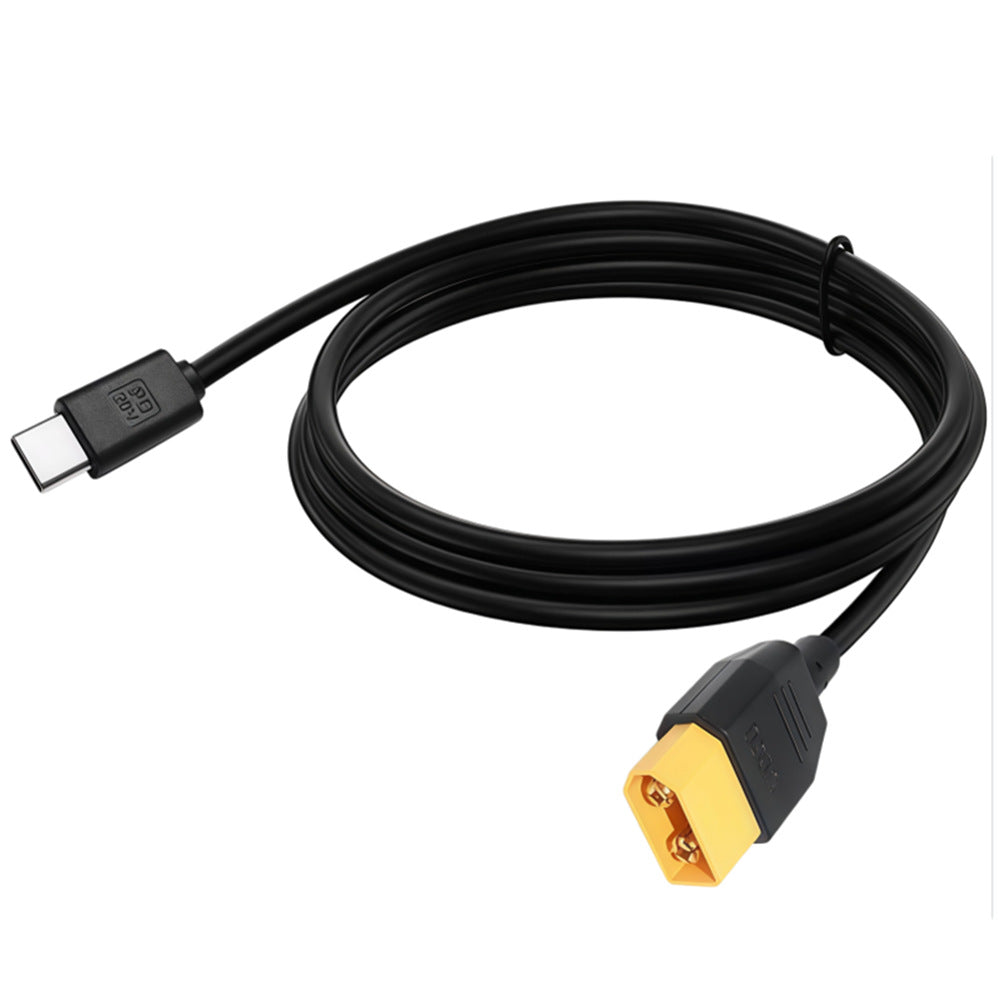

Power compatible equipment from a USB-C Power Delivery charger or power bank with this 1m USB-C to XT60 male power cable.
The USB-C connector is designed to request a 20V USB PD output from a compatible power source and deliver the power through the XT60 male connector. It supports up to 20V at 5A, providing a maximum rated output of 100W when used with suitable USB-C PD equipment.
The XT60 connector uses high-current contacts and is commonly found on RC models, FPV equipment, portable power systems and other compatible electronic devices.
Key features:
• USB-C male to XT60 male connection
• Requests a 20V USB Power Delivery output
• Maximum rated output: 20V at 5A
• Maximum rated power: 100W
• 1m cable length
• 20 AWG two-core copper conductors
• Approximate cable outer diameter: 4.0mm
• PVC outer jacket
• Suitable for compatible RC, FPV and portable electronic equipment
• Designed for power delivery only
Important compatibility requirements:
The connected USB-C charger or power bank must support a 20V USB Power Delivery output profile. A standard 5V USB-C power source will not provide the required output.
The connected equipment must be designed to accept a 20V input through its XT60 connector. Do not connect this cable directly to a battery unless the battery or charging system specifically supports a regulated 20V input through that connection.
Important safety information:
• Confirm the XT60 connector gender before ordering
• Verify positive and negative polarity before connection
• Reversed polarity can permanently damage the cable, battery and connected equipment
• This cable does not contain a battery charger, balance charger, BMS or charge controller
• It must not be used as a substitute for a dedicated RC or LiPo battery charger
• Do not use it to balance-charge multi-cell battery packs
• Maximum output depends on the charger, power bank, cable and connected equipment
• Avoid continuous operation near the maximum rating unless all connected components are suitably rated
• Disconnect immediately if the cable, connector or equipment becomes unusually hot
• Do not use with damaged batteries, connectors or cables
