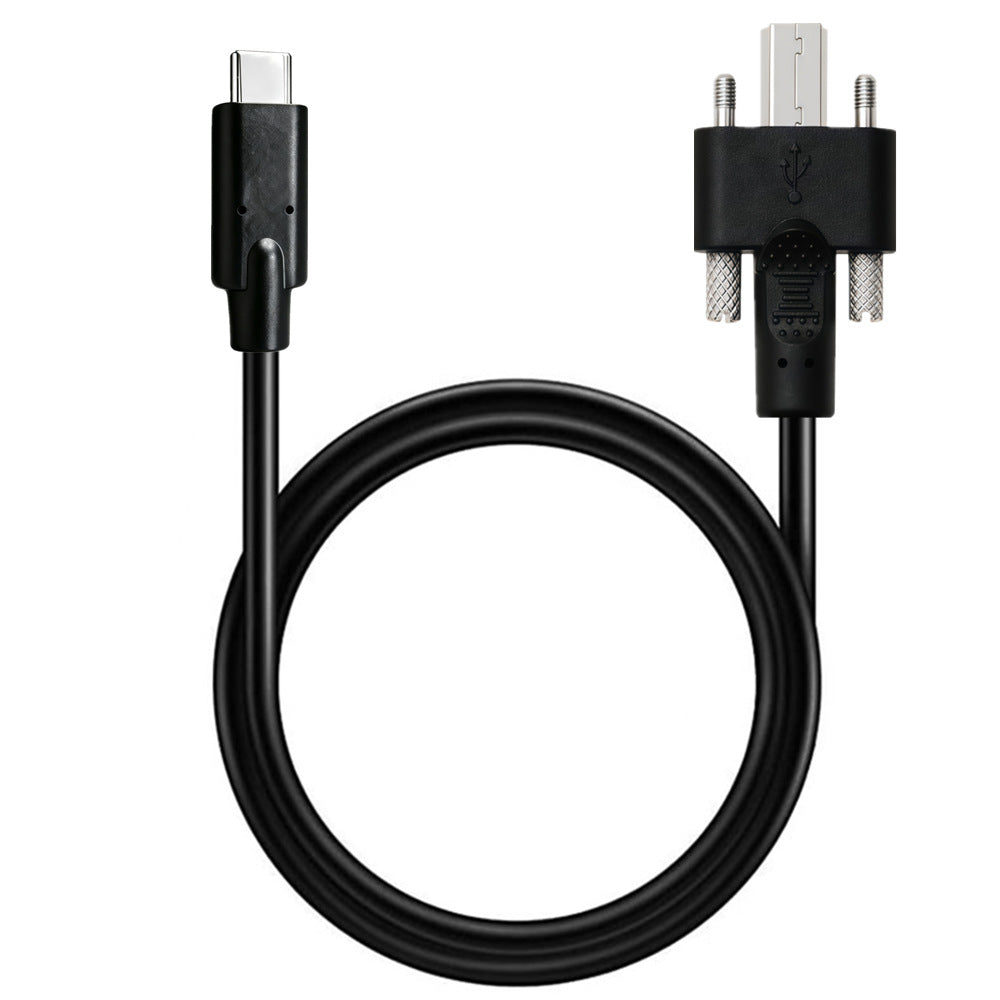

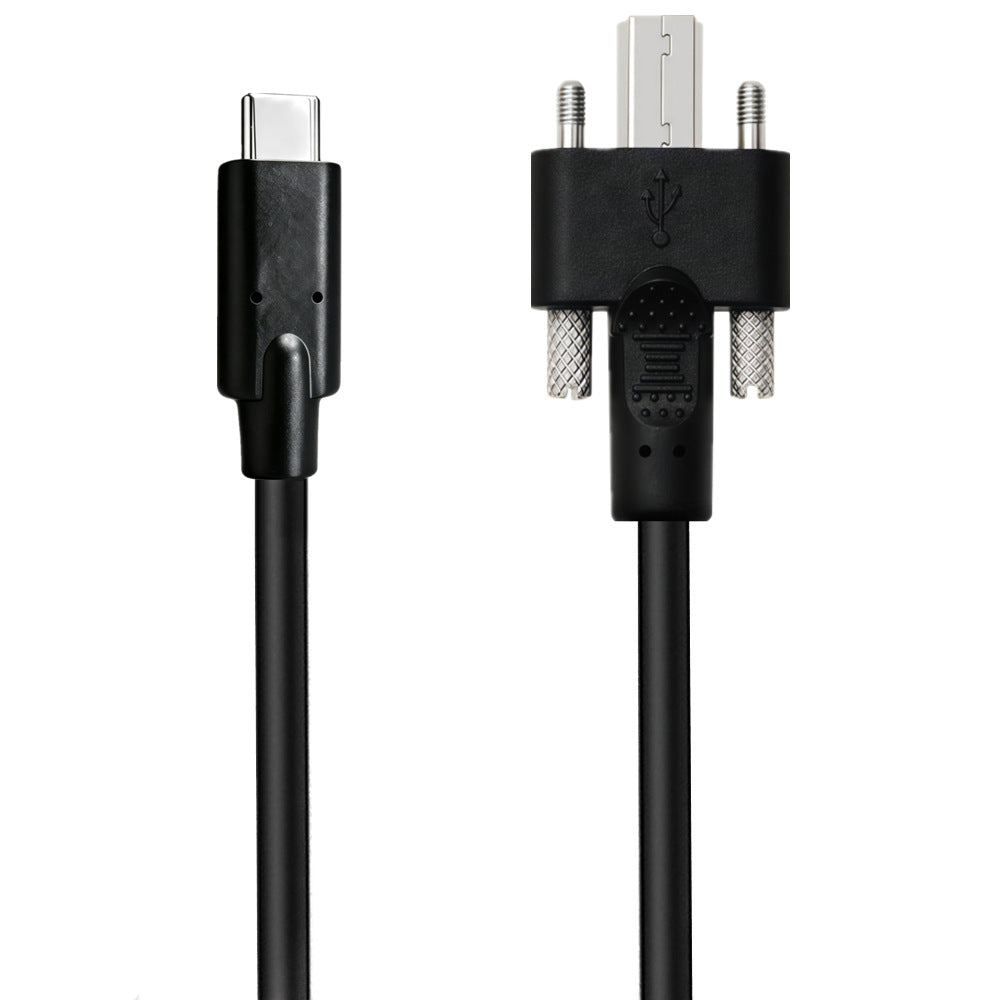

Connect USB-C equipment to compatible industrial USB 3.0 Type-B ports with this USB-C Male to USB 3.0 Type-B Male Screw-Locking Panel Cable.

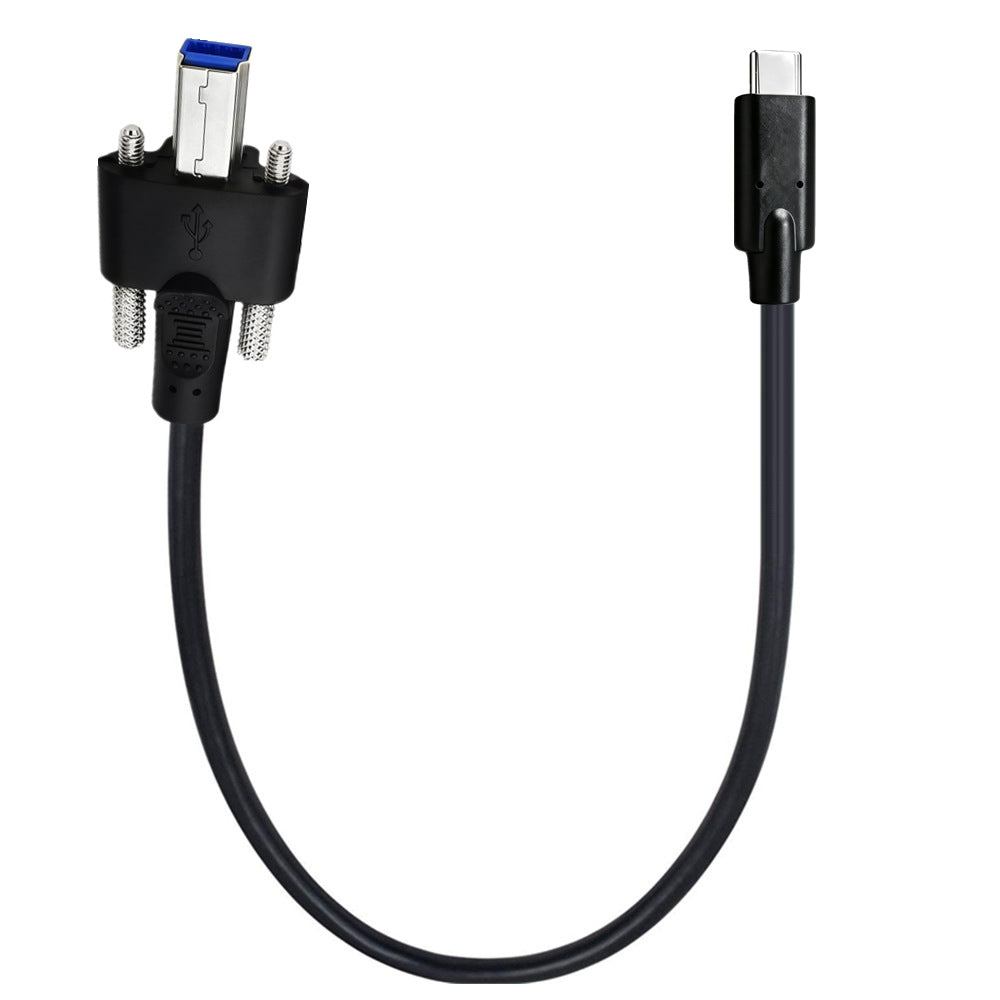

The cable features a USB-C male connector at one end and a USB 3.0 Type-B male connector with two securing screws at the other. The screw-locking Type-B connector can be fastened to a compatible threaded equipment port, helping prevent accidental disconnection in industrial, commercial and professional installations.
Supporting USB 3.0 data transfer speeds of up to 5Gbps, the cable is suitable for transferring data between industrial computers, medical equipment, self-service terminals, data-acquisition systems and compatible USB peripherals. It is also backwards compatible with lower-speed USB standards when used with compatible equipment.

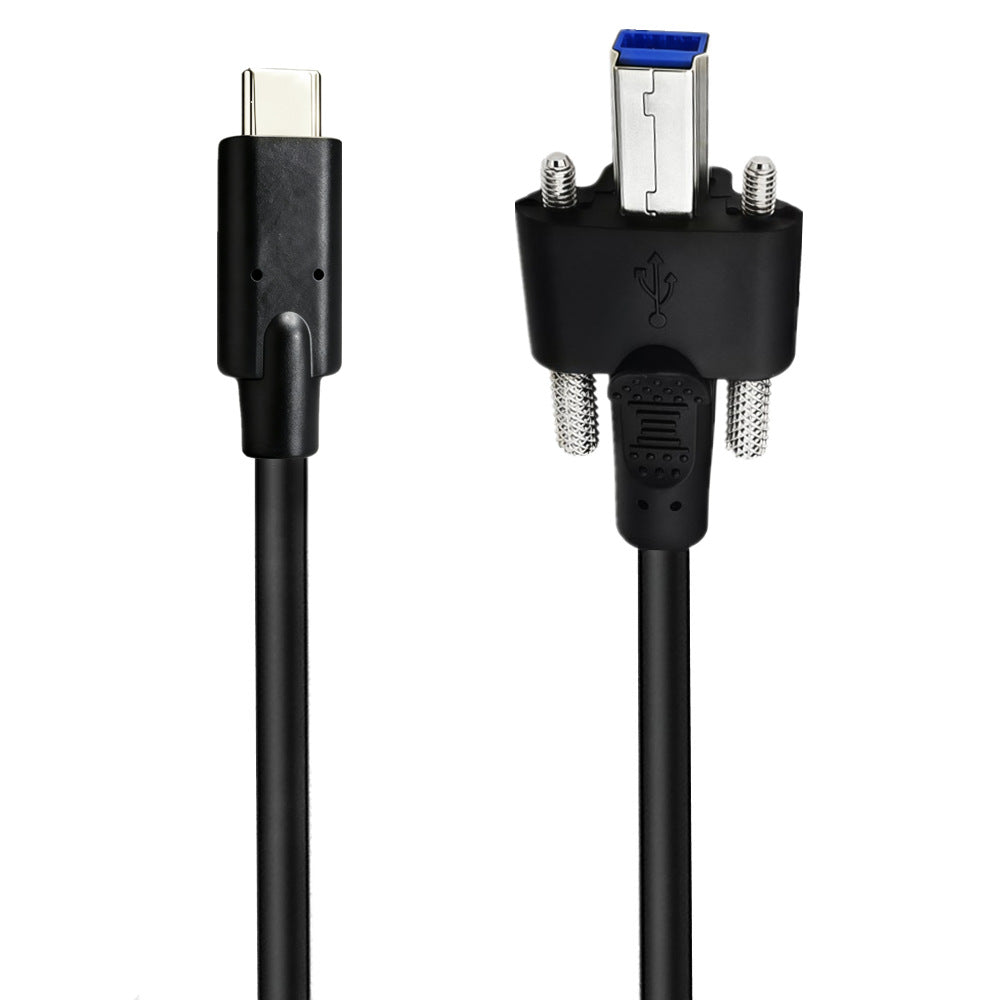

Multiple USB-C connector orientations are available, including straight, up-angle, down-angle and side-angle options. These choices make the cable easier to install inside compact enclosures, behind equipment panels and in restricted spaces where a conventional straight connector may place excessive strain on the cable.
The cable uses copper conductors with shielding to help reduce electromagnetic interference and maintain a stable data connection. Its durable PVC outer jacket, moulded connector housings and reinforced strain relief are designed for frequent use in professional environments.
Key Features:
• USB-C male to USB 3.0 Type-B male cable
• Two screw locks on the USB Type-B connector
• Helps prevent accidental disconnection
• USB 3.0 data transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1 equipment
• Straight and angled USB-C connector options
• Suitable for compact equipment and panel installations
• Shielded copper conductors for stable data transmission
• Durable PVC cable jacket
• Reinforced moulded connector housings
• Available in 0.5m and 1m lengths
USB-C Connector Options:
• Straight
• Up angle
• Down angle
• Side angle
Suitable Applications:
• Industrial computers and control systems
• Self-service kiosks and ticket machines
• Point-of-sale equipment
• Medical and laboratory equipment
• Embedded computers
• Data-acquisition instruments
• Industrial cameras and scanners
• Server and equipment enclosures
• Vehicle-mounted industrial systems
• Test and measurement equipment
Installation:
1. Connect the USB-C male plug to the compatible USB-C host or device.
2. Insert the USB 3.0 Type-B male connector into the matching female port.
3. Tighten both securing screws evenly by hand until the connector is held securely.
4. Avoid overtightening the screws, as this may damage the connector housing or equipment threads.
Compatibility Information:
This cable is designed for USB data transfer and standard USB power delivery associated with the connected USB interface.
It does not support USB-C DisplayPort Alt Mode video output or USB Power Delivery fast charging.
The connected USB-C equipment must support USB data communication. A USB-C port used only for charging may not provide data transfer.
Maximum performance depends on the connected equipment, port specification and cable length.
