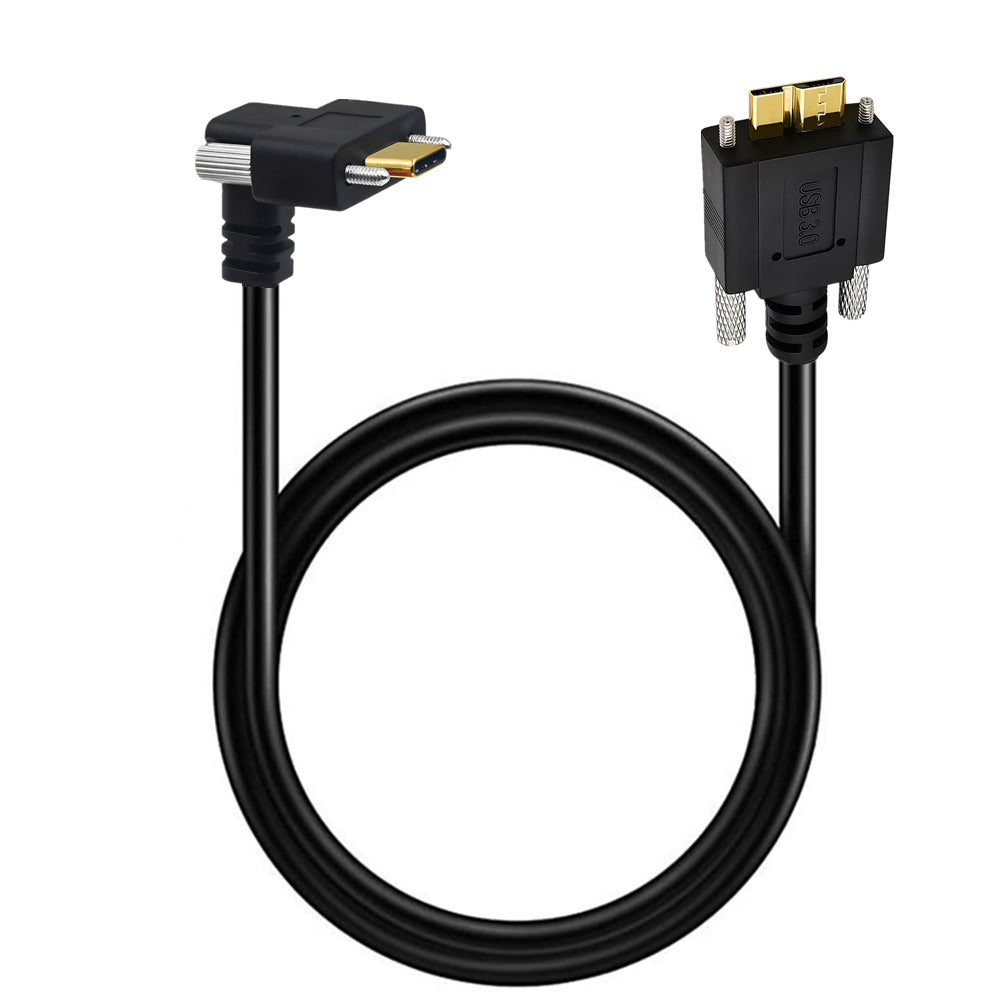

USB-C to Micro USB 3.0 Type-B male cable with an up-angle USB-C connector, straight Micro USB 3.0 connector and secure screw-locking retention at both ends.
Designed for industrial cameras, machine-vision systems, embedded computers and compact equipment installations, this industrial USB cable provides a stable USB 3.0 data connection in applications exposed to vibration, equipment movement or repeated use.
The 90-degree up-angle USB-C connector reduces the installation space required behind the USB-C port and helps route the cable away from enclosure panels and nearby components. The straight Micro USB 3.0 Type-B connector is suitable for compatible industrial cameras, image-acquisition equipment and data devices requiring direct connector access.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male
• 90-degree up-angle USB-C connector
• Straight Micro USB 3.0 Type-B connector

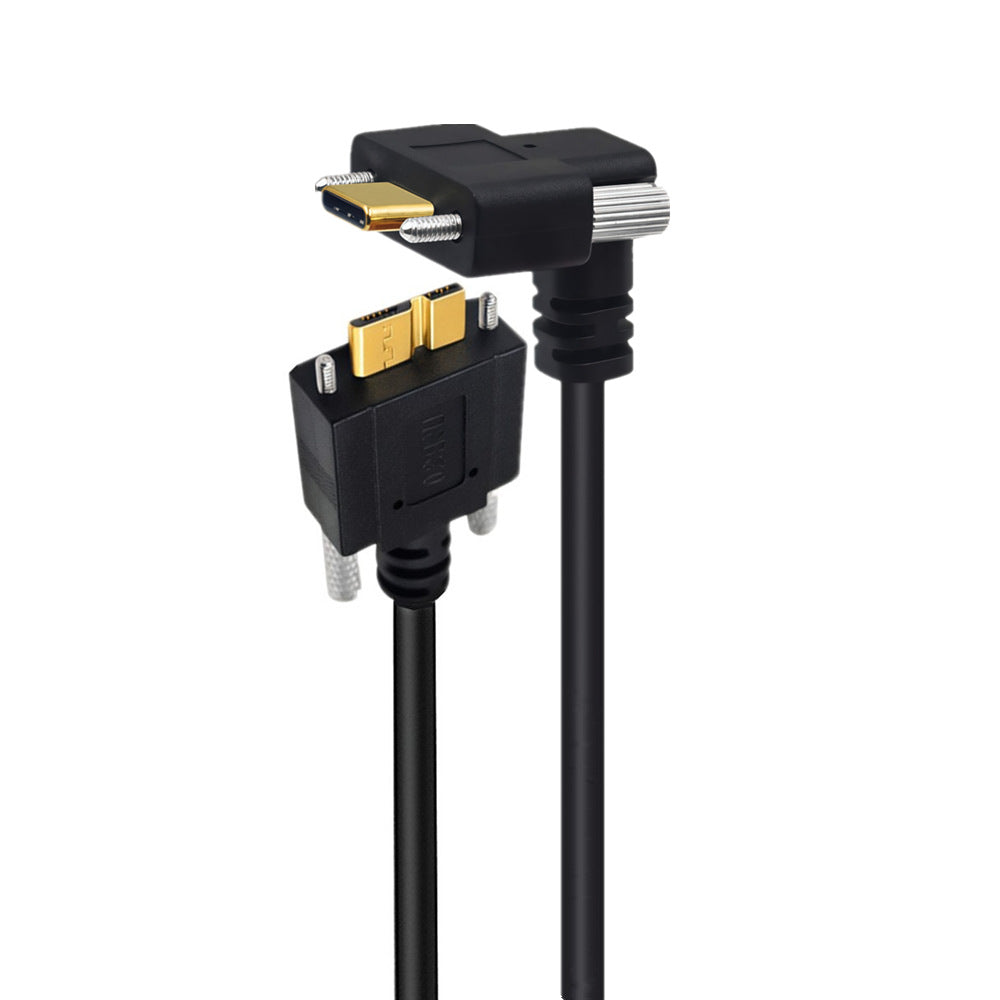

• Dual screw-locking retention at both ends
• USB 3.0 Gen 1 data transfer up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Secure connection for vibration-prone installations
• Helps prevent accidental disconnection
• Up-angle USB-C design reduces installation clearance
• Shielded cable construction for stable data transmission
• Suitable for industrial cameras and machine-vision equipment
• Available in 0.6m and 1m lengths
• Black industrial cable
• Data connection only
• Does not support USB-C video output
• Does not support USB Power Delivery fast charging
Connector Configuration:
USB-C End:
• Connector: USB Type-C male
• Orientation: 90-degree up angle
• Retention: Dual screw-locking
• Application: Compatible locking USB-C female equipment ports
Micro USB End:
• Connector: Micro USB 3.0 Type-B male
• Orientation: Straight
• Retention: Dual screw-locking
• Application: Compatible industrial cameras, imaging equipment and data-acquisition devices
Keyword-Focused Product Benefits:
USB-C to Micro USB 3.0 Connection:
This cable converts a compatible USB-C equipment connection to a Micro USB 3.0 Type-B male interface for industrial data communication.

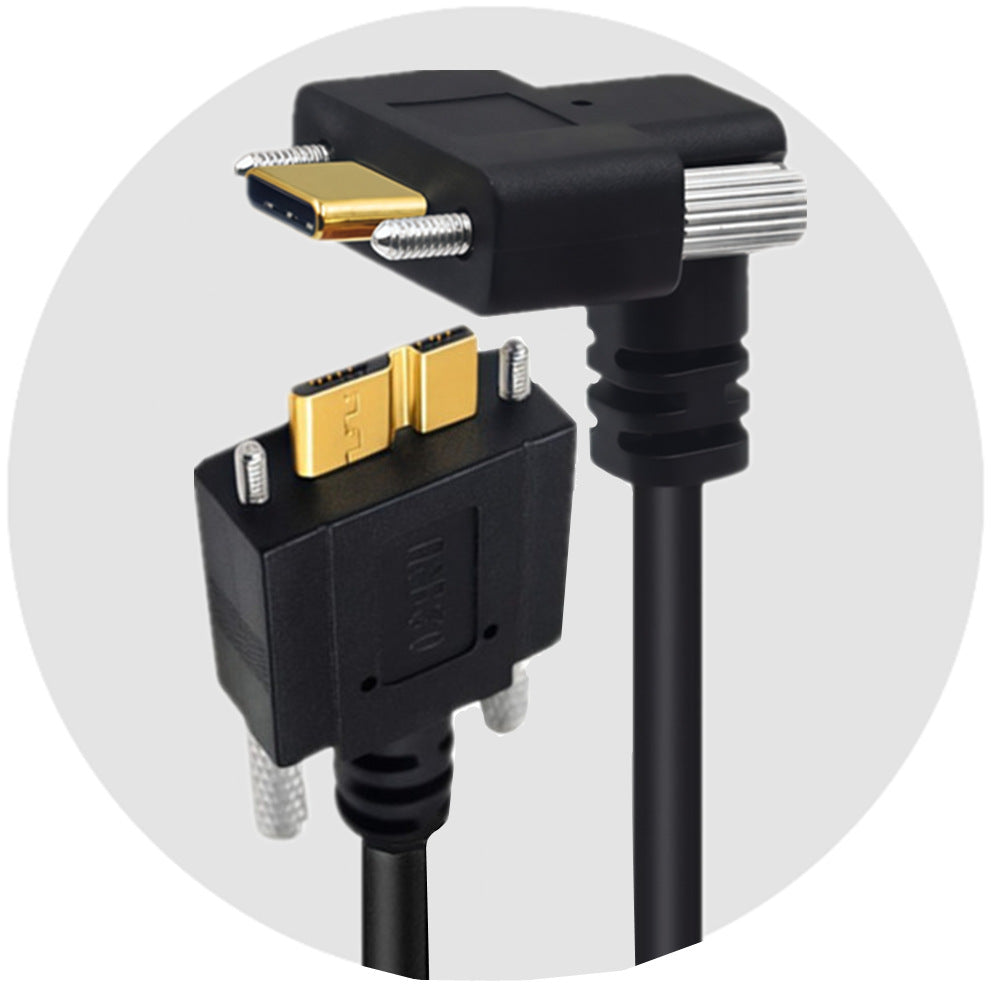

Dual Screw-Locking Design:
Both connectors include locking screws that secure the cable to compatible threaded equipment ports. This helps reduce intermittent connections, accidental unplugging and data interruption caused by vibration or movement.
Up-Angle USB-C Connector:
The up-angle USB-C connector directs the cable away from the rear of the connected equipment. This helps reduce cable bending, saves installation space and improves routing inside compact enclosures.
Straight Micro USB 3.0 Connector:
The straight Micro USB 3.0 Type-B connector provides direct access to compatible industrial camera and equipment ports where an angled connector is not required.
USB 3.0 Data Performance:
Supports USB 3.0 Gen 1 data transfer speeds up to 5Gbps when connected to compatible USB 3.0 host equipment and devices.
Actual transfer speed depends on the connected equipment, USB controller, operating system, cable length and installation environment.
Shielded Industrial Cable:
The cable uses shielded construction to help reduce electromagnetic interference from motors, power supplies and other electrical equipment commonly found in industrial environments.
Suitable Applications:
• Industrial cameras
• Machine-vision cameras
• Vision inspection systems
• Image-acquisition equipment
• Factory automation systems
• Embedded industrial computers
• Industrial control systems
• Data-acquisition equipment
• Laboratory instruments
• Medical testing equipment
• Self-service terminals
• Automated retail systems
• Vehicle-mounted industrial equipment
• Compact equipment enclosures
• Custom industrial machinery
Installation Instructions:
1. Switch off the connected equipment before installation.
2. Check that both equipment ports match the cable connectors.
3. Align the up-angle USB-C male plug with the compatible USB-C female port.
4. Insert the USB-C connector fully without forcing it.
5. Tighten both USB-C locking screws evenly.
6. Insert the straight Micro USB 3.0 Type-B male plug into the compatible device port.
7. Tighten both Micro USB locking screws evenly without overtightening.
8. Route the cable without excessive tension, crushing or sharp bends.
9. Restore power and confirm that the connected device is detected correctly.
Important Compatibility Information:
• Both connectors are male.
• The USB-C end requires a compatible USB-C female port.
• The Micro USB end requires a Micro USB 3.0 Type-B female port.
• Both equipment ports must have compatible threaded mounting points.
• Confirm the locking-screw spacing before ordering.
• Confirm the screw thread size before ordering.
• Confirm that the up-angle USB-C cable direction suits the installation.
• Angle direction depends on the orientation of the equipment port.
• Micro USB 3.0 Type-B is wider than Micro USB 2.0.
• This cable is intended for USB data communication.
• It does not support DisplayPort Alternate Mode video.
• It does not support USB Power Delivery fast charging.
• High-power USB devices may require independent power.
Available Lengths:
• 0.6m
• 1m
Customisation Options:
• Alternative cable lengths
• Down-angle USB-C connector
• Left-angle USB-C connector
• Right-angle USB-C connector
• Angled Micro USB 3.0 connectors
• Custom locking-screw spacing
• Ferrite core installation
• Custom cable construction
• OEM production
• Custom connector moulding
What’s Included:
• 1 x USB-C to Micro USB 3.0 Type-B male dual screw-locking industrial cable
