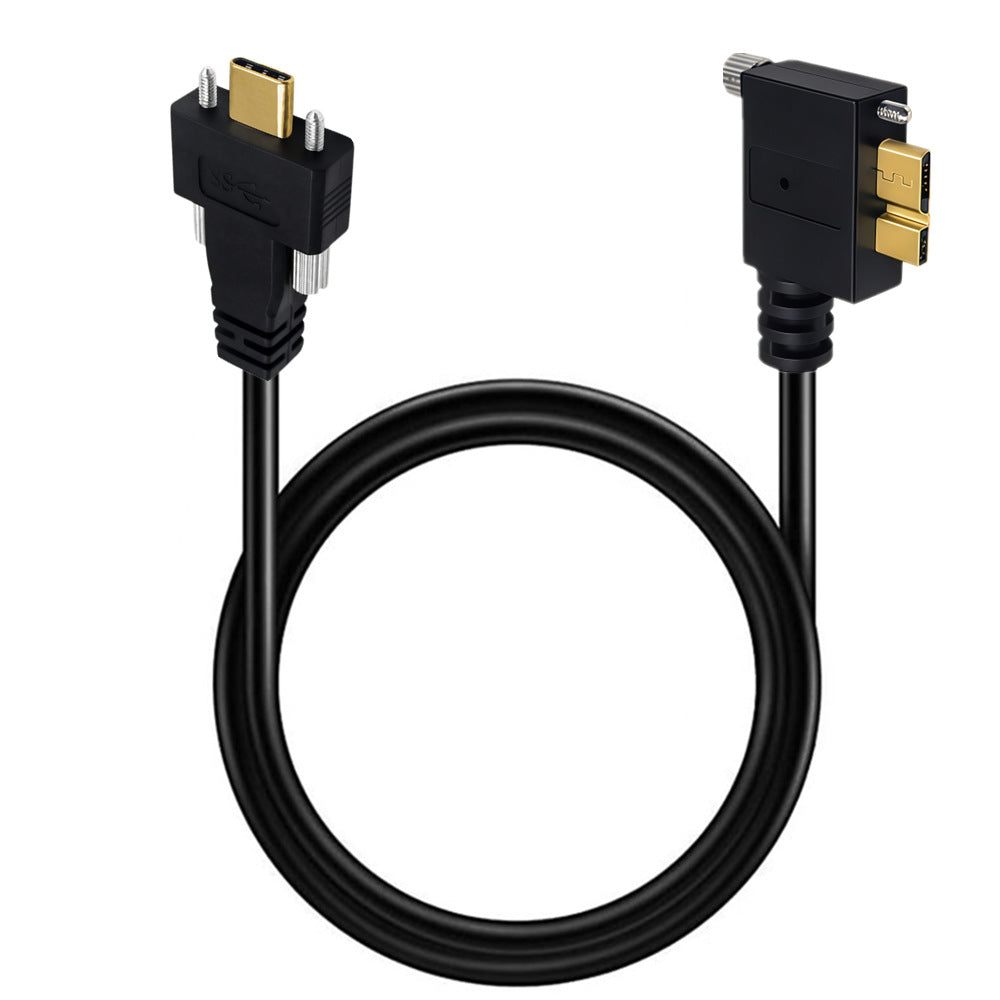

Create a secure, space-saving USB connection for industrial cameras and professional equipment with this USB-C Dual-Screw Locking Male to Left-Angle Micro USB 3.0 Type-B Male Cable.

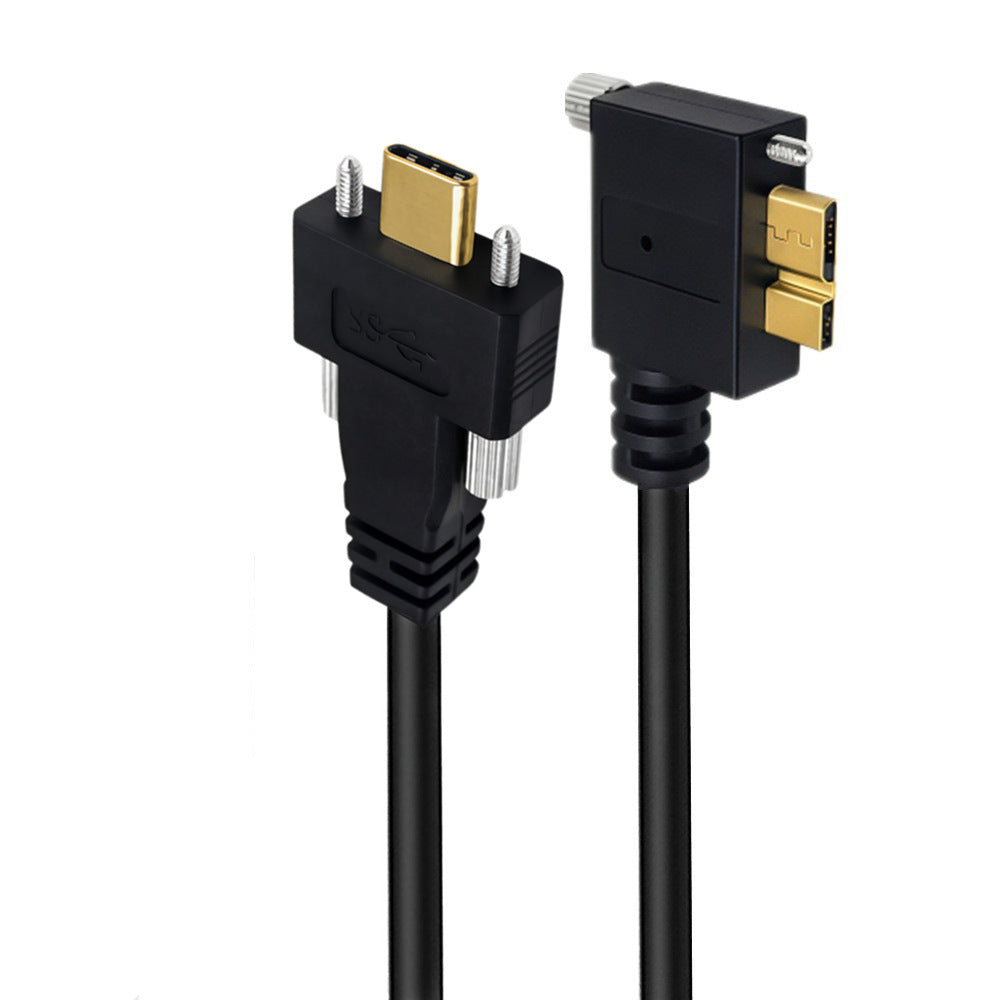

The cable features a straight USB-C male connector with two locking screws at one end and a 90-degree left-angle Micro USB 3.0 Type-B male connector with a screw-locking design at the other.
Both connectors can be secured to compatible threaded device ports, helping prevent accidental disconnection caused by vibration, equipment movement or continuous industrial operation. The angled Micro USB 3.0 connector keeps the cable close to the equipment housing, reduces installation depth and helps relieve strain on the connected port.
Supporting USB 3.0 data-transfer speeds of up to 5Gbps, this cable is suitable for industrial vision cameras, machine-vision systems, data-acquisition equipment, embedded computers and other professional devices requiring a stable high-speed USB connection.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• Straight USB-C connector with two locking screws
• 90-degree left-angle Micro USB 3.0 Type-B connector
• Screw-locking connection at both ends
• Helps prevent loosening and accidental disconnection
• Space-saving angled Micro USB connector
• Helps reduce strain on equipment ports
• Suitable for vibration-prone industrial environments
• USB 3.0 data-transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Shielded cable construction for stable data transmission
• Durable black PVC outer jacket
• Reinforced moulded connector housings
• Suitable for continuous professional operation
• Available in 0.6m and 1m lengths

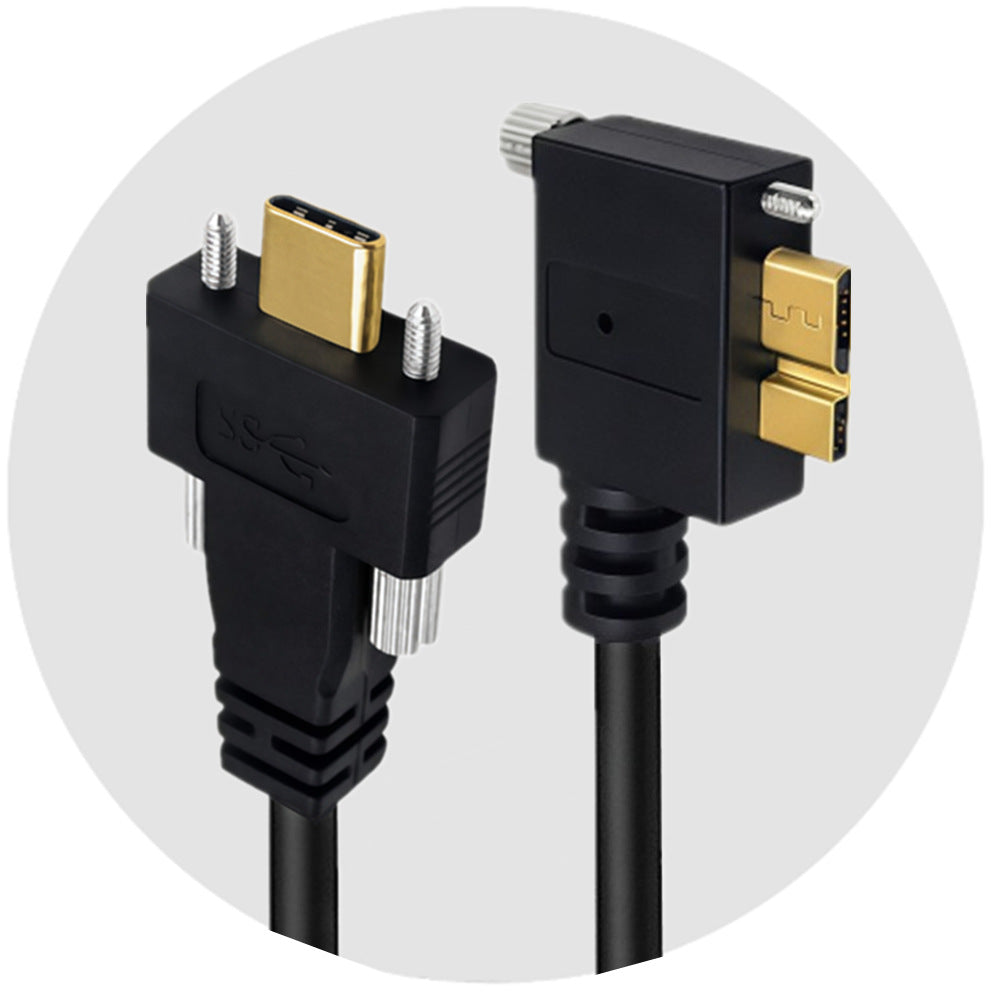

USB-C Dual-Screw Locking Connector:
The straight USB-C male plug includes two locking screws positioned on either side of the connector. These can be tightened into a compatible threaded USB-C port to provide a more secure connection than an ordinary friction-fit USB-C plug.
The screw spacing, thread size and mounting-hole positions must match the connected equipment. The locking function cannot be used with a standard USB-C socket without compatible threaded holes.
Left-Angle Micro USB 3.0 Type-B Connector:
The Micro USB 3.0 Type-B male connector uses a 90-degree left-angle design, directing the cable sideways and keeping it close to the equipment housing. This is suitable for compact enclosures, closely positioned equipment and installations where a straight plug would extend too far from the port.
The Micro USB 3.0 Type-B connector is wider than a standard Micro USB 2.0 plug. Please check the equipment interface carefully before ordering.
Suitable Applications:
• Industrial vision cameras
• Machine-vision inspection systems
• Image-acquisition equipment
• Industrial computers and controllers
• Embedded computer systems
• Data-acquisition equipment
• Medical and laboratory instruments
• Barcode and document scanners
• Test and measurement equipment
• Factory automation machinery
• Vehicle-mounted industrial systems
• Custom control and monitoring equipment
Installation:
1. Switch off or safely stop the connected equipment.
2. Insert the USB-C male connector into a compatible locking USB-C port.
3. Align and tighten both USB-C locking screws evenly by hand.
4. Insert the angled Micro USB 3.0 Type-B connector into the compatible device port.
5. Align and tighten the locking screws gently.
6. Do not overtighten the screws, as excessive force may damage the connector housing or equipment threads.
Compatibility Information:

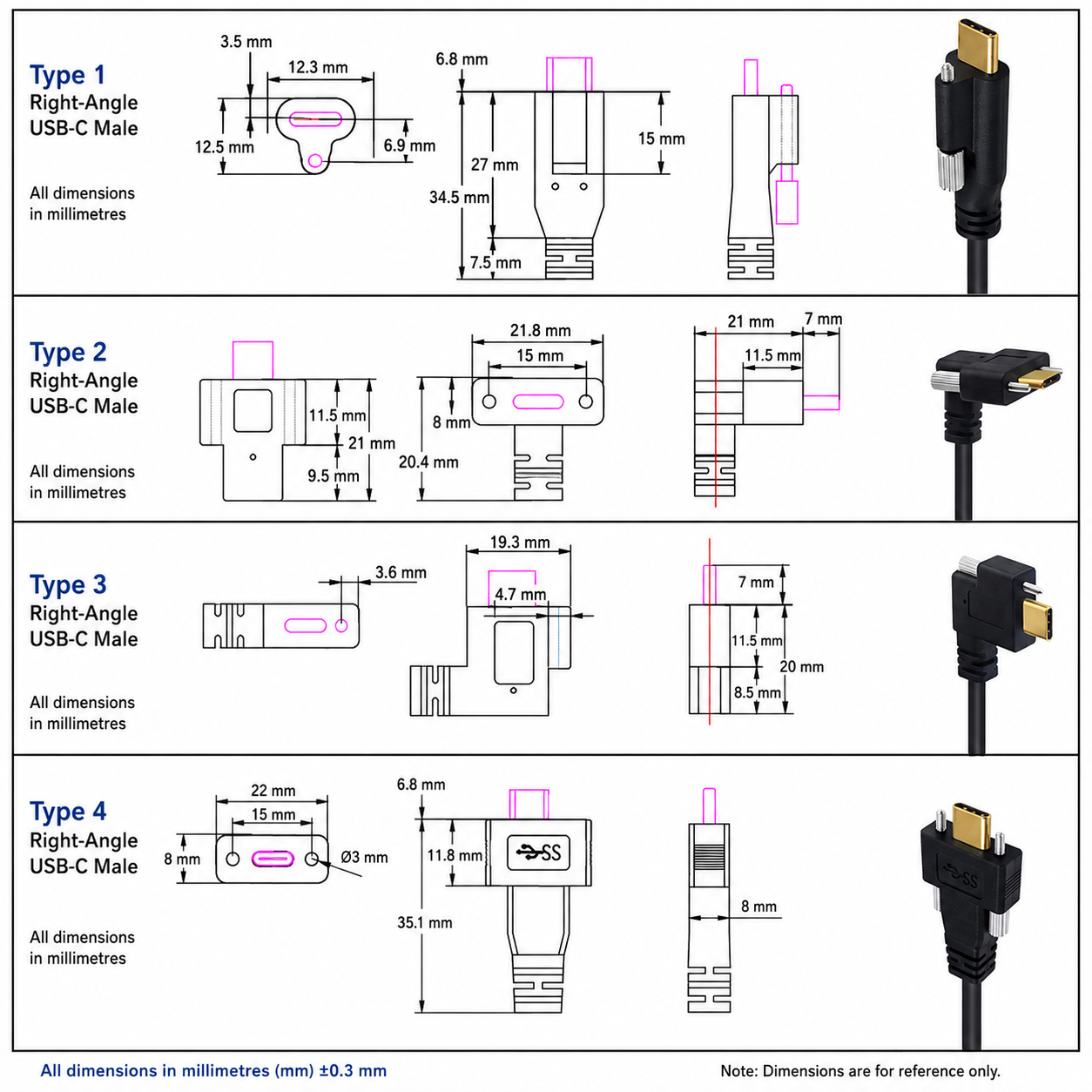

The locking-screw spacing and thread size must match the connected equipment.
Please confirm the required Micro USB angle direction before ordering. Angle direction should be identified while looking directly into the equipment’s Micro USB port.
Both connectors are male.
This cable is intended for USB data transfer and standard USB bus power. It does not support DisplayPort Alt Mode video output or USB Power Delivery fast charging.
Maximum transfer speed depends on the USB specification supported by both connected devices.
