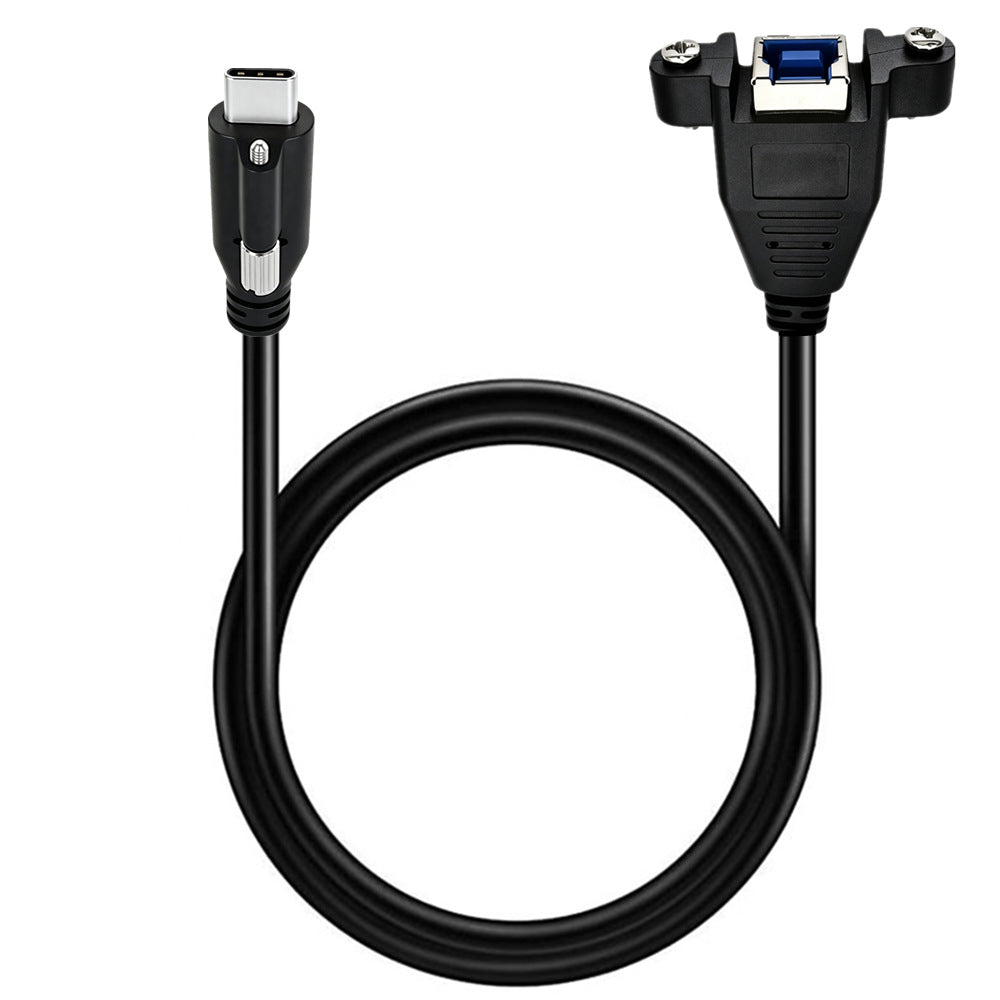

Create a secure and accessible USB connection for industrial equipment with this USB-C Single-Screw Locking Male to USB 3.0 Type-B Female Panel Mount Extension Cable.

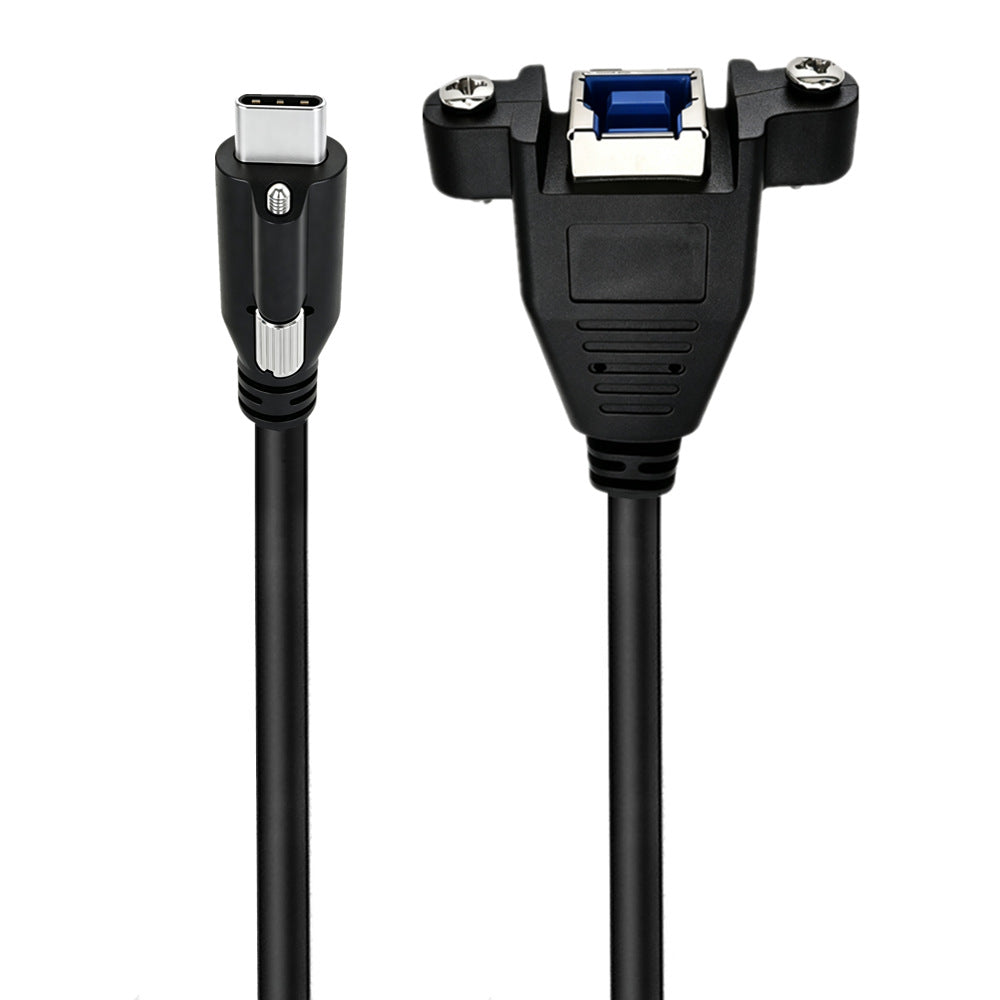

The cable features a straight USB-C male connector with one locking screw at one end and a USB 3.0 Type-B female panel-mount socket with two fixing screws at the other. The locking USB-C connector helps prevent accidental disconnection, while the Type-B female socket can be securely installed on an equipment panel, enclosure or machine housing.
Supporting USB 3.0 data-transfer speeds of up to 5Gbps, this cable is suitable for industrial computers, self-service terminals, medical equipment, test instruments, embedded systems and other professional applications requiring a stable panel-mounted USB connection.
Key Features:
• USB-C male to USB 3.0 Type-B female extension cable
• Single-screw locking USB-C connector
• USB 3.0 Type-B female panel-mount socket
• Two fixing screws for secure panel installation
• Helps prevent accidental USB-C disconnection
• Creates an accessible external USB Type-B port
• USB 3.0 data-transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Shielded construction for reliable data transmission
• Durable black PVC outer jacket
• Reinforced moulded connector housings
• Suitable for vibration-prone industrial installations
• Available in 0.5m and 1m lengths
USB-C Single-Screw Locking Connector:
The USB-C male plug includes one locking screw positioned below the connector. It can be tightened into a compatible threaded USB-C port to provide a more secure connection than a standard friction-fit USB-C plug.
The equipment must have a matching threaded mounting hole in the correct position. The screw-locking feature cannot be used with an ordinary USB-C port without a compatible screw hole.
USB Type-B Panel-Mount Socket:
The USB 3.0 Type-B female connector features a blue insert and two mounting flanges. The included screws allow the socket to be fixed securely to an equipment panel, helping protect the internal connection from repeated plugging, movement and cable strain.
Suitable Applications:
• Industrial computers and control systems
• Embedded computers and development systems
• Self-service kiosks and ticket machines
• Point-of-sale terminals
• Medical and laboratory instruments
• Industrial cameras and barcode scanners
• Data-acquisition equipment
• Test and measurement instruments
• Server and equipment enclosures
• Custom machinery and control panels
• Vehicle-mounted industrial equipment
Installation:
1. Insert the USB-C male connector into a compatible single-screw locking USB-C port.
2. Tighten the USB-C locking screw gently by hand.
3. Position the USB Type-B female socket in the prepared panel opening.
4. Secure the panel socket using the two fixing screws.
5. Connect a compatible USB 3.0 Type-B male cable to the installed female socket.
6. Do not overtighten the screws, as excessive force may damage the connector housing or equipment threads.
Compatibility Information:
The USB-C locking-screw position and thread must match the connected equipment.
The panel-mounted end is a USB 3.0 Type-B female socket and is designed to accept a USB Type-B male plug.
This cable is intended primarily for USB data transmission and standard USB bus power. It does not support DisplayPort Alt Mode video output or USB Power Delivery fast charging.
Maximum data-transfer speed depends on the USB specification supported by all connected devices.
