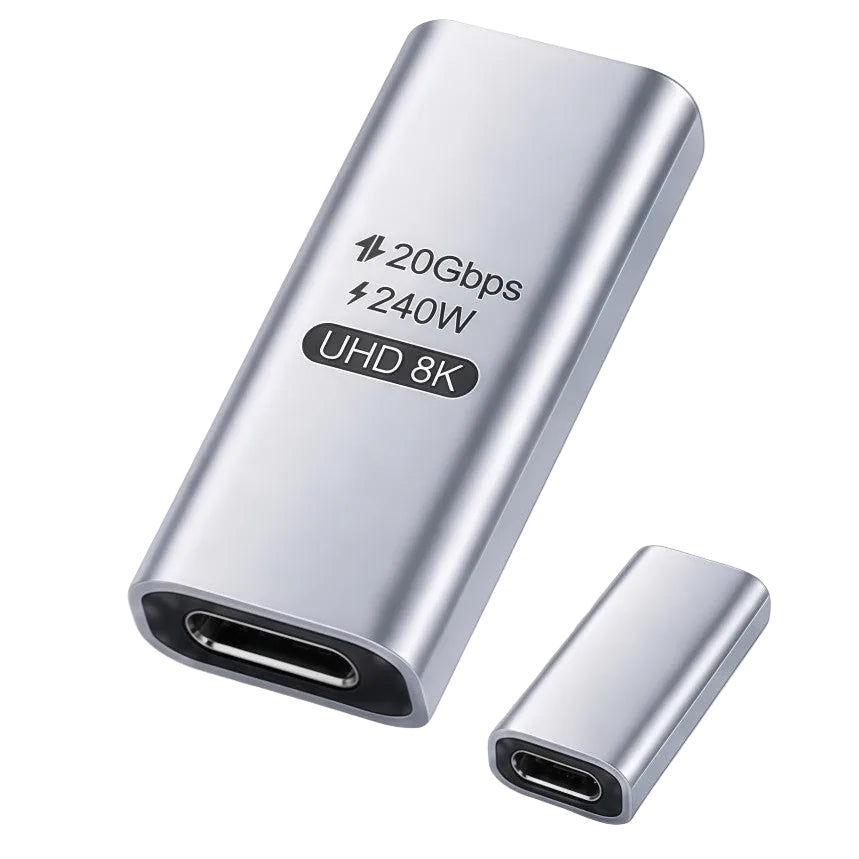

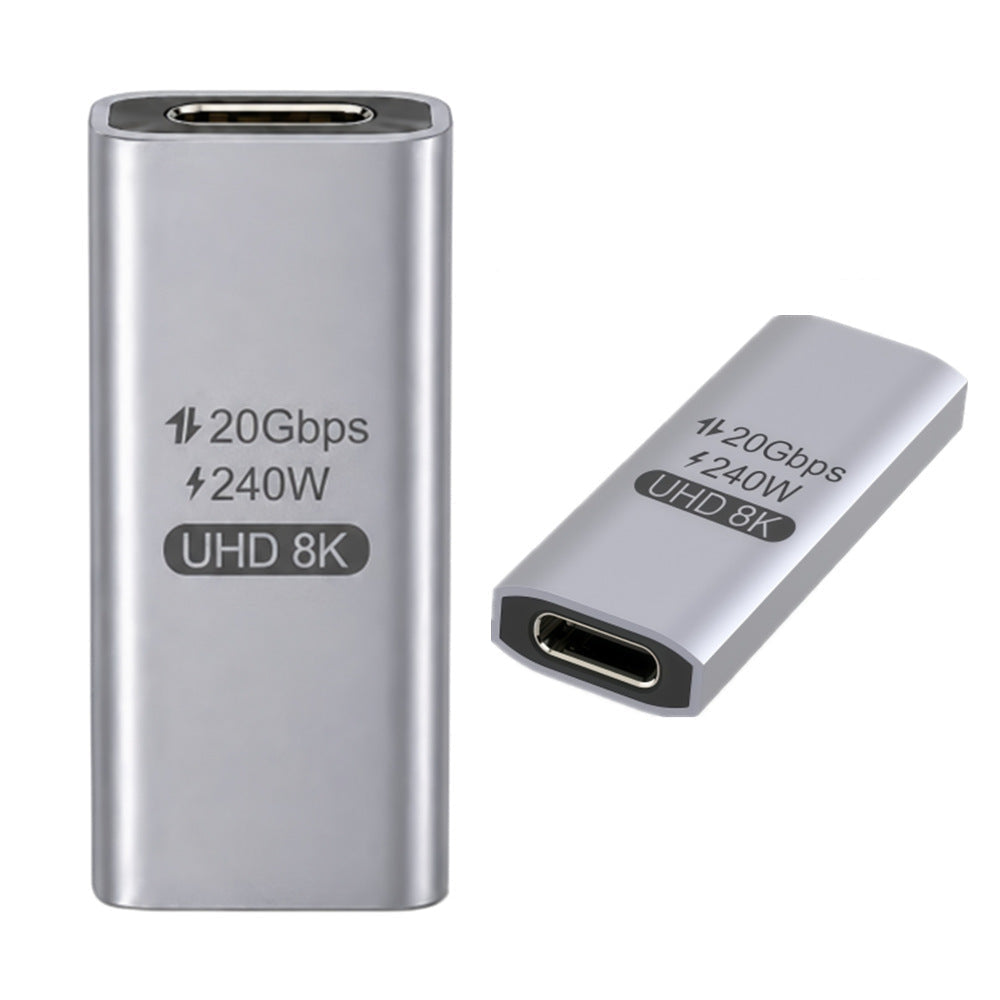

Extend or connect two USB-C male cables with this USB-C female-to-female coupler, designed to pass compatible data, charging and video signals through a compact aluminium housing.
The adapter supports data transfer speeds up to 20Gbps, USB Power Delivery up to 240W and video output up to 8K at 60Hz when used with compatible USB-C cables and devices.
Its reversible USB-C design allows either connector orientation, while the aluminium alloy casing helps with heat dissipation, durability and everyday protection.
Key features:
• USB-C female to USB-C female connection
• Connects two USB-C male cables
• Data transfer speeds up to 20Gbps
• Compatible with USB 3.2 Gen 2x2 connections
• Supports USB PD 3.1 charging up to 240W
• Supports EPR charging up to 48V/5A
• Supports video output up to 8K at 60Hz
• Compatible with USB-C DisplayPort Alt Mode
• Reversible USB-C connection

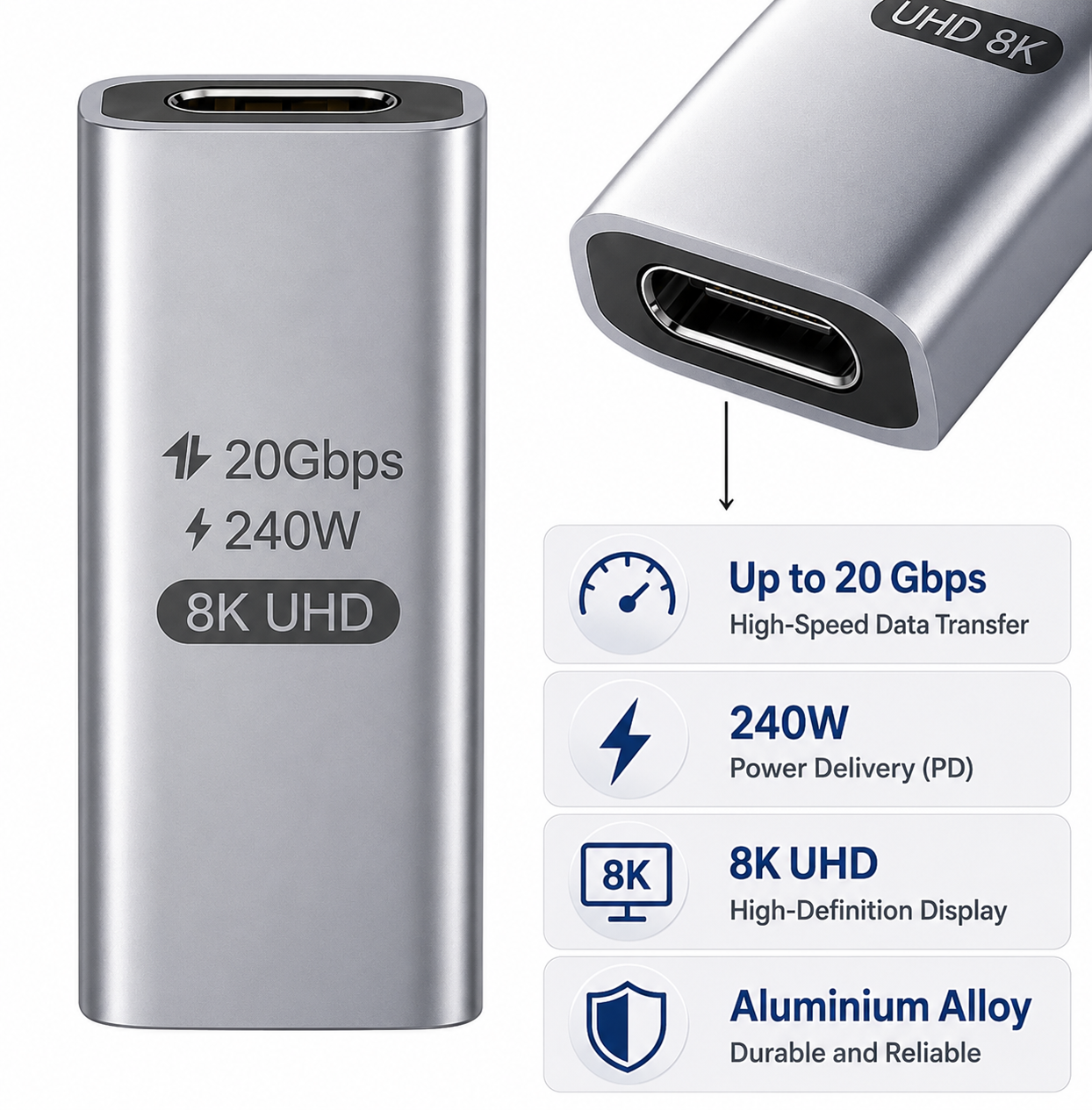

• Compact aluminium alloy housing
• Plug-and-play operation
• No additional driver required
Typical applications:
• Extending a USB-C cable connection
• Connecting a laptop to a USB-C monitor
• Connecting USB-C docking stations and hubs
• Extending charging cables
• Connecting external SSD enclosures
• Connecting compatible phones, tablets and computers
• Extending USB-C video connections
Performance requirements:
Maximum performance depends on every component in the connection.
For up to 20Gbps data transfer, both connected cables and devices must support USB 3.2 Gen 2x2.
For up to 240W charging, the charger, receiving device and cables must support USB PD 3.1 EPR and 240W charging.
For video output up to 8K at 60Hz, the source device, display and both USB-C cables must support the required DisplayPort Alt Mode specification, resolution and refresh rate.
Actual performance will be limited by the lowest-rated device or cable in the complete connection.
Important information:
• This is a passive straight-through coupler
• It does not increase data speed, charging power or video capability
• Charging direction and compatibility are controlled by the connected devices
• OTG functions may vary depending on the connected equipment
• Light warmth during high-power charging or extended use can be normal
• Do not force the connectors during insertion or removal
