Create a convenient USB-C connection point in a wall plate, desk, cabinet or equipment panel with this USB-C female-to-female panel mount coupler.
The module uses a straight-through, fully wired USB-C design to pass compatible charging, data and video signals between two connected USB-C cables. Its clip-in housing allows secure installation into a compatible panel opening, helping to keep permanent installations clean and organised.
Key features:
• USB-C female to USB-C female connection
• Straight-through, fully wired design

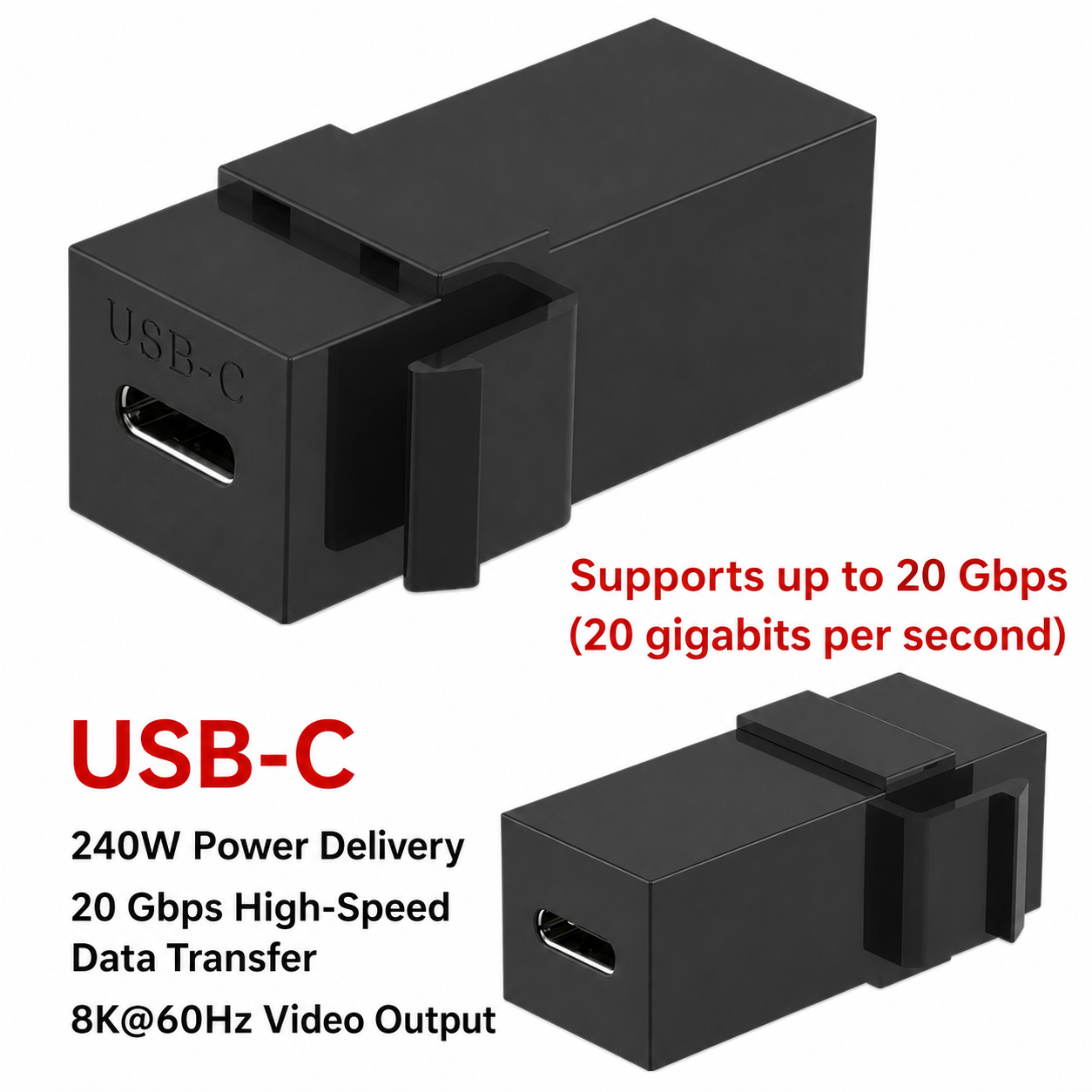

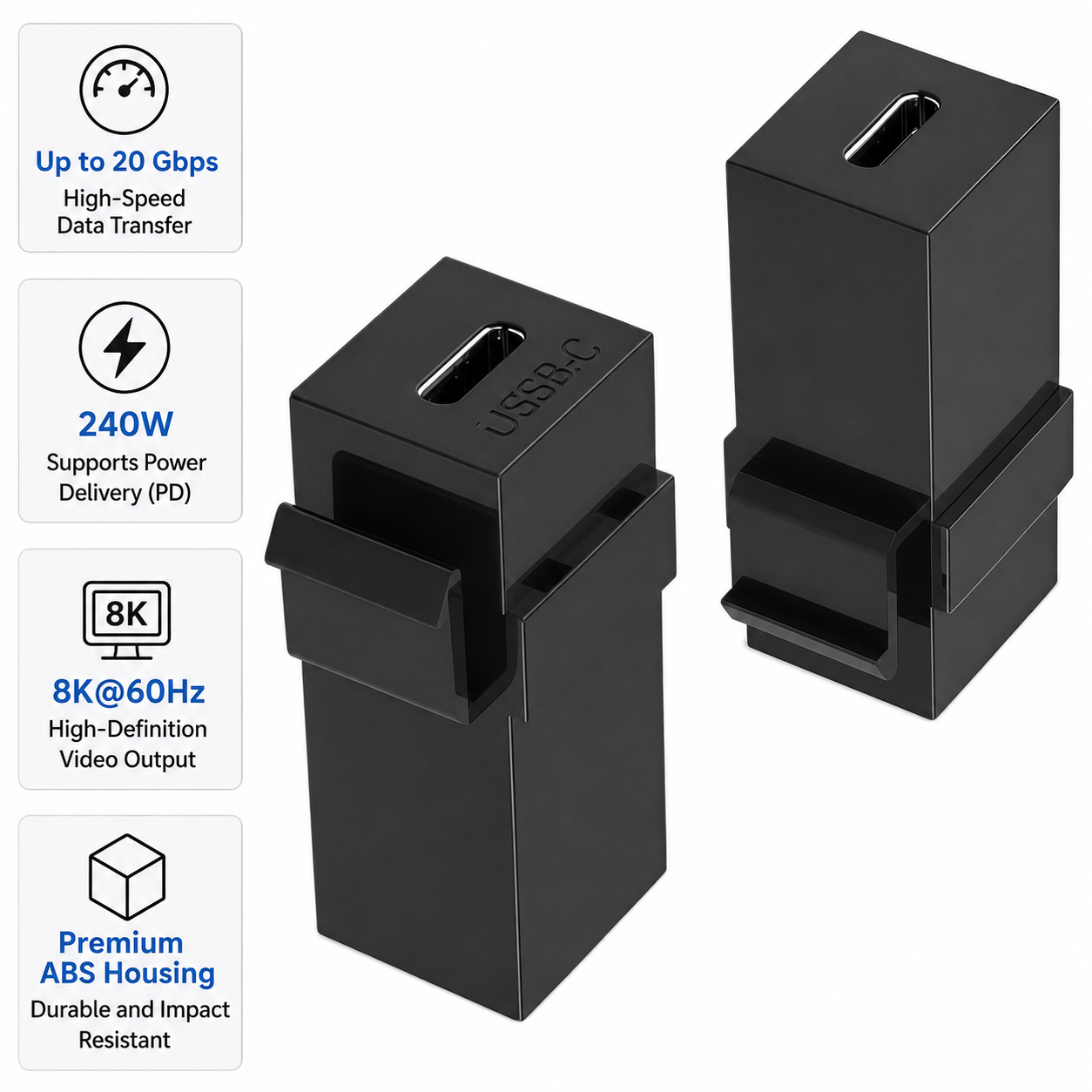

• Supports data, charging and video signal pass-through
• Data transfer speeds up to 20Gbps
• Compatible with USB 3.2 Gen 2x2 connections
• Supports USB Power Delivery up to 240W
• Supports video resolutions up to 8K at 60Hz
• Reversible USB-C connection
• Clip-in panel mounting design
• Durable black ABS housing
• Plug-and-play operation
• No additional driver required
Suitable applications:

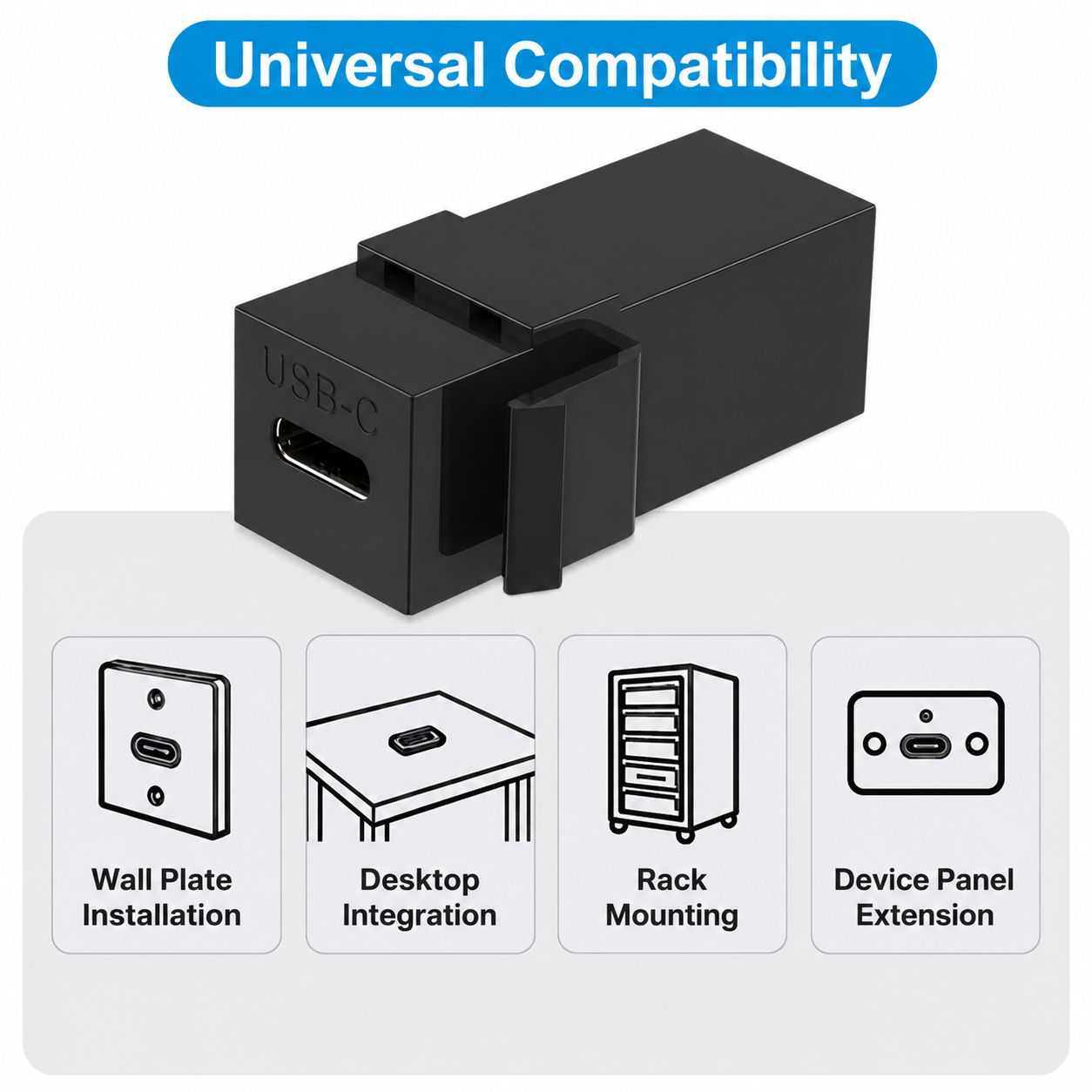

• Wall plate and information outlet installation
• Desk and conference table connectivity
• Server rack and cabinet installations
• Equipment and control panel extensions
• Monitor, projector and display connections
• Industrial and test equipment
• Home office and smart-home cabling
Installation:
Align the retaining clips with the compatible panel opening and press the module gently into position until it is securely locked.
Connect a suitable USB-C cable to each side of the coupler, then test the required charging, data or video function.
Performance requirements:
To achieve the maximum advertised performance, every component in the connection must support the required specification.
For up to 20Gbps data transfer, use compatible USB 3.2 Gen 2x2 devices and cables.
For up to 240W charging, use a compatible USB PD 3.1 EPR charger, device and 240W-rated USB-C cable.
For video output up to 8K at 60Hz, the source device, receiving display and both USB-C cables must support the required DisplayPort Alt Mode specification, resolution and refresh rate.
Actual performance will be limited by the lowest-rated device, cable or connection in the complete setup.
Important information:
• This is a passive straight-through coupler and does not increase data speed, charging power or video capability
• Video support depends on compatible USB-C DisplayPort Alt Mode equipment
• Charging power depends on the connected charger, device and cables
• Do not force the module into an incompatible panel opening
• Keep the connectors free from dust, moisture and foreign objects
