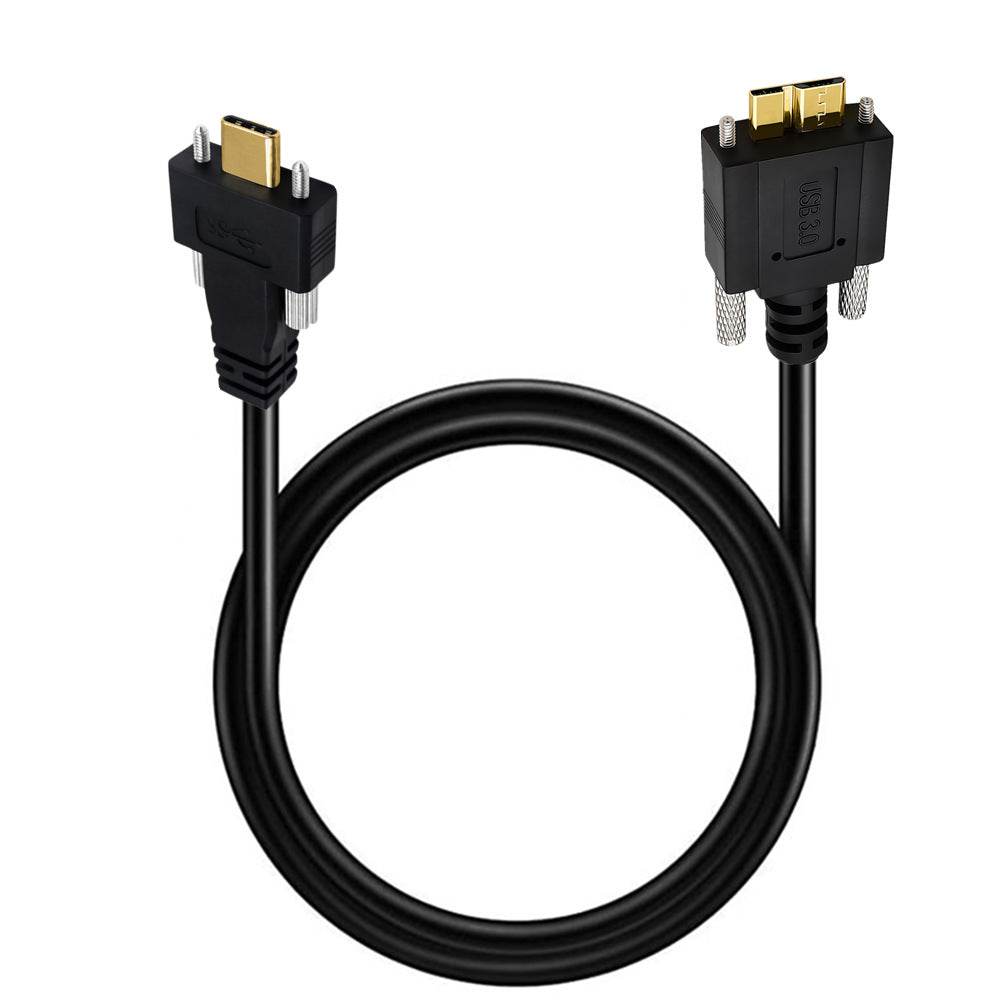

Create a secure, high-speed USB connection for industrial cameras and professional equipment with this USB-C Dual-Screw Locking Male to Micro USB 3.0 Type-B Male Cable.

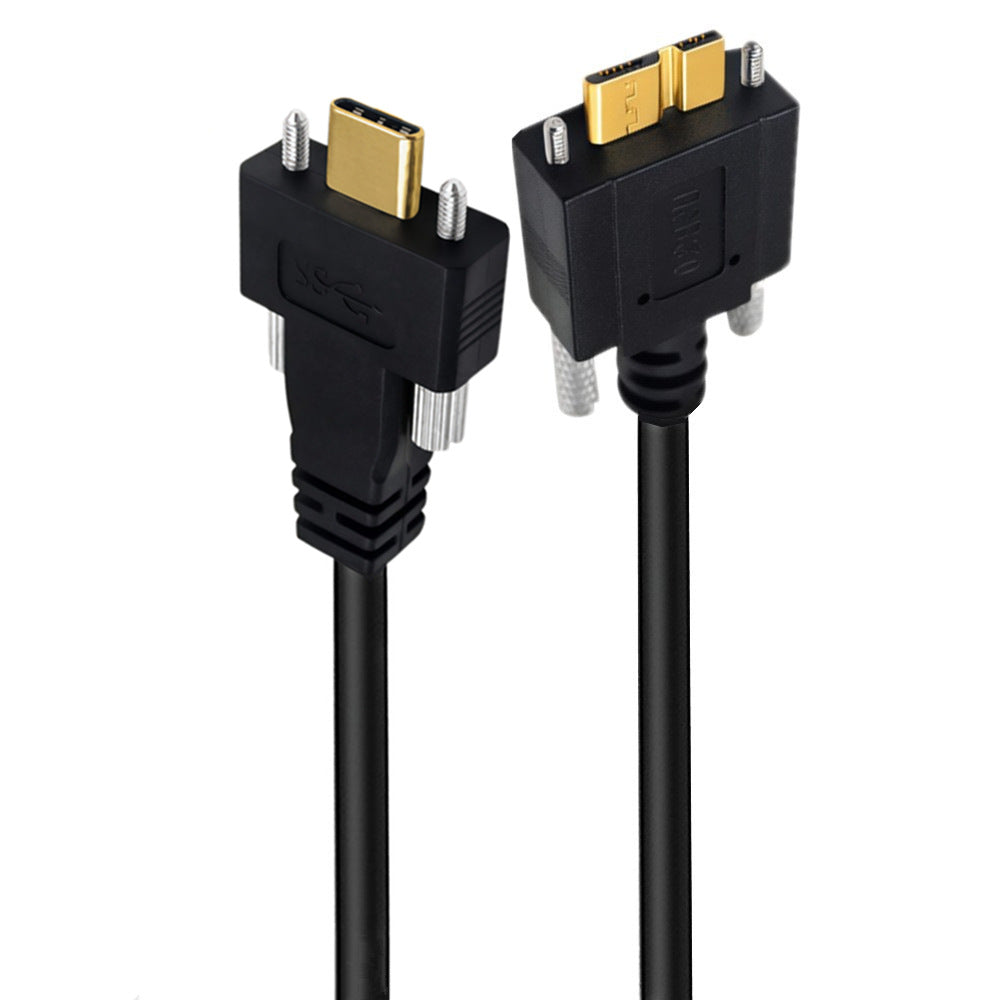

The cable features a straight USB-C male connector with two locking screws at one end and a straight Micro USB 3.0 Type-B male connector with two locking screws at the other. Both connectors can be secured to compatible threaded ports, helping prevent accidental disconnection caused by vibration, equipment movement or continuous industrial operation.
Supporting USB 3.0 data-transfer speeds of up to 5Gbps, the cable is suitable for industrial vision cameras, machine-vision systems, data-acquisition equipment, embedded computers and other devices that require a stable USB connection.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• Dual locking screws on the USB-C connector
• Dual locking screws on the Micro USB 3.0 connector
• Secure screw-lock connection at both ends
• Helps prevent loosening and accidental disconnection
• Suitable for vibration-prone industrial environments
• USB 3.0 data-transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Gold-coloured connector contacts
• Shielded cable construction for stable data transmission
• Durable black PVC outer jacket
• Reinforced moulded connector housings
• Suitable for continuous professional use
• Available in 0.6m and 1m lengths

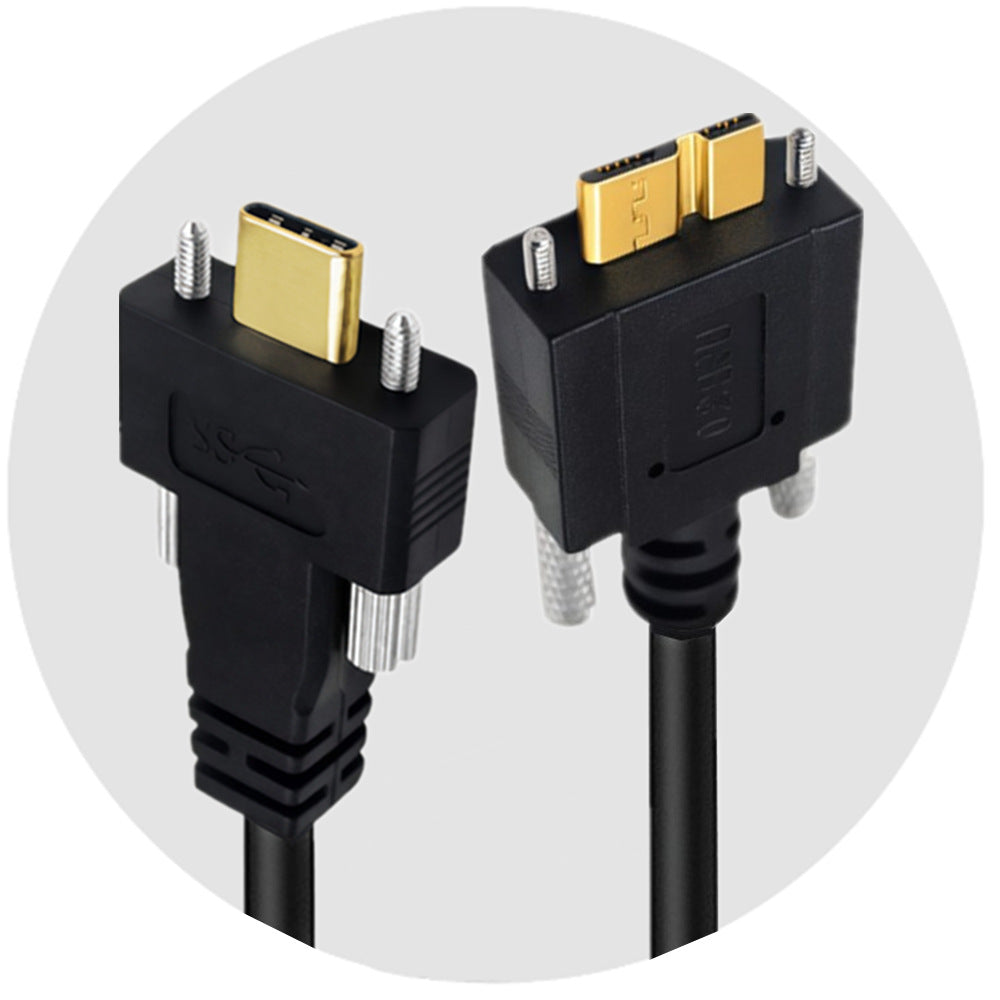

USB-C Dual-Screw Locking Connector:
The USB-C male plug includes two locking screws positioned on either side of the connector. These can be tightened into a compatible threaded USB-C port to provide a more secure connection than a standard friction-fit plug.
The screw spacing, thread size and mounting-hole positions must match the connected equipment. The locking function cannot be used with an ordinary USB-C socket without compatible threaded holes.
Micro USB 3.0 Type-B Locking Connector:
The Micro USB 3.0 Type-B male connector also includes two locking screws. It is designed for compatible industrial cameras, image-acquisition equipment and other professional devices fitted with a locking Micro USB 3.0 Type-B female port.
The wider Micro USB 3.0 Type-B connector is different from a standard Micro USB 2.0 connector. Please check the equipment port carefully before ordering.
Suitable Applications:
• Industrial vision cameras
• Machine-vision inspection systems
• Image-acquisition equipment
• Industrial computers and controllers
• Embedded computers
• Data-acquisition systems
• Medical and laboratory instruments
• Barcode and document scanners
• Test and measurement equipment
• Vehicle-mounted industrial systems
• Factory automation equipment
• Custom machinery and control systems
Installation:
1. Switch off or safely stop the connected equipment before installation.
2. Insert the USB-C male connector into a compatible locking USB-C port.
3. Align and tighten both USB-C locking screws evenly by hand.
4. Insert the Micro USB 3.0 Type-B male connector into the compatible device port.
5. Align and tighten both Micro USB locking screws evenly.
6. Do not overtighten the screws, as excessive force may damage the connector housing or equipment threads.
Compatibility Information:
Both connected devices must have compatible threaded mounting holes.
The USB-C and Micro USB screw spacing and thread sizes must match the connected equipment.
This cable has:
• One USB-C male connector
• One Micro USB 3.0 Type-B male connector
It does not have a female connector or a panel-mount socket.
This cable is intended for USB data transfer and standard USB bus power. It does not support DisplayPort Alt Mode video output or USB Power Delivery fast charging.
Maximum transfer speed depends on the USB standard supported by both connected devices.
