This USB-C 80Gbps male to female panel mount extension cable is designed for industrial equipment, control panels, machine vision systems, servers and other fixed USB-C installations requiring secure high-speed data, video and power connectivity.

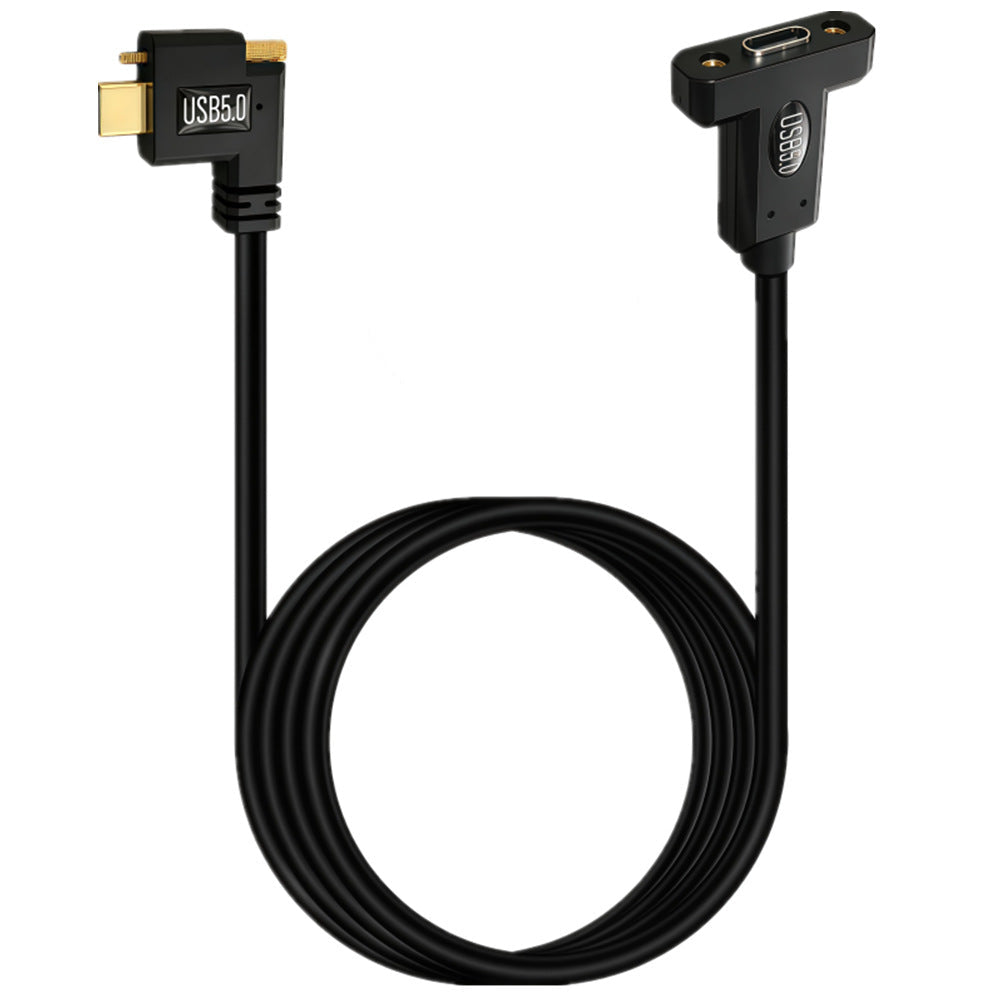

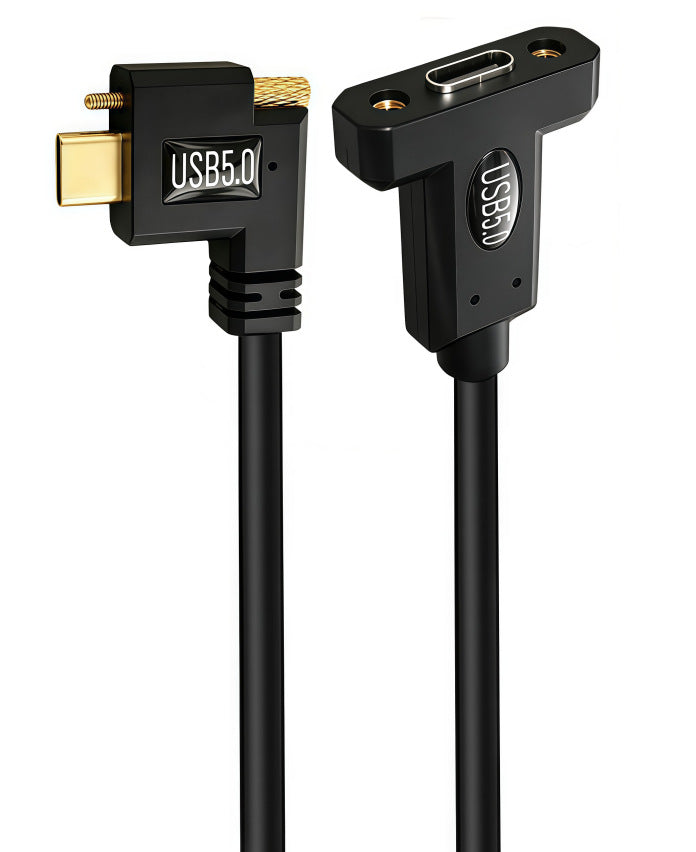

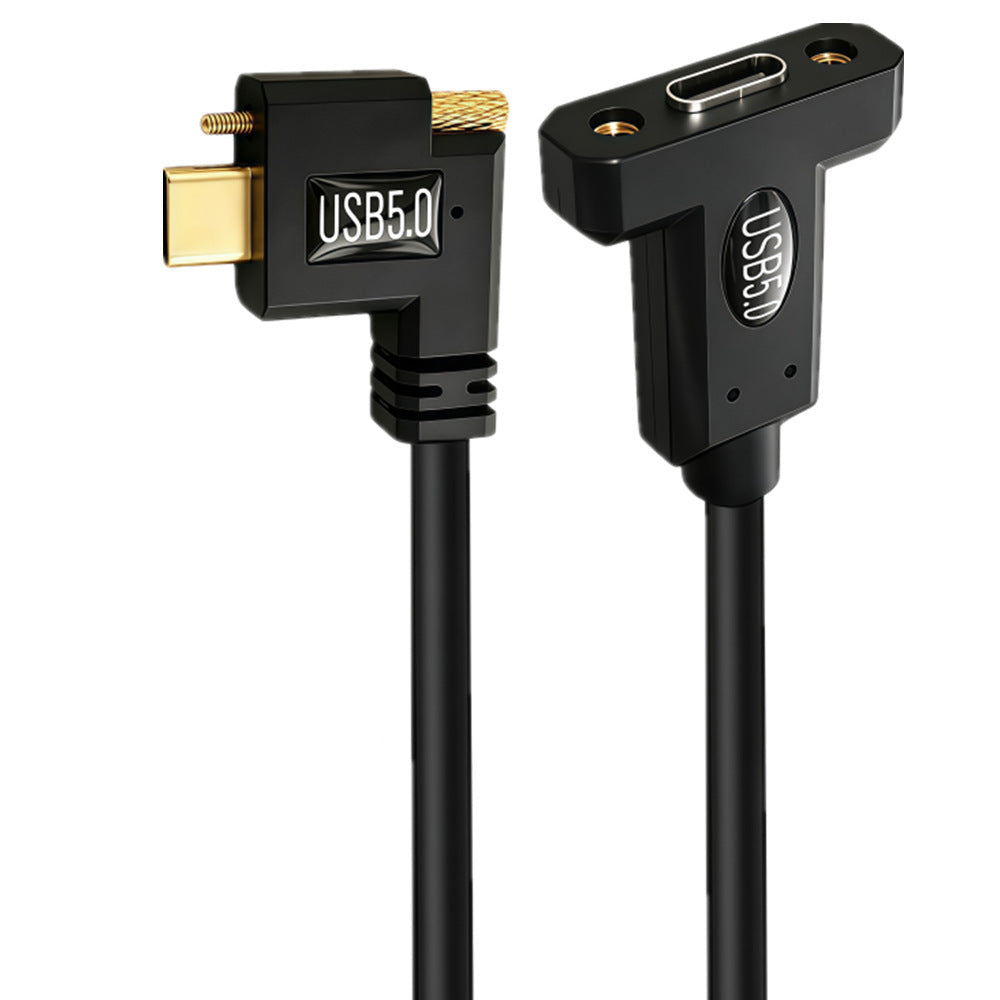

It features a side-angle USB-C male connector with a single locking screw and a T-flange USB-C female panel mount socket with two fixing holes. The angled connector helps with cable routing in restricted spaces, while the panel mount female socket provides a clean and secure USB-C connection through equipment panels or enclosures.
Key Features
• USB-C male to USB-C female extension cable
• Side-angle USB-C male connector with single locking screw
• T-flange USB-C female panel mount socket
• Two mounting holes for secure panel installation
• Supplier-rated data transfer speed up to 80Gbps
• Supports up to 240W PD charging at 48V 5A with compatible equipment
• Supplier-rated video support up to 16K 60Hz
• Compatible with USB4 and Thunderbolt 3/4 equipment according to supplier specification
• Space-saving angled connector for compact installations
• Secure locking design for industrial and fixed equipment
• Shielded cable construction for stable high-speed transmission
• Reinforced strain relief for improved durability
• Available lengths: 0.3m, 0.6m, 1m and 2m
Ideal For
• Industrial and machine vision cameras
• Industrial PCs and control systems
• Server and equipment enclosures
• External GPU and eGPU installations
• Video capture equipment
• Laboratory and testing equipment
• Professional USB-C displays
• Embedded and panel mount USB-C installations
Compatibility
The male locking screw requires a compatible threaded mounting point. The T-flange female connector requires suitable panel mounting holes and installation clearance.
Maximum 80Gbps data speed, 240W charging and supported video resolution depend on the connected devices, ports, charger and supported protocol.
The connector housing may be marked “USB5.0” by the manufacturer; the product specification is described using USB-C / USB4 and its supplier-rated 80Gbps performance.
Package Contents
1 × USB-C male to female side-angle panel mount extension cable
