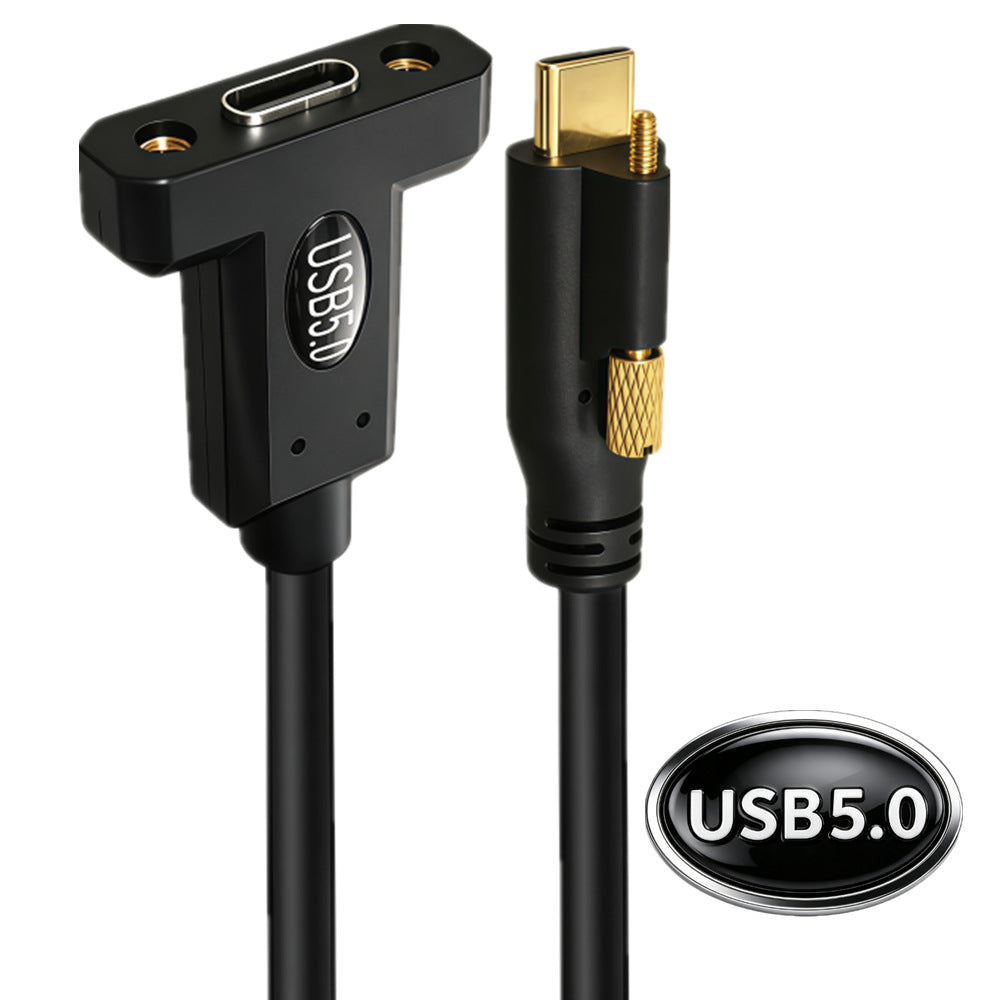

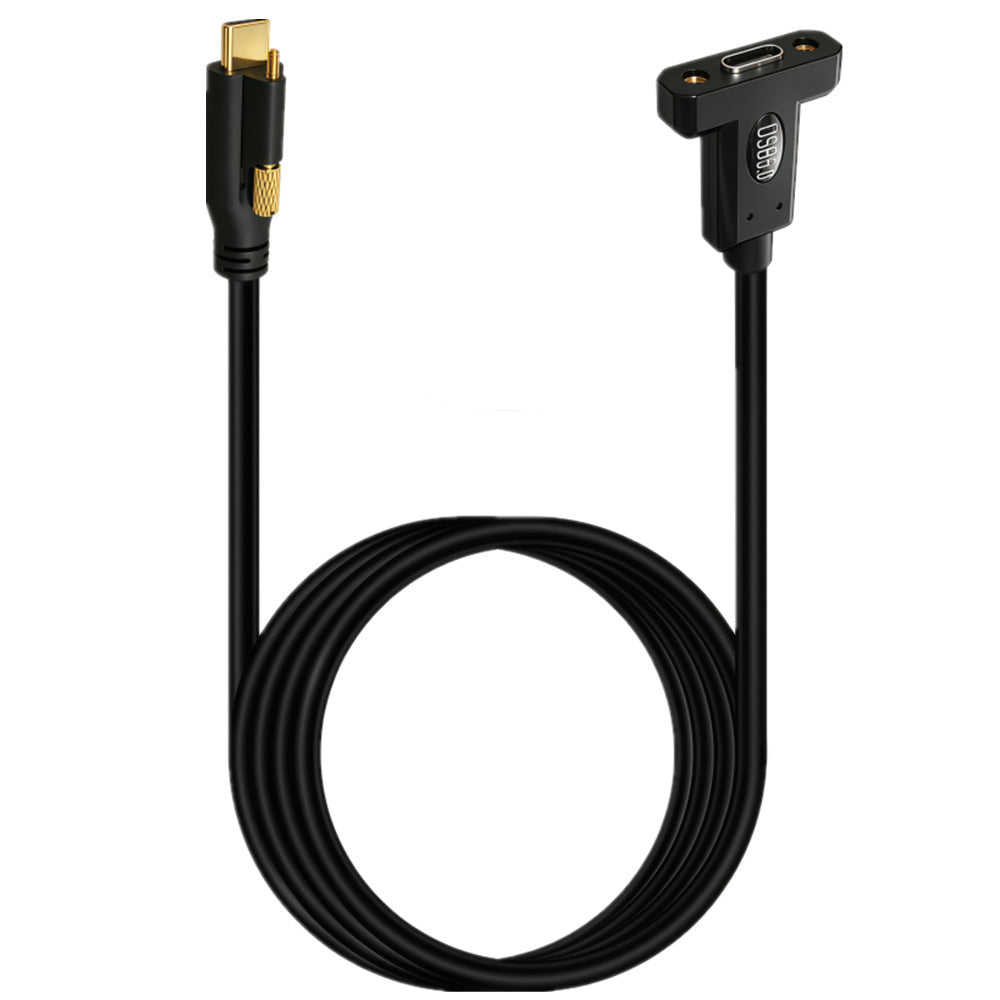

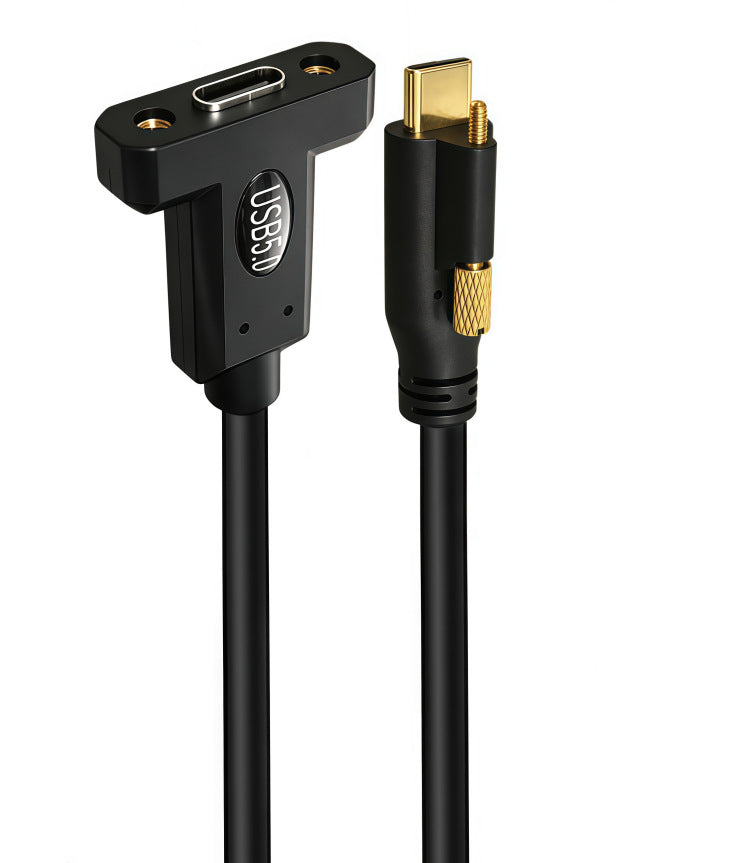

This USB-C 80Gbps male to female panel mount extension cable is designed for industrial equipment, machine vision systems, control panels, servers and other fixed USB-C installations requiring a secure high-speed connection.

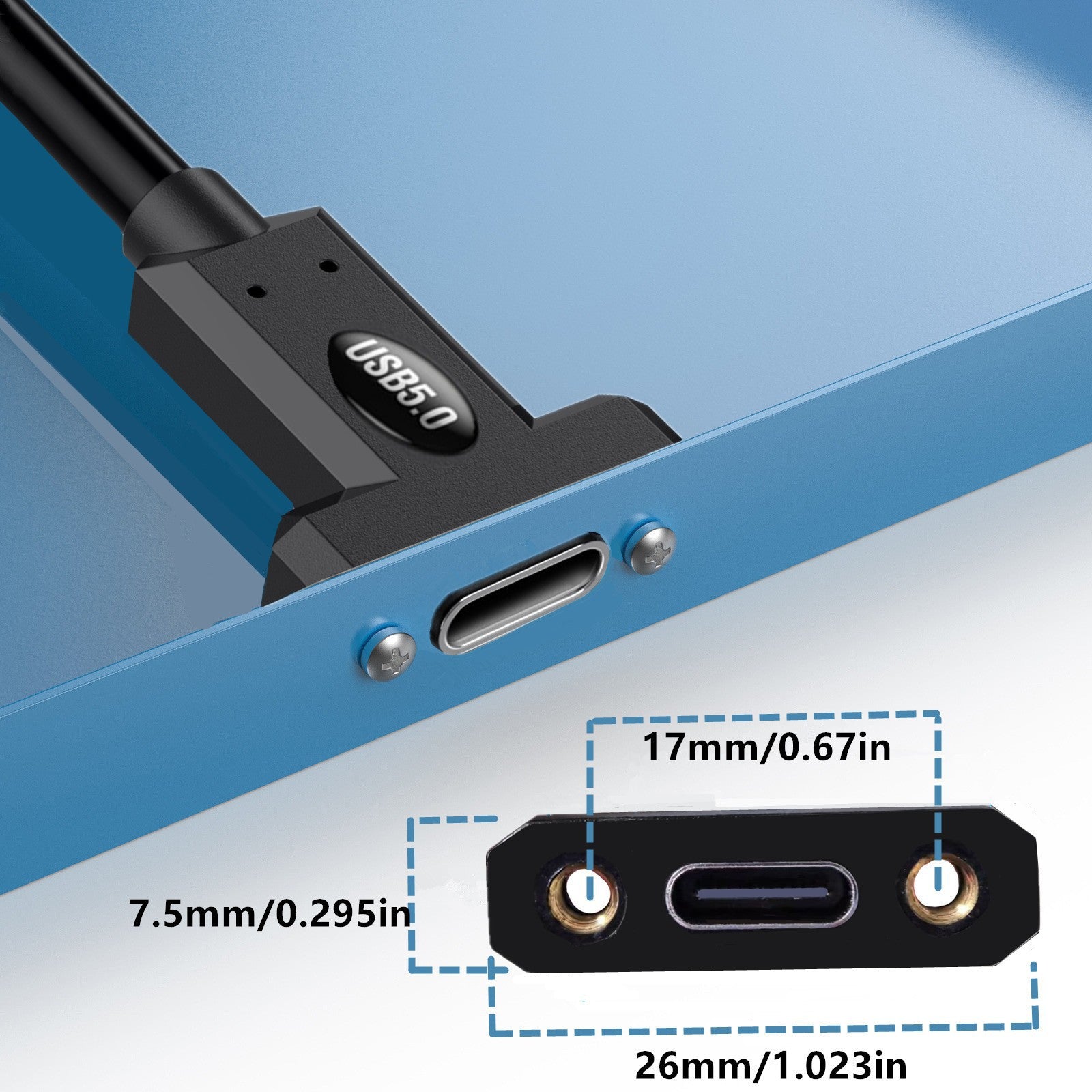

It features a straight USB-C male connector with a single locking screw and a T-flange USB-C female panel mount socket with two fixing holes. The panel mount design provides a clean, fixed USB-C extension point while helping reduce accidental disconnection and cable movement.
Key Features
• USB-C male to USB-C female extension cable
• T-flange female panel mount USB-C socket
• Two mounting holes for secure panel installation
• USB-C male connector with single locking screw
• Supplier-rated data transfer speed up to 80Gbps
• Supports up to 240W PD charging at 48V 5A with compatible equipment
• Supplier-rated video support up to 16K 60Hz
• Compatible with USB4 and Thunderbolt 3/4 equipment according to supplier specification
• Secure screw-lock design for industrial and fixed installations
• Ideal for extending USB-C ports through equipment panels or enclosures
• Reinforced strain relief for improved cable durability
• Available lengths: 0.3m, 0.6m, 1m and 2m
Ideal For
• Industrial control panels
• Machine vision and industrial cameras
• Embedded computers and industrial PCs
• Server and equipment enclosures
• Laboratory and testing equipment
• Video capture and monitoring systems
• High-speed external storage
• Vehicle and fixed-installation USB-C equipment
Compatibility
The male locking screw requires a compatible threaded mounting point. The T-flange female connector requires suitable panel mounting holes and installation space.
Maximum 80Gbps data speed, 240W charging and supported video resolution depend on the connected devices, ports, charger and supported protocol.
Package Contents
1 × USB-C male to female T-flange panel mount extension cable
