This USB-C 80Gbps male to male cable is designed for high-speed data, video and power connections in industrial cameras, machine vision systems, capture cards, eGPU setups, docking stations and other professional USB-C equipment.

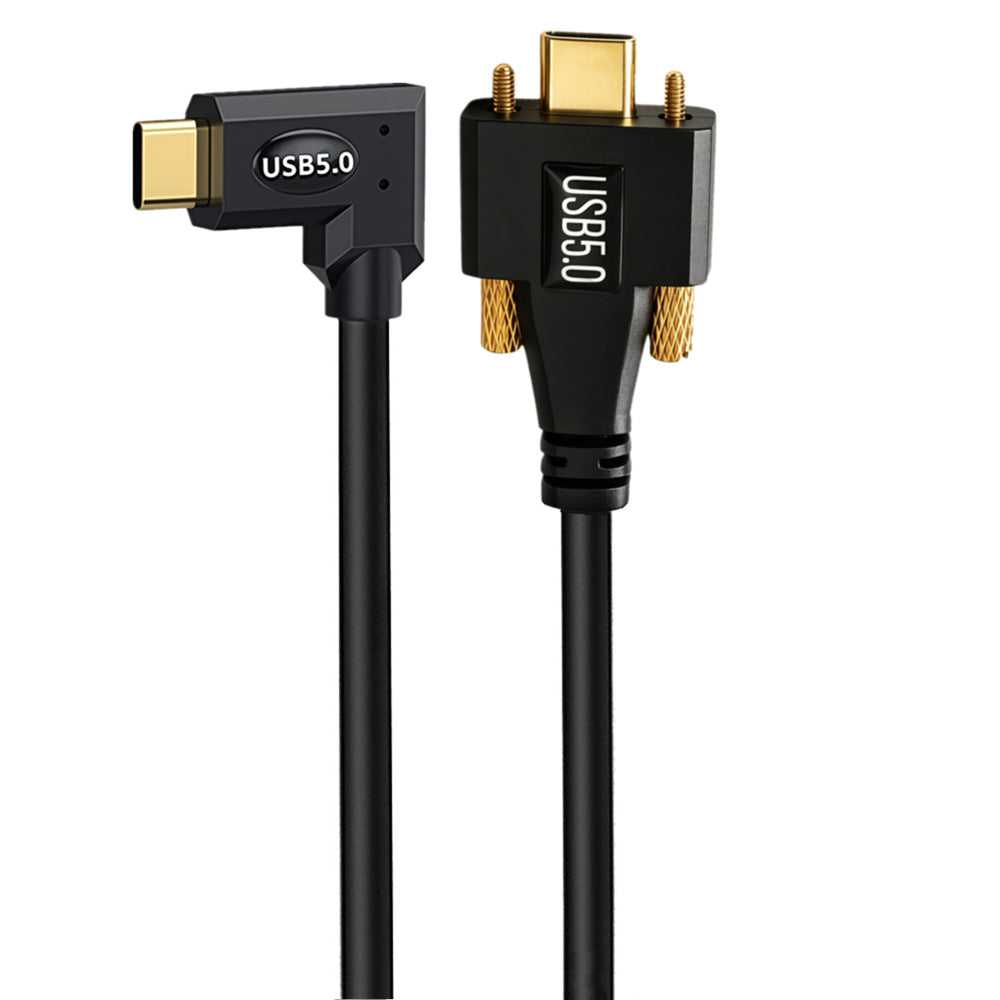

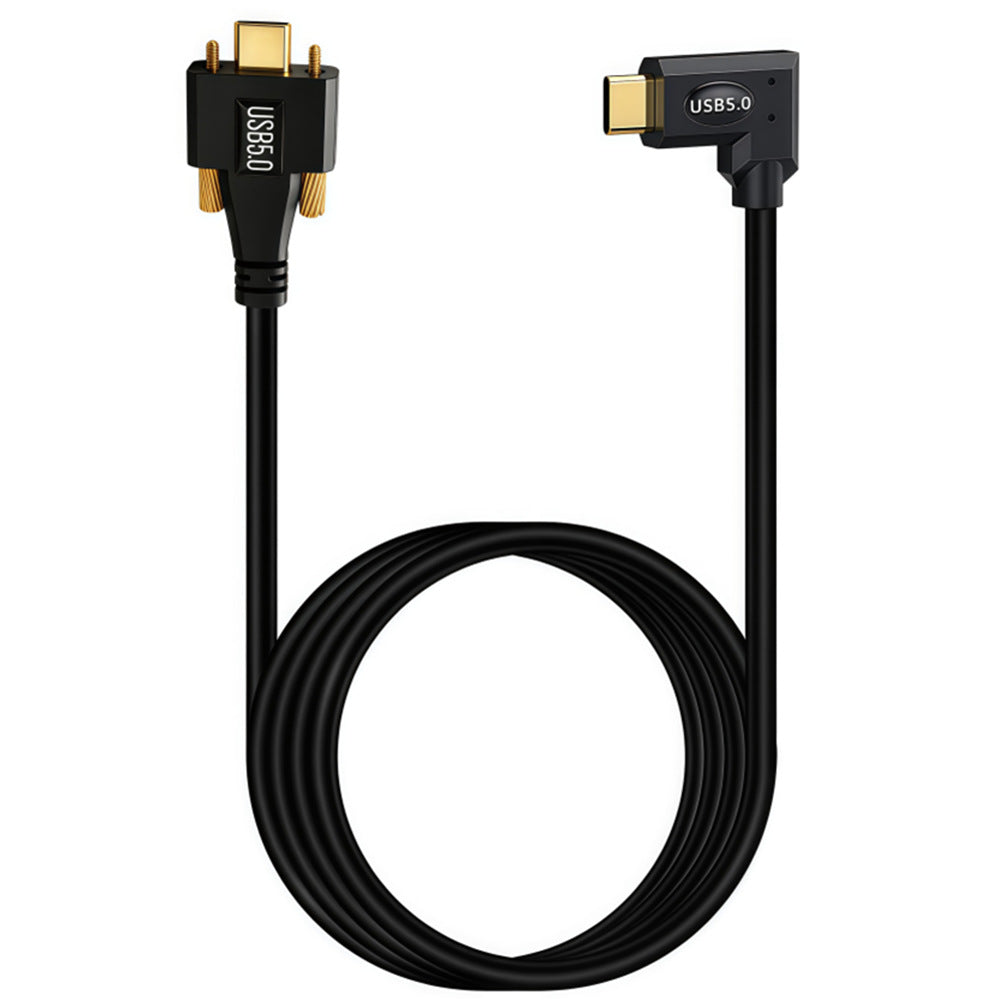

It features one compact 90° right-angle USB-C male connector and one straight USB-C male connector with dual locking screws. The right-angle connector helps reduce cable strain and improves routing in tight spaces, while the dual screw-lock connector provides a secure connection to compatible industrial and fixed equipment.
Key Features
• USB-C male to USB-C male high-speed cable
• 90° right-angle USB-C connector on one end
• Straight USB-C connector with dual locking screws on the other end
• Supplier-rated data transfer speed up to 80Gbps
• Supports up to 240W PD charging at 48V 5A with compatible equipment
• Supplier-rated video support up to 16K 60Hz
• Compatible with USB4 and Thunderbolt 3/4 equipment according to supplier specification
• Dual locking screws help reduce accidental disconnection
• Space-saving 90° connector for restricted installation areas
• Suitable for industrial cameras, machine vision, eGPU and capture cards
• Shielded cable construction for stable high-speed transmission
• Reinforced strain relief for improved durability
• Available lengths: 0.3m, 1m and 2m
Ideal For
• Industrial and machine vision cameras
• Camera to capture card connections
• External GPU and eGPU systems
• Video capture and streaming equipment
• USB-C docking stations
• High-speed external SSD storage
• Industrial PCs and embedded systems
• Professional displays and laboratory equipment
Compatibility
The dual locking screws require compatible threaded mounting points on the connected equipment. Please check the screw spacing, USB-C port orientation and available installation space before ordering.
Maximum 80Gbps data speed, 240W charging and supported video resolution depend on the connected devices, USB-C ports, charger and supported protocol.
The connector housing may be marked “USB5.0” by the manufacturer. This listing uses USB-C / USB4 terminology together with the supplier-rated 80Gbps specification for clearer compatibility and SEO search terms.
Package Contents
1 × USB-C male to male 90° right-angle to dual screw locking cable
