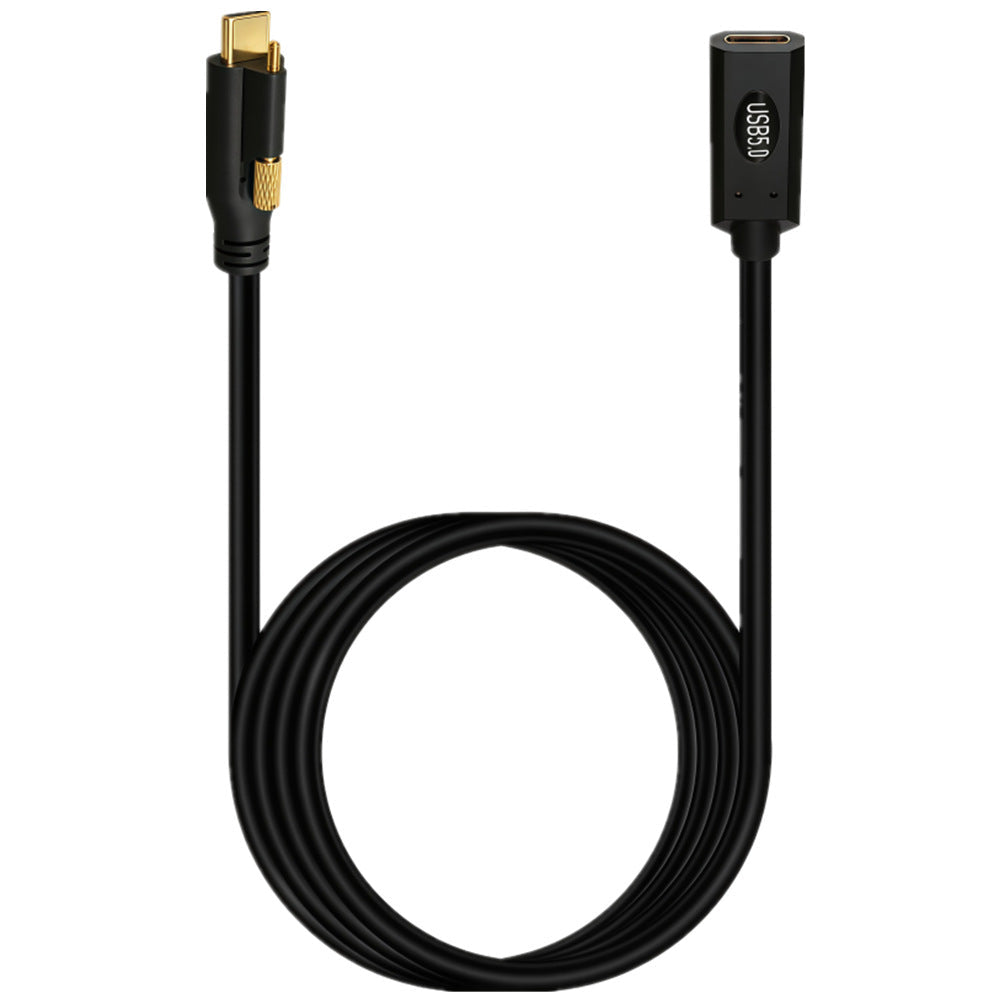

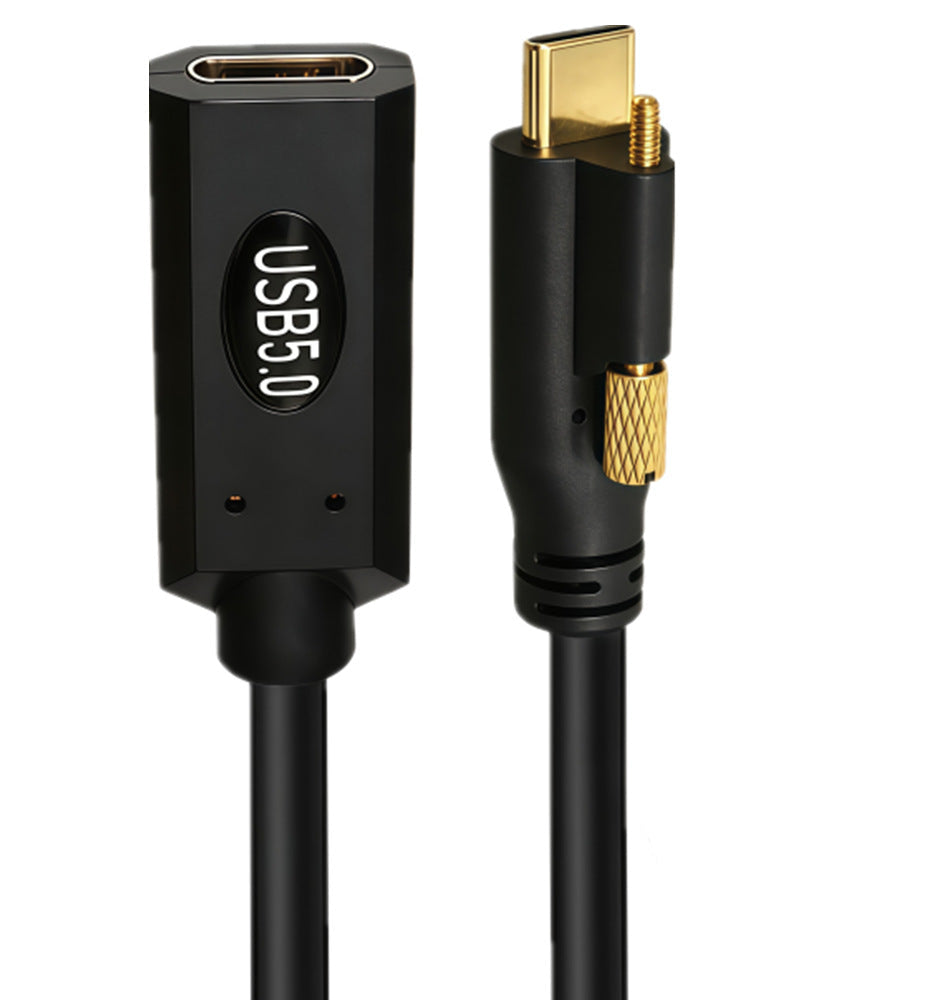

This USB-C 80Gbps male to female extension cable is designed for high-speed USB4 data, video and power connections in industrial, professional and fixed-installation equipment.
It features a straight USB-C male connector with a single locking screw and a straight USB-C female socket. The secure screw-lock design helps prevent accidental disconnection caused by vibration, movement or cable pull, making it suitable for industrial cameras, machine vision systems, eGPU setups, capture cards and other high-performance USB-C equipment.
Key Features
• USB-C male to USB-C female extension cable
• Straight USB-C male connector with single locking screw
• Straight USB-C female socket
• Supplier-rated data transfer speed up to 80Gbps
• Supports up to 240W PD charging at 48V 5A with compatible equipment
• Supplier-rated video support up to 16K 60Hz
• Compatible with USB4 and Thunderbolt 3/4 equipment according to supplier specification
• Secure locking connection for industrial and fixed installations
• Ideal for extending difficult-to-access USB-C ports
• Shielded cable construction for stable high-speed transmission
• Reinforced strain relief for improved durability
• Available lengths: 0.3m, 0.6m, 1m and 2m
Ideal For
• Industrial and machine vision cameras
• External GPU and eGPU systems
• Video capture cards
• High-speed external storage
• Industrial PCs and servers
• Professional USB-C displays
• Laboratory and testing equipment
• Embedded and fixed USB-C installations
Compatibility
The locking screw requires a compatible threaded mounting point on your equipment. Please check the screw position and connector layout before ordering.
Maximum 80Gbps data speed, 240W charging and supported video resolution depend on the connected devices, ports, charger and supported protocol.
Package Contents
1 × USB-C male to female locking extension cable
