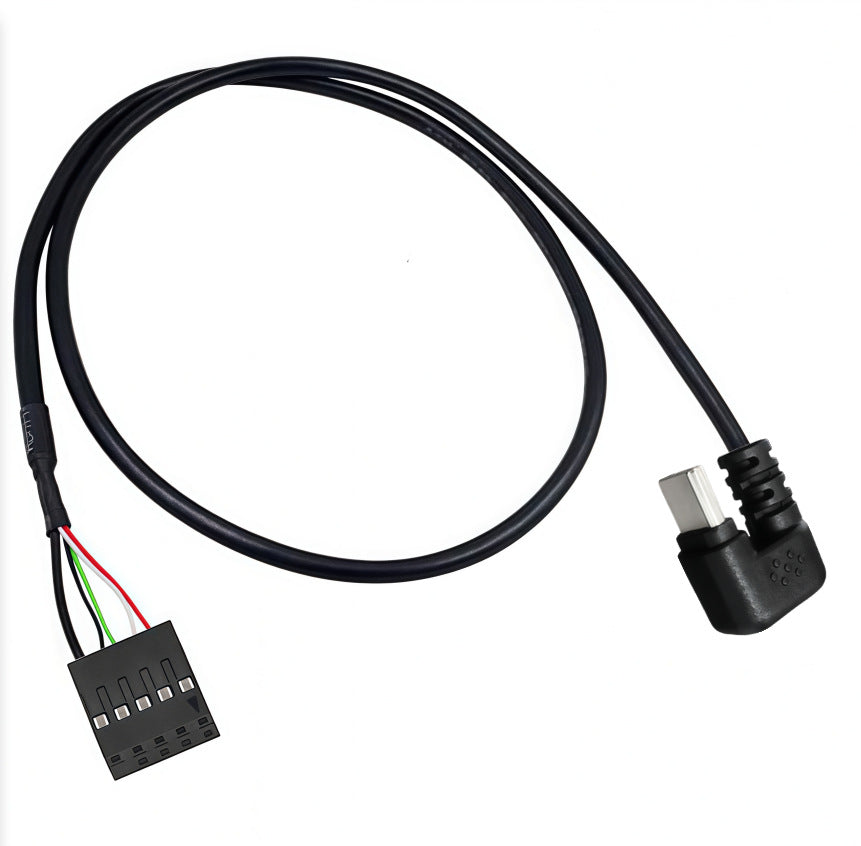

This USB 2.0 motherboard header to U-shaped USB-C cable is designed for desktop PC case upgrades, front-panel modifications and custom internal computer installations.

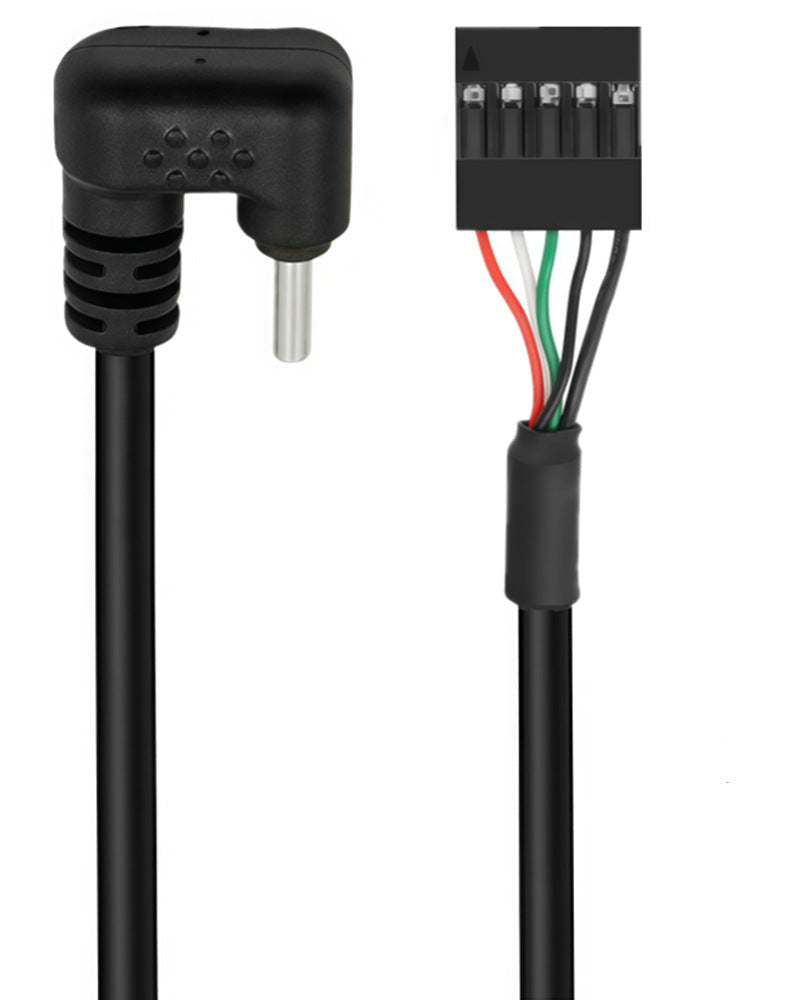

The cable features a USB 2.0 9-pin motherboard header female connector at one end and a compact U-shaped 90-degree USB Type-C male connector at the other. The return-angle connector positions the cable alongside the USB-C plug, helping reduce installation depth and improve routing in very restricted spaces.

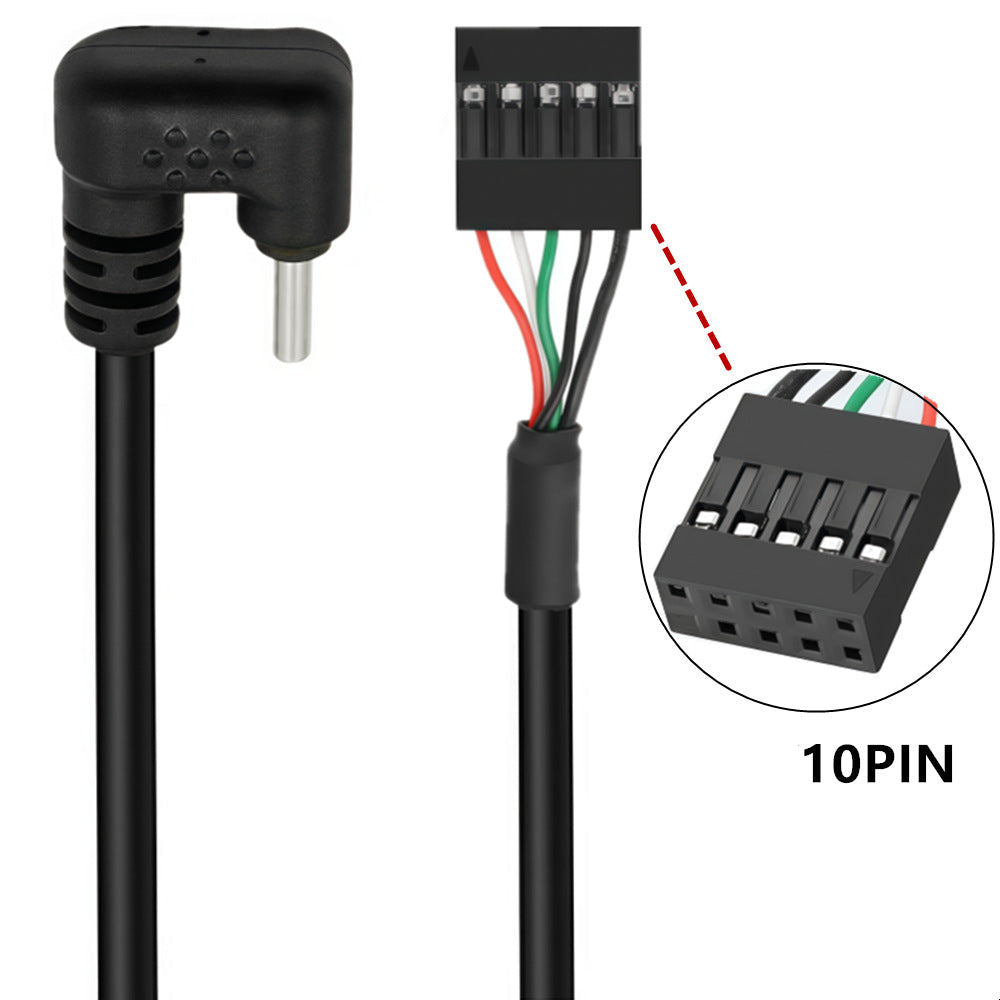

The motherboard connector uses a 10-position housing with one blocked or unused position, commonly described as a USB 2.0 9-pin header connector. It carries standard USB 2.0 power and data connections from a compatible motherboard header.
The cable is suitable for applications where a straight USB-C connector would require too much clearance or place excessive strain on the cable.
Key details:
Cable type: Internal USB adapter cable
Connector 1: USB 2.0 9-pin motherboard header female
Header housing: 10-position with one blocked or unused position
Connector 2: USB Type-C male
USB-C orientation: U-shaped 90-degree return angle
USB standard: USB 2.0
Maximum data rate: Up to 480Mbps
Power support: Standard 5V USB power
Cable length: 0.5 metre
Installation type: Internal
Cable colour: Black
Connector colour: Black
Use: PC cases, front-panel upgrades, embedded computers and custom enclosures
Typical applications:
Connect a compatible motherboard USB 2.0 header to a USB-C female port
Upgrade or modify a desktop PC front-panel connection
Install a USB-C connection where rear clearance is extremely limited
Route the cable back alongside the connected USB-C port
Reduce sharp cable bending and connector strain
Compatibility information:
This cable is designed for a USB 2.0 9-pin motherboard header. It is not compatible with USB 3.0 or USB 3.2 19-pin front-panel headers.
The USB-C connector does not upgrade the connection to USB 3.0 speeds. Maximum data transfer remains up to 480Mbps.
The cable does not support USB Power Delivery, high-power fast charging, DisplayPort Alt Mode, Thunderbolt or video output.
Please check the motherboard header layout, missing-pin position, USB-C bend direction and available installation space before ordering.
Package includes:
1 x USB 2.0 9-pin motherboard header to U-shaped USB-C male cable, 0.5m
