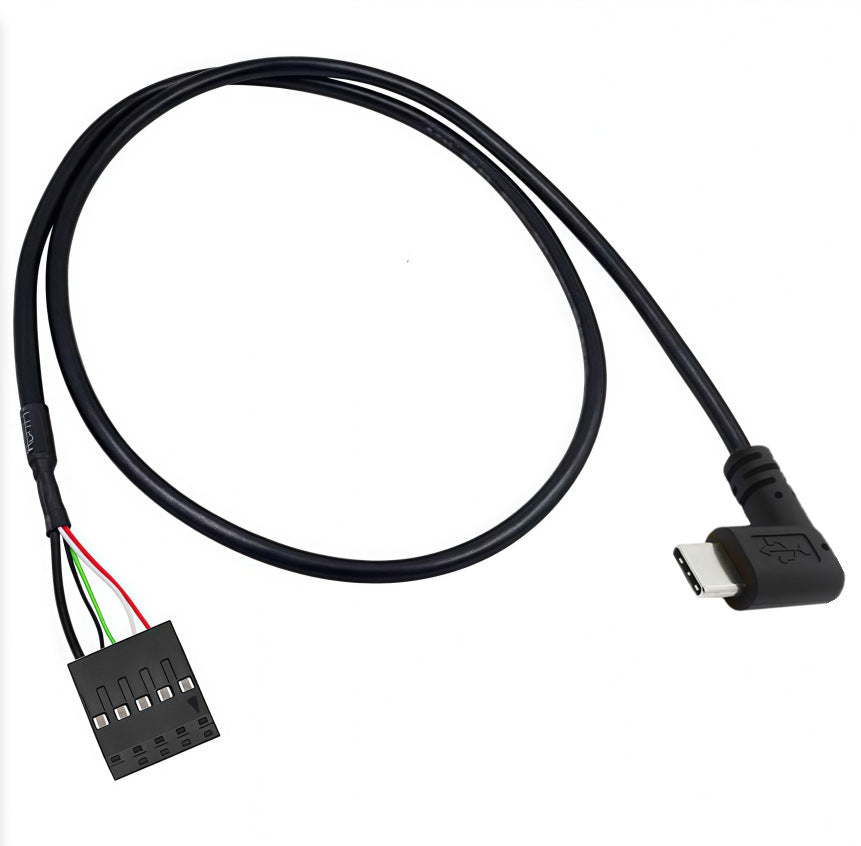

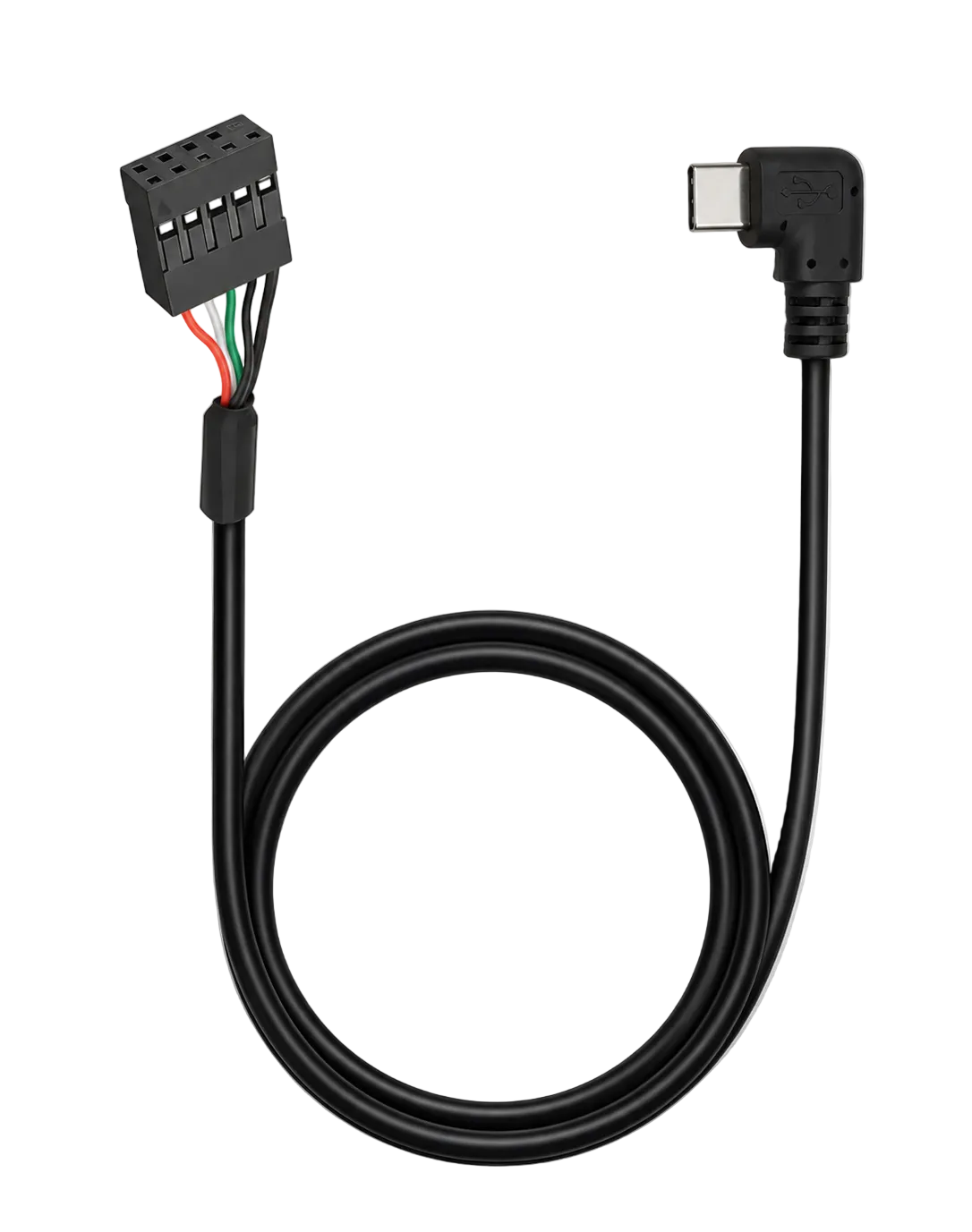

This USB 2.0 motherboard header to right-angle USB-C cable is designed for desktop PC case front-panel upgrades, replacement ports and custom computer installations.
The cable connects a compatible internal USB 2.0 motherboard header to a USB Type-C male connector. Its 90-degree L-shaped USB-C plug uses a side-exit cable design, helping reduce cable strain and improve routing in confined spaces behind a chassis front panel.

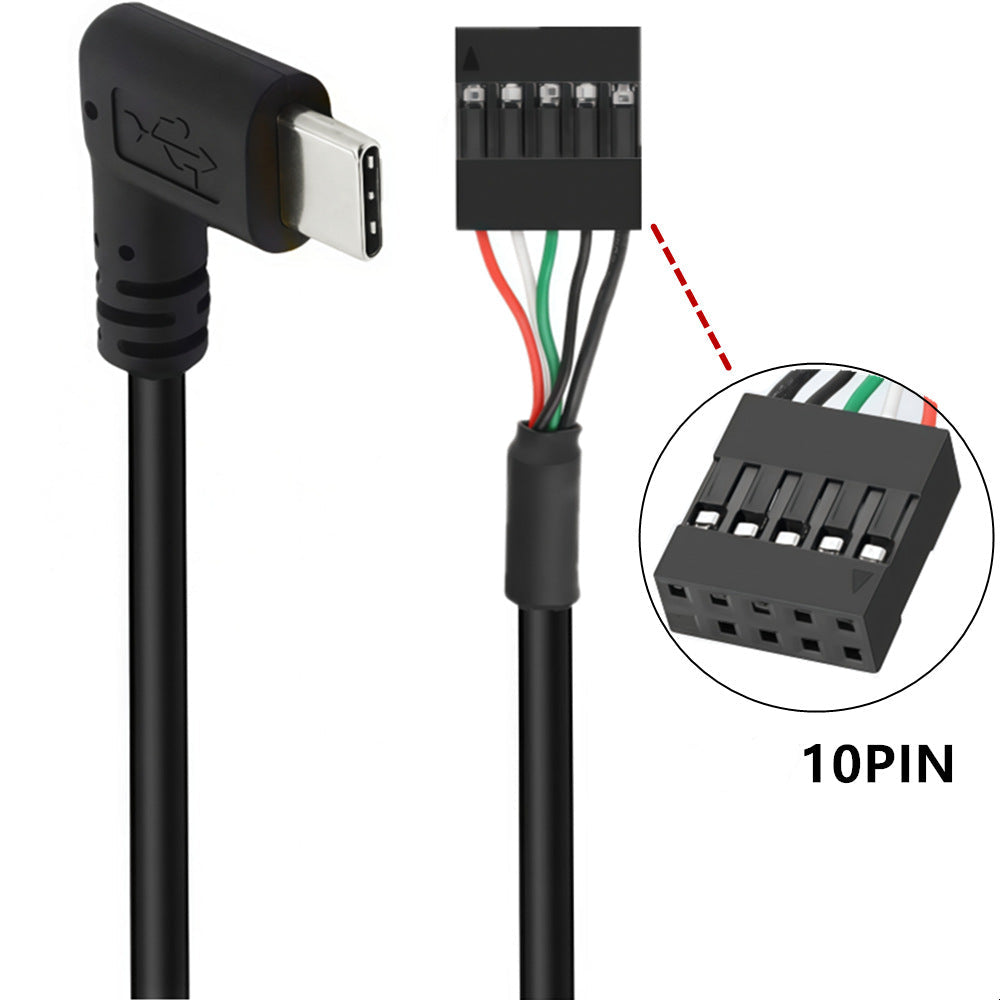

The internal connector uses a 10-position housing with one unused or blocked position, commonly referred to as a USB 2.0 9-pin motherboard header connector. Standard USB 2.0 wiring is used for power and data, including VCC, D-, D+ and ground connections.
Based on the supplied product information, the cable supports USB 2.0 data transfer rates of up to 480Mbps and standard 5V USB power from a compatible motherboard header.
Key details:
Cable type: Internal USB front-panel adapter cable
Connector 1: USB 2.0 9-pin motherboard header female
Header housing: 10-position with one unused or blocked position
Connector 2: USB Type-C male
USB-C design: Right-angle L-shaped connector
Cable exit: Side exit
USB standard: USB 2.0
Maximum stated data rate: Up to 480Mbps
Power support: Standard 5V USB power
Cable length: 0.5 metre
Installation type: Internal
Cable colour: Black
Use: Desktop PC cases, front-panel upgrades, replacement USB ports and custom enclosures
Typical applications:
Upgrade or replace a PC case front-panel USB connection
Connect a compatible motherboard USB 2.0 header to a USB-C port assembly
Install a USB-C connection where internal clearance is limited
Reduce sharp cable bending behind compact chassis panels
Compatibility information:
This cable connects to a USB 2.0 9-pin motherboard header. It is not compatible with USB 3.0 or USB 3.2 19-pin front-panel headers.
The USB-C connector does not increase the speed of the USB 2.0 connection. Maximum data transfer remains up to 480Mbps.
The cable does not include an E-Marker chip and does not support USB Power Delivery, high-power fast charging, DisplayPort Alt Mode, Thunderbolt or video output.
Please check the motherboard header layout, missing-pin position, USB-C connector direction and available installation space before ordering.
Package includes:
1 x USB 2.0 9-pin motherboard header to right-angle USB-C male cable, 0.5m
