This USB 2.0 motherboard header to 90-degree USB-C cable is designed for desktop PC case front-panel upgrades, replacement connections and custom computer installations.

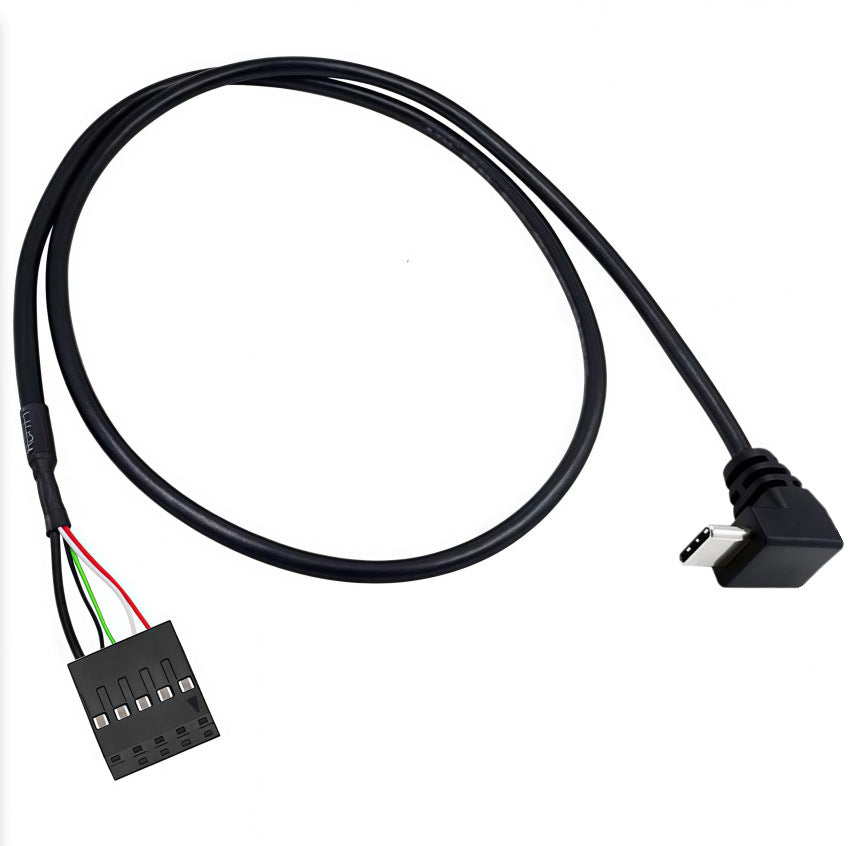

The cable features a USB 2.0 motherboard header female connector at one end and an angled USB Type-C male connector at the other. The compact 90-degree USB-C design helps reduce installation clearance and cable strain in confined areas behind computer panels and internal equipment.

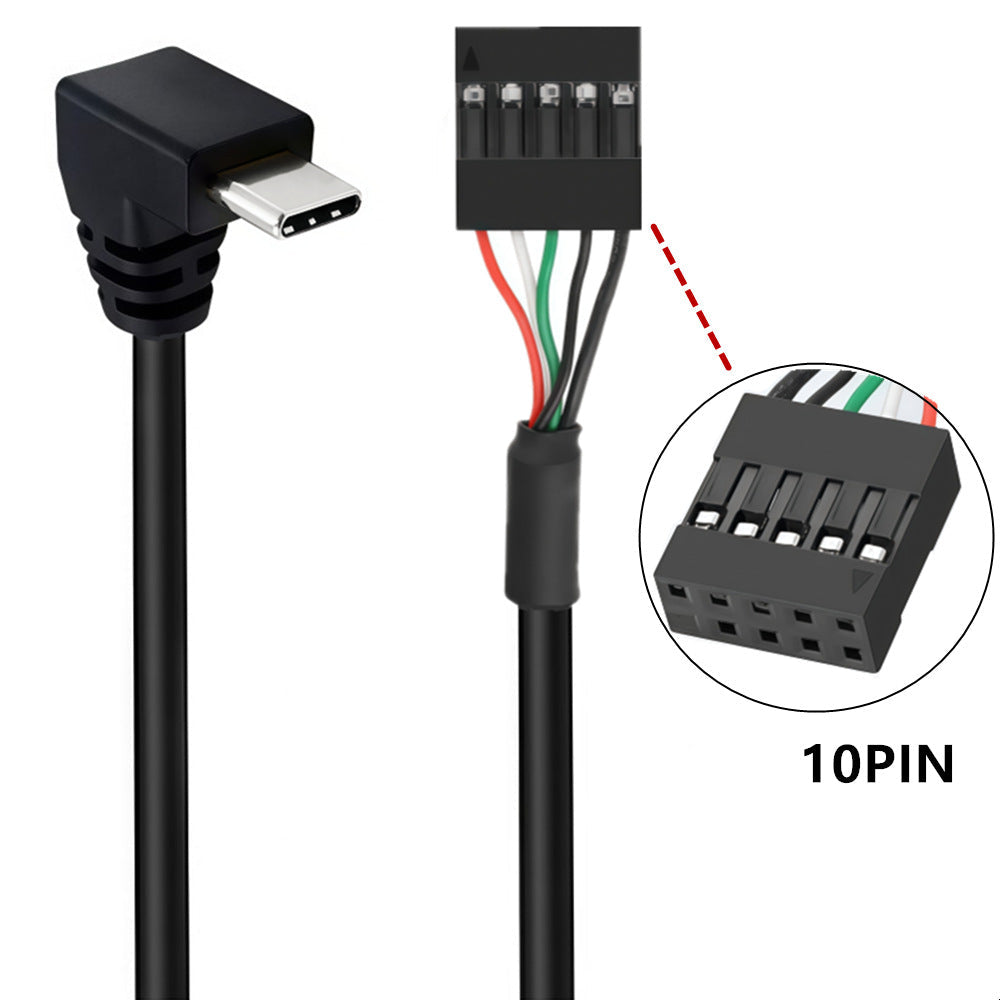

The motherboard connector uses a 10-position housing with one blocked or unused position, commonly described as a USB 2.0 9-pin header connector. It carries standard USB 2.0 power and data connections from a compatible motherboard header.
Based on the supplied product information and connector design, the cable supports USB 2.0 data transfer rates of up to 480Mbps and standard 5V USB power.
Key details:
Cable type: Internal USB adapter cable
Connector 1: USB 2.0 9-pin motherboard header female
Header housing: 10-position with one blocked or unused position
Connector 2: USB Type-C male
USB-C orientation: 90-degree angled
USB standard: USB 2.0
Maximum data rate: Up to 480Mbps
Power support: Standard 5V USB power
Cable length: 0.5 metre
Installation type: Internal
Cable colour: Black
Connector colour: Black
Use: PC cases, desktop computers, front-panel upgrades and custom enclosures
Typical applications:
Connect a compatible motherboard USB 2.0 header to equipment with a USB-C female port
Upgrade or modify a desktop PC front-panel connection
Install a USB-C connection where internal clearance is limited
Reduce excessive bending around the USB-C connector
Compatibility information:
This cable is designed for a USB 2.0 9-pin motherboard header. It is not compatible with USB 3.0 or USB 3.2 19-pin front-panel headers.
The USB-C connector does not upgrade the connection to USB 3.0 speeds. Maximum data transfer remains up to 480Mbps.
This cable does not support USB Power Delivery, high-power fast charging, DisplayPort Alt Mode, Thunderbolt or video output.
Please check the motherboard header layout, missing-pin position, USB-C angle direction and available installation space before ordering.
Package includes:

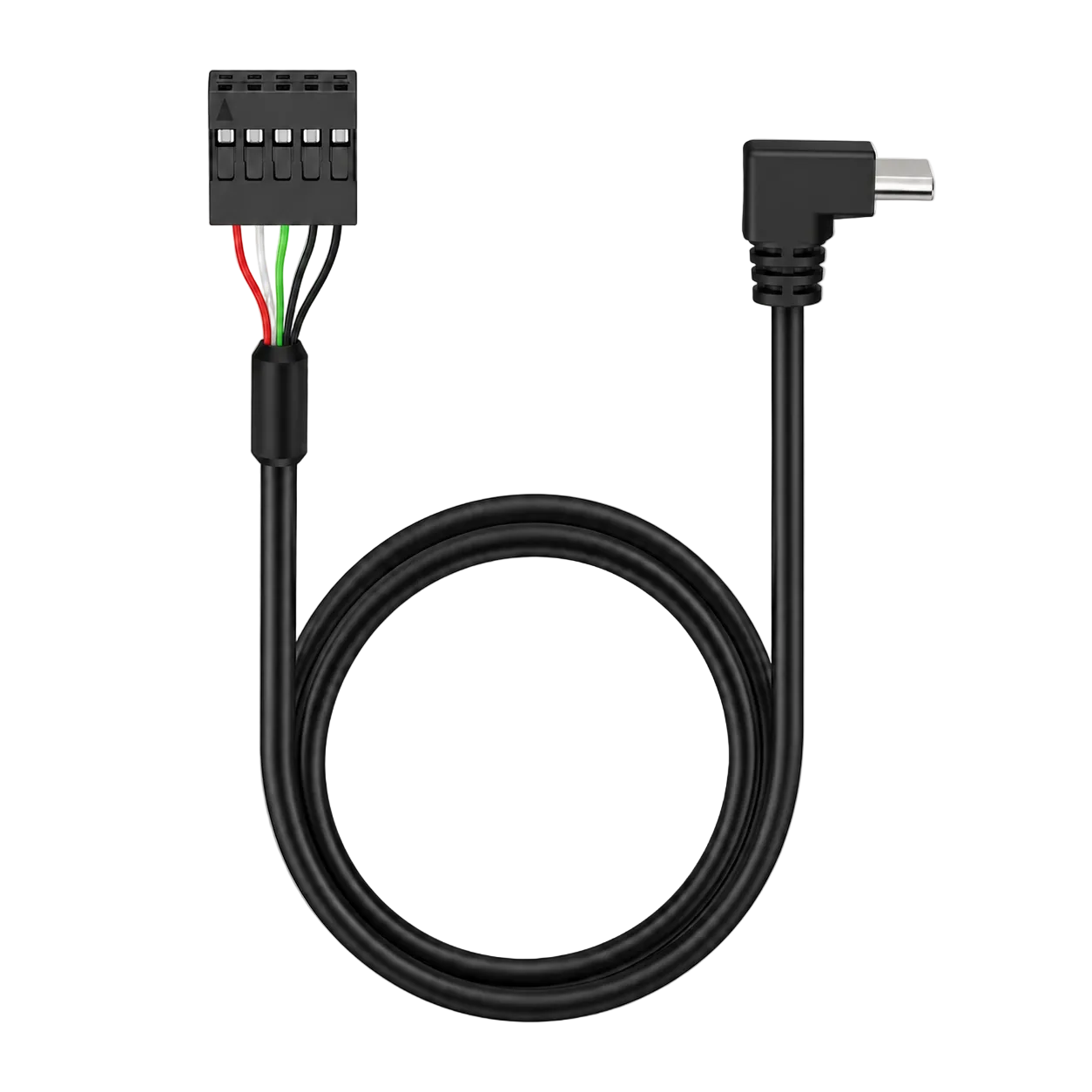

1 x USB 2.0 9-pin motherboard header to 90-degree USB-C male cable, 0.5m
