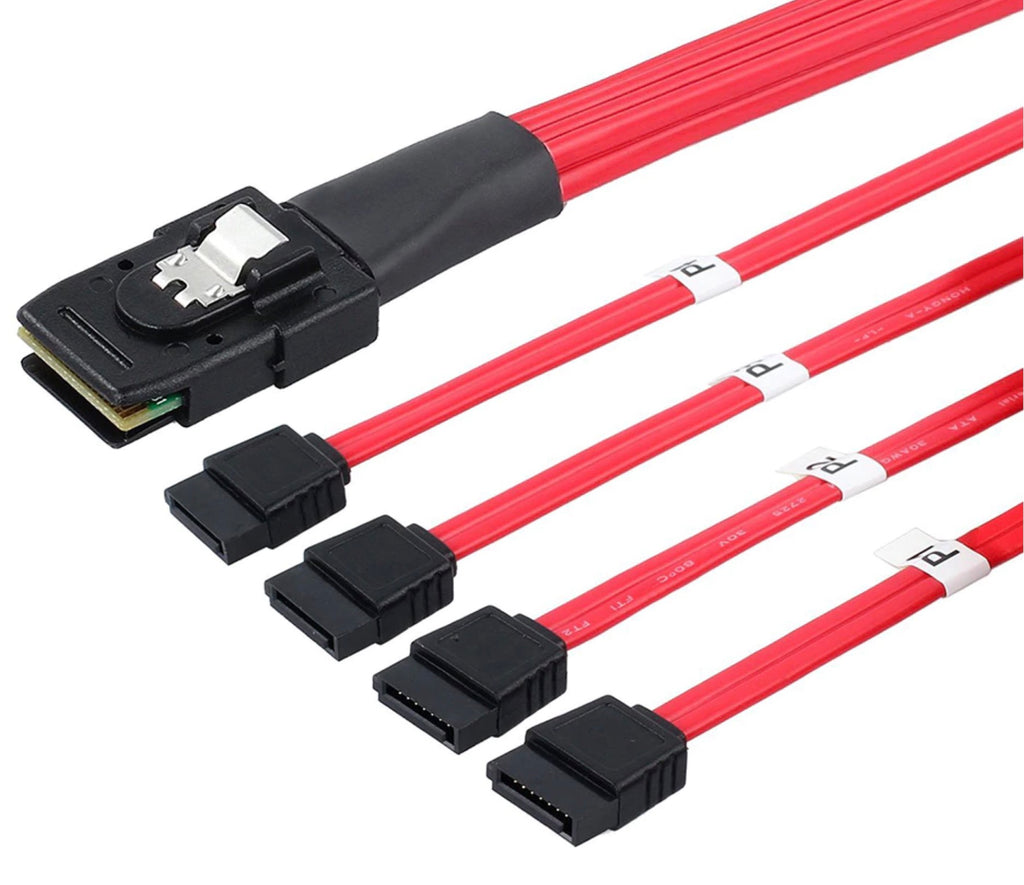

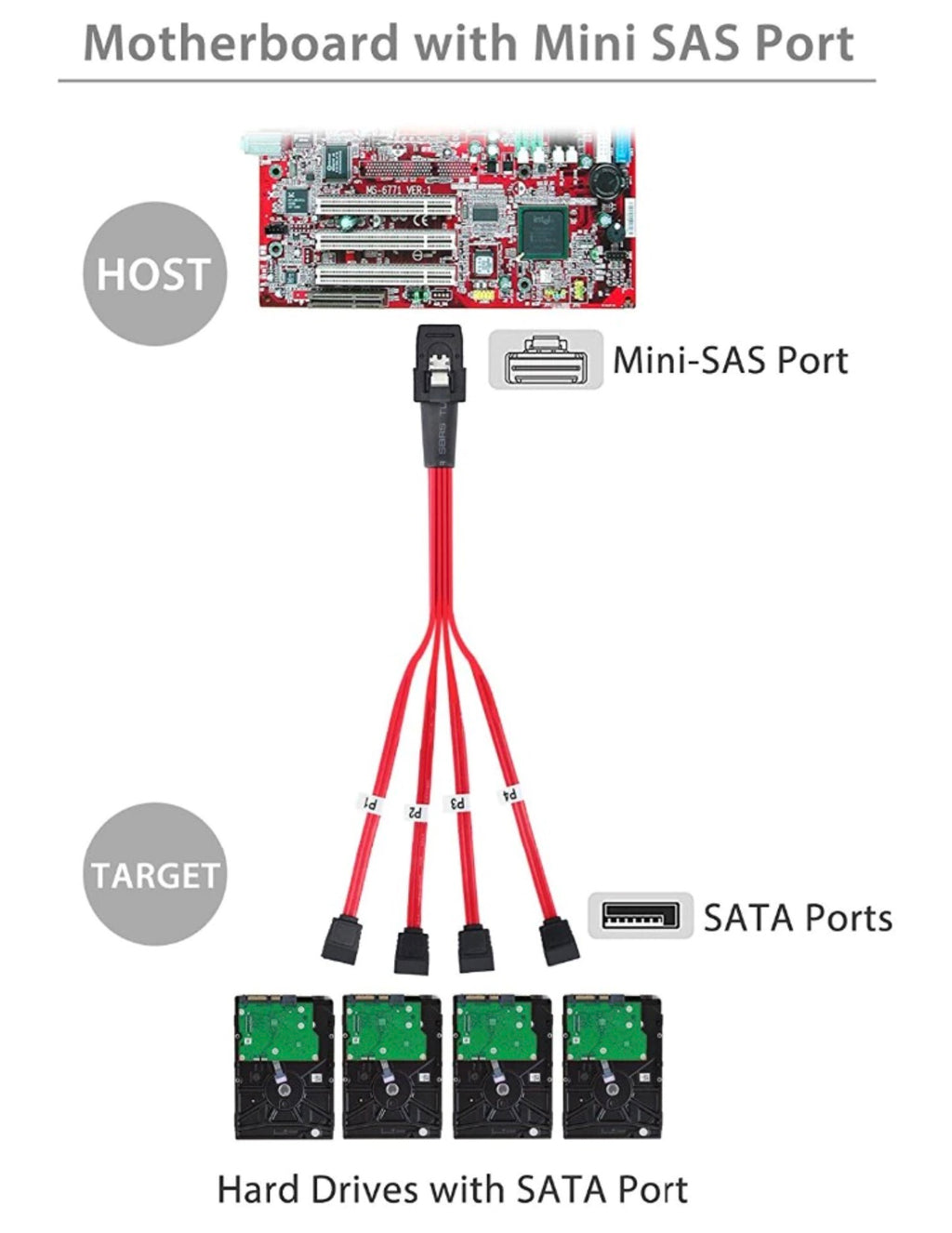

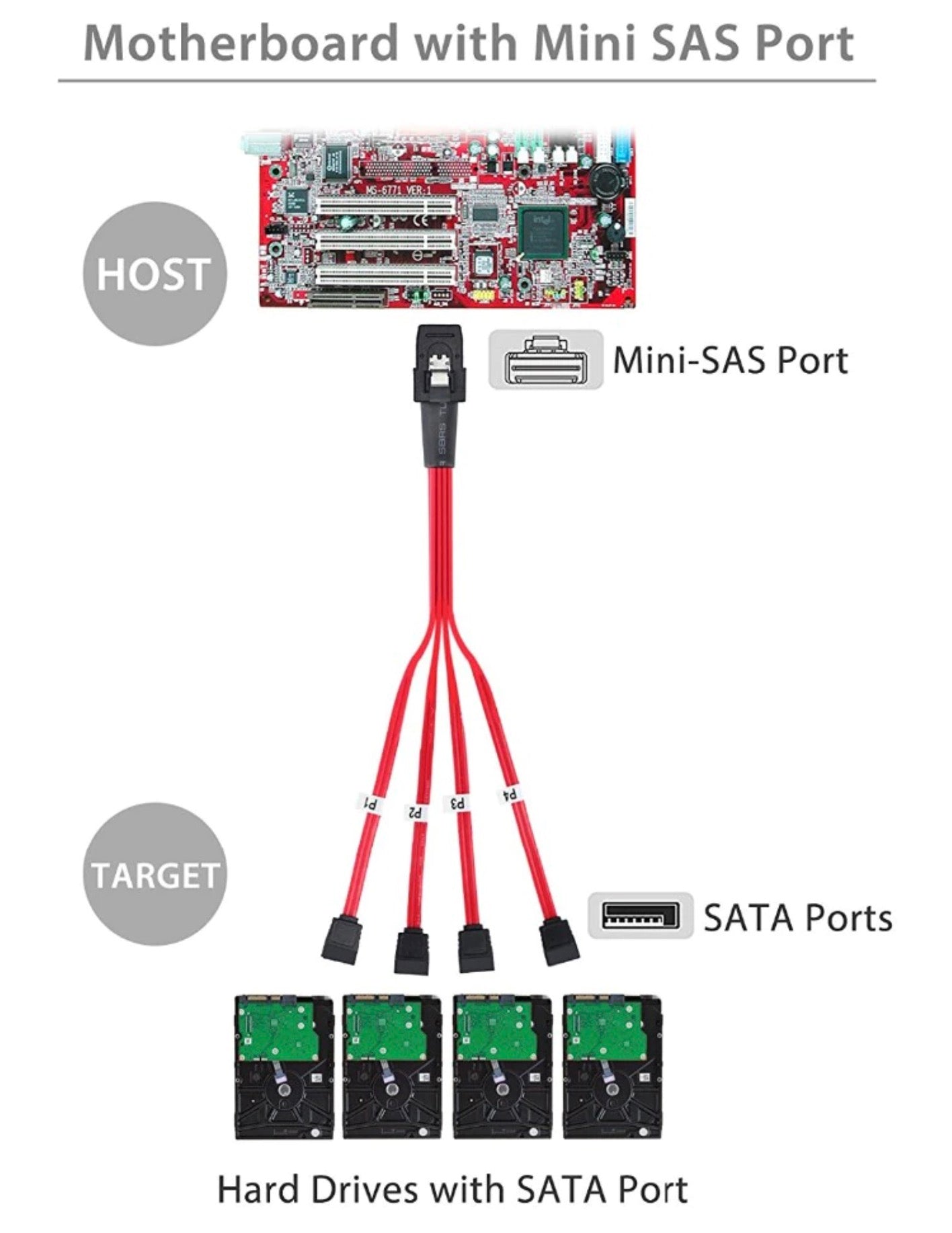

The Mini SAS SFF-8087 to 4 SATA breakout cable allows a Mini SAS host controller to connect directly to four SATA hard drives or SSDs. It is designed for internal server storage expansion, RAID controller connectivity and high-performance workstation systems.

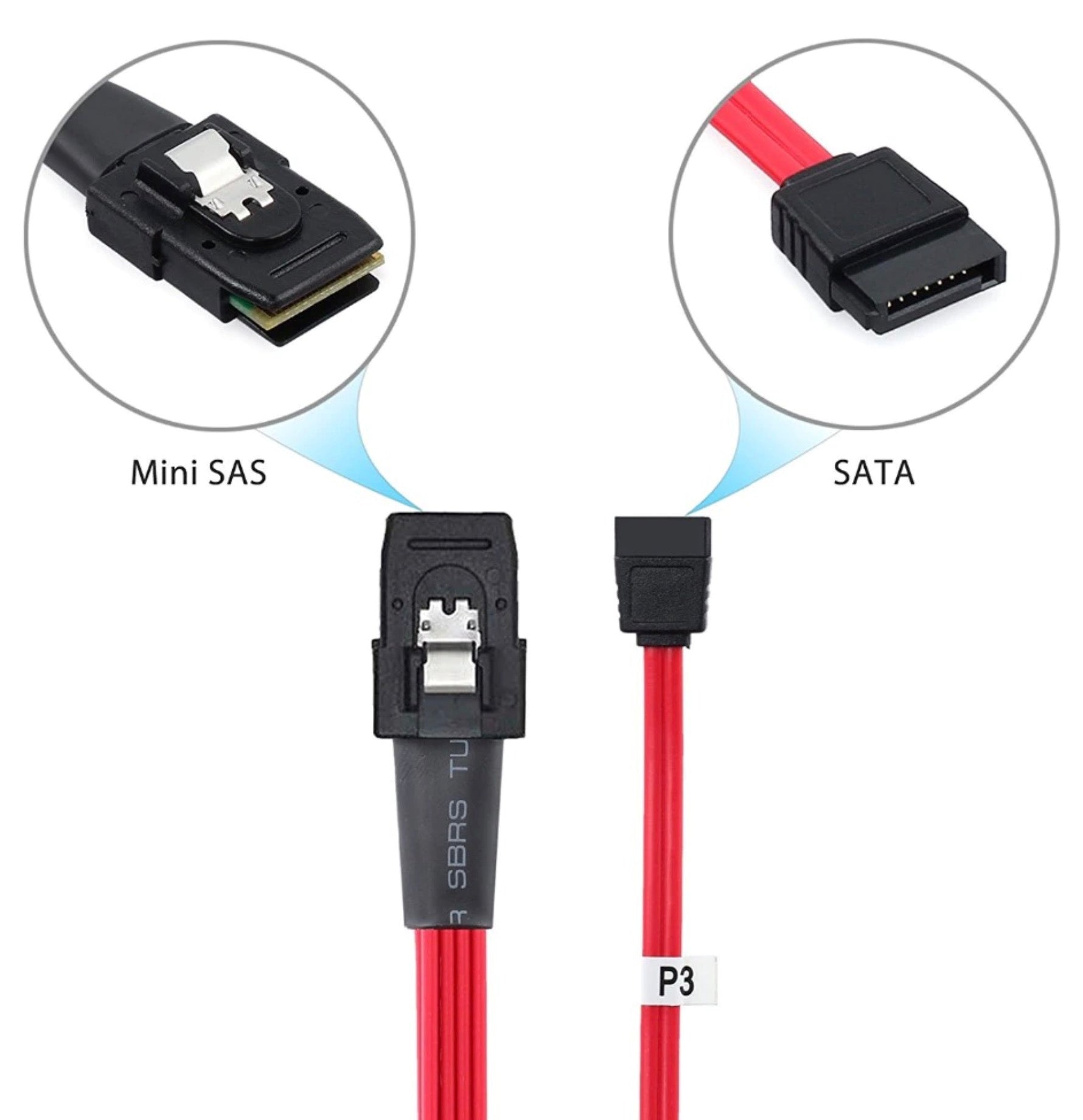

This cable features a Mini SAS SFF-8087 36-pin host connector and four SATA 7-pin connectors, making it ideal for connecting multiple SATA drives to a RAID controller or SAS host bus adapter.
The breakout design enables efficient storage expansion while maintaining reliable data transmission and signal integrity. It is commonly used in servers, NAS systems and enterprise storage platforms.
Features
• Mini SAS SFF-8087 36-pin male host connector
• 4 × SATA 7-pin female target connectors
• Forward breakout cable for connecting SATA drives to SAS controllers
• Compatible with RAID controllers and host bus adapters
• Supports data transfer rates up to 10Gbps
• Durable cable design for internal server installations
• Ideal for servers, NAS systems and workstation storage expansion
• Cable length: 0.5m
Compatibility
Compatible with RAID controllers and server motherboards using Mini SAS SFF-8087 connectors.
Supports connection of SATA hard drives and SSDs used in servers, NAS systems and enterprise storage arrays.
