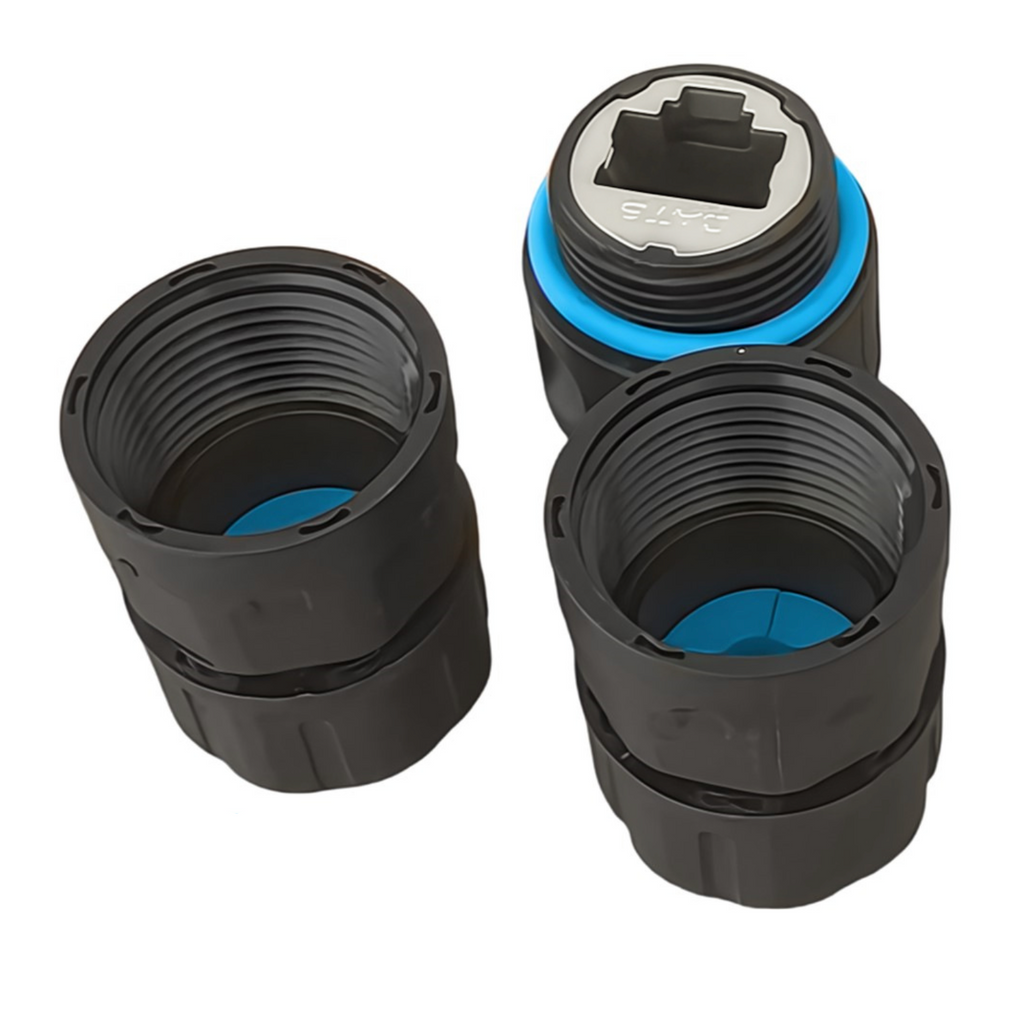

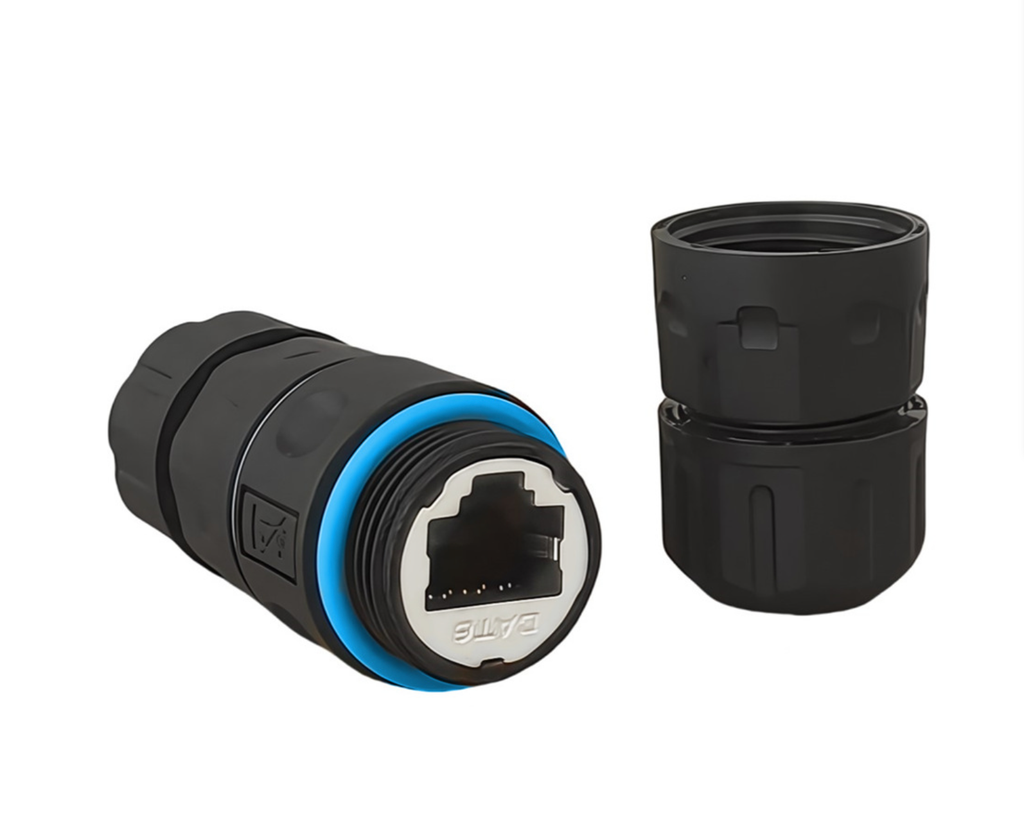

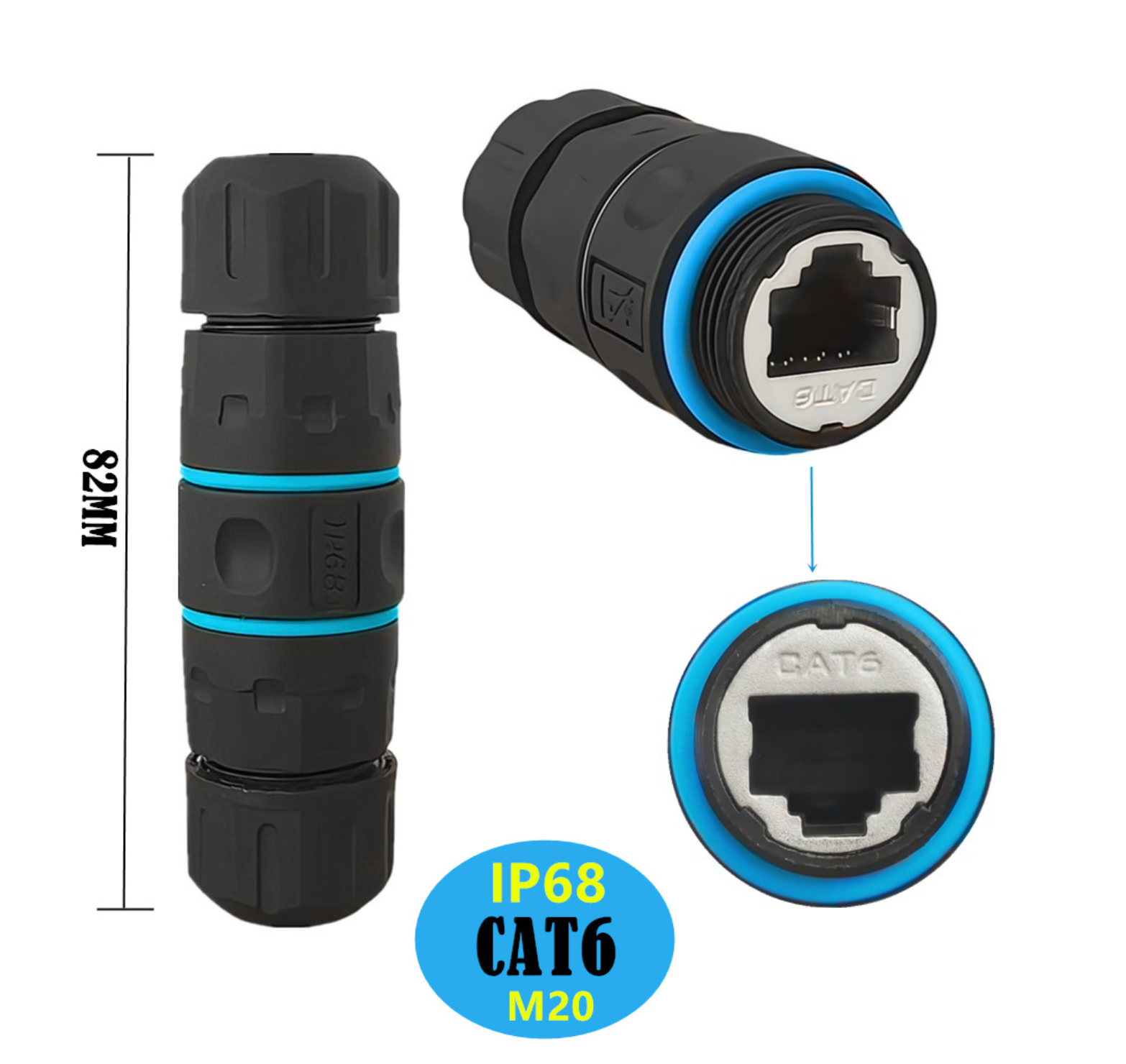

Cat6 M20 Waterproof RJ45 Connector (IP68 Rated, Shielded, 8P8C)
Upgrade your Ethernet connections with the Cat6 M20 Waterproof RJ45 Connector, engineered to deliver fast, reliable, and shielded network performance even in the harshest environments.
Built with a rugged zinc alloy housing and IP68-rated protection, this connector resists water, dust, moisture, and contaminants - making it a trusted choice for industrial, outdoor, and marine applications. Whether in heavy rain, dirt, or extreme conditions, your network remains secure and stable.
The RJ45 8P8C shielded coupler easily converts standard Cat5/5e/6 patch cables into a durable waterproof connection. Installation is simple - no soldering or special tools required. Just plug, lock, and you’re connected.
Compact yet powerful, the M20 design saves installation space while supporting Gigabit and 10-Gigabit Ethernet speeds with un-compromised signal integrity.
Features:
- IP68 Waterproof & Dust proof - Complete protection against water, dirt, and contaminants

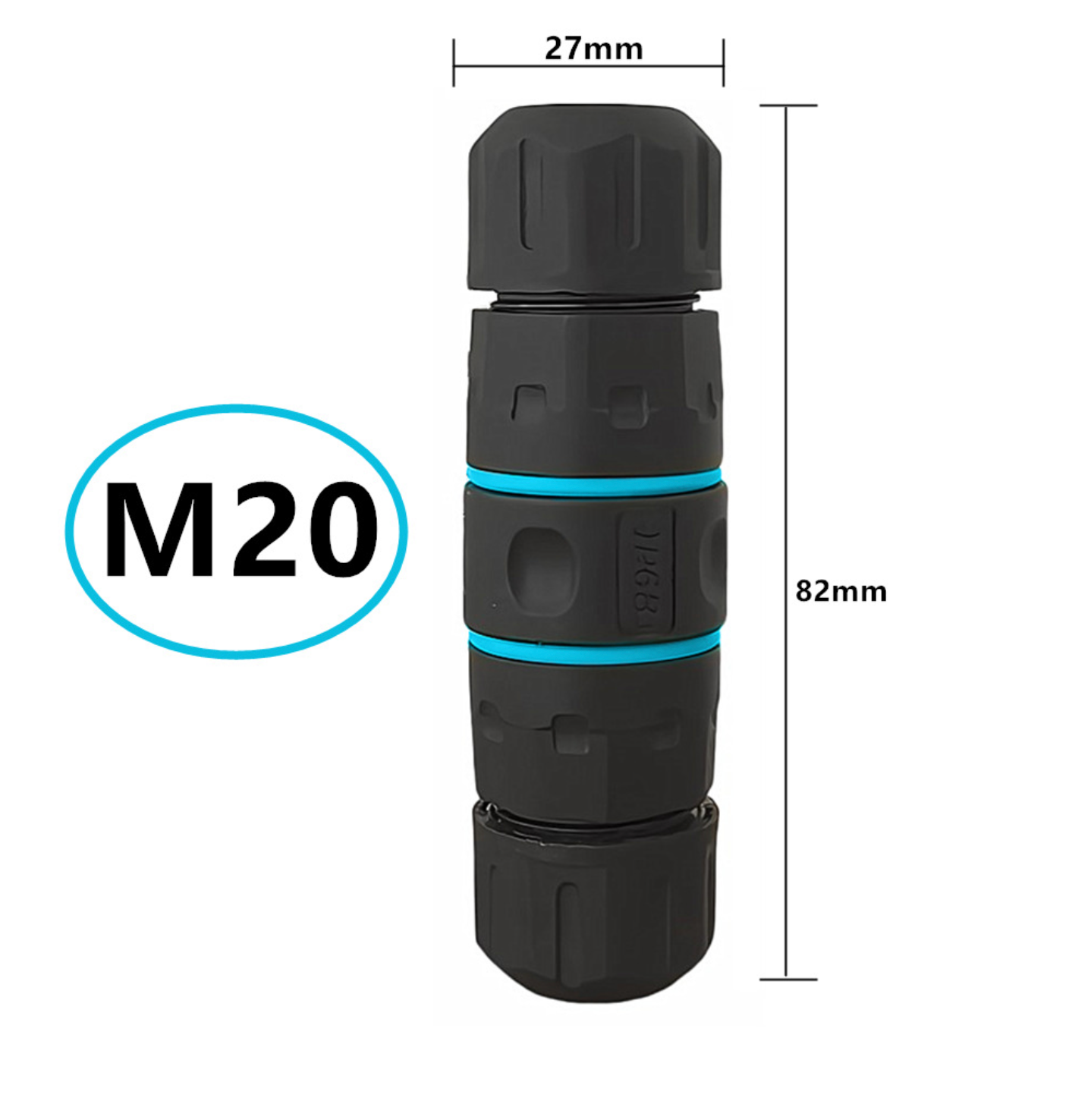

- M20 Threaded Zinc Alloy Design - Corrosion-resistant, compact, and durable
- Shielded RJ45 8P8C Coupler - Ensures reliable signal integrity and stable performance
- Tool-Free Installation - Plug-and-play setup with secure screw-lock design
- High-Speed Data Support - Cat6 performance for Gigabit and 10-Gigabit Ethernet

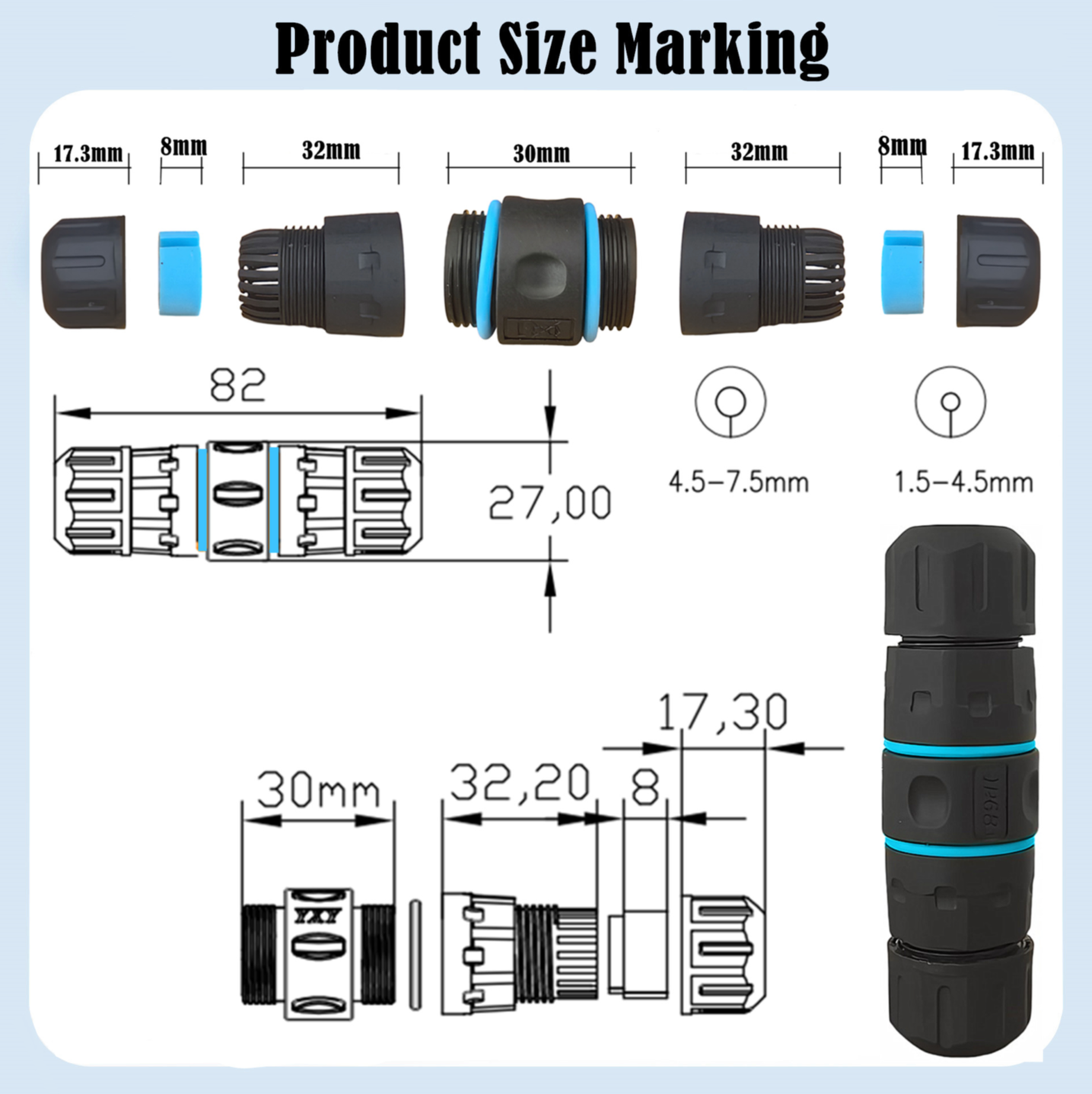

- Wide Cable Range - Supports cables with 3–8mm outer diameter
Specifications:
- Connector Type: RJ45, 8 Pin (8P8C)

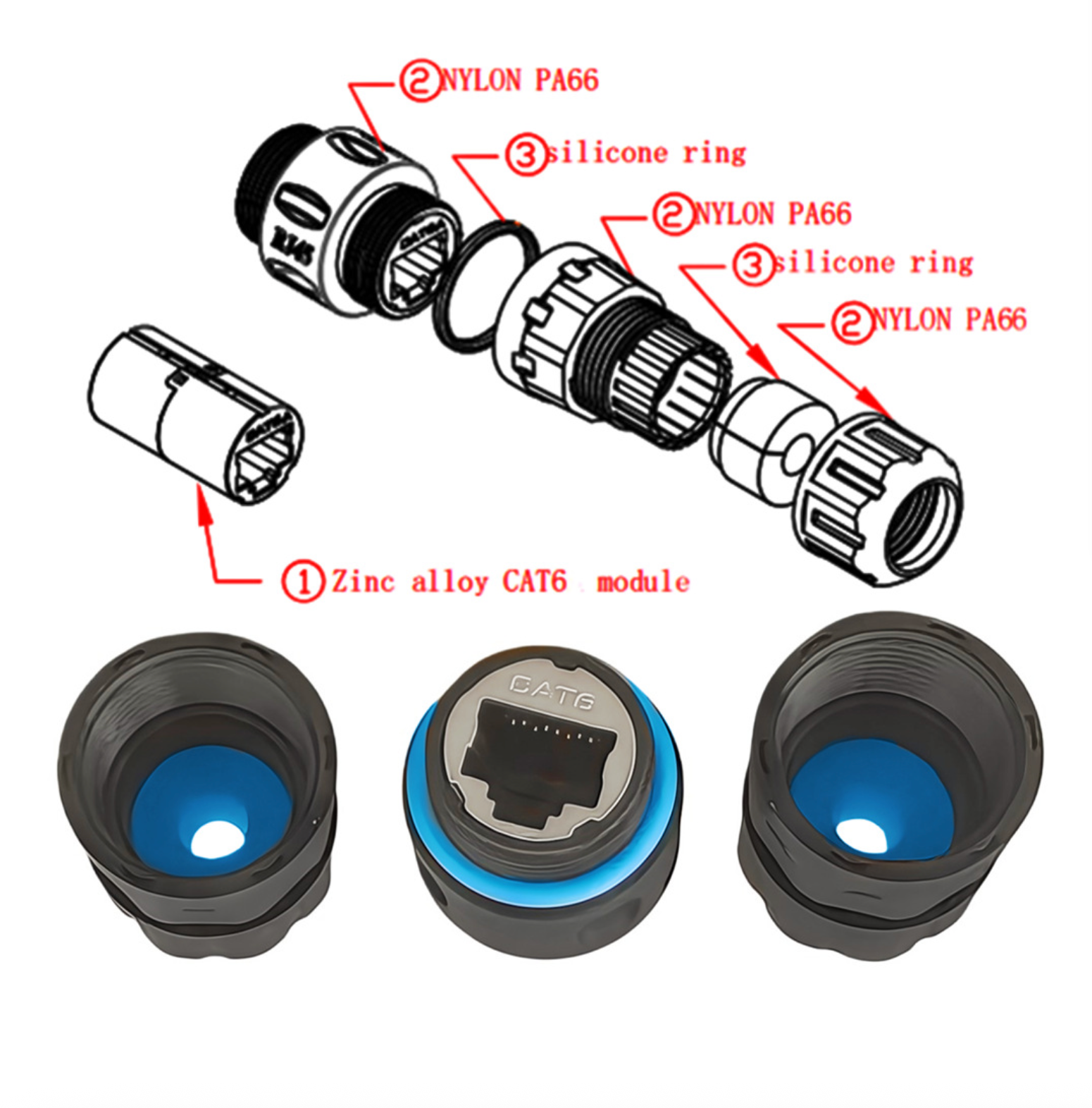

- Housing Material: Zinc alloy + Nylon PA66 (UL94V-0 flame-retardant)
- Pins: Phosphor bronze, gold-plated (6μin)
- Waterproof Rating: IP68
- Flame Rating: UL94V-0
- Connection Method: Plug-in + screw lock (M20 thread)
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -25°C to +85°C
- Rated Current: 2.4A
- Rated Voltage: 250V
- Weight: 40g
Compatibility:
This connector is compatible with standard RJ45 Cat5, Cat5e, and Cat6 Ethernet cables. It supports both shielded and unshielded twisted pair cables (3-8mm outer diameter) and is optimised for Gigabit and 10-Gigabit Ethernet applications.
