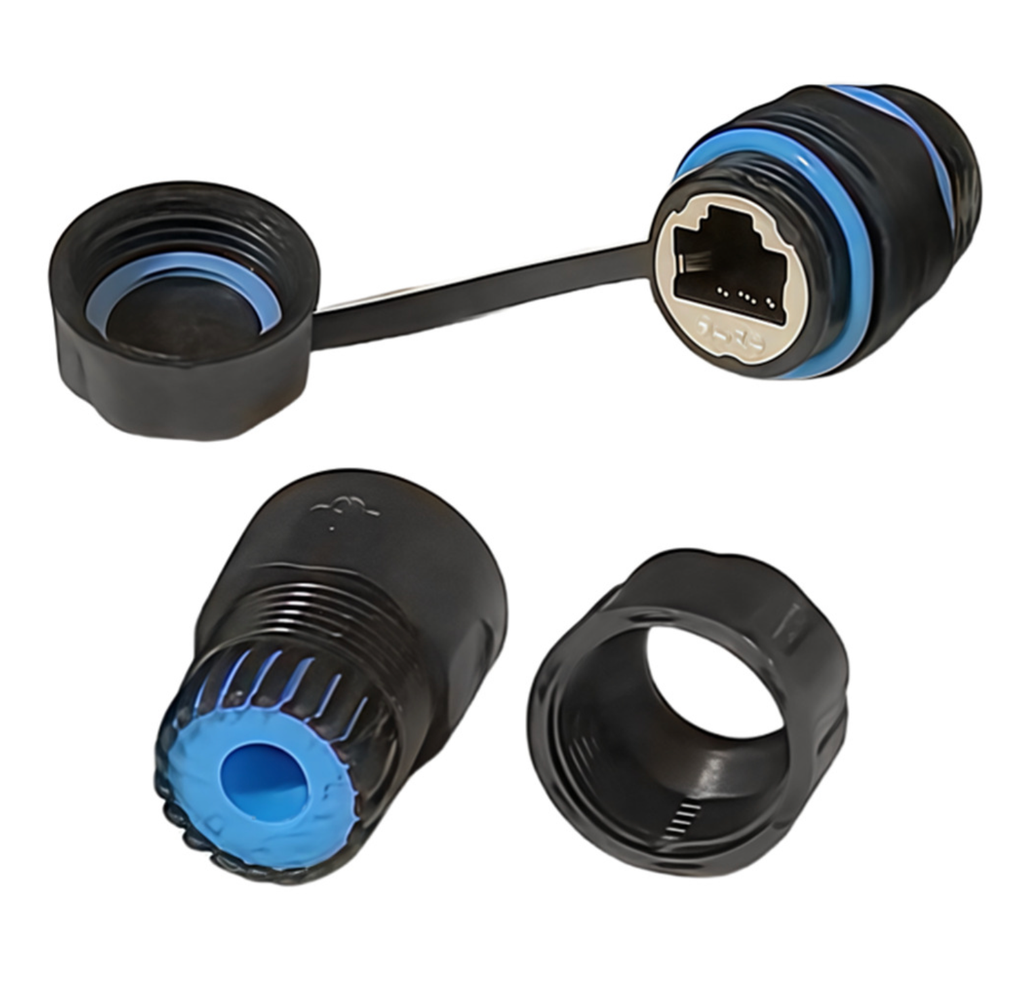

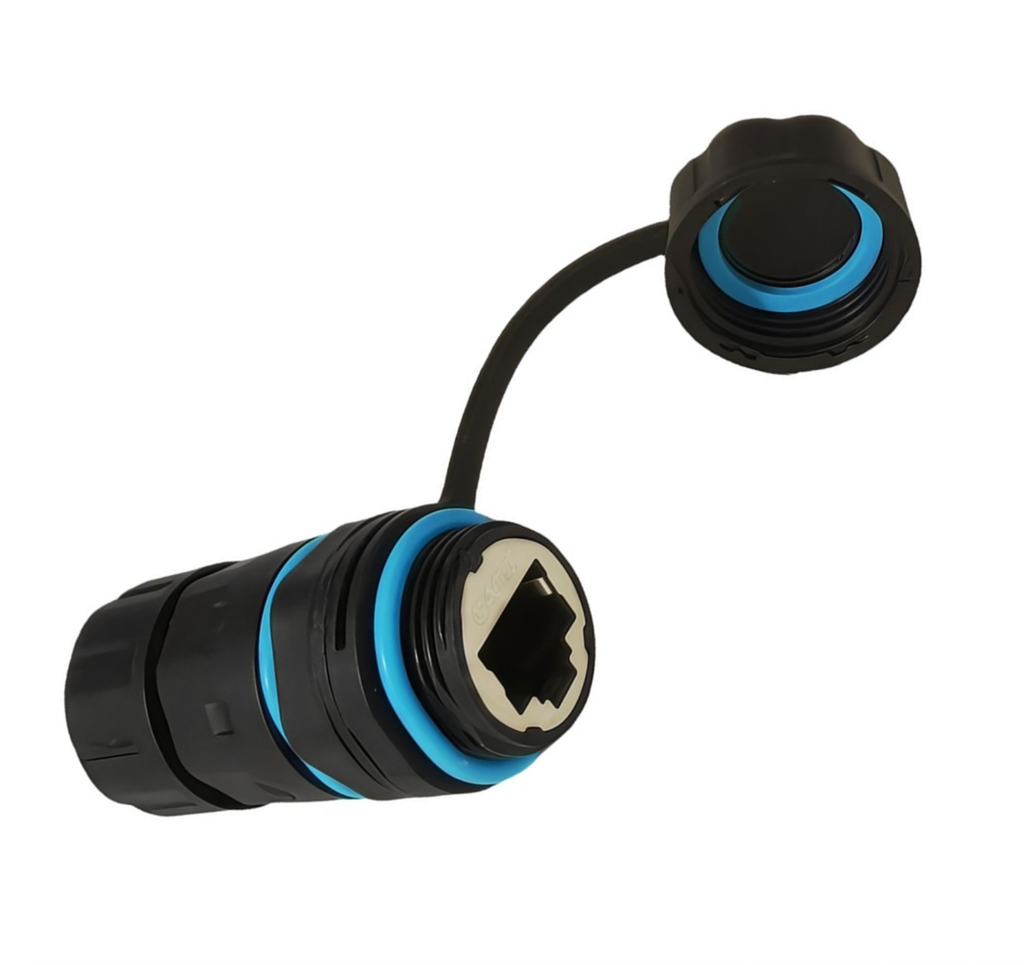

M21 Short-Type IP68 Zinc Alloy CAT6 Waterproof Dustproof RJ45 Connector (Shielded, Female-to-Female, 8P8C)
Upgrade your network reliability with this IP68-rated CAT6 RJ45 connector, built to withstand harsh industrial and outdoor conditions. Designed for secure, shielded, and high-speed connections, this compact M21 short-type coupler is perfect for demanding environments where protection from water, dust, and contaminants is essential.
With its female-to-female design, it easily converts standard CAT5/5e/6 cables into robust waterproof links. The rugged zinc alloy and PA66 nylon housing, combined with gold-plated contacts and a silicone sealing ring, ensure durability, low signal loss, and long-term performance.
No tools or soldering are needed - just plug, lock, and secure.
Features:
- IP68 Waterproof & Dust proof - Reliable protection in outdoor and industrial environments.
- Shielded Signal Transmission - Stable Gigabit & 10-Gigabit Ethernet with minimal interference.

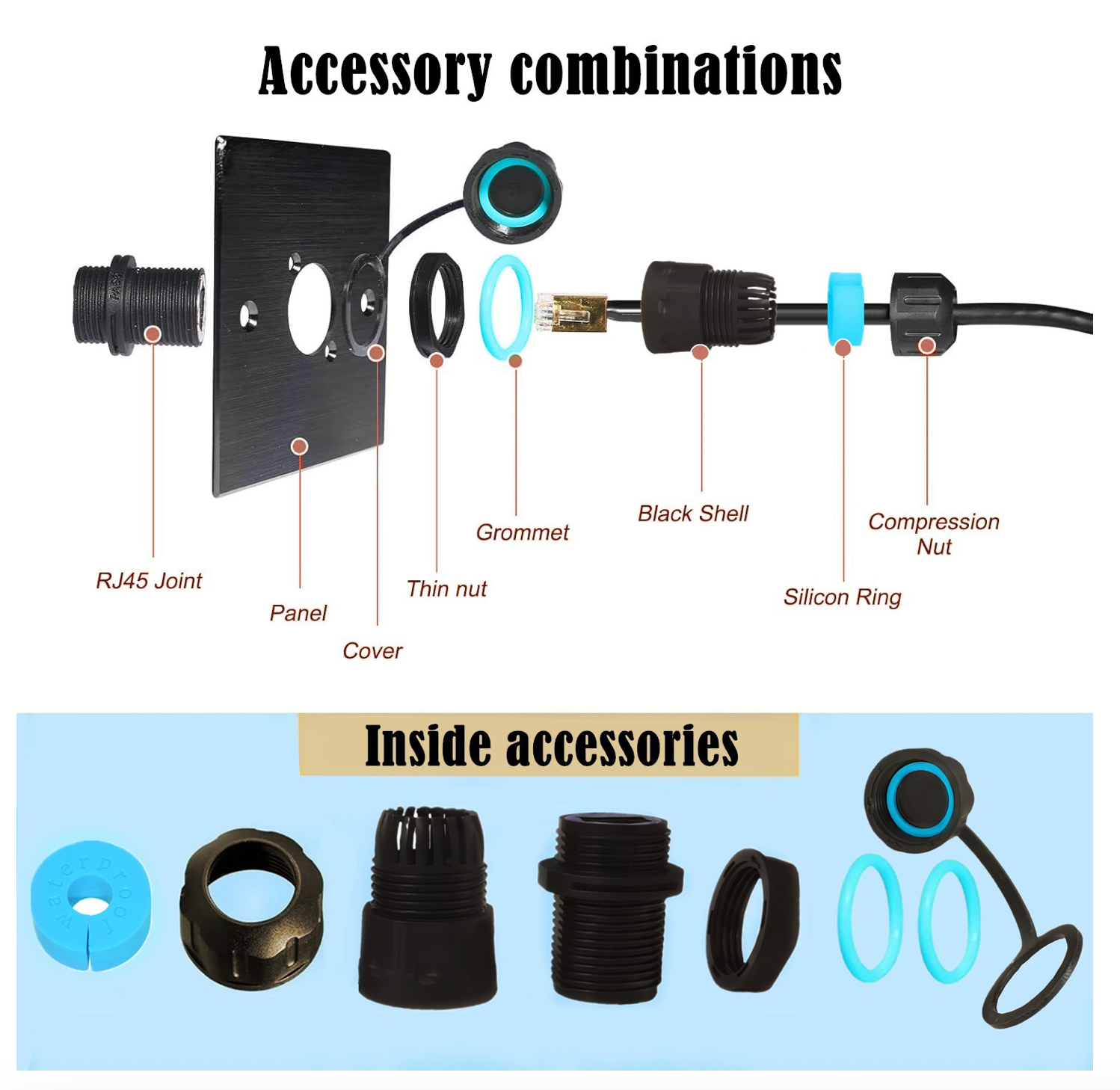

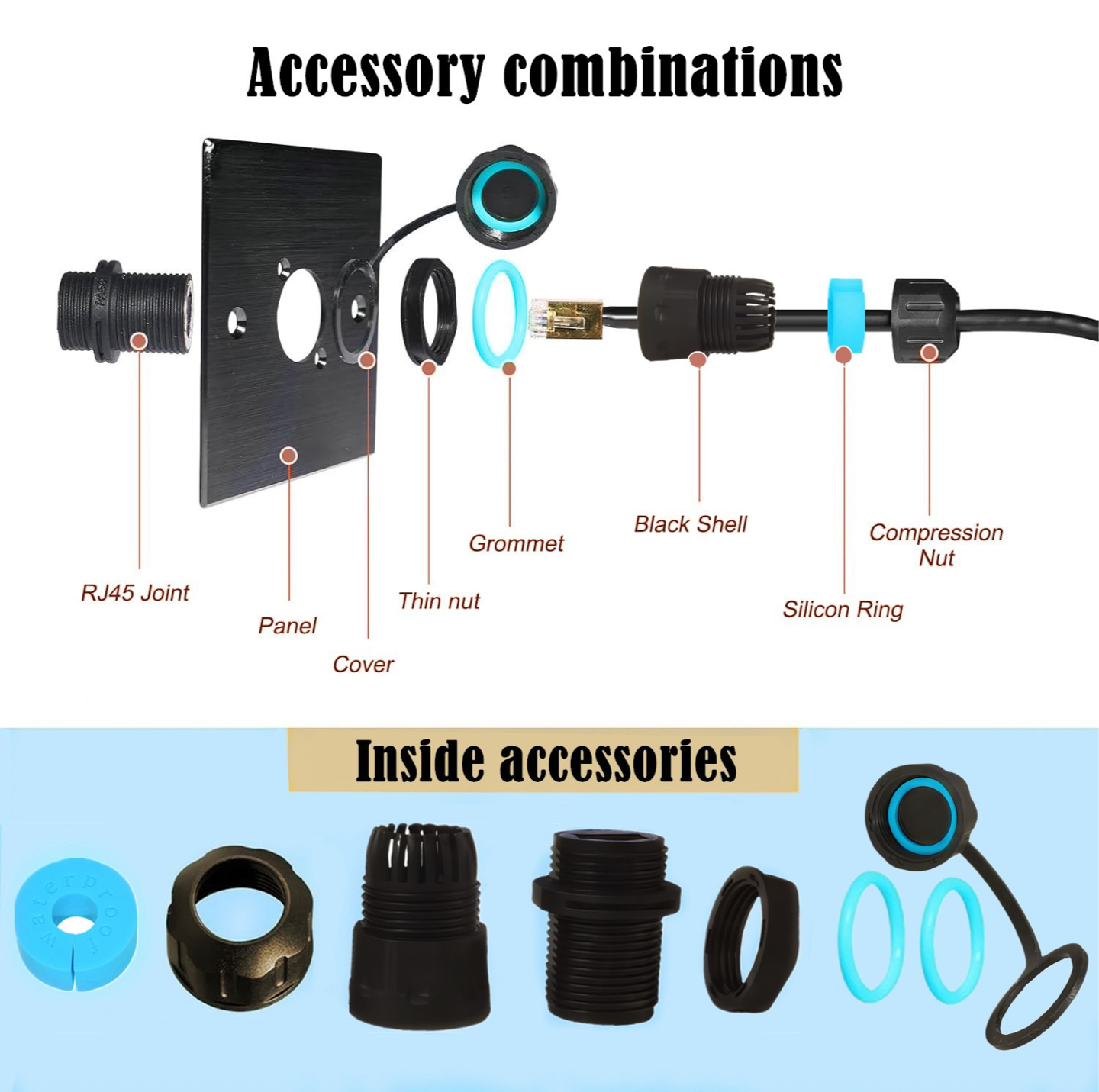

- Durable Build - Zinc alloy + PA66 housing, gold-plated contacts, and silicone sealing ring.
- Tool-Free Installation - Simple plug-and-lock with threaded compression design.
- Wide Cable Support - Fits 3–8mm outer diameter cables.
- Safety Certified - UL94V-0 flame-retardant, 2.4A/250V rated, >500MΩ insulation resistance.
- Extreme Temperature Tolerance - Operates from -40°C to +105°C.
Specifications:

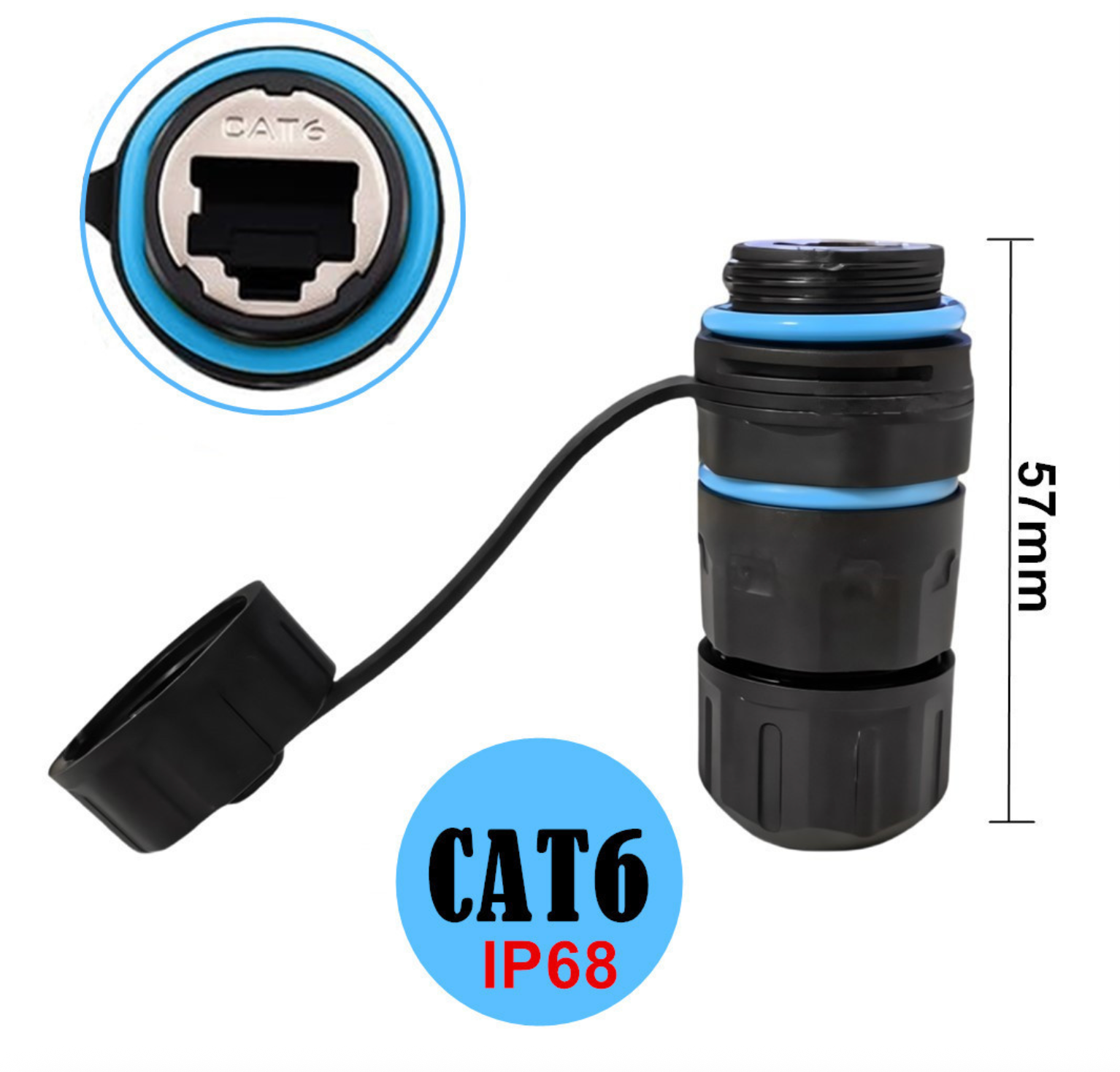

- Connector type: RJ45 8P8C (Female-to-Female)
- Transmission: CAT6 (supports Gigabit & 10G Ethernet)

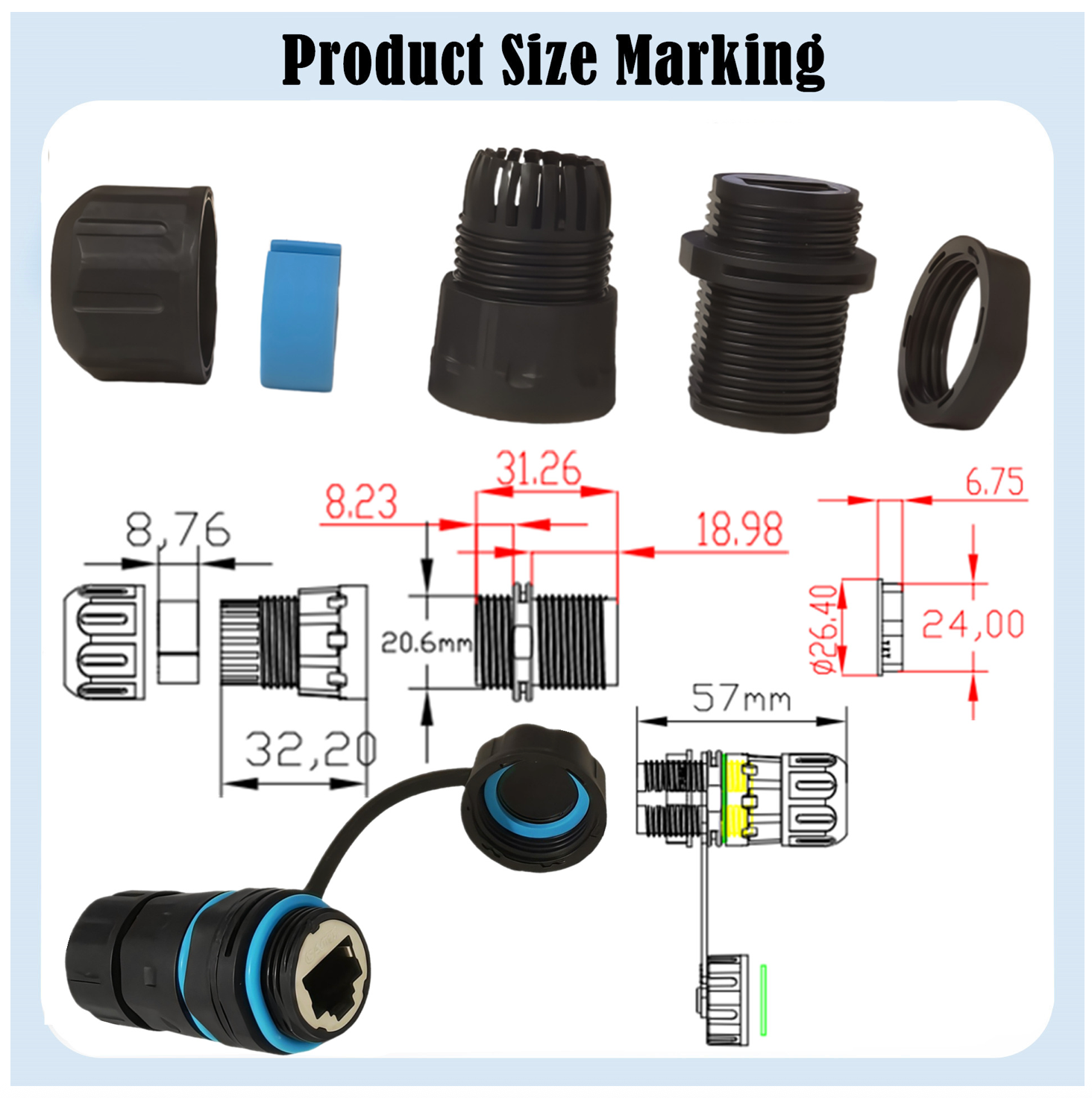

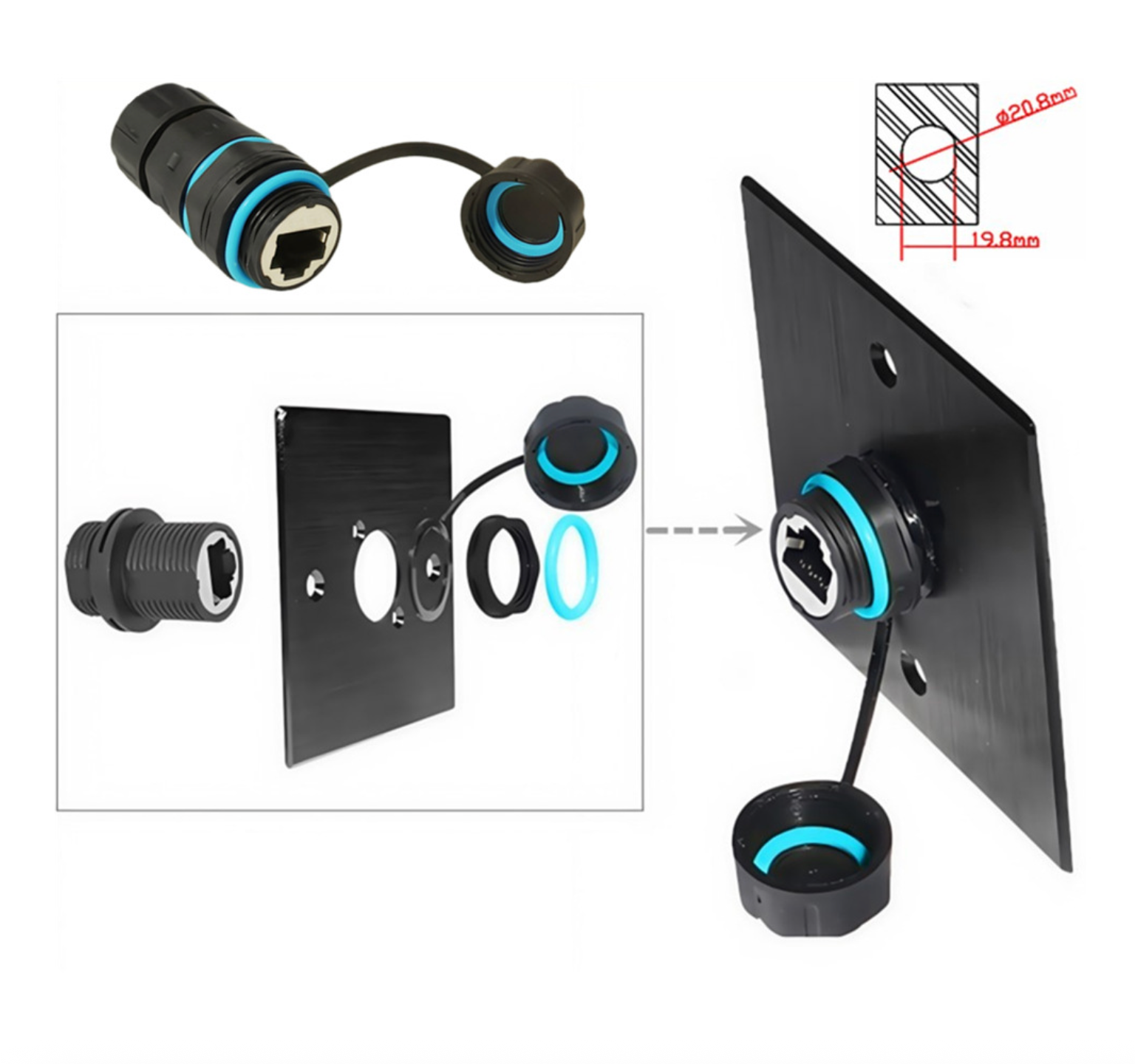

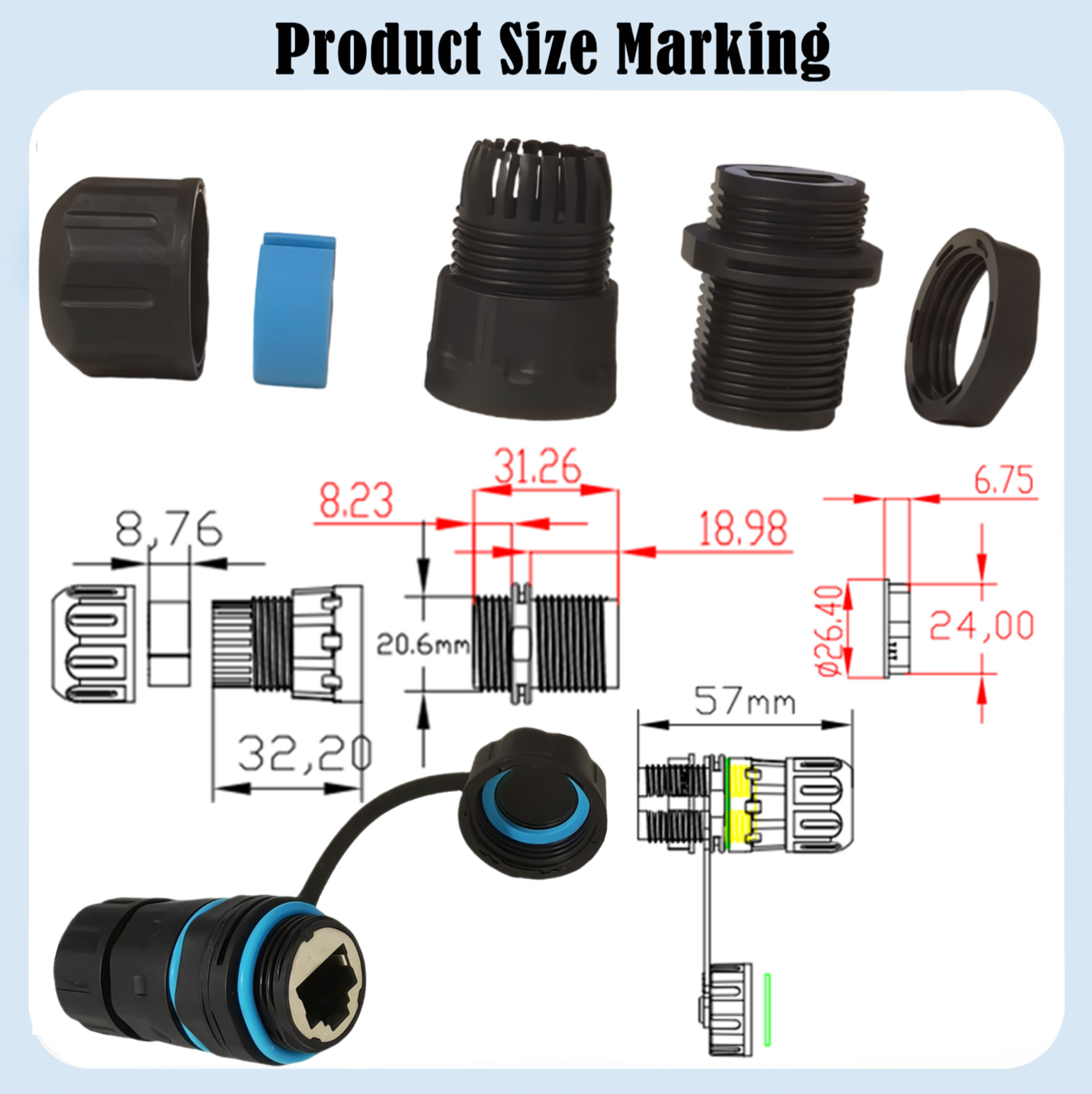

- Mounting size: M21
- Weight: 34g
Compatibility:
This connector is fully compatible with standard RJ45 CAT5, CAT5e, and CAT6 Ethernet cables. It supports both Gigabit and 10-Gigabit Ethernet networks and works with shielded and unshielded twisted pair cables with outer diameters ranging from 3-8mm.
