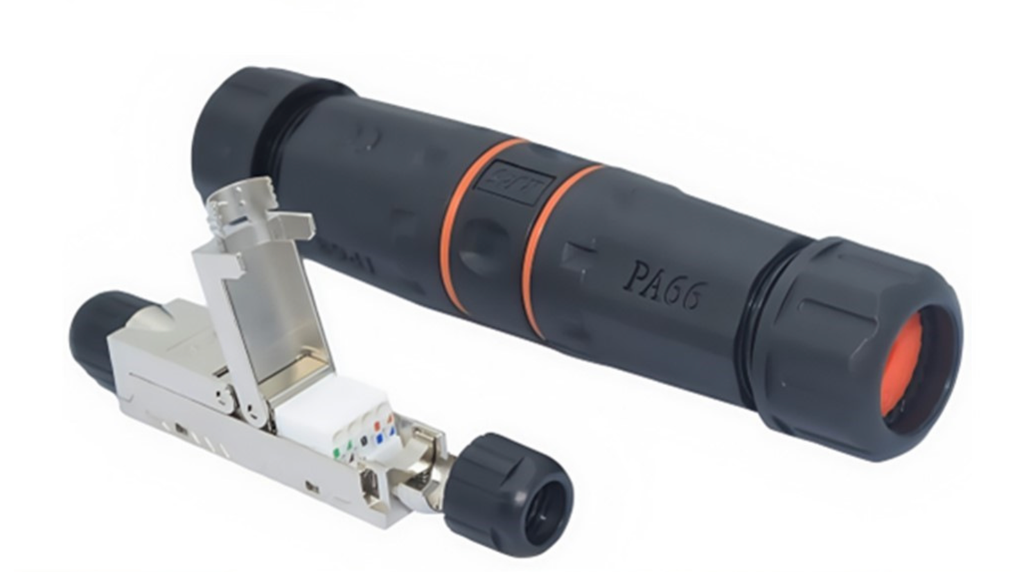

IP68 RJ45 Waterproof Connector (M23, Shielded Cat6, Female-to-Female, 8P8C)
Keep your Ethernet connections secure, shielded, and weatherproof with the M23 IP68 Waterproof RJ45 Connector. Designed for outdoor monitoring systems, IP cameras, industrial networks, and outdoor lighting setups, this compact coupler ensures stable and reliable data transmission even in the harshest environments.
Built for industrial and high-demand applications, this Cat6 shielded female-to-female coupler connects two standard RJ45 cables instantly. With its plug-and-play, tool-free design, installation is quick and hassle-free - no soldering or crimping required.
Engineered with IP68 waterproof, dustproof, and explosion-proof protection, it safeguards your network against rain, dirt, and extreme conditions. Supporting Cat6 performance up to 250MHz, it is also backward compatible with Cat5 and Cat5e cables for universal use.
Crafted from durable nylon PA66 housing with copper contacts and a silicone seal, this connector resists pressure, impact, and temperature extremes, providing a long-lasting solution for demanding environments.
Features:
- IP68 Waterproof, Dust proof & Explosion-Proof - Maximum protection for outdoor and industrial networks
- CAT6 Gigabit Performance - Speeds up to 250MHz, backward compatible with Cat5/5e

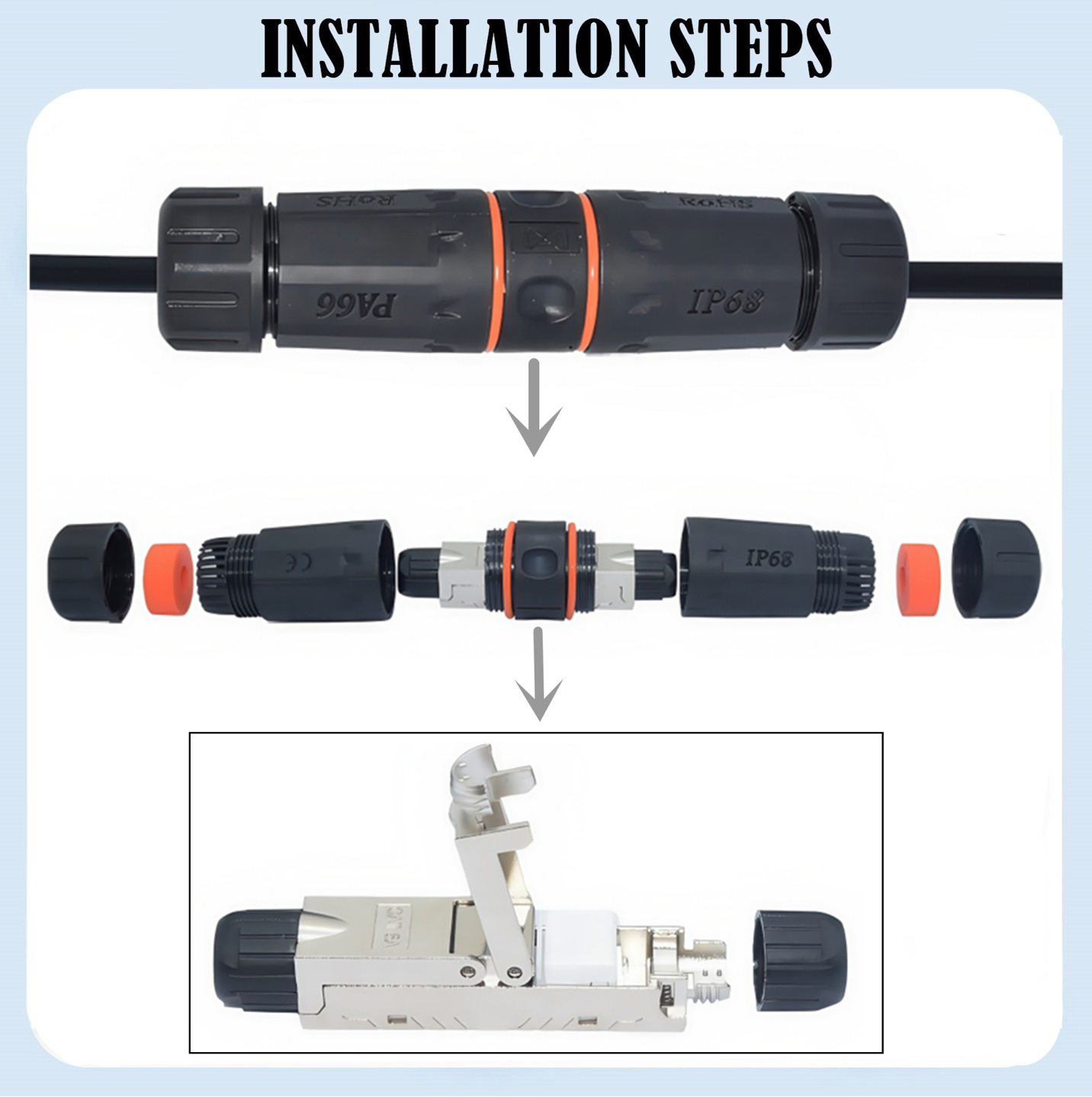

- Tool-Free Installation - RJ45 female-to-female coupler, plug-and-play convenience
- Durable Construction - Nylon PA66 housing, copper contacts, and silicone seal for reliability
- Compact M23 Size - Space-saving, easy to install, and highly dependable
Specifications:
- Connector Type: RJ45 Female-to-Female (8P8C)
- Transmission Standard: CAT6 (supports Cat5/5e)
- Waterproof Rating: IP68
- Explosion-Proof: Yes
- Frequency: Up to 250MHz
- Rated Current: 2.4A
- Rated Voltage: 250V
- Operating Temperature: -40℃ to +105℃

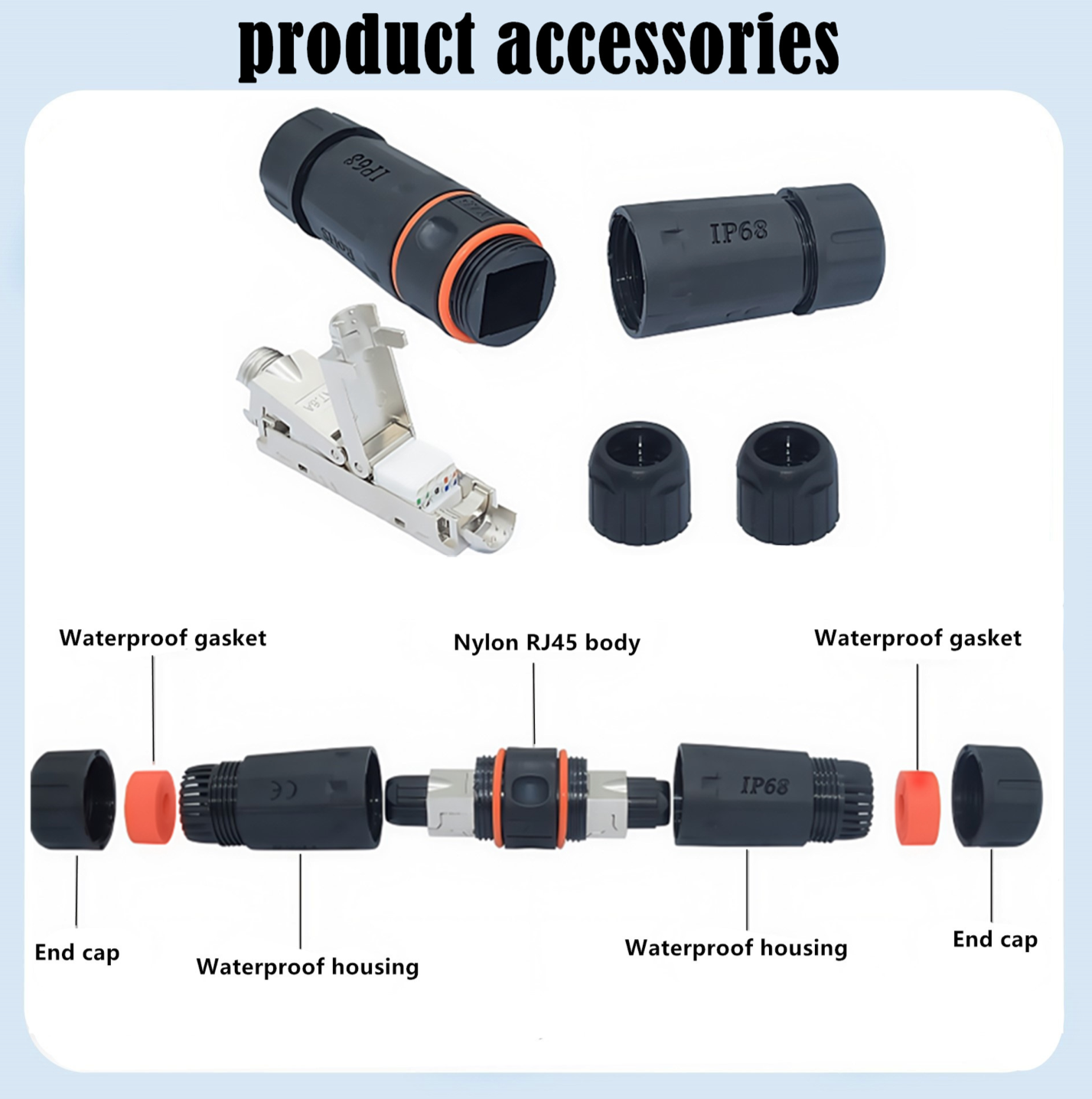

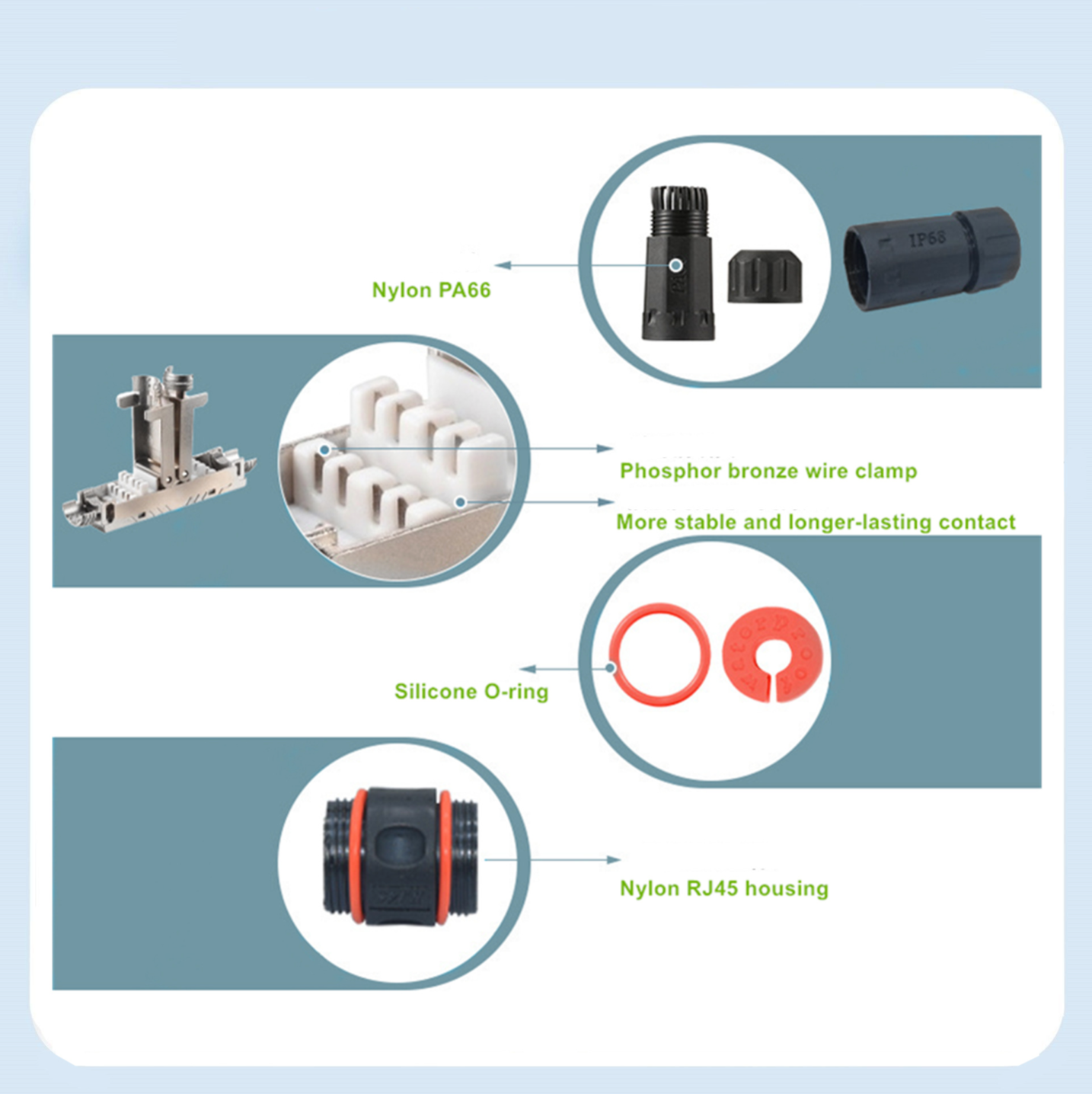

- Materials: Nylon PA66 body, copper contacts, silicone seal

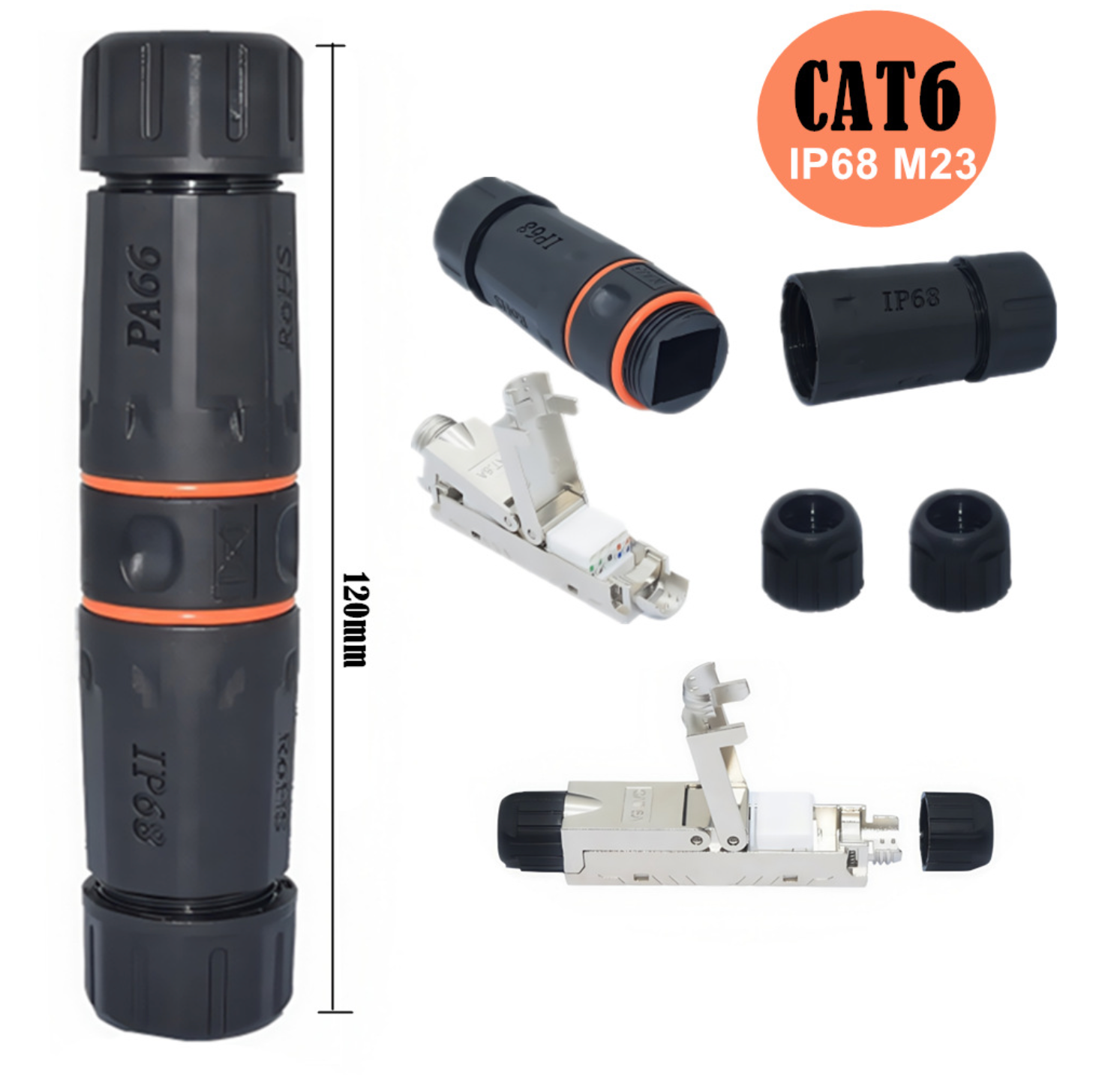

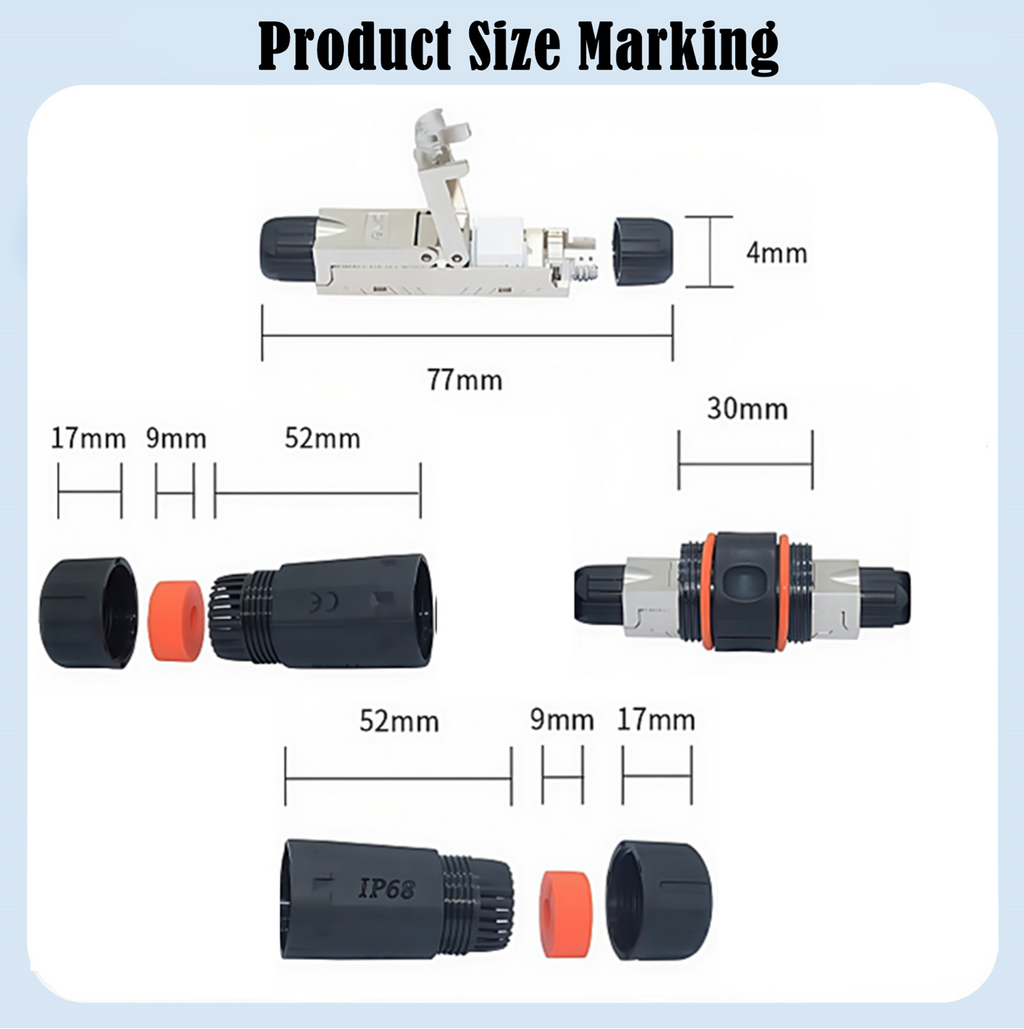

- Size: M23
- Weight: 70g
Compatibility:
This connector is compatible with Cat5, Cat5e, and Cat6 Ethernet cables. It supports shielded and unshielded twisted pair cables, ensuring reliable Gigabit performance in industrial, outdoor, and extreme-weather applications.
