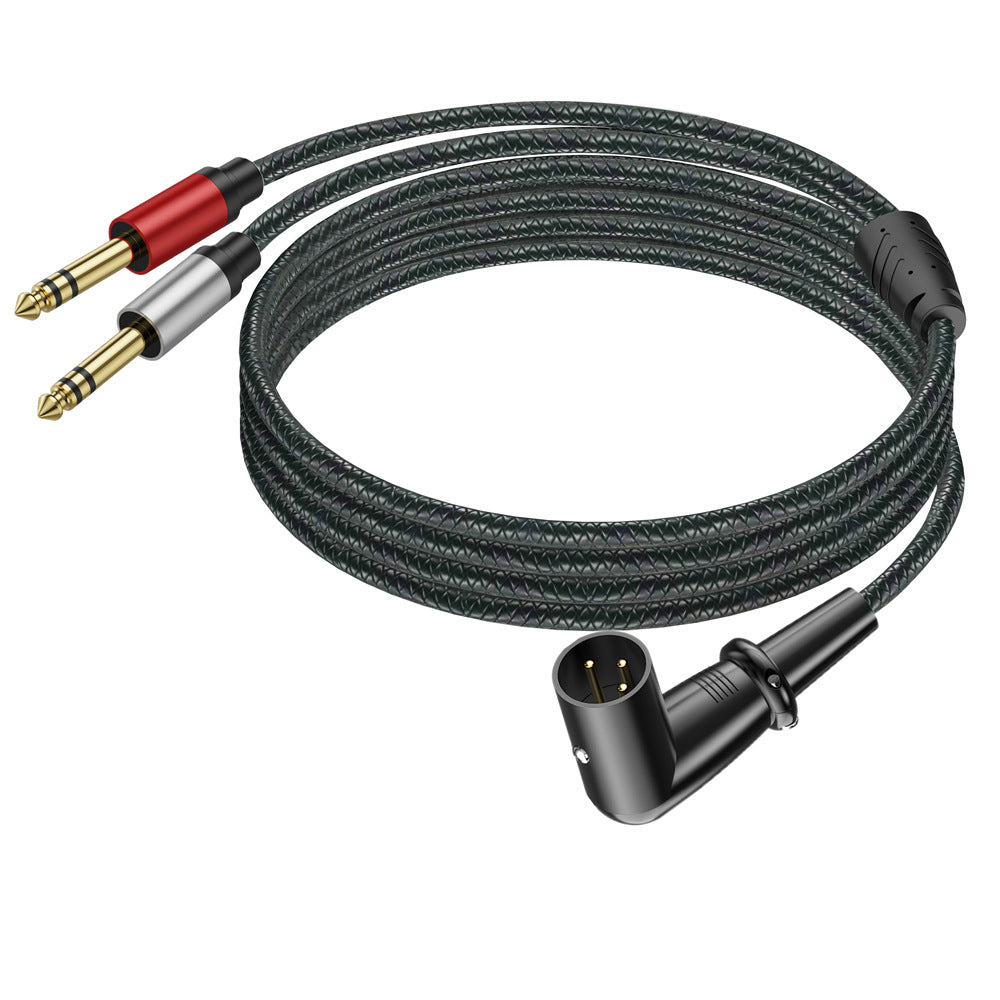

Connect compatible professional audio equipment using this right-angle 3-pin XLR male to dual 6.35mm TRS male audio splitter and breakout cable.

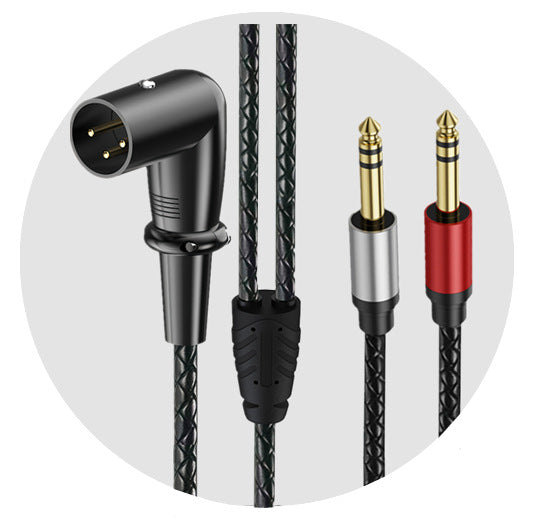

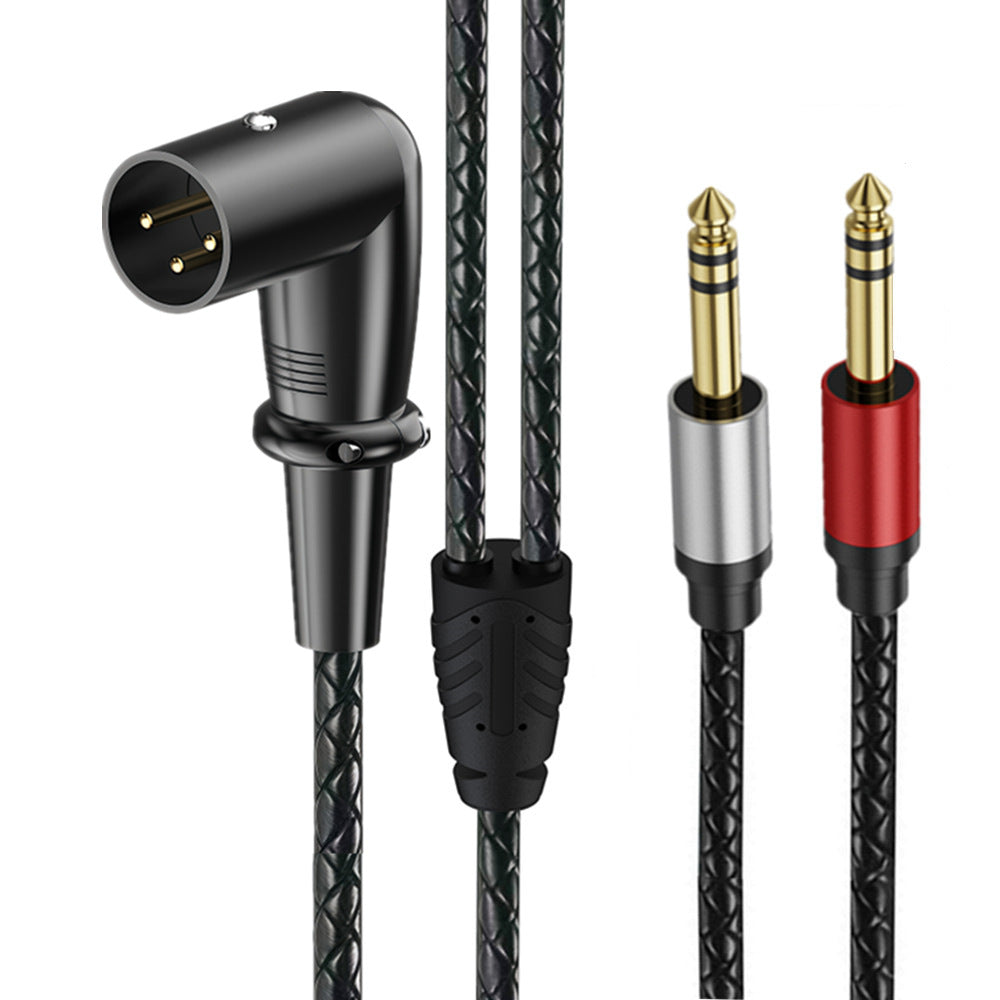

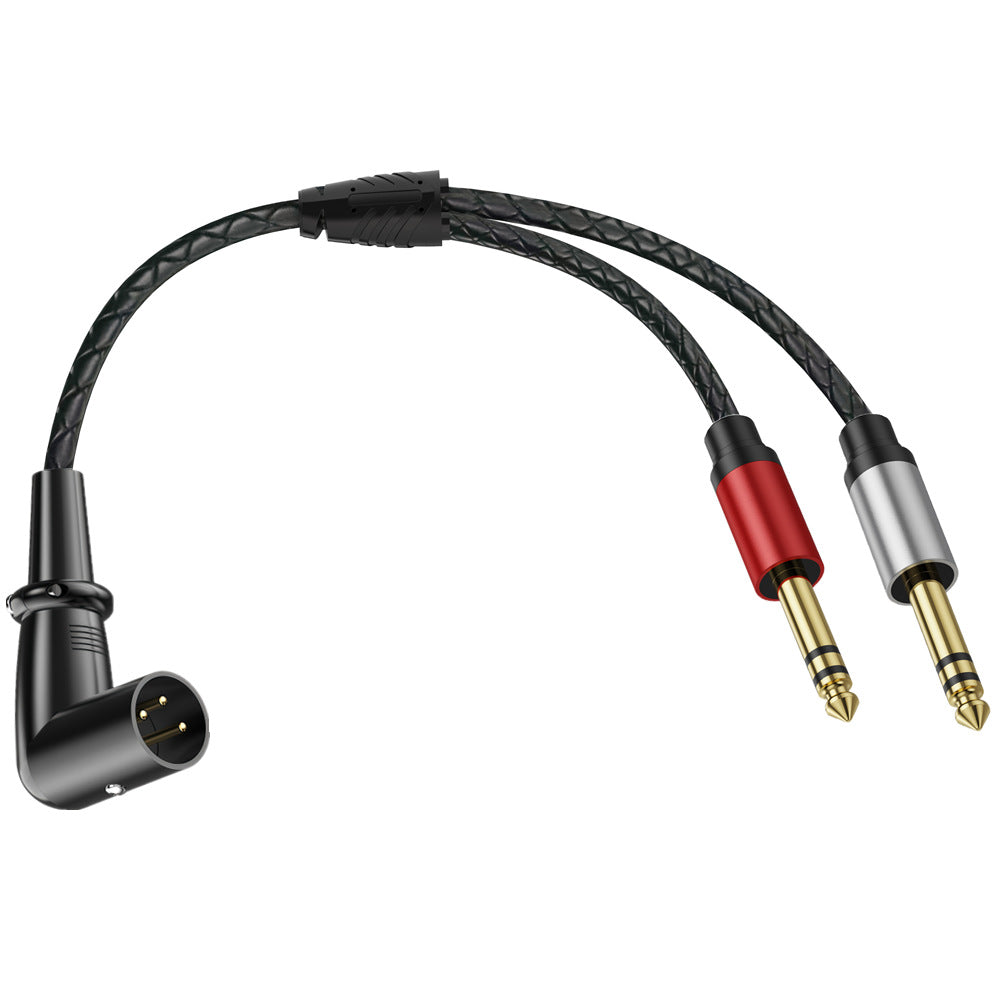

The cable features a space-saving 90-degree XLR male connector at one end and two straight 6.35mm (1/4-inch) TRS male plugs at the other. The right-angle XLR design is suitable for equipment installed close to walls, inside racks or in other restricted spaces where a straight connector may place additional strain on the cable.
A braided outer jacket helps protect the cable during regular studio, stage and live sound use, while the reinforced splitter section and moulded connector housings provide additional strain relief.
Key features:
• Right-angle 3-pin XLR male connector
• Dual straight 6.35mm TRS male plugs
• 6.35mm plugs identified with red and silver housings
• Passive audio splitter and breakout design
• Space-saving 90-degree XLR connector
• Durable braided cable jacket
• Reinforced splitter section
• Suitable for compatible studio, stage and professional audio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Mixing desks and audio interfaces
• Studio and recording equipment
• Stage and live sound installations
• Amplifiers and audio processors
• Professional monitoring equipment
• Broadcast and signal-routing applications
Important compatibility information:
A standard 3-pin XLR connection normally carries one balanced mono audio signal rather than a stereo left and right signal.
Although each 6.35mm connector is a TRS plug, TRS may be used for either balanced mono or stereo depending on the connected equipment. This cable should not automatically be described as creating two independent stereo outputs.
The exact function of each 6.35mm plug depends on the cable’s internal wiring. Please confirm the required pinout and the specifications of the connected equipment before ordering.
This is a passive cable. It does not amplify, mix, isolate or independently control the two connections.
