Connect compatible professional audio cables and equipment in restricted spaces with this Right-Angle 3Pin XLR Male to 6.35mm TRS Female Audio Adapter Cable.

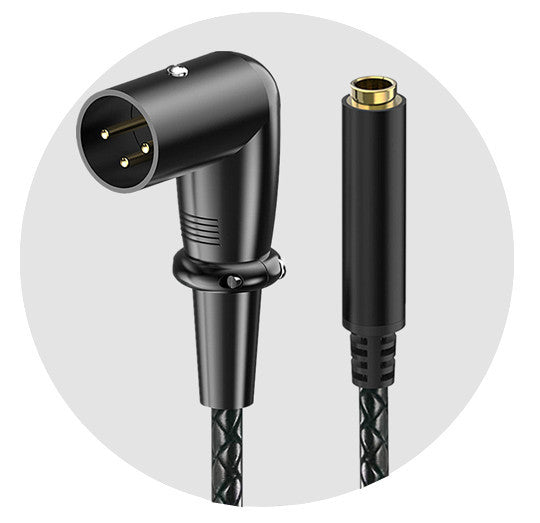

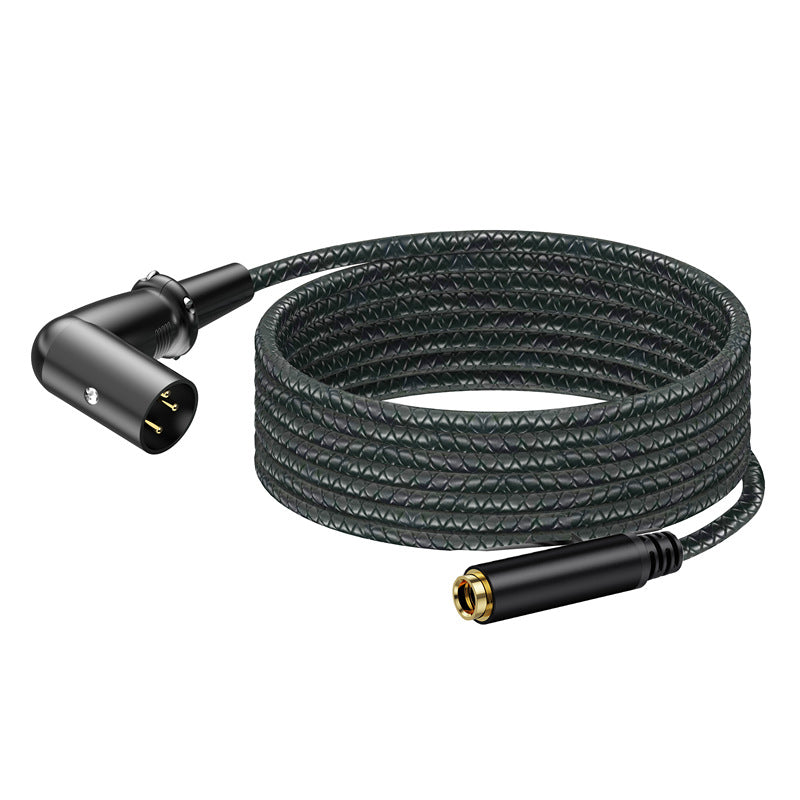

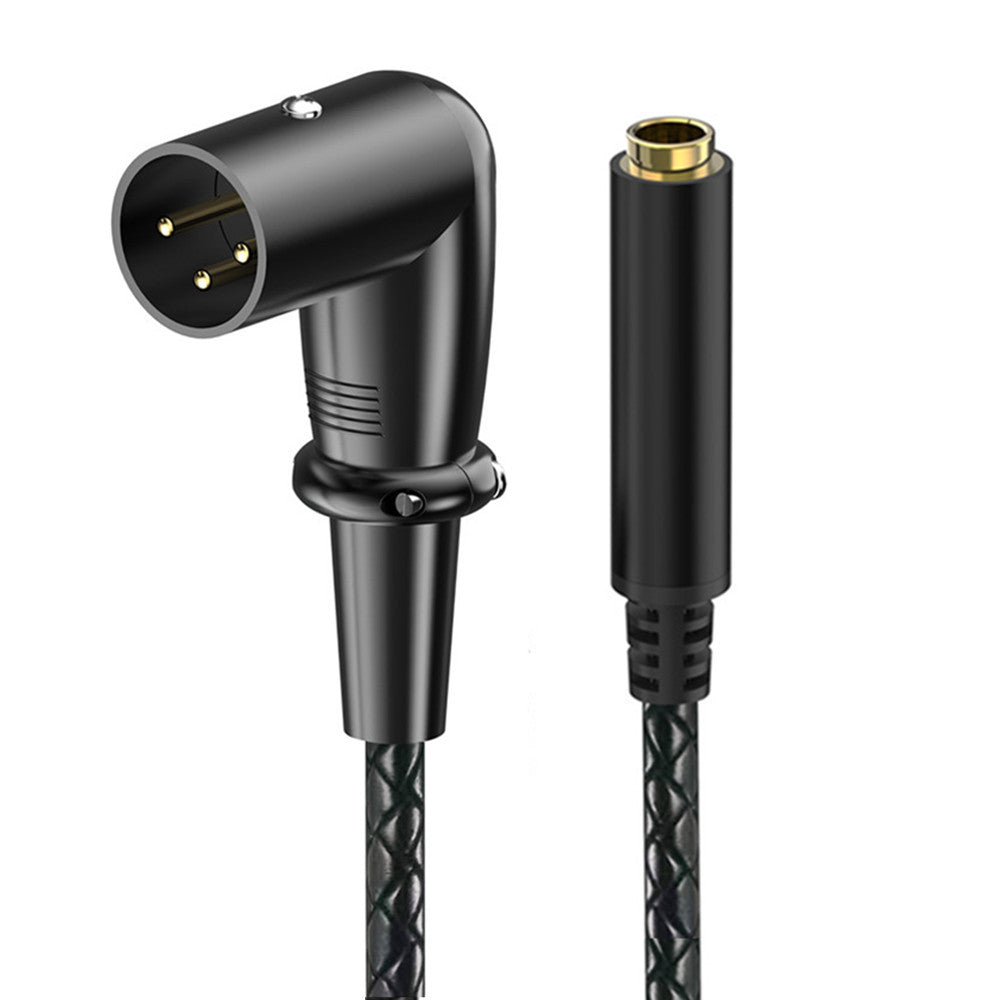

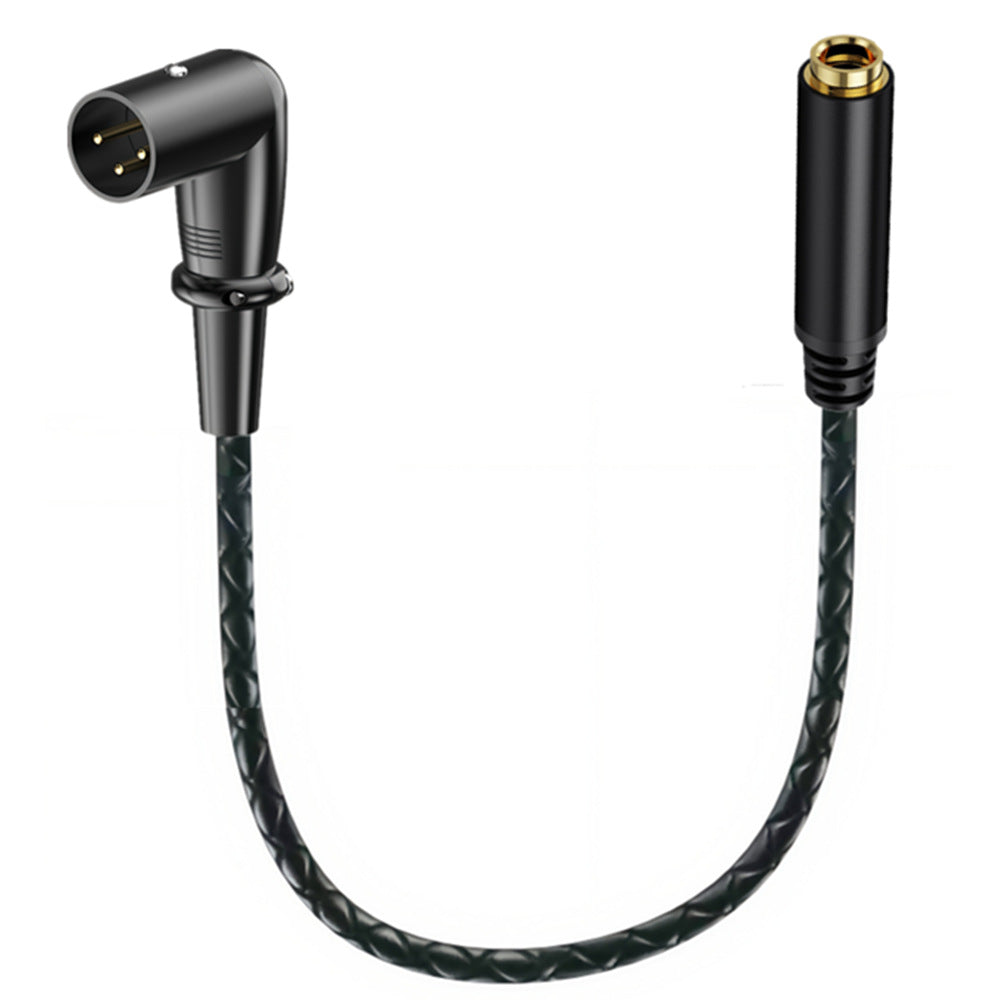

The cable features a space-saving 90-degree 3-pin XLR male connector at one end and a straight 6.35mm (1/4-inch) female socket at the other. It is suitable for adapting or extending audio connections between mixers, audio interfaces, microphones, amplifiers, instruments, studio monitors and other professional sound equipment.
The right-angle XLR connector sits close to the equipment housing, helping to reduce cable bend stress in crowded mixer panels, rack-mounted systems, stage equipment and installations positioned close to walls.
The 6.35mm female socket can accept compatible 6.35mm TS mono or TRS plugs. When used with a TRS plug and correctly wired balanced equipment, the cable may carry one balanced mono audio signal. When used with a TS plug, the connection will be unbalanced mono.
A durable braided outer jacket, reinforced connector housings and flexible strain relief help protect the cable against pulling, bending and repeated use.
Key Features:
• Right-angle 3-pin XLR male connector
• Straight 6.35mm female audio socket
• Accepts compatible 6.35mm TS and TRS plugs
• Space-saving 90-degree XLR design
• Suitable for balanced mono or unbalanced mono connections, depending on the connected plug and equipment
• Gold-coloured 6.35mm socket contact
• Braided outer jacket for improved durability
• Reinforced connector housings and strain relief
• Passive plug-and-play adapter cable
• Available in 0.3m, 2m, 3m and 5m lengths
Suitable Applications:
• Mixers and mixing consoles
• Audio interfaces
• Microphones and microphone cables
• Amplifiers
• Effects processors
• Musical instruments
• Studio monitors
• Stage and PA equipment
• Recording studios
• Broadcast and conference systems
Compatibility Information:
For balanced audio operation, the plug inserted into the 6.35mm female socket must be a three-contact TRS plug, and the connected equipment must support balanced wiring.
A professional 6.35mm TRS connection normally carries one balanced mono signal rather than left and right stereo channels.
Using a two-contact 6.35mm TS plug will create an unbalanced mono connection.
This passive cable does not amplify, electronically balance or convert the signal. Please check the connector type, wiring and input or output requirements of both devices before purchase.
