Connect a compatible 3-pin XLR male audio output to two 6.35mm TS mono inputs with this right-angle XLR female to dual 6.35mm male audio splitter cable.

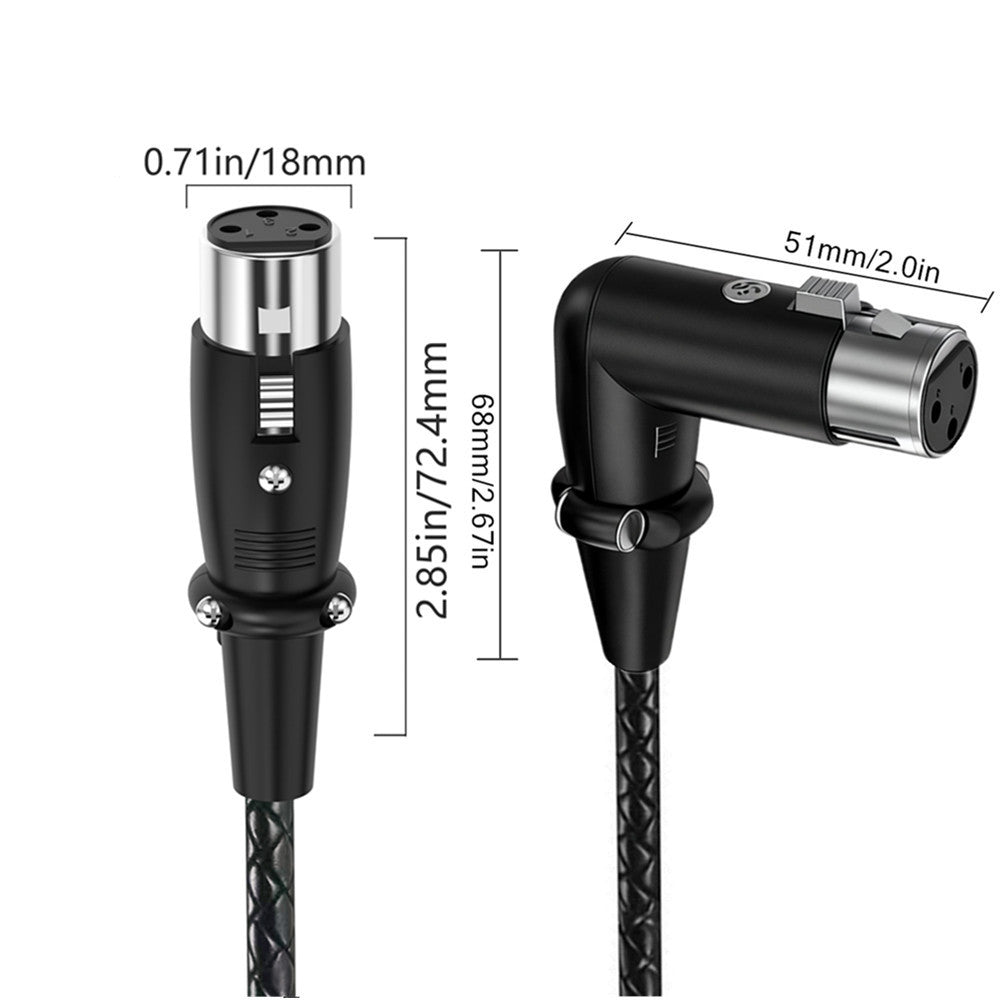

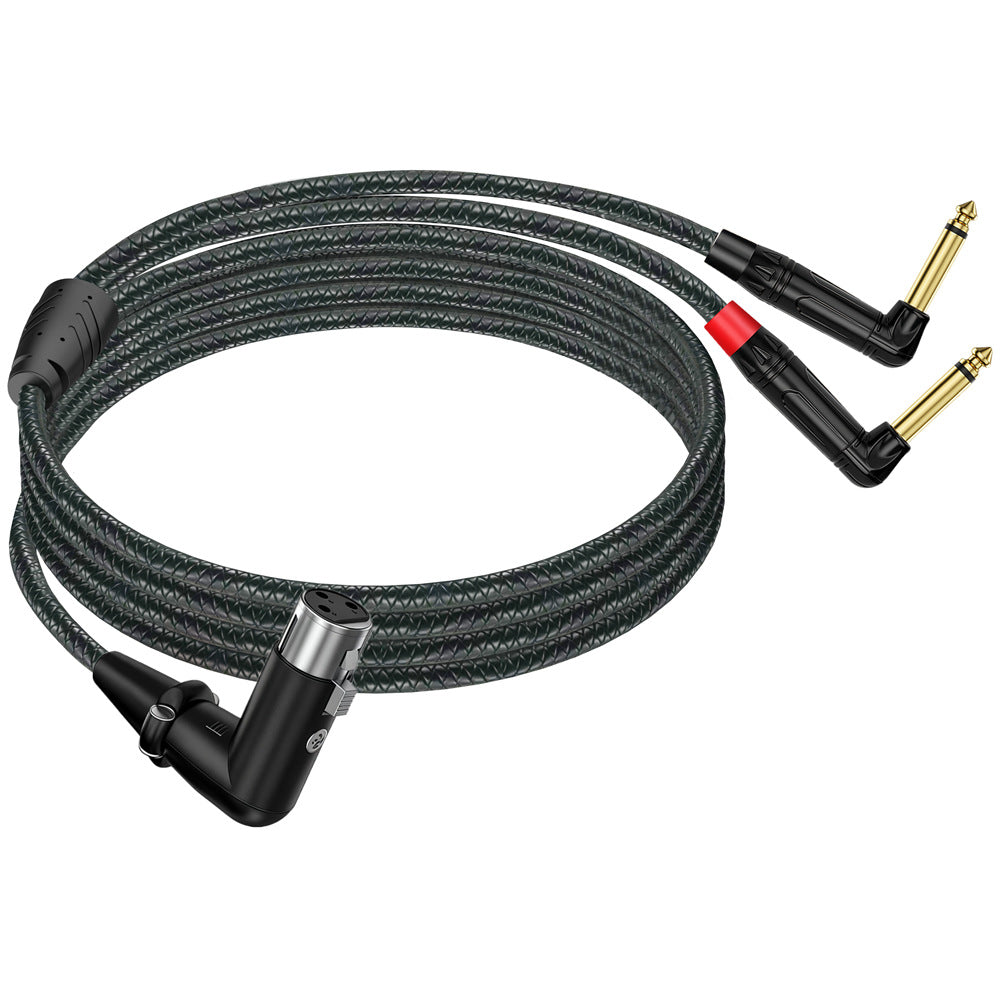

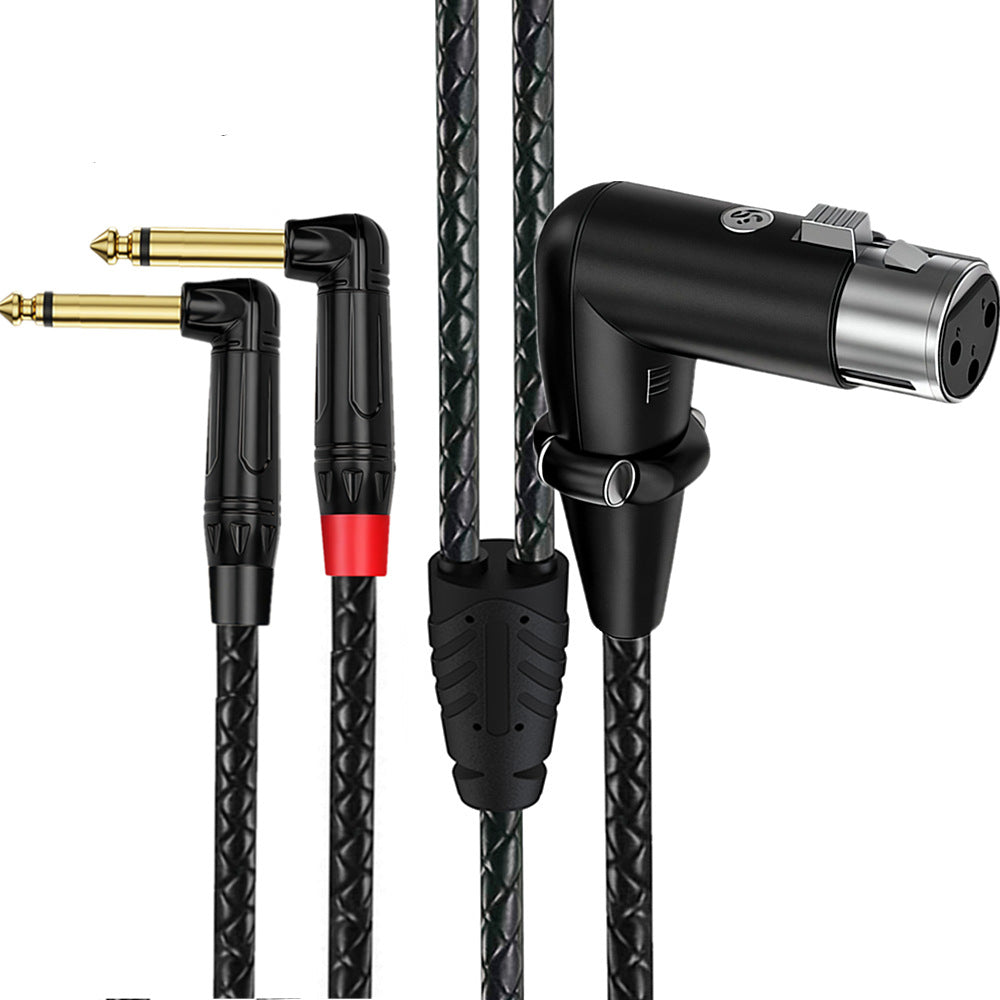

The cable features a space-saving 90-degree 3-pin XLR female connector on one end and two 6.35mm TS mono male plugs on the other. The right-angle XLR design is suitable for equipment installed close to a wall, inside a rack or in other restricted spaces.
This is a passive Y-splitter cable intended for compatible mixers, amplifiers, audio interfaces, wireless microphone systems, recording equipment and stage audio installations.
Key features:
• 90-degree 3-pin XLR female connector
• Dual 6.35mm TS mono male plugs
• Passive one-to-two audio splitter design
• Space-saving right-angle XLR housing
• Suitable for compatible professional audio equipment
• Reinforced moulded connectors and strain relief
• Flexible black cable
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Mixers and audio interfaces
• Wireless microphone receivers
• Stage amplifiers and powered speakers
• Recording studio equipment
• Public-address and live sound systems
• Audio testing and signal-routing setups
Important compatibility information:
A standard 3-pin XLR connection normally carries one balanced mono audio signal, not a left and right stereo signal.
This cable should not be described as separating an XLR stereo signal into independent left and right channels unless its exact internal wiring and intended source equipment have been confirmed.
Depending on the wiring configuration, the two 6.35mm TS connectors may duplicate one mono signal or carry separate conductors from the balanced XLR connection. Connecting them incorrectly may cause low volume, phase cancellation, noise or equipment incompatibility.
Please confirm the wiring diagram and intended equipment before ordering.
This passive cable does not amplify, isolate, mix or independently control the two outputs.
