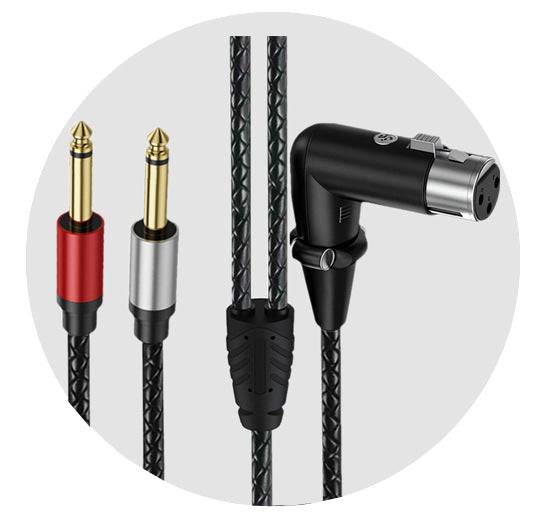

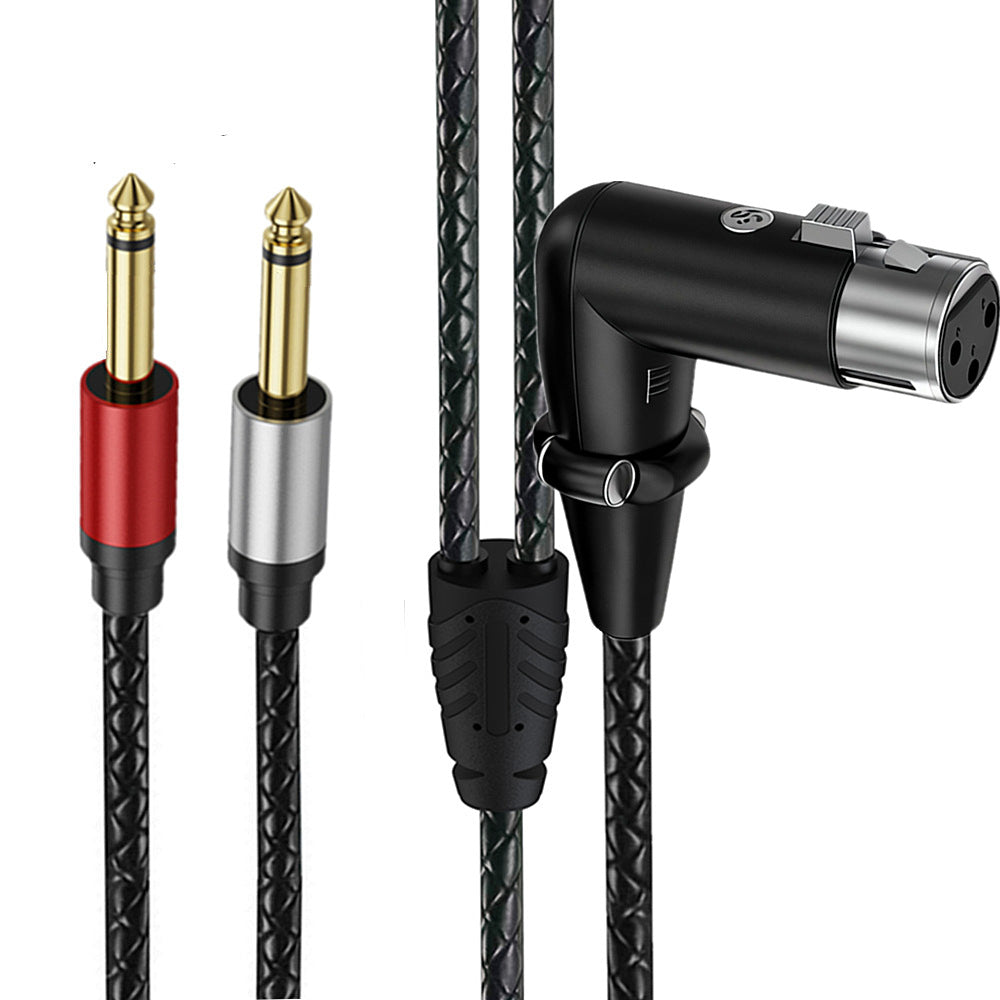

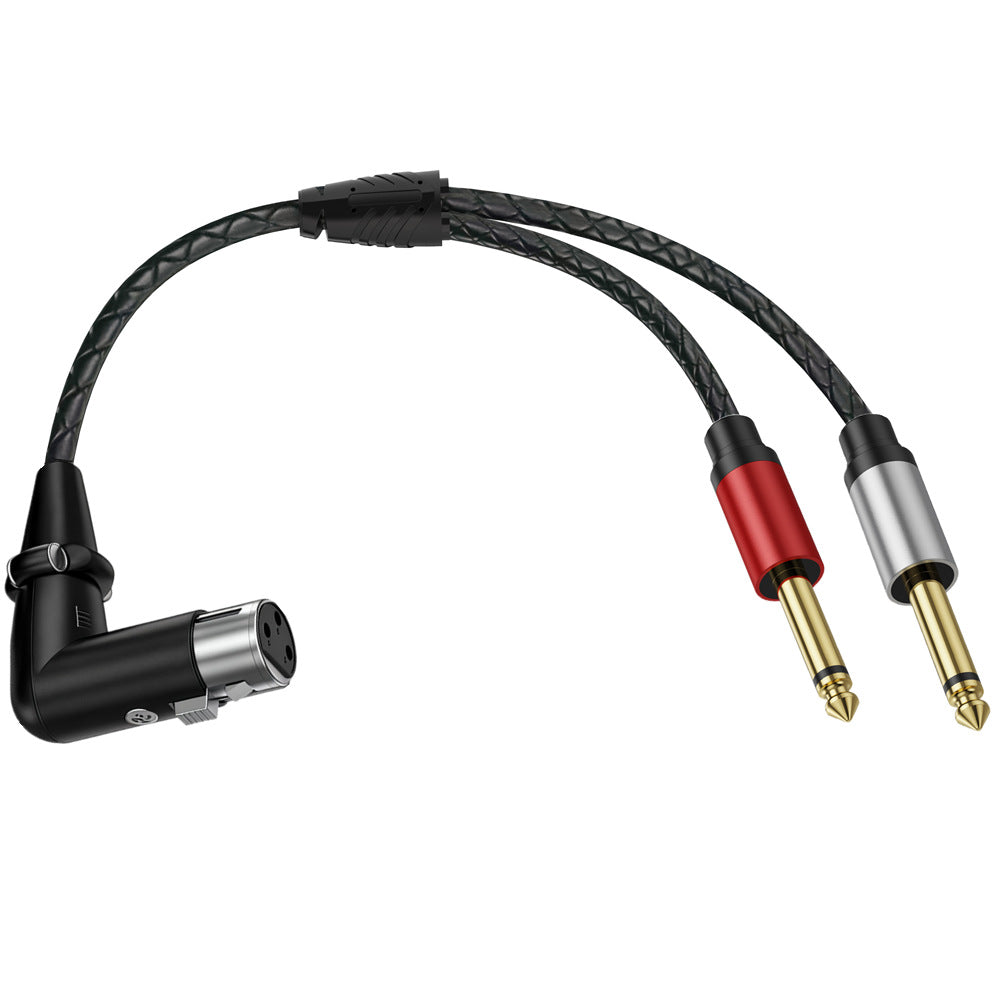

Connect a compatible 3-pin XLR male audio output to two 6.35mm TS mono connections with this right-angle XLR female to dual 6.35mm male audio splitter cable.
The cable features a space-saving 90-degree 3-pin XLR female connector on one end and two straight 6.35mm TS mono male plugs on the other. The angled XLR connector is suitable for equipment positioned close to a wall, inside a rack or in other restricted spaces where a straight connector may be inconvenient.
Its braided outer jacket and reinforced connector housings provide additional protection for studio, live sound and professional audio applications.
Key features:
• 90-degree 3-pin XLR female connector
• Dual straight 6.35mm TS mono male plugs
• Passive one-to-two audio splitter design
• Space-saving right-angle XLR housing
• One 6.35mm plug marked with a red identification sleeve
• Braided cable jacket
• Reinforced connector housings and strain relief
• Suitable for compatible mixers, amplifiers and audio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Mixing desks and audio interfaces
• Wireless microphone receivers
• Stage amplifiers and powered speakers
• Recording studio equipment
• Public-address and live sound systems
• Audio testing and signal-routing installations
Important compatibility information:
A standard 3-pin XLR connector normally carries one balanced mono audio signal rather than separate left and right stereo channels.
The function of the two 6.35mm TS plugs depends on the cable’s internal wiring. They may duplicate one mono signal or connect separately to different conductors of the balanced XLR connection.
Please confirm the required wiring and the specifications of your equipment before ordering. Incorrect use may result in reduced volume, phase cancellation, noise or no audio.
This passive cable does not amplify, mix, isolate or independently control the two connections.
