Connect compatible professional audio equipment with this right-angle 3-pin XLR female to dual 6.35mm TRS female audio splitter and breakout cable.

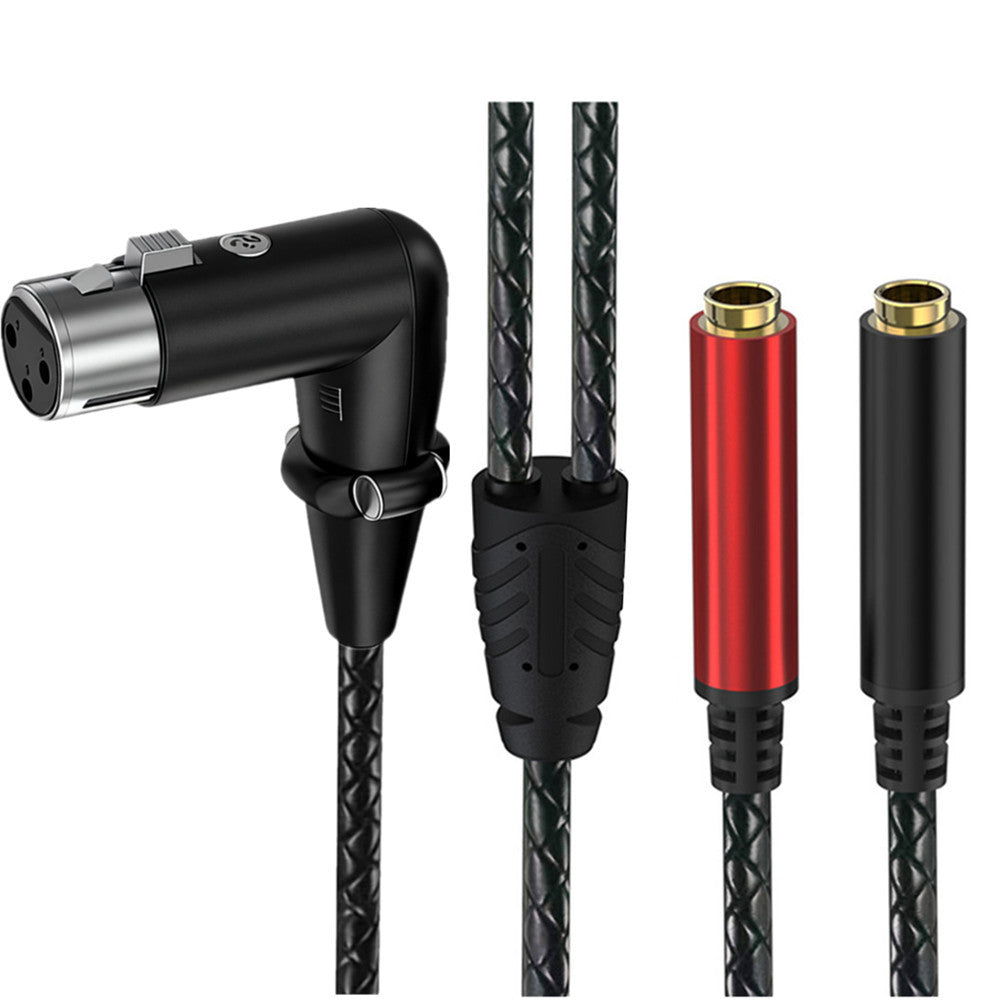

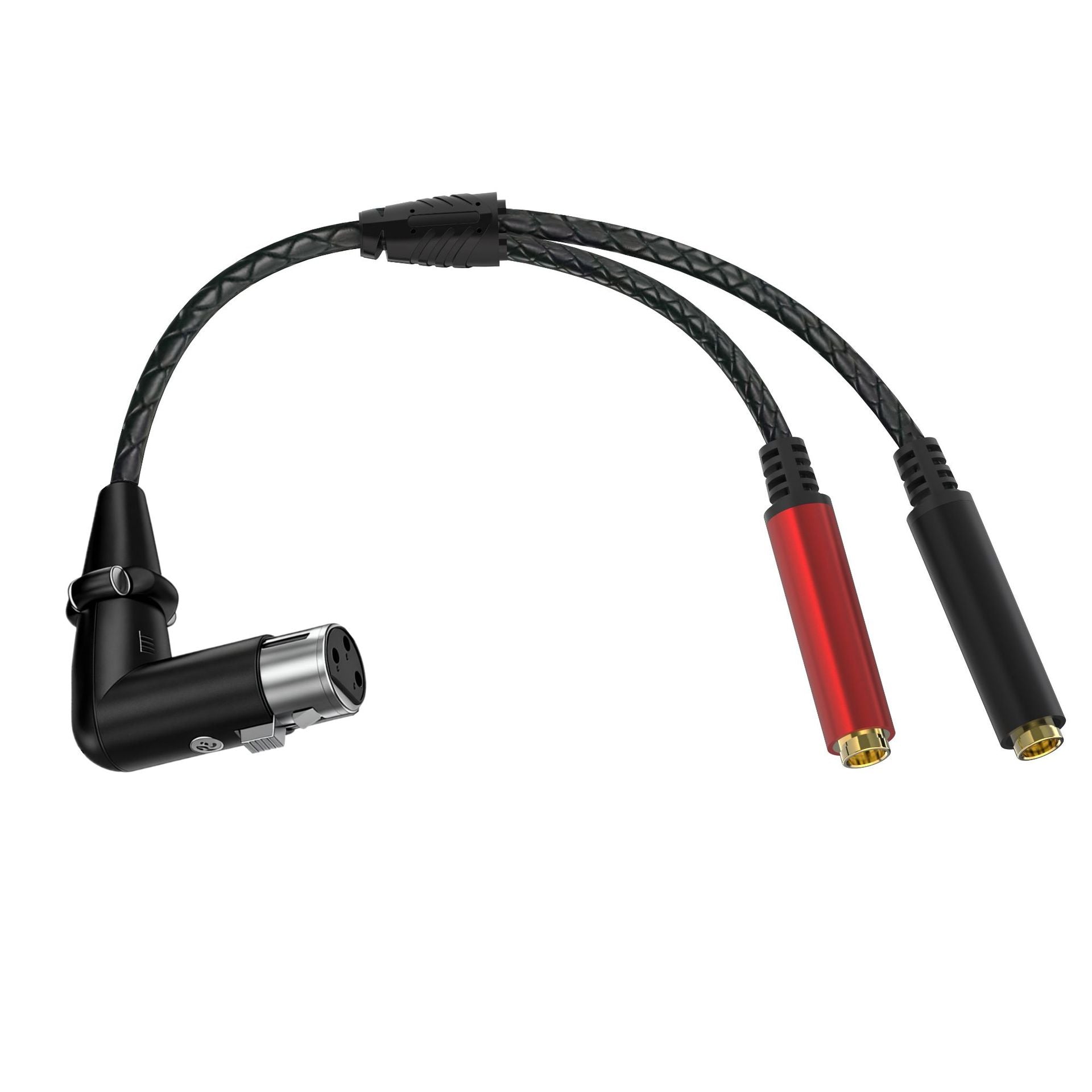

The cable features a space-saving 90-degree XLR female connector at one end and two straight 6.35mm (1/4-inch) TRS female sockets at the other. The angled XLR connector is suitable for equipment installed close to a wall, inside a rack or in other restricted spaces where a straight connector may place extra strain on the cable.

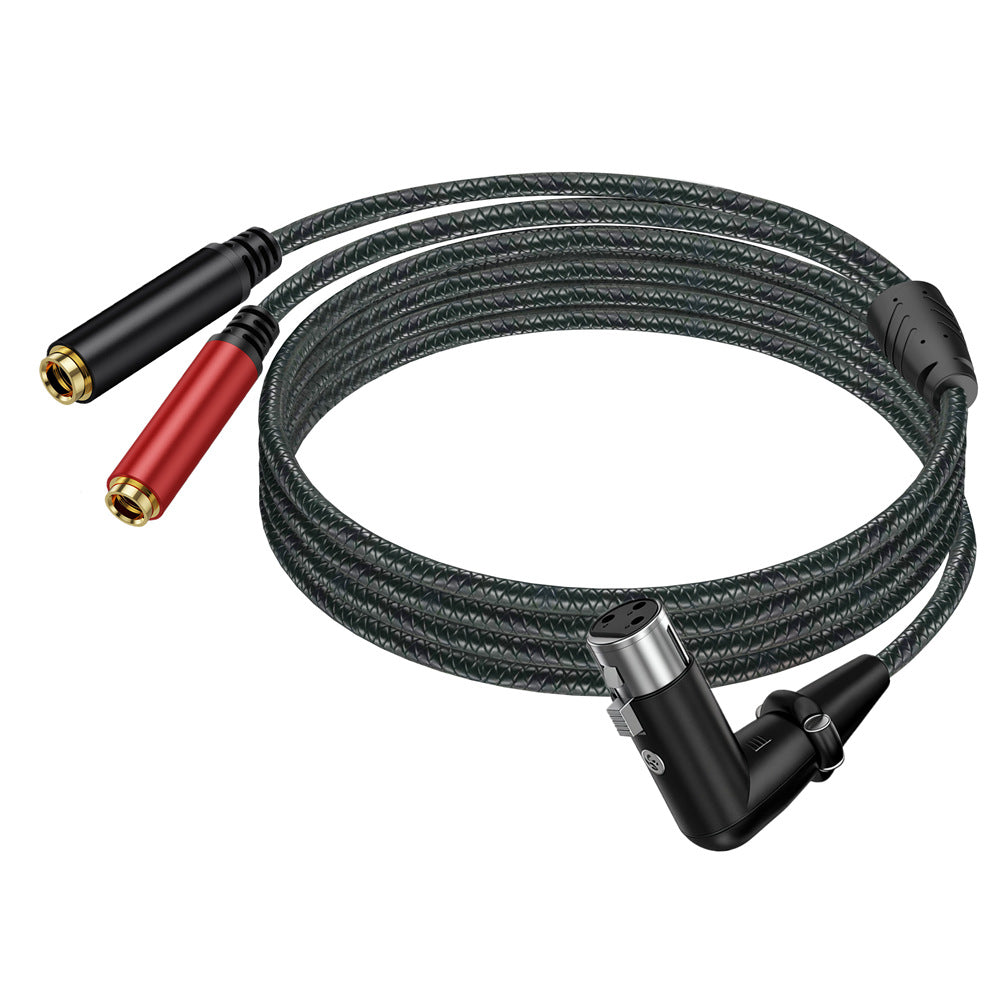

The two 6.35mm sockets have red and black metal housings to make each connection easier to identify. A braided outer jacket and reinforced splitter section provide added protection for regular studio, stage and live sound use.
Key features:
• Right-angle 3-pin XLR female connector
• Dual straight 6.35mm TRS female sockets
• Red and black socket housings
• Space-saving 90-degree XLR design
• Passive audio splitter and breakout cable

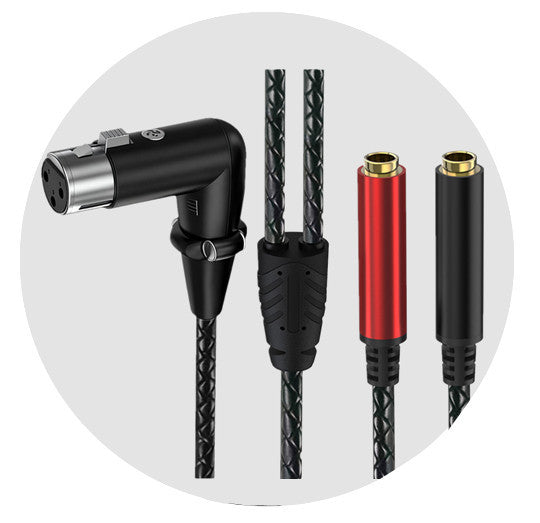

• Durable braided cable jacket
• Reinforced splitter section and strain relief
• Suitable for compatible studio, stage and professional audio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Mixing desks and audio interfaces
• Recording studio equipment
• Stage and live sound systems
• Headphone amplifiers and monitoring equipment
• Amplifiers and audio processors
• Broadcast and signal-routing applications
Important compatibility information:
A standard 3-pin XLR connection normally carries one balanced mono signal rather than separate left and right stereo channels.
Although both 6.35mm sockets are TRS connections, TRS may carry balanced mono or stereo depending on the connected equipment and the cable’s internal wiring.
The cable should not automatically be described as producing two independent stereo outputs. Please confirm the required pinout and equipment compatibility before ordering.
This is a passive cable. It does not amplify, mix, isolate or independently control the two connections.
