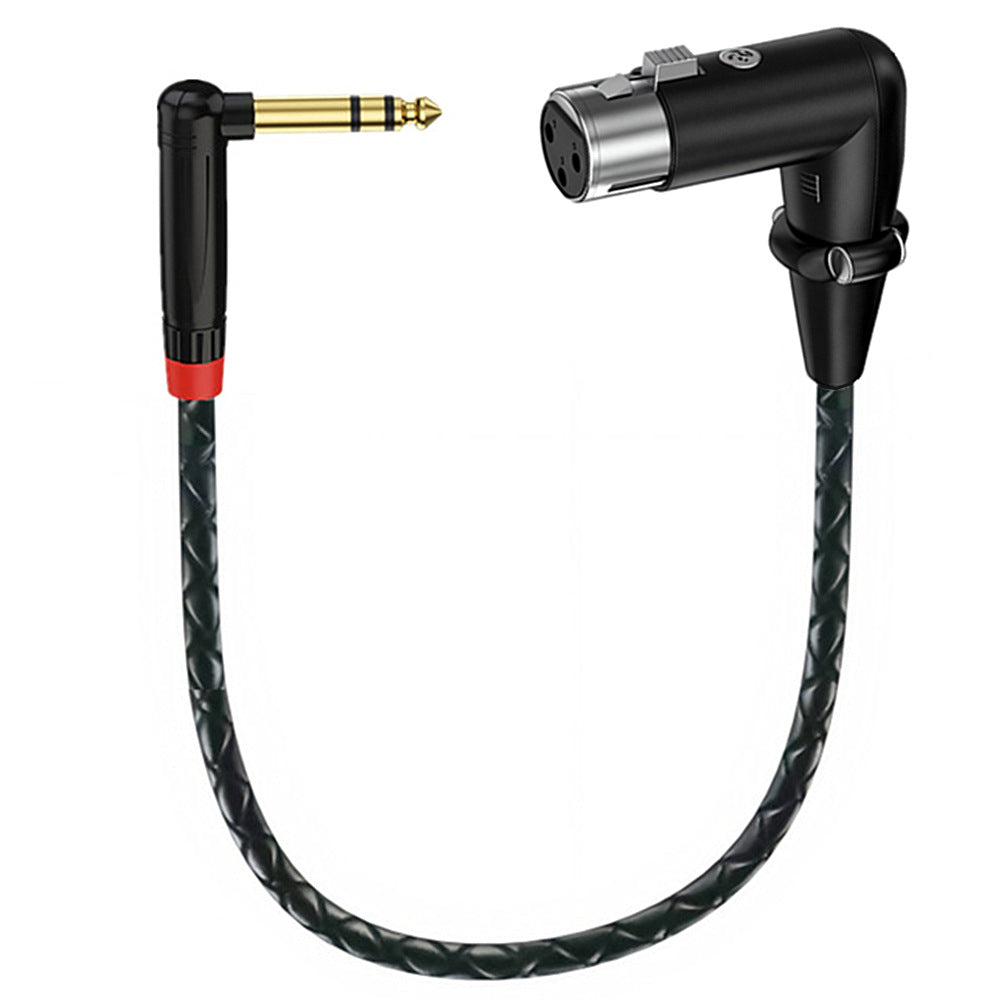

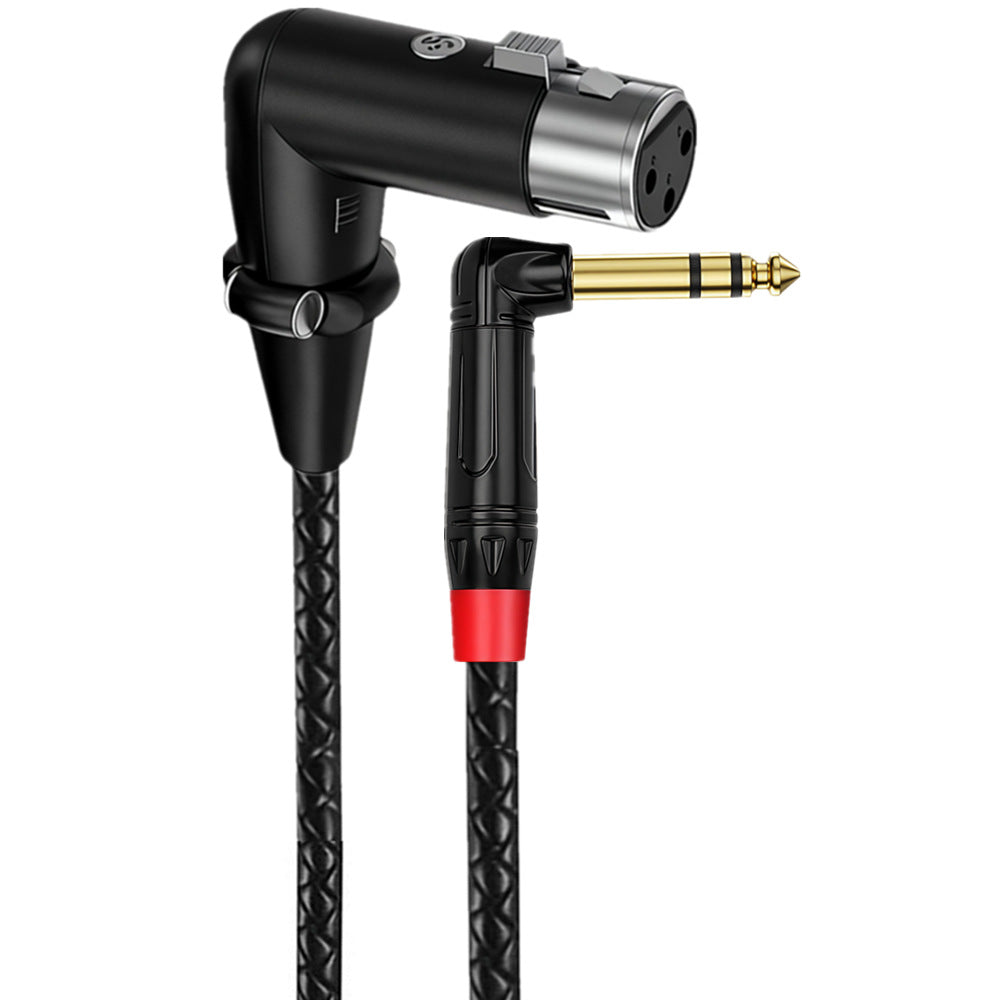

Connect compatible microphones, mixers, audio interfaces and professional audio equipment with this right-angle XLR female to right-angle 6.35mm TRS male balanced audio cable.

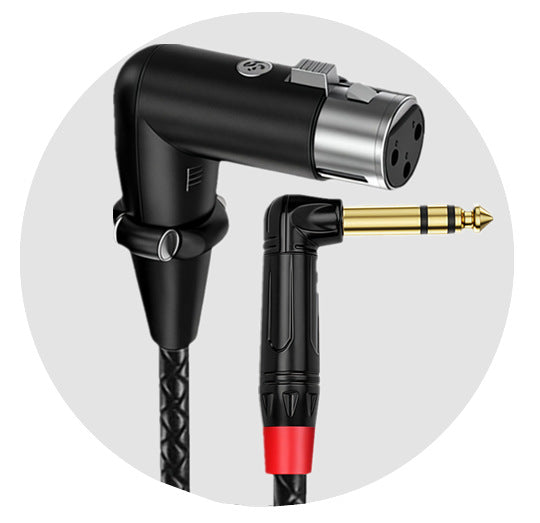

The cable features a 90-degree 3-pin XLR female connector at one end and a 90-degree 6.35mm (1/4-inch) TRS male plug at the other. Both angled connectors are designed for equipment installed close to walls, inside racks or in other restricted spaces where straight connectors may place unnecessary strain on the cable or sockets.
This cable carries one balanced mono audio signal between compatible balanced audio connections. The braided outer jacket, reinforced connector housings and moulded strain relief provide improved resistance to pulling, bending and repeated use in recording studios, live performances and professional audio installations.
Key features:
• Right-angle 3-pin XLR female connector
• Right-angle 6.35mm TRS male plug
• Carries one balanced mono audio signal
• Space-saving 90-degree connector design at both ends

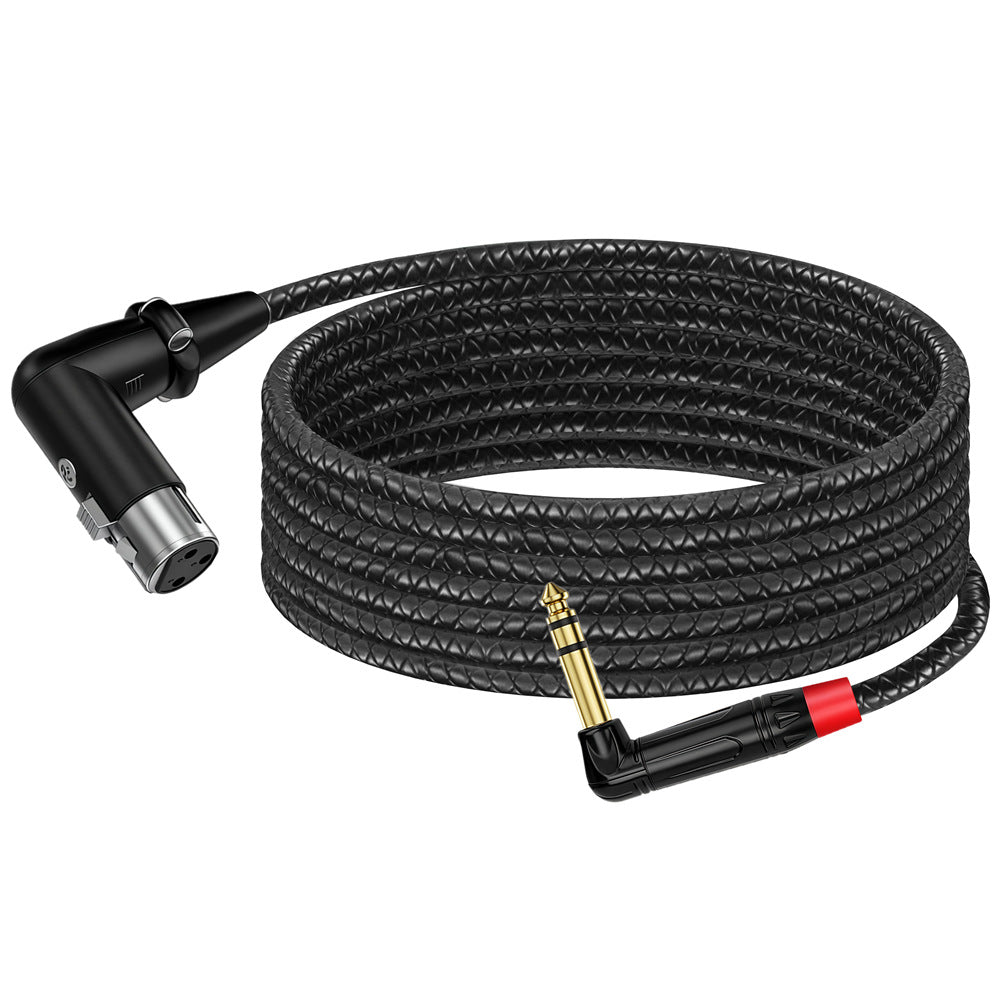

• Locking XLR connector helps prevent accidental disconnection
• Gold-plated 6.35mm plug for reliable signal contact
• Durable braided outer jacket
• Reinforced strain relief at both connectors
• Passive plug-and-play audio cable
• Available in 0.3m, 2m, 3m and 5m lengths
Suitable applications:
• Dynamic and condenser microphones
• Wireless microphone receivers
• Mixing desks and audio mixers
• Audio interfaces and external sound cards
• Microphone preamplifiers
• Effects processors and audio equipment
• Powered speakers and studio monitors
• Recording studios, broadcasting and live performances
Compatibility information:
This cable is intended for balanced mono audio connections. Standard balanced wiring normally uses:
• XLR pin 1 to TRS sleeve: ground or shield
• XLR pin 2 to TRS tip: positive or hot
• XLR pin 3 to TRS ring: negative or cold
Although the 6.35mm plug has three contacts, it does not carry separate left and right stereo channels in this application. The tip, ring and sleeve carry one balanced mono audio signal.
Please confirm that both connected devices support balanced audio. This passive cable does not amplify, convert or process the audio signal.
