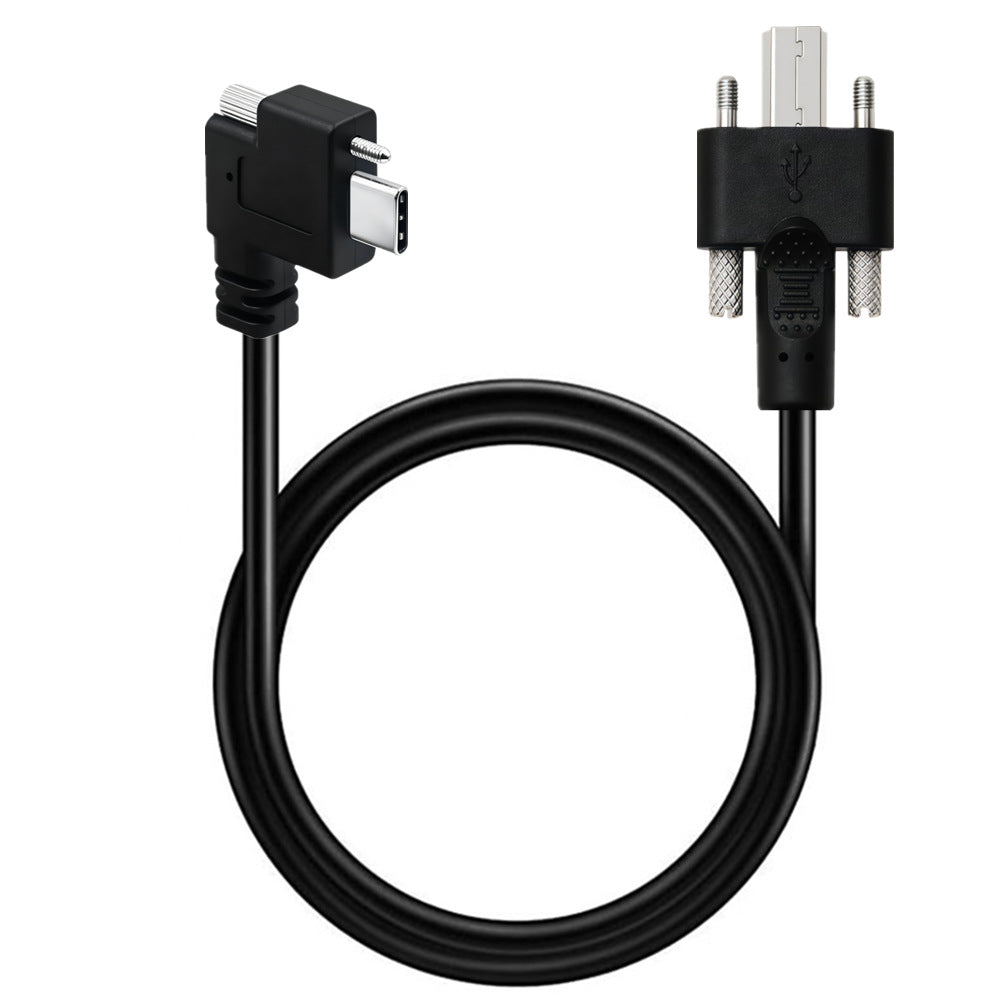

Create a secure, space-saving USB data connection for industrial and professional equipment with this Right-Angle USB-C Dual-Screw Locking to USB 3.0 Type-B Male Panel Mount Cable.

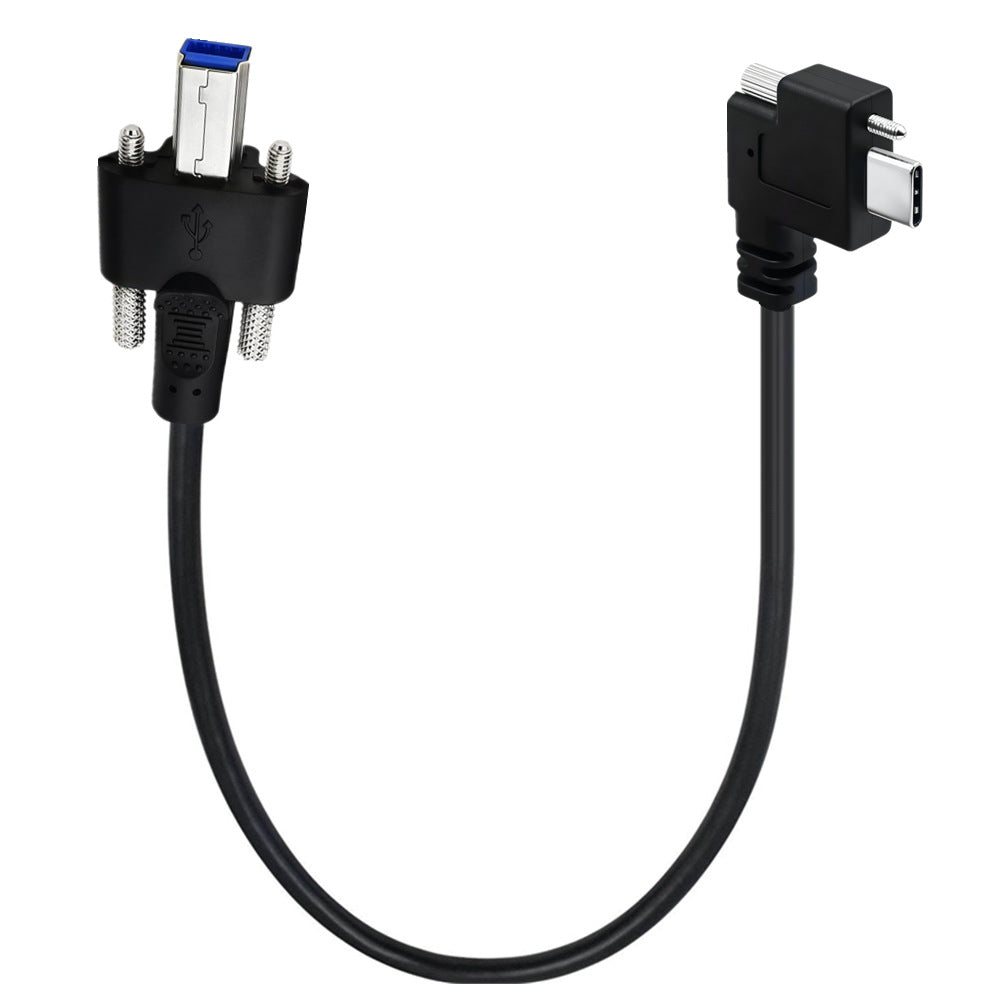

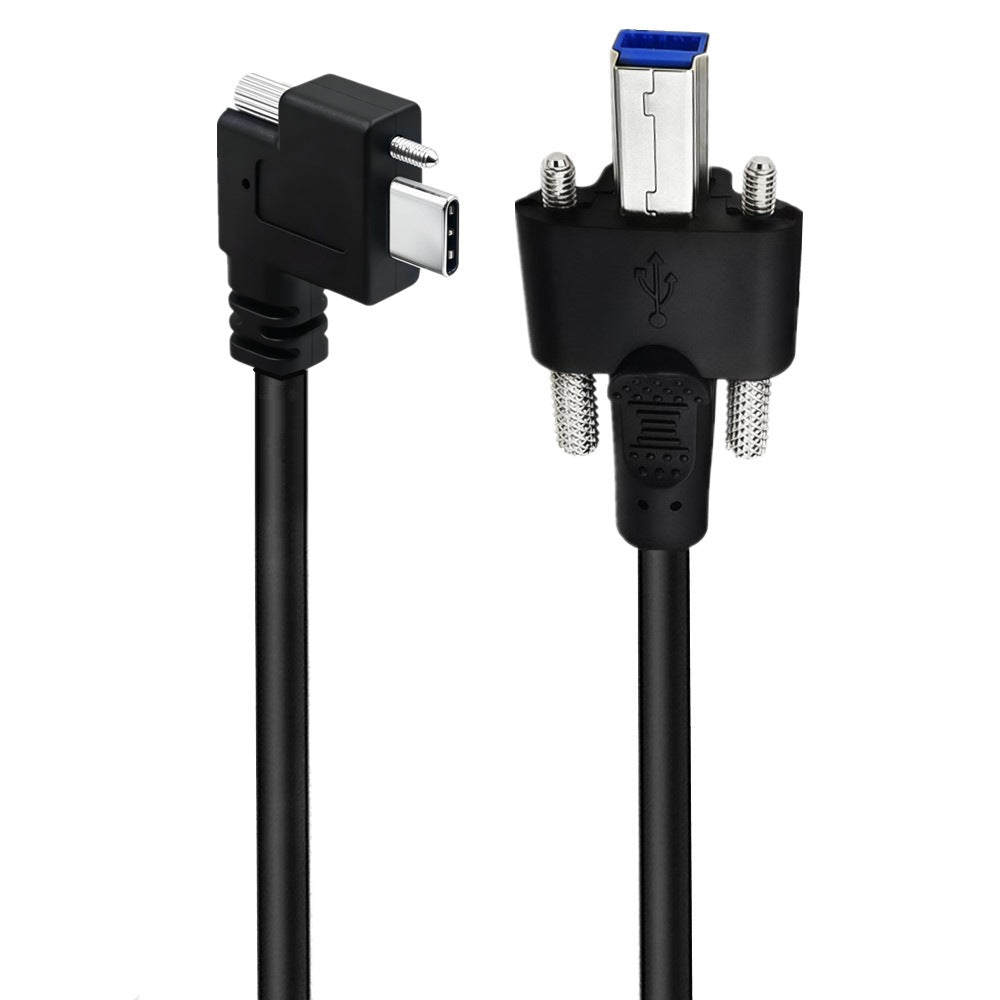

The cable features a 90-degree USB-C male connector with two locking screws at one end and a USB 3.0 Type-B male connector with two securing screws at the other. Both connectors can be fastened to compatible threaded equipment ports, helping prevent accidental disconnection caused by vibration, movement or frequent equipment use.
The right-angle USB-C connector directs the cable close to the equipment housing, reducing the space required behind or beside the connected device. It is ideal for compact enclosures, crowded control panels, wall-mounted equipment and installations where a straight USB-C connector may be obstructed or exposed to excessive bending.
Supporting USB 3.0 data-transfer speeds of up to 5Gbps, the cable is suitable for industrial computers, self-service terminals, medical instruments, test equipment, embedded systems and other compatible USB devices.
Key Features:
• Right-angle USB-C male to USB 3.0 Type-B male cable
• Dual-screw locking USB-C connector
• Dual-screw locking USB 3.0 Type-B connector
• Secure connection at both cable ends
• Space-saving 90-degree USB-C design
• Helps prevent accidental disconnection
• Suitable for vibration-prone equipment
• USB 3.0 data-transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1 equipment
• Shielded construction for stable data transmission
• Durable black PVC outer jacket
• Reinforced moulded connector housings
• Plug-and-play operation
• Available in 0.5m and 1m lengths
Suitable Applications:
• Industrial computers and control systems
• Embedded computers and equipment panels
• Self-service kiosks and ticket machines
• Point-of-sale terminals
• Medical and laboratory instruments
• Data-acquisition systems
• Industrial cameras and barcode scanners
• Test and measurement equipment
• Server and equipment enclosures
• Vehicle-mounted industrial systems
• Compact or wall-mounted installations
Installation:
1. Insert the right-angle USB-C connector into a compatible locking USB-C port.
2. Tighten both USB-C securing screws evenly by hand.
3. Insert the USB 3.0 Type-B male connector into the matching female port.
4. Tighten both Type-B securing screws evenly.
5. Avoid overtightening the screws, as excessive force may damage the connector housing or equipment threads.
Compatibility Information:

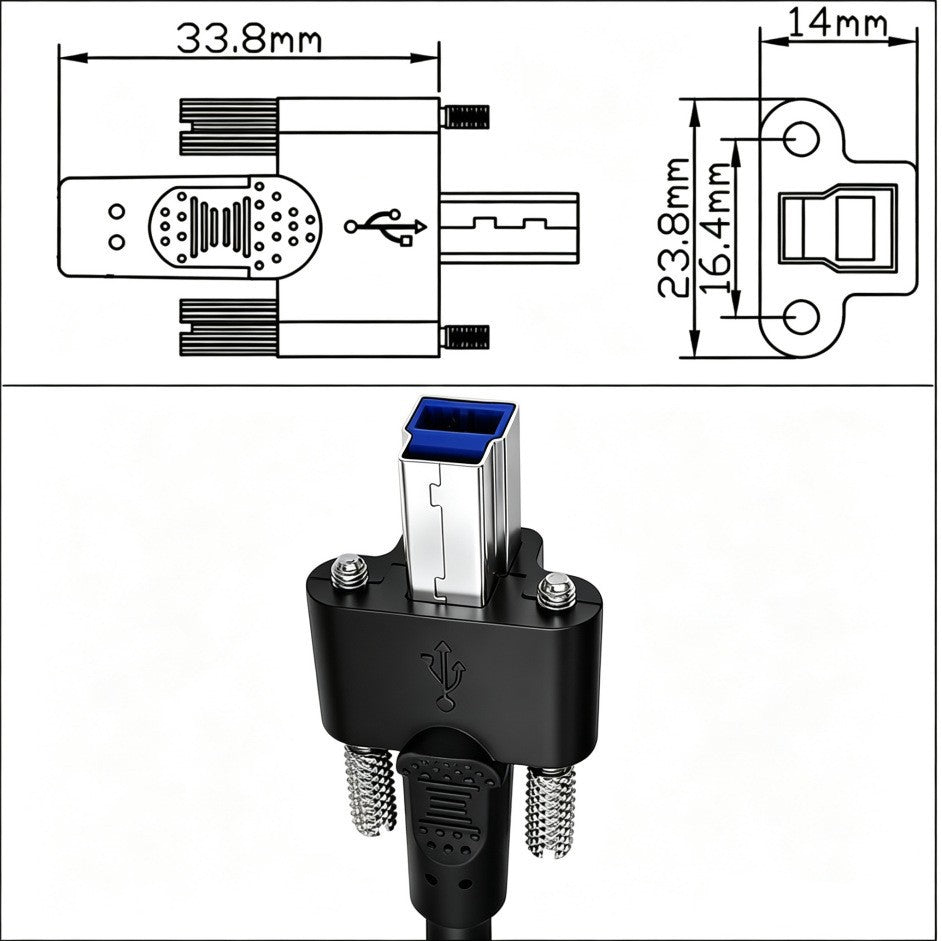

The screw spacing and threaded mounting points on both cable ends must match the connected equipment.
The locking function cannot be used with ordinary USB-C or USB Type-B ports that do not have compatible threaded mounting holes.
The angle direction is determined while looking directly into the device’s USB-C port. Please check the equipment-port orientation before selecting an angled version.
This cable is designed primarily for USB data transfer and standard USB bus power. It does not support DisplayPort Alt Mode video output or USB Power Delivery fast charging.
Maximum transfer speed depends on the USB specification supported by both connected devices.
