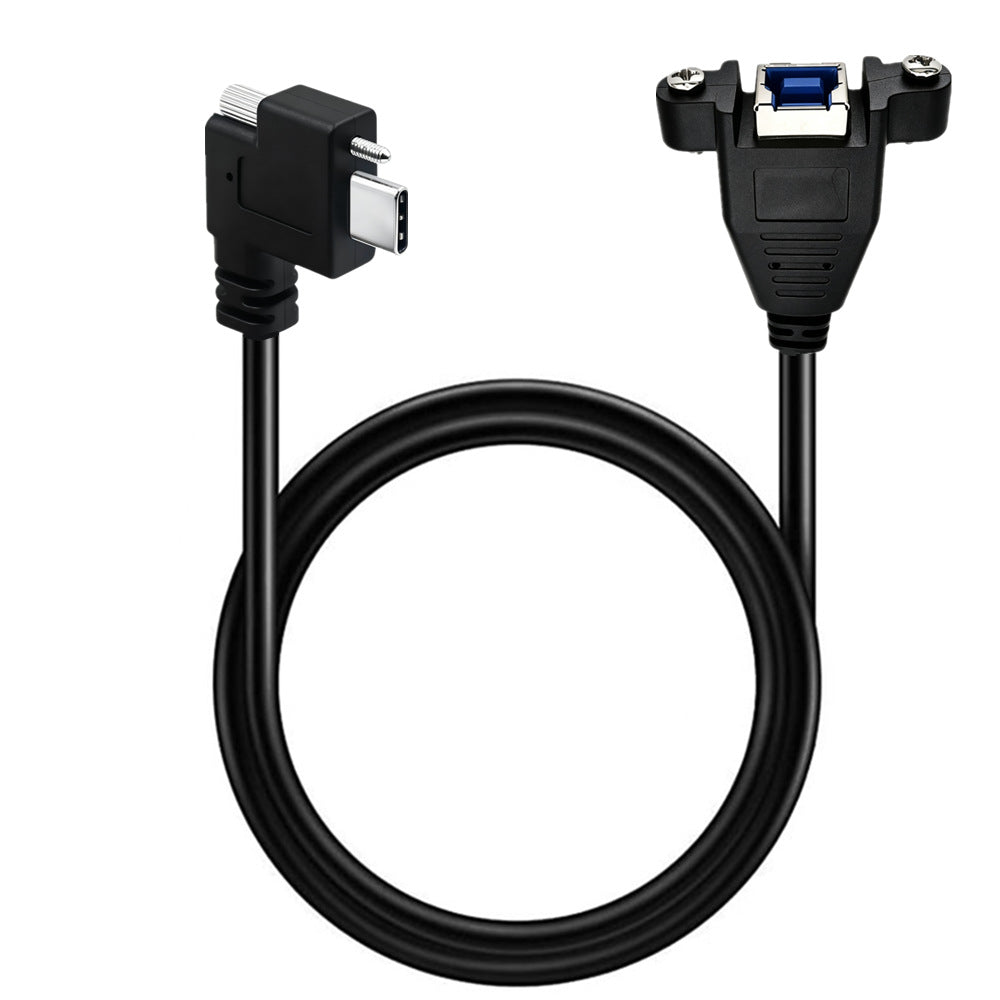

Create a secure, space-saving USB connection for industrial equipment with this Right-Angle USB-C Single-Screw Locking Male to USB 3.0 Type-B Female Panel Mount Extension Cable.

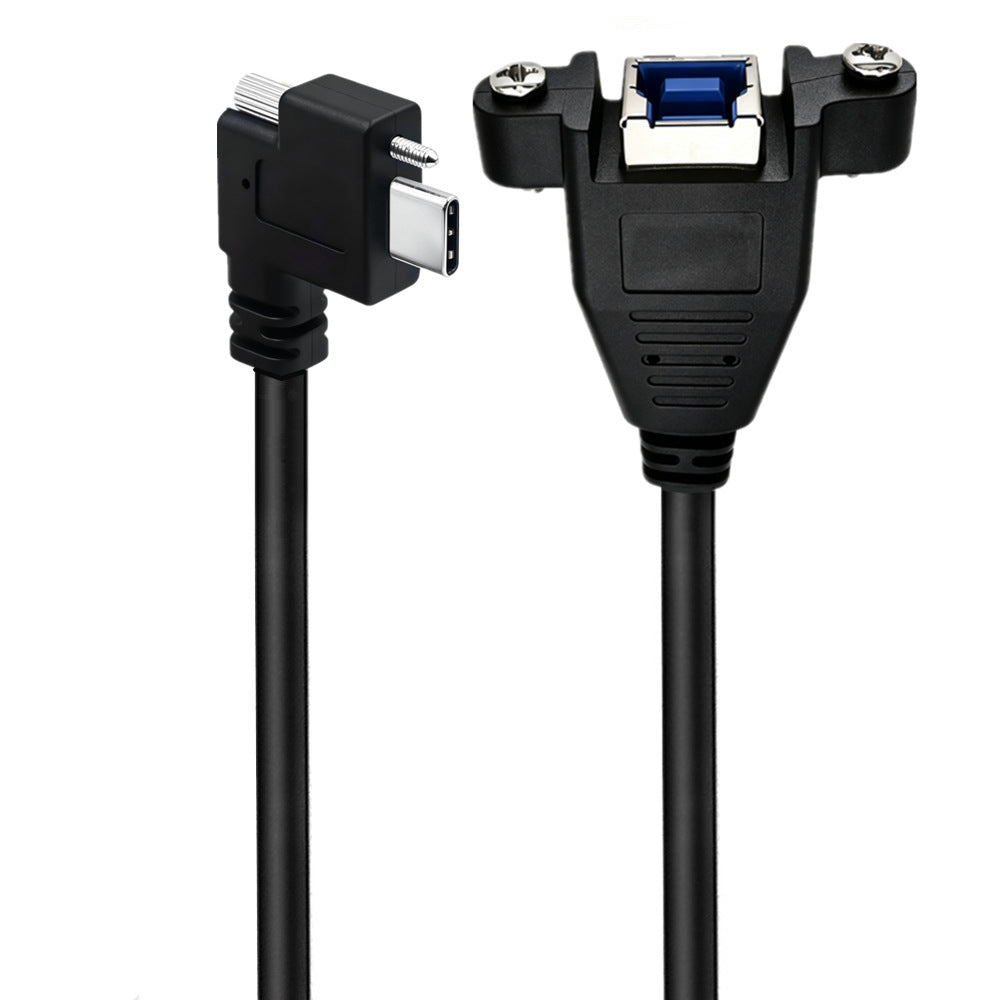

The cable features a 90-degree USB-C male connector with one locking screw at one end and a straight USB 3.0 Type-B female panel-mount socket with two fixing screws at the other.
The angled USB-C connector reduces the space required behind or beside equipment and helps relieve strain on the connected port. Its locking screw can be fastened to a compatible threaded USB-C socket, helping prevent accidental disconnection caused by vibration, movement or continuous operation.
The USB 3.0 Type-B female socket can be securely mounted to an equipment panel, enclosure, kiosk or industrial computer chassis. Once installed, it creates an accessible external USB Type-B port while helping protect the internal USB-C connection from repeated plugging and cable strain.
The blue USB 3.0 Type-B insert identifies the SuperSpeed interface. When connected to compatible USB 3.0 equipment, the cable supports data-transfer speeds of up to 5Gbps and is backwards compatible with USB 2.0 and USB 1.1 devices.
Key Features:
• Right-angle USB-C male to USB 3.0 Type-B female cable
• Single-screw locking USB-C connector
• USB 3.0 Type-B female panel-mount socket
• Two panel fixing screws on the Type-B connector
• Space-saving 90-degree USB-C design
• Helps reduce strain on the USB-C port
• Helps prevent accidental disconnection
• Suitable for vibration-prone installations
• Creates an accessible external USB Type-B port
• USB 3.0 data-transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Shielded construction for stable data transmission
• Durable black PVC outer jacket
• Reinforced moulded connector housings
• Plug-and-play operation
• Available in 0.5m and 1m lengths
Right-Angle USB-C Locking Connector:
The USB-C male connector uses a 90-degree side-exit design, helping keep the cable close to the equipment housing. This is particularly useful for compact enclosures, wall-mounted equipment, crowded control panels and installations where a straight connector would extend too far from the port.
One locking screw is positioned beside the USB-C plug. It must align with a compatible threaded mounting hole on the connected equipment. The locking function cannot be used with an ordinary USB-C socket that does not have a matching screw hole.
USB Type-B Female Panel-Mount Socket:
The USB 3.0 Type-B female socket includes two mounting flanges and fixing screws. It can be installed securely on an equipment panel or enclosure to provide a stable external USB connection.
The female socket is designed to accept a compatible USB 3.0 Type-B male plug.
Suitable Applications:
• Industrial computers and control systems
• Embedded computers and development equipment
• Self-service kiosks and ticket machines
• Point-of-sale terminals
• Medical and laboratory instruments
• Industrial cameras and barcode scanners
• Data-acquisition systems
• Test and measurement equipment
• Server and equipment enclosures
• Custom machinery and control panels
• Vehicle-mounted industrial systems
• Factory automation equipment
Installation:
1. Insert the right-angle USB-C connector into a compatible USB-C port.
2. Align the locking screw with the equipment’s threaded mounting hole.
3. Tighten the USB-C screw gently by hand.
4. Position the USB Type-B female socket in the prepared panel opening.
5. Secure the panel socket using the two fixing screws.
6. Connect a compatible USB Type-B male cable to the installed female socket.
7. Avoid overtightening the screws, as excessive force may damage the connector housing or equipment threads.
Compatibility Information:
The USB-C screw position, spacing and thread must match the connected equipment.
Please confirm the required USB-C angle direction before ordering. Angle direction should be determined while looking directly into the equipment’s USB-C port.
The panel-mounted end is a USB 3.0 Type-B female socket, not a male connector.
This cable is intended primarily for USB data transfer and standard USB bus power. It does not support DisplayPort Alt Mode video output or USB Power Delivery fast charging.
Maximum transfer speed depends on the USB standard supported by all connected devices.
