This right-angle USB-C to 3.5mm TRS digital audio cable is designed for connecting compatible USB Type-C phones, tablets, cameras and recording equipment to devices using a 3.5mm audio connection.

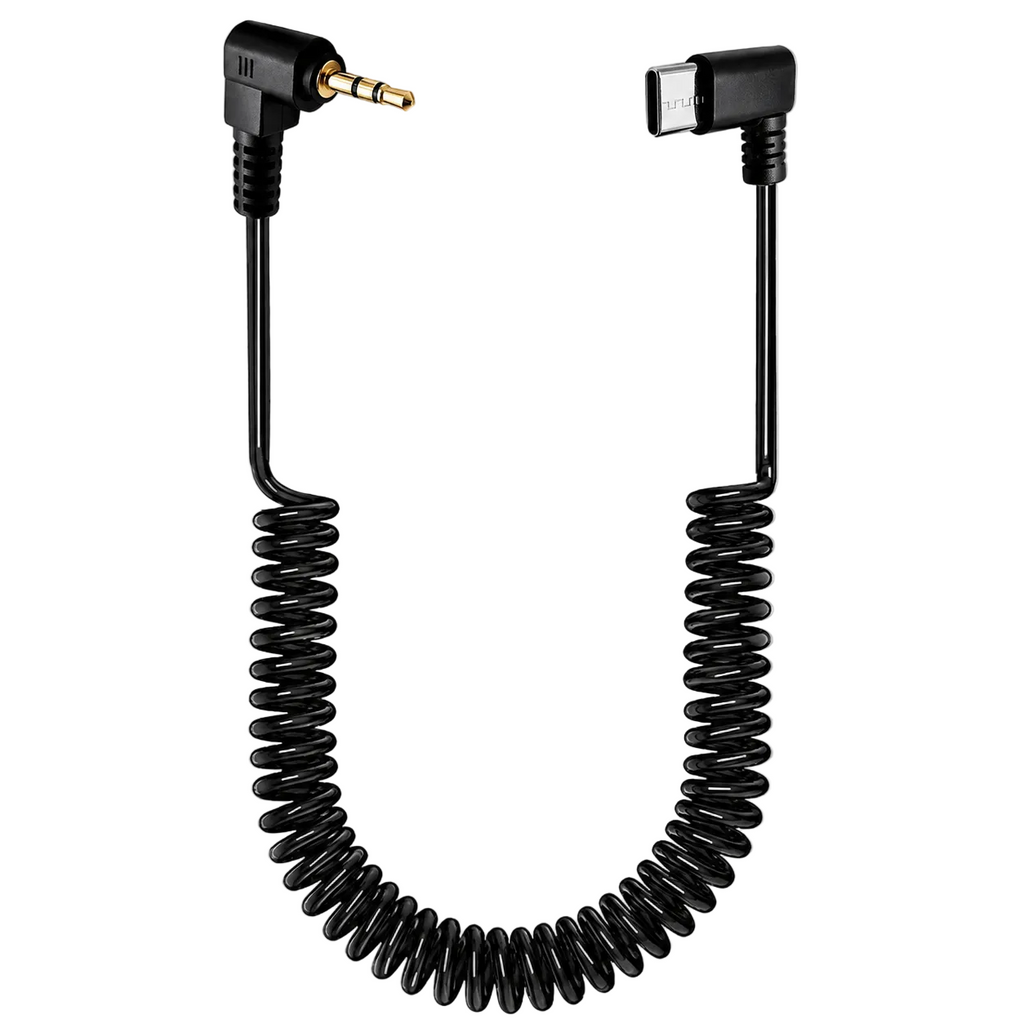

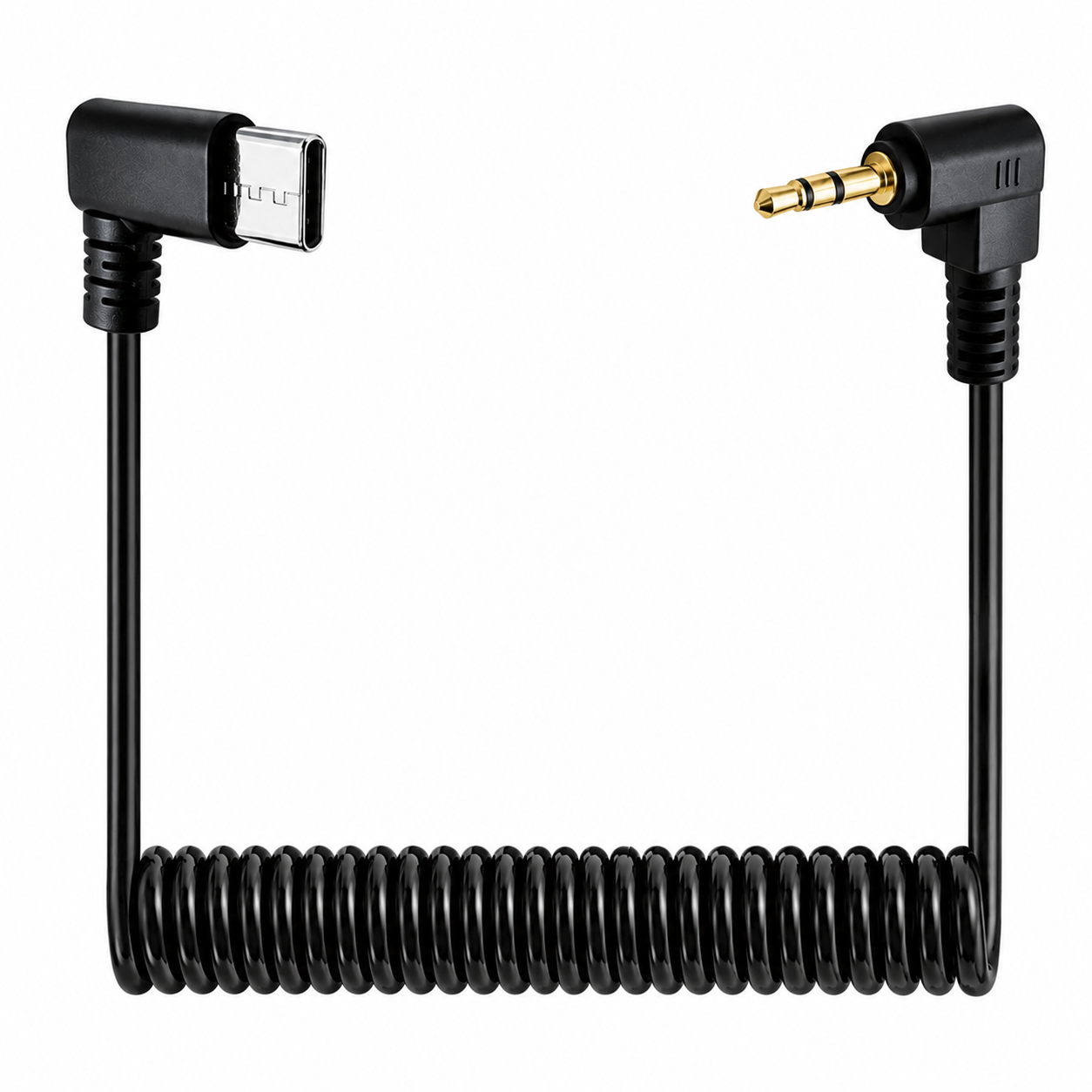

The cable features a 90-degree USB-C male connector and a 90-degree 3.5mm TRS male connector. Its coiled spring design extends when required and retracts for easier storage, helping reduce cable clutter during mobile recording, livestreaming, filming and in-car use.
This listing is for the digital audio version with a built-in audio conversion chipset. It is intended for USB-C devices that do not provide native analogue audio through their Type-C port.
Depending on the chipset configuration, the internal electronics convert between USB digital audio and the analogue audio signal used by the 3.5mm connector. The supported signal direction must match the intended microphone, headphone, AUX or recording application.
Key details:
Cable type: USB-C to 3.5mm digital audio cable
Connector 1: USB Type-C male
Connector 2: 3.5mm TRS male
Connector orientation: 90-degree at both ends
Audio version: Digital audio
Internal electronics: Built-in audio conversion chipset
Cable design: Coiled spring cable
Maximum extended length: 1.5 metres
Connector finish: Gold-coloured 3.5mm contacts
Cable colour: Black
Use: Compatible phones, tablets, cameras, microphones, recorders, headphones and AUX equipment
Typical applications:
Connect compatible 3.5mm microphones to USB-C recording devices
Use with USB-C devices that do not support passive analogue audio
Connect compatible audio equipment to a USB-C phone, tablet or camera
Use for mobile filming, livestreaming, interviews and portable recording
Reduce cable clutter in vehicle and mobile audio installations
Compatibility information:
The 3.5mm plug shown has two insulating rings, indicating a three-pole TRS connector. The wiring and signal direction must match the connected microphone, camera, headphones or AUX equipment.
Some USB audio chipsets support microphone input only, some support audio output only and others may support both. Confirm the required function before ordering.
Compatibility with specific iPhone, Android, camera, RØDE, BOYA or other branded models should only be stated after testing the exact equipment.
This cable is for audio use only. It does not support USB data transfer, charging, USB Power Delivery, DisplayPort Alt Mode, Thunderbolt or video output.
Package includes:
1 x Right-angle USB-C to 3.5mm TRS digital coiled audio cable, 1.5m
