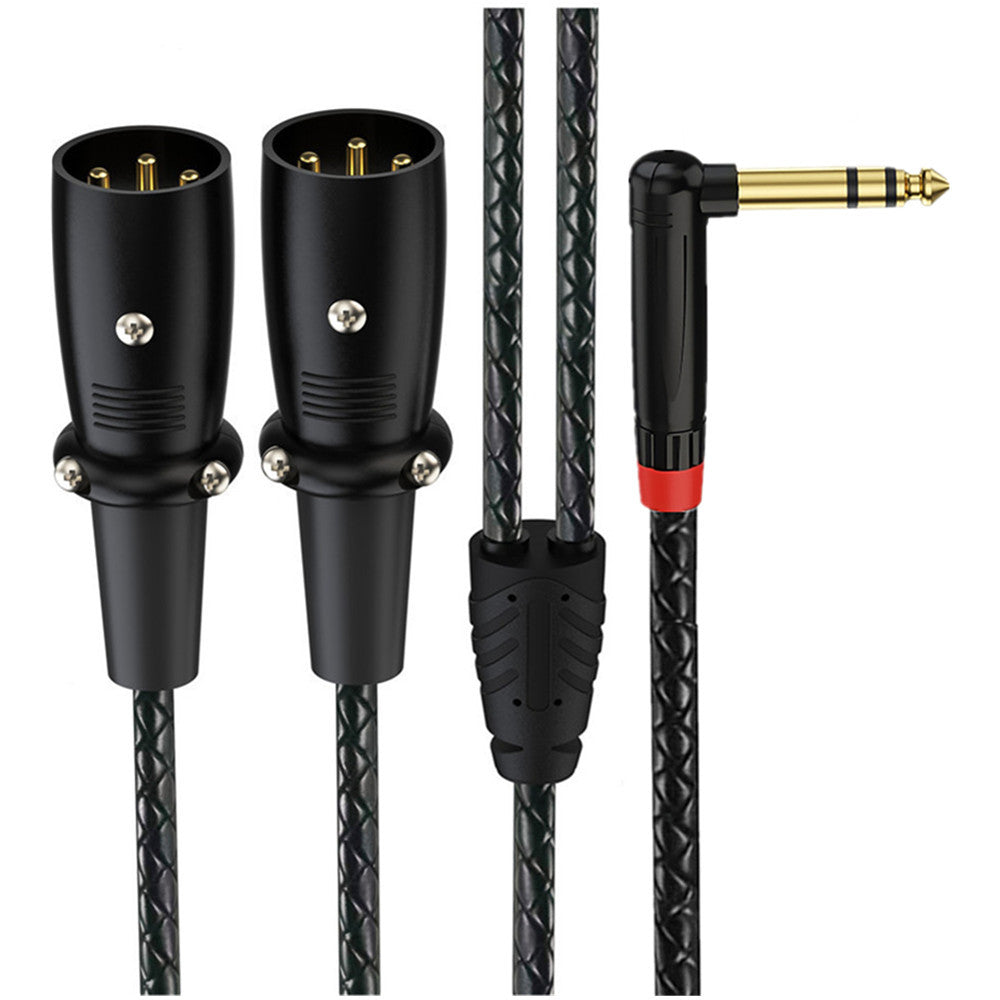

Connect a compatible 6.35mm TRS stereo output to two separate XLR inputs with this right-angle 6.35mm TRS male to dual 3-pin XLR male audio breakout cable.

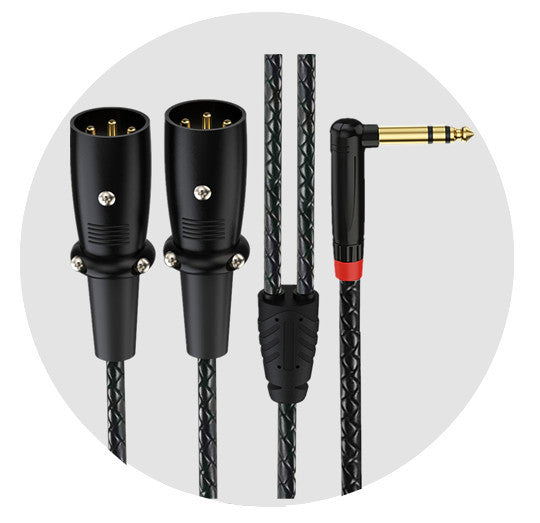

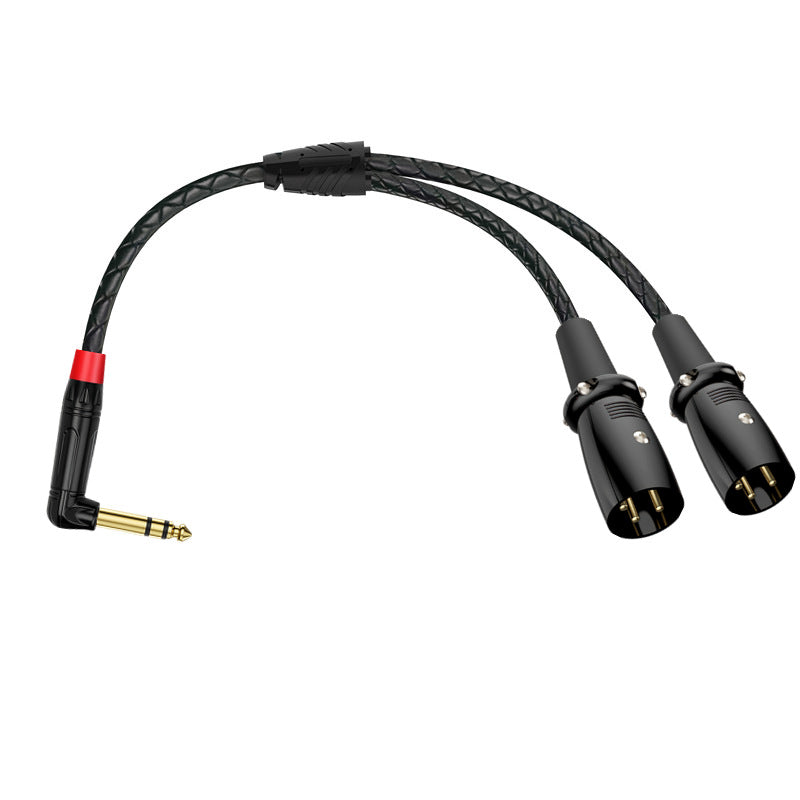

The cable features one space-saving 90-degree 6.35mm (1/4-inch) TRS male plug at the source end and two straight 3-pin XLR male connectors at the other end. It is designed to separate the left and right channels from a compatible stereo TRS output for connection to mixers, powered monitors, amplifiers and other professional audio equipment.

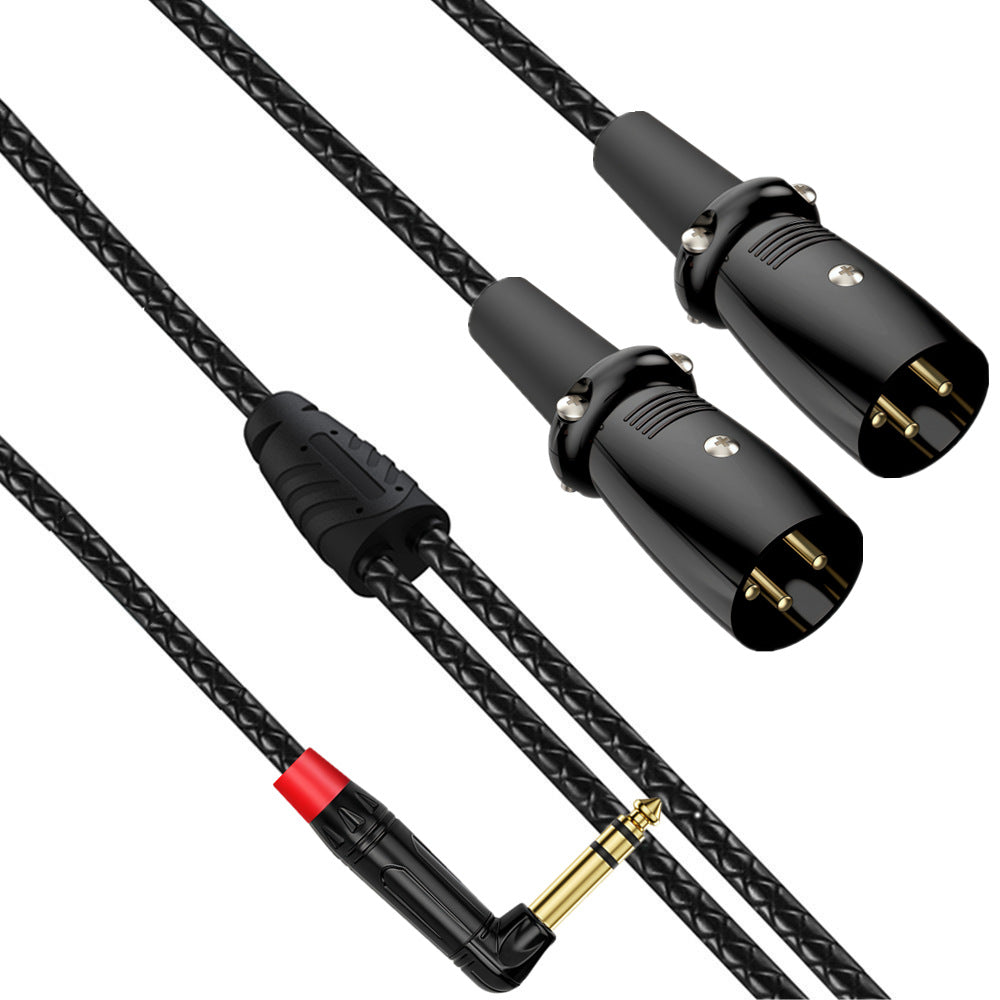

The right-angle jack helps reduce cable strain when used with equipment positioned close to a wall, inside a rack or in a restricted installation space. A braided outer jacket and reinforced splitter section provide added durability for studio, stage and live sound applications.
Key features:
• Right-angle 6.35mm TRS stereo male plug
• Dual straight 3-pin XLR male connectors
• Separates compatible stereo signals into left and right mono channels
• Space-saving 90-degree jack design
• Braided cable jacket
• Reinforced Y-splitter section
• Suitable for compatible mixers, audio interfaces and powered speakers

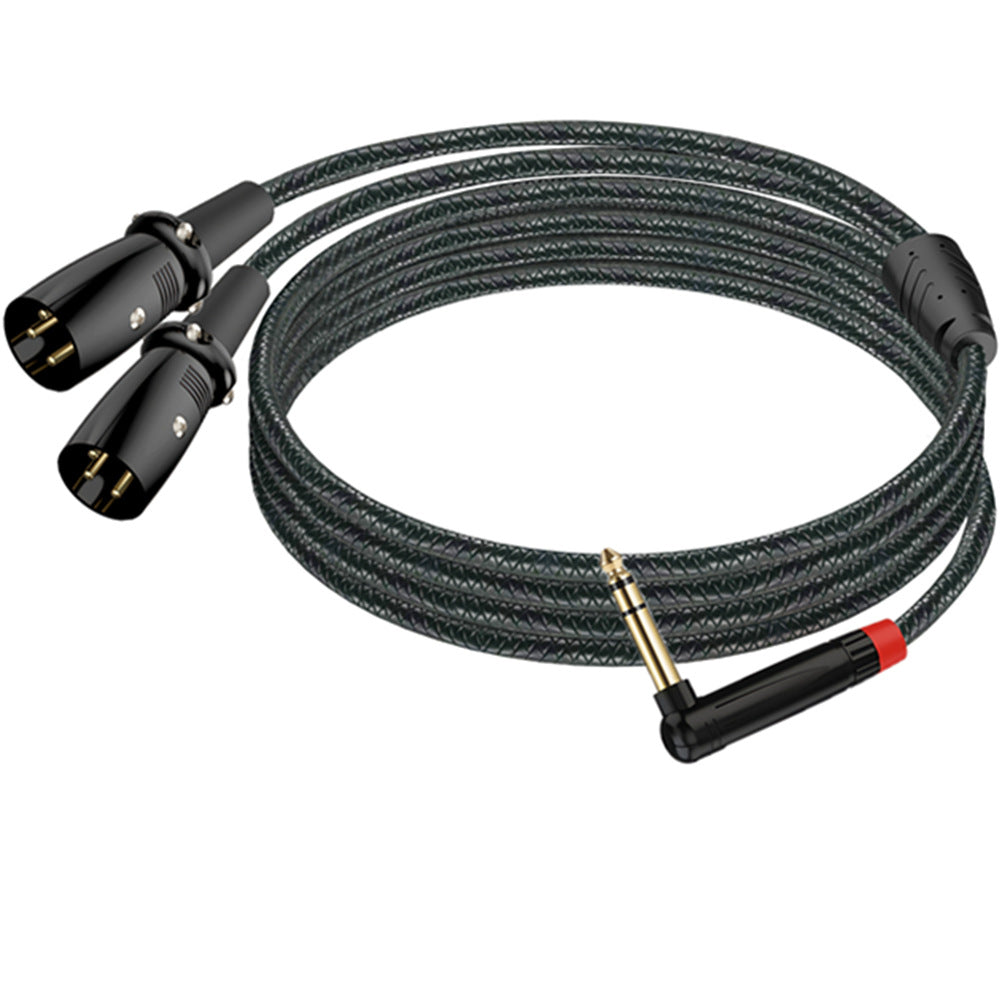

• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Audio interfaces and sound cards
• Electronic keyboards and synthesisers
• Portable mixers and effects processors
• Powered studio monitors
• Professional mixing desks
• Stage amplifiers and audio processors
• Recording, livestreaming and live sound systems
Important compatibility information:
The 6.35mm source connection must provide a standard unbalanced stereo TRS signal:
• Tip: left audio channel
• Ring: right audio channel
• Sleeve: common ground
Each XLR connector carries one unbalanced mono channel. This cable does not create two fully balanced XLR signals from a stereo TRS output.
Do not use the cable with a balanced mono TRS output unless the pinout and intended application have been confirmed. Incorrect use may result in reduced volume, phase cancellation or incorrect signal routing.
This is a passive breakout cable. It does not amplify, balance, isolate or process the audio signal.
