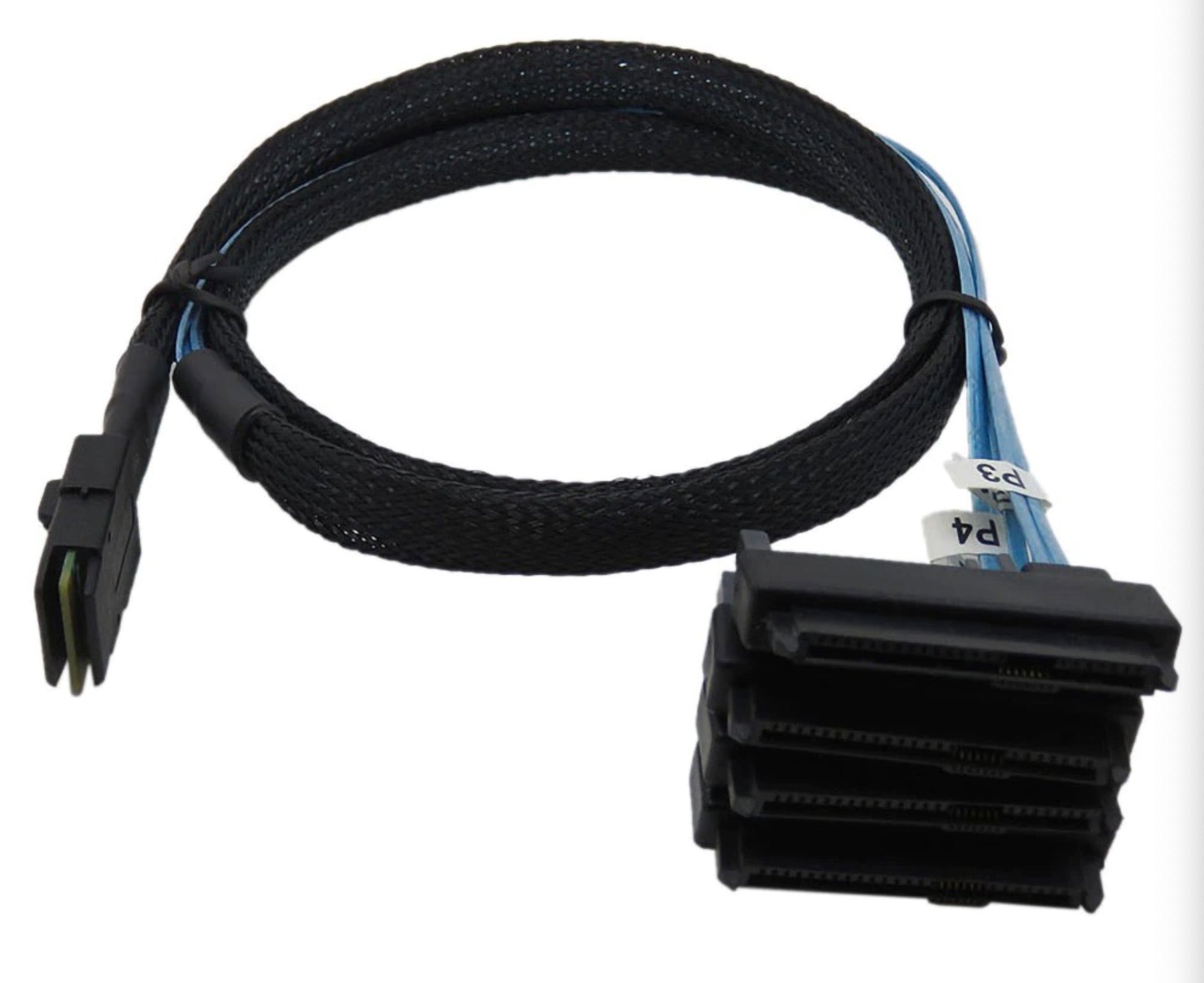

The Mini SAS SFF-8087 to 4x SFF-8482 Internal SAS Breakout Cable with Power is designed to connect a Mini SAS–enabled RAID controller directly to up to four SAS-style drives using combined data and power connectors.
This internal forward breakout cable features a 36-pin Mini SAS SFF-8087 connector on the host side and splits into four 29-pin SFF-8482 connectors, each integrating data and SATA power delivery. This removes the need for separate power cables and simplifies internal server cabling.
The cable is commonly used in server and RAID configurations where a controller provides Mini SAS SFF-8087 outputs and individual drives require SFF-8482 connections with power.
Important compatibility notes:
• This is a forward breakout cable
• The Mini SAS SFF-8087 connector must be on the RAID controller or motherboard
• This cable is intended for SATA drives with SFF-8482 connectors
• It is not compatible with native SAS drives
Key features:
• Mini SAS SFF-8087 male to 4x SFF-8482 (29-pin) connectors
• Integrated SATA power delivery to each drive
• Forward breakout design
• Simplifies cabling by combining data and power
• Suitable for servers, RAID controllers, and storage systems
