The M8 Male to M8 Female 3-Pole Sensor Cable Assembly is designed for reliable signal transmission in industrial automation, robotics and production machinery environments. Built with a durable PUR jacket and shielded construction, this cable is suitable for applications where continuous movement, vibration and harsh operating conditions are expected.
These M8 cable assemblies are commonly used for sensors, actuators and industrial equipment in factory automation and control systems. The M8 connectors provide secure and compact connections, while the IP67-rated connector design ensures protection against dust and water ingress in demanding environments.
The PUR jacket offers excellent flexibility, abrasion resistance and resistance to oils and chemicals, making the cable suitable for drag chain use and long-term dynamic applications. Designed as an industrial standard solution, this cable assembly helps reduce downtime and maintain reliable operation in critical systems.
Key benefits
-
M8 male to M8 female 3-pole sensor cable assembly
-
Shielded construction for reliable signal integrity
-
PUR jacket for flexibility and durability
-
Drag chain suitable for continuous movement applications
-
IP67-rated connectors for dust-tight and water-resistant protection
-
Resistant to oils, abrasion and harsh industrial environments
-
Suitable for sensors, robotics and automation equipment
Technical overview
-

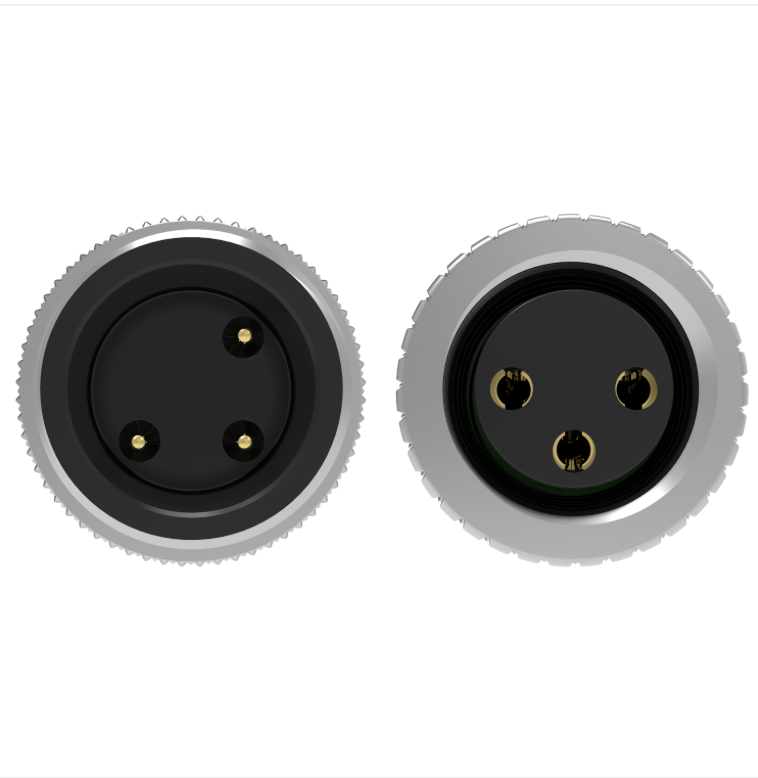

Connector A: M8 male, straight
-
Connector B: M8 female, straight
-
Number of poles: 3
-
Shielding: shielded
-
Conductor structure: AWG22
-
Jacket material: PUR
-
Cable colour: green
-
UL type: UL AWM 20549
-
Rated voltage: max 60V DC
-
Nominal voltage: 300V
-
Operating current per contact: max 4A
-
Contact resistance: max 30 mΩ
-
Connector protection rating: IP67
-
Bending radius (mobile): minimum 15 x outer diameter
-
Bending radius (fixed): minimum 8 x outer diameter
-
Bending cycles (drag chain): approx. 5,000,000
-
Torsion cycles: approx. 2,000,000
-
Torsion stress: ±180° per metre
-
Acceleration (drag chain): max 4 m/s²
-
Operating temperature (flexible): -30°C to +70°C
-
Operating temperature (fixed): -40°C to +80°C
-
Drag chain capable: yes
-
Available lengths: 0.3m to 20m
This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times, please contact us with required lengths, colours and quantities, we will issue a formal quotation with our best available pricing.
