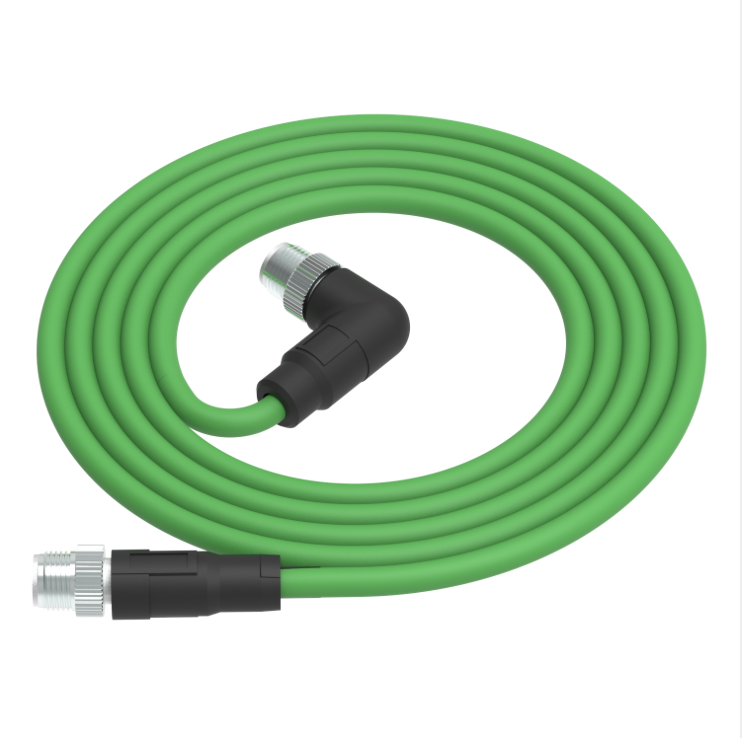

This M12 X-coded male straight to male right-angle 8-pin Ethernet cable assembly is designed for high-speed industrial Ethernet applications requiring reliable 10 Gigabit data transmission and robust mechanical performance. The X-coded M12 interface provides enhanced pair separation and advanced shielding, ensuring stable signal integrity in electrically noisy industrial environments.

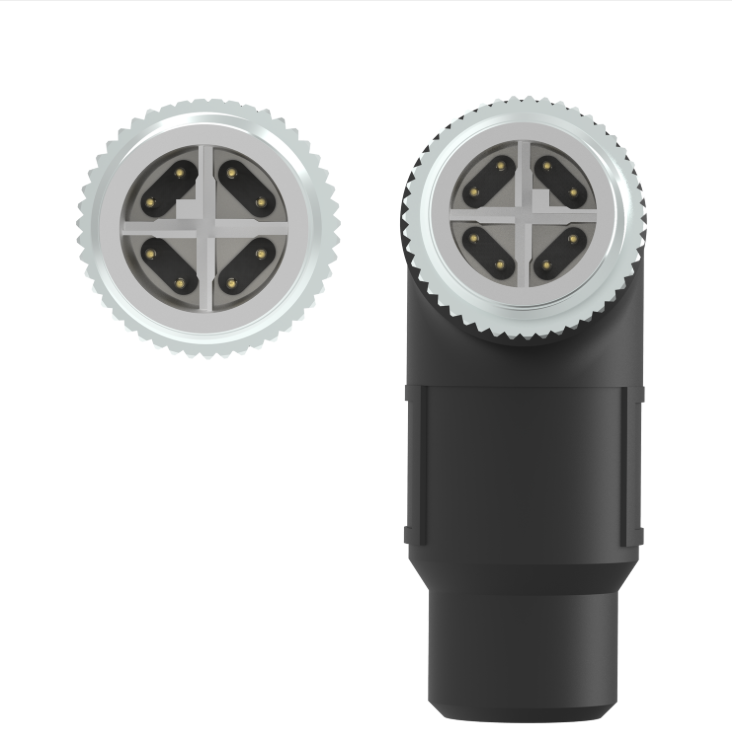

The assembly features a straight M12 X-coded connector on one end and a right-angle M12 X-coded connector on the other, enabling compact routing and reduced bending stress in confined installation spaces. Both connectors are overmoulded and rated IP67, providing effective protection against dust and water ingress for use in automation systems, machinery and outdoor installations.
The CAT6A cable construction supports Ethernet transmission speeds up to 10 Gbit/s and incorporates double shielding to minimise EMI and RFI interference. The halogen-free PUR jacket offers excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. This cable is ideal for industrial Ethernet networks, motion control systems, automation equipment, sensors, switches and high-speed data applications.
Key technical highlights
M12 X-coded male straight to male right-angle
8-pin X-coded connectors
Supports up to 10G Ethernet transmission
CAT6A cable construction
Double-shielded for EMI/RFI protection
PUR jacket, halogen-free, oil- and UV-resistant
Suitable for drag chain and torsional applications
Protection rating: IP67 (connectors)
UL AWM 20549 approved
Approx. 10,000,000 bending cycles
Approx. 3,000,000 torsion cycles
Premium made-to-order product manufactured to your specifications and supplied subject to MOQ. Message your required cable lengths and quantities to receive wholesale pricing, estimated lead times (typically 2–4 weeks), and a formal quotation with our most competitive manufacturing price.
