This M12 X-coded male right-angle to RJ45 male straight 8-pin Ethernet cable assembly is designed for high-speed industrial Ethernet applications requiring reliable 10 Gigabit data transmission between field devices and standard Ethernet equipment. The X-coded M12 interface provides enhanced pair separation and superior shielding, ensuring stable, high-integrity signal performance in electrically noisy industrial environments.

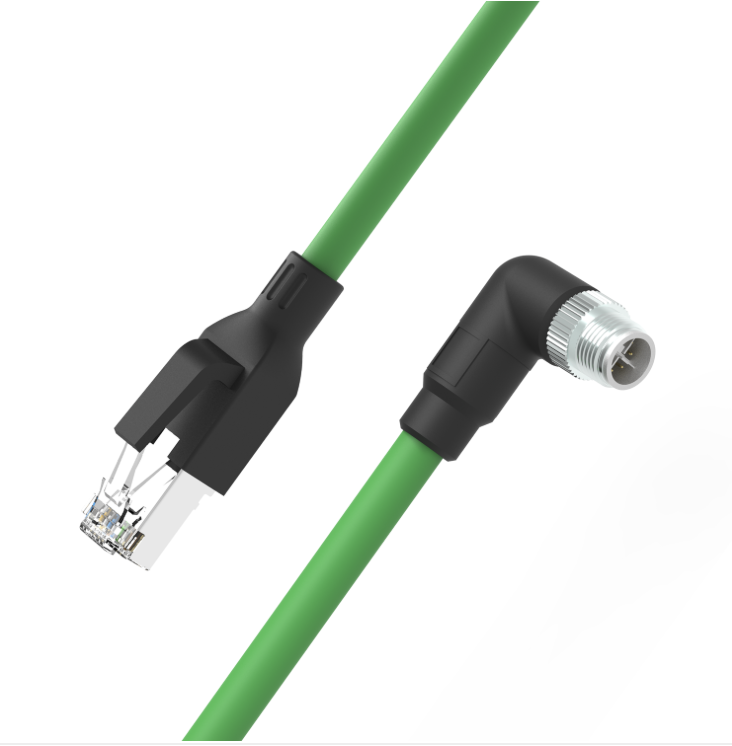

The assembly features a right-angle M12 X-coded male connector on one end and a straight RJ45 male connector on the other, allowing space-saving installation and direct connection between industrial Ethernet devices and control cabinet or network infrastructure. The M12 connector is overmoulded and rated IP67 for protection against dust and water ingress, while the RJ45 connector is rated IP20 for use within protected enclosures.
The CAT6A cable construction supports data transmission rates up to 10 Gbit/s and incorporates double shielding for effective EMI and RFI suppression. The halogen-free PUR jacket offers excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. This cable is ideal for industrial Ethernet networks, automation systems, motion control equipment, sensors, switches and high-speed data applications.
Key technical highlights
Connector A: M12 X-coded male, right angle, 8-pin
Connector B: RJ45 male, straight, 8-pin
Cable type: CAT6A, 10G Ethernet capable
Double shielded for EMI/RFI protection
PUR jacket, halogen-free, oil-resistant and UV-resistant
Suitable for drag chain and torsional applications
Protection rating: IP67 (M12), IP20 (RJ45)
UL AWM 20549 approved
Approx. 10,000,000 bending cycles
Approx. 3,000,000 torsion cycles
Premium made-to-order product manufactured to your specifications and supplied subject to MOQ. Message your required cable lengths and quantities to receive wholesale pricing, estimated lead times (typically 2–4 weeks), and a formal quotation with our most competitive manufacturing price.
