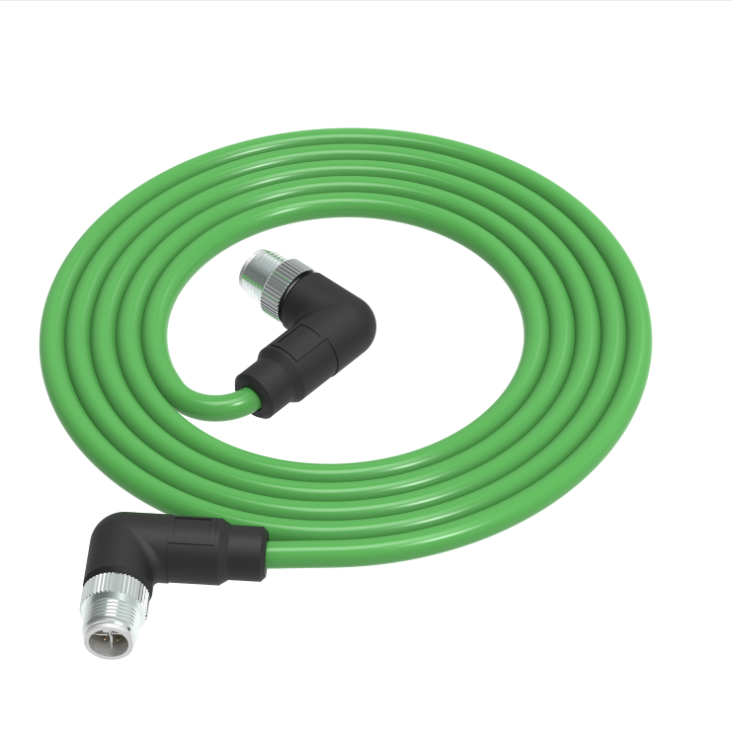

This M12 X-coded male right-angle to male right-angle 8-pin Ethernet cable assembly is designed for high-speed industrial Ethernet applications requiring reliable 10 Gigabit data transmission and compact installation. The X-coded connector design ensures enhanced pair separation and superior shielding performance, supporting high-integrity signal transmission in demanding industrial environments.

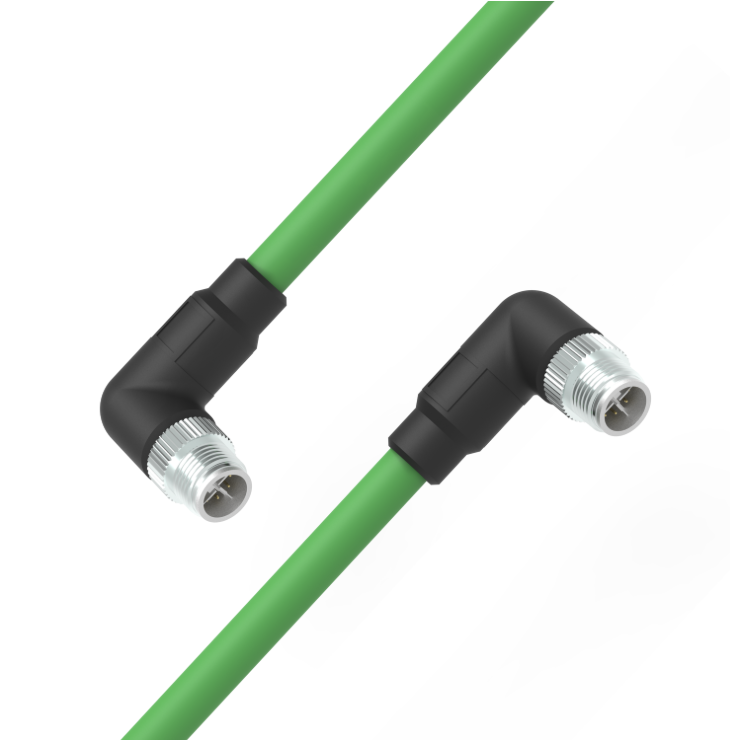

The assembly is fitted with right-angle M12 X-coded male connectors on both ends, enabling space-saving cable routing and reduced bending stress in machinery, automation systems and control cabinets. Both connectors are overmoulded and rated IP67, providing robust protection against dust and water ingress.
The CAT6A cable construction supports data transmission rates up to 10 Gbit/s and features double shielding for effective EMI and RFI suppression. The halogen-free PUR jacket offers excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. This cable is ideal for high-speed industrial Ethernet networks, automation equipment, motion systems and harsh industrial environments.
Key technical highlights

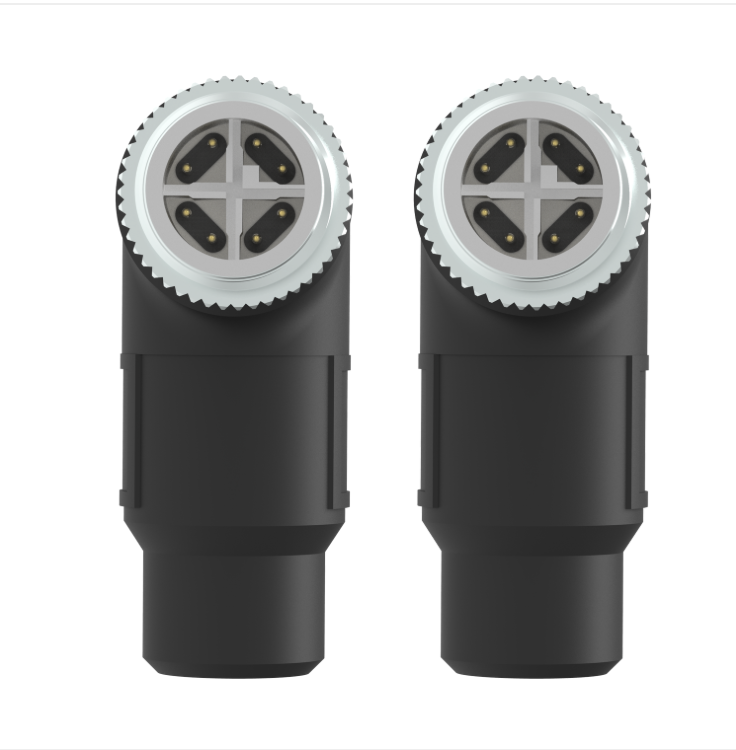

Connector A: M12 X-coded male, right angle, 8-pin
Connector B: M12 X-coded male, right angle, 8-pin
Cable type: CAT6A, 10G Ethernet capable
Double shielded for EMI/RFI protection
PUR jacket, halogen-free, oil-resistant and UV-resistant
Suitable for drag chain and torsional applications
Protection rating: IP67 at both connectors
UL AWM 20549 approved
Approx. 10,000,000 bending cycles
Approx. 3,000,000 torsion cycles
Premium made-to-order product manufactured to your specifications and supplied subject to MOQ. Message your required cable lengths and quantities to receive wholesale pricing, estimated lead times (typically 2–4 weeks), and a formal quotation with our most competitive manufacturing price.
