This M12 X-coded male right-angle to female straight 8-pin Ethernet cable assembly is designed for high-speed industrial Ethernet applications requiring reliable 10 Gigabit data transmission in demanding environments. The X-coded connector design provides enhanced pair separation and superior shielding performance, ensuring stable, high-integrity signal transmission.

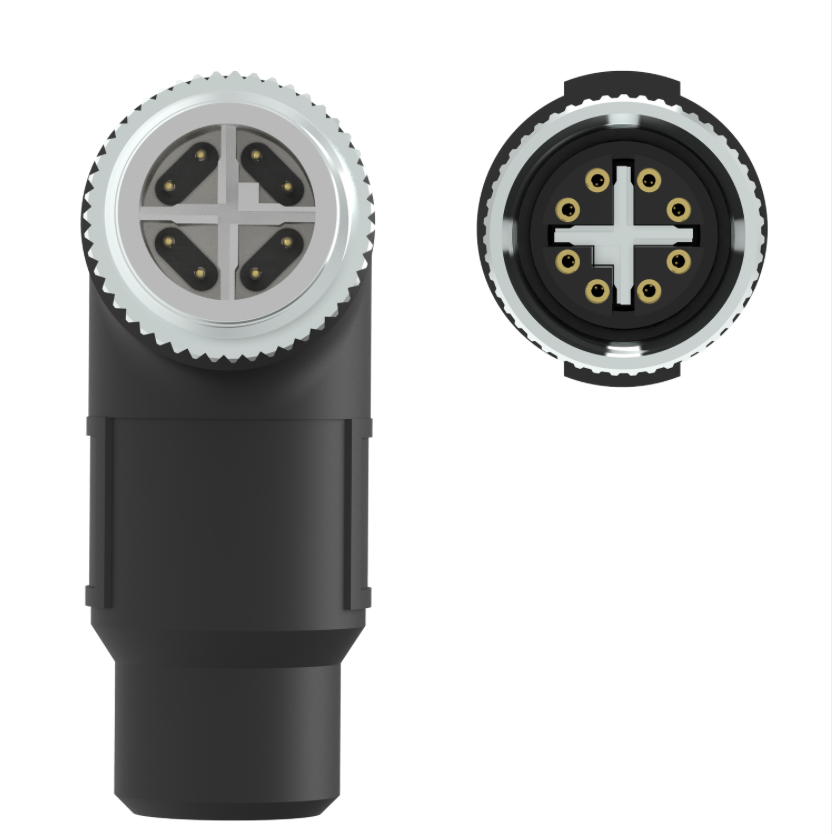

The assembly is fitted with a right-angle M12 X-coded male connector on one end and a straight M12 X-coded female connector on the other, allowing space-saving installation and flexible cable routing in machinery, automation systems and control cabinets. Both M12 connectors are overmoulded and rated IP67, providing protection against dust and water ingress.
The CAT6A cable construction supports data rates up to 10 Gbit/s and features double shielding for maximum protection against EMI and RFI. The halogen-free PUR jacket offers excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. This cable is ideal for industrial Ethernet networks, high-speed automation systems, machinery and control equipment.
Key technical highlights
Connector A: M12 X-coded male, right angle, 8-pin
Connector B: M12 X-coded female, straight, 8-pin
CAT6A cable, 10 Gbit/s Ethernet capable
Double-shielded cable for EMI/RFI protection
PUR jacket, halogen-free, oil-resistant and UV-resistant
Suitable for drag chain and torsional applications
Protection rating: IP67 (both connectors)
UL AWM 20549 approved
Approx. 10,000,000 bending cycles
Approx. 3,000,000 torsion cycles
Premium made-to-order product manufactured to your specifications and supplied subject to MOQ. Message your required cable lengths and quantities to receive wholesale pricing, estimated lead times (typically 2–4 weeks), and a formal quotation with our most competitive manufacturing price.
