This M12 X-coded female straight to RJ45 male straight 8-pin Ethernet cable assembly is designed for high-speed industrial Ethernet applications requiring reliable 10 Gigabit data transmission. The X-coded connector design provides enhanced pair separation and shielding performance, ensuring stable, high-integrity signal transmission in electrically noisy environments.

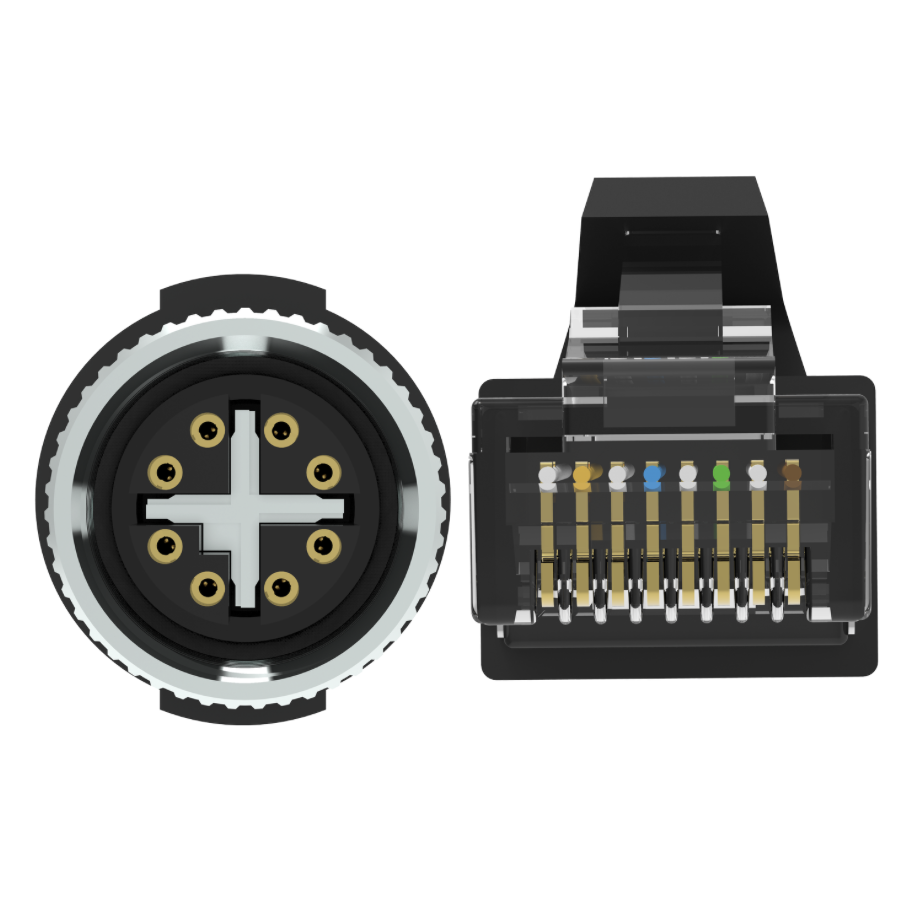

The assembly is fitted with a straight M12 X-coded female connector on one end and a straight RJ45 male connector on the other, enabling seamless integration between industrial Ethernet devices and standard network infrastructure. The M12 connector is overmoulded and rated IP67 for protection against dust and water ingress, while the RJ45 connector is intended for use within control cabinets and protected environments.
The CAT6A cable construction supports data rates up to 10 Gbit/s and features double shielding for maximum protection against EMI and RFI. The halogen-free PUR jacket offers excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. This cable is ideal for industrial Ethernet networks, automation systems, machinery, control cabinets and high-speed data applications.
Key technical highlights
Connector A: M12 X-coded female, straight, 8-pin
Connector B: RJ45 male, straight, 8-pin
CAT6A cable, 10 Gbit/s Ethernet capable
Double-shielded cable for EMI/RFI protection
PUR jacket, halogen-free, oil-resistant and UV-resistant
Suitable for drag chain and torsional applications
Protection rating: IP67 (M12), IP20 (RJ45)
UL AWM 20549 approved
Approx. 10,000,000 bending cycles
Approx. 3,000,000 torsion cycles
Premium made-to-order product manufactured to your specifications and supplied subject to MOQ. Message your required cable lengths and quantities to receive wholesale pricing, estimated lead times (typically 2–4 weeks), and a formal quotation with our most competitive manufacturing price.
