High-Current M12 L-Coded 5-Pole Power Cable with Functional Earth

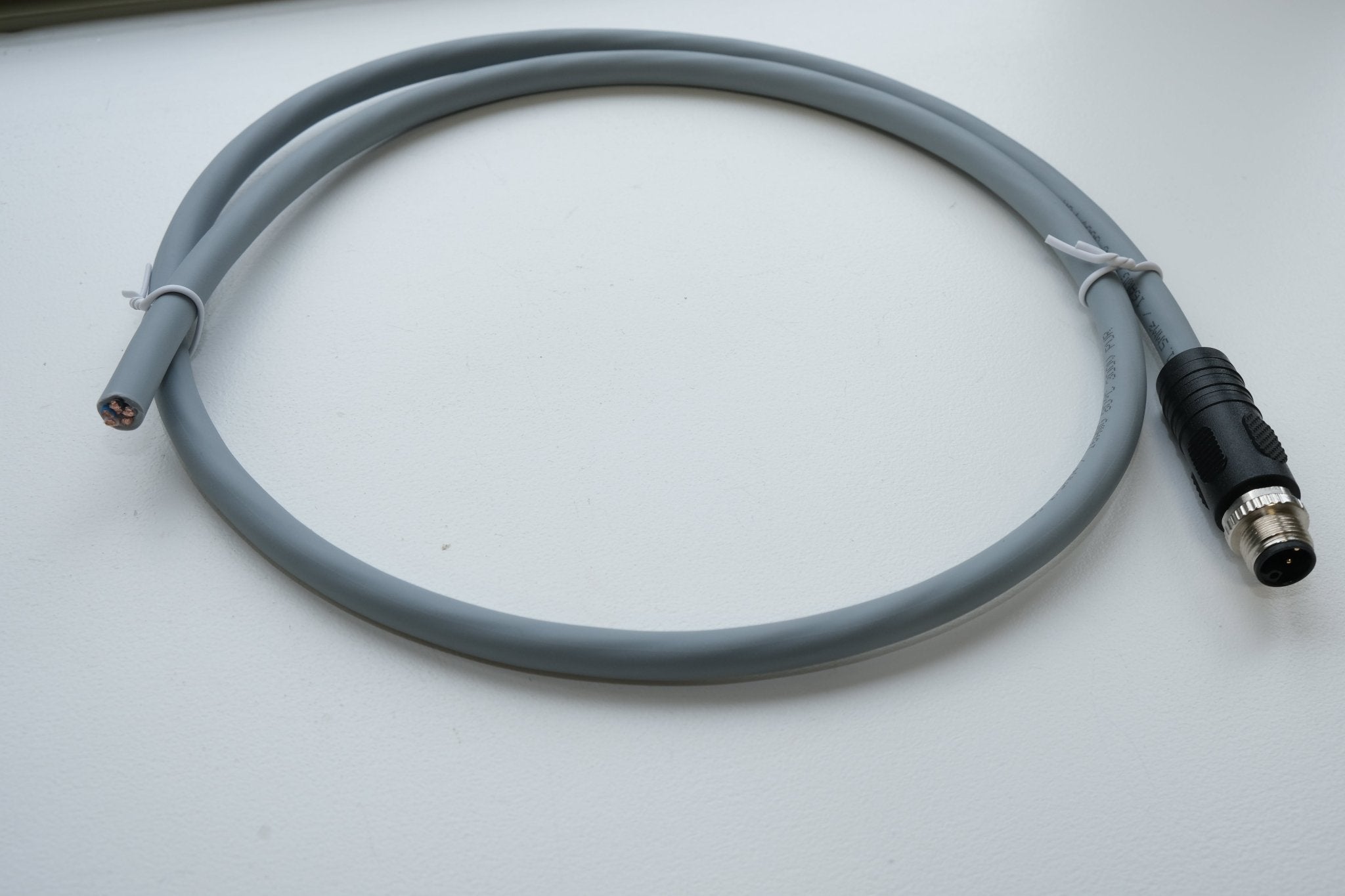

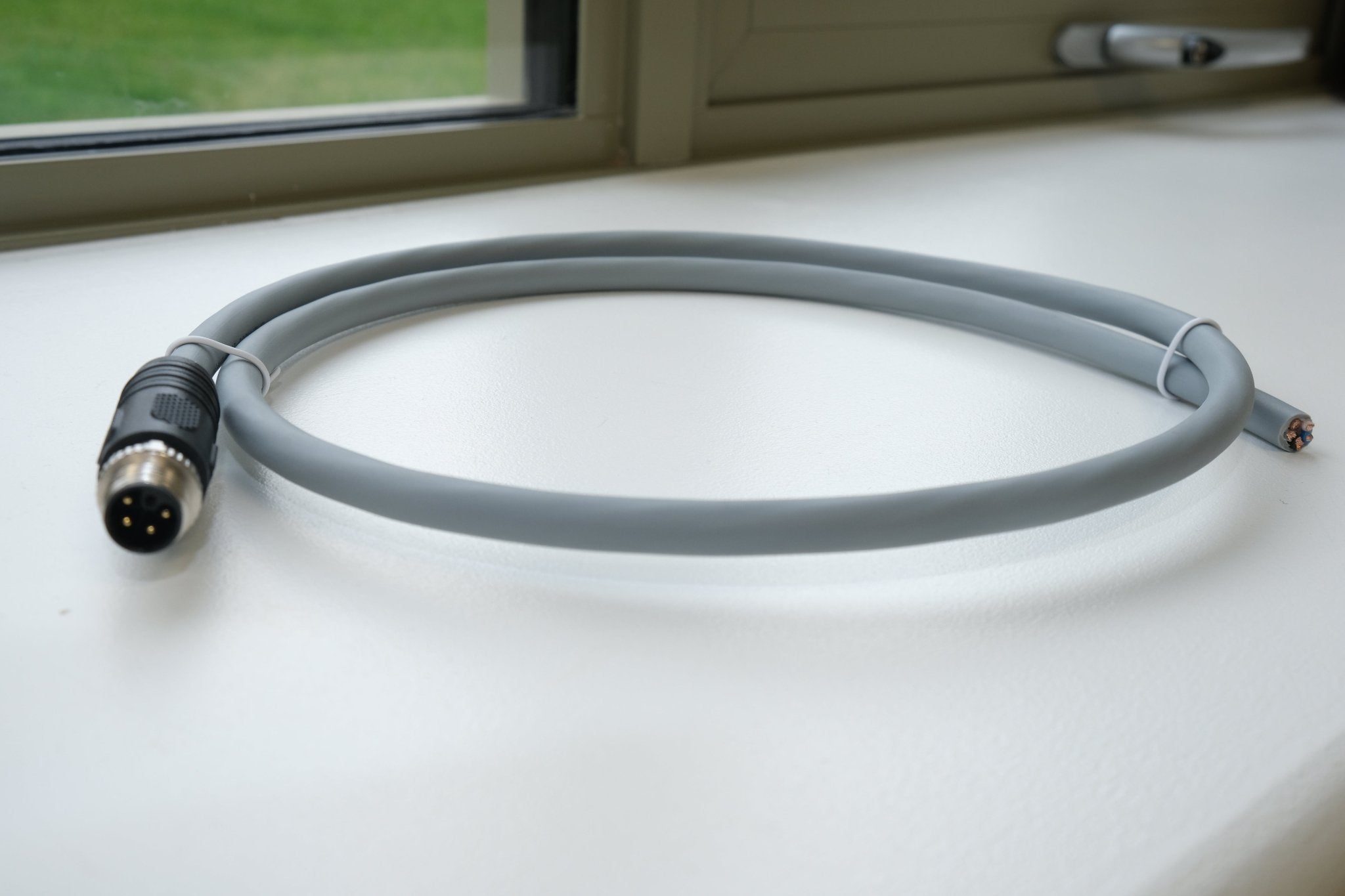

This M12 L-Coded male straight to open 5-position (4+FE) cable assembly is engineered for high-current 24V DC industrial power distribution where enhanced grounding and EMC performance are required.
The 5-pole (4 power + functional earth) configuration provides improved system grounding and shielding continuity for demanding PROFINET and industrial automation applications. With 14AWG (2.5mm²) copper conductors, this cable supports up to 16A per pin (installation dependent) at 63V DC, making it suitable for motors, drives, fieldbus I/O modules, network devices and high-power control systems.
The overmoulded M12 L-coded male connector is IP67 rated for protection against dust and temporary immersion in water. The open cable end allows flexible termination into control panels, terminal blocks or custom harness assemblies.
A durable PUR outer jacket makes this assembly suitable for drag chain and continuous motion applications, providing resistance to oil, abrasion and mechanical stress in harsh industrial environments.
Key Features
-

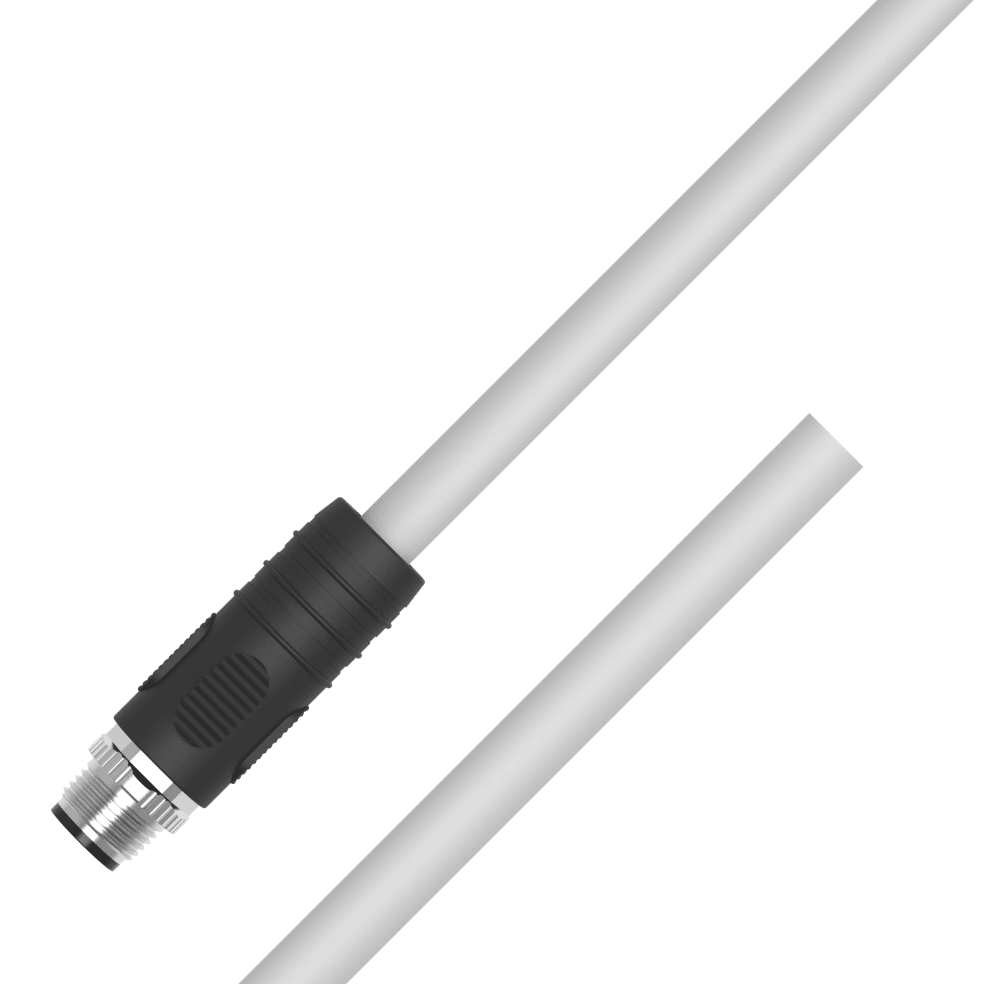

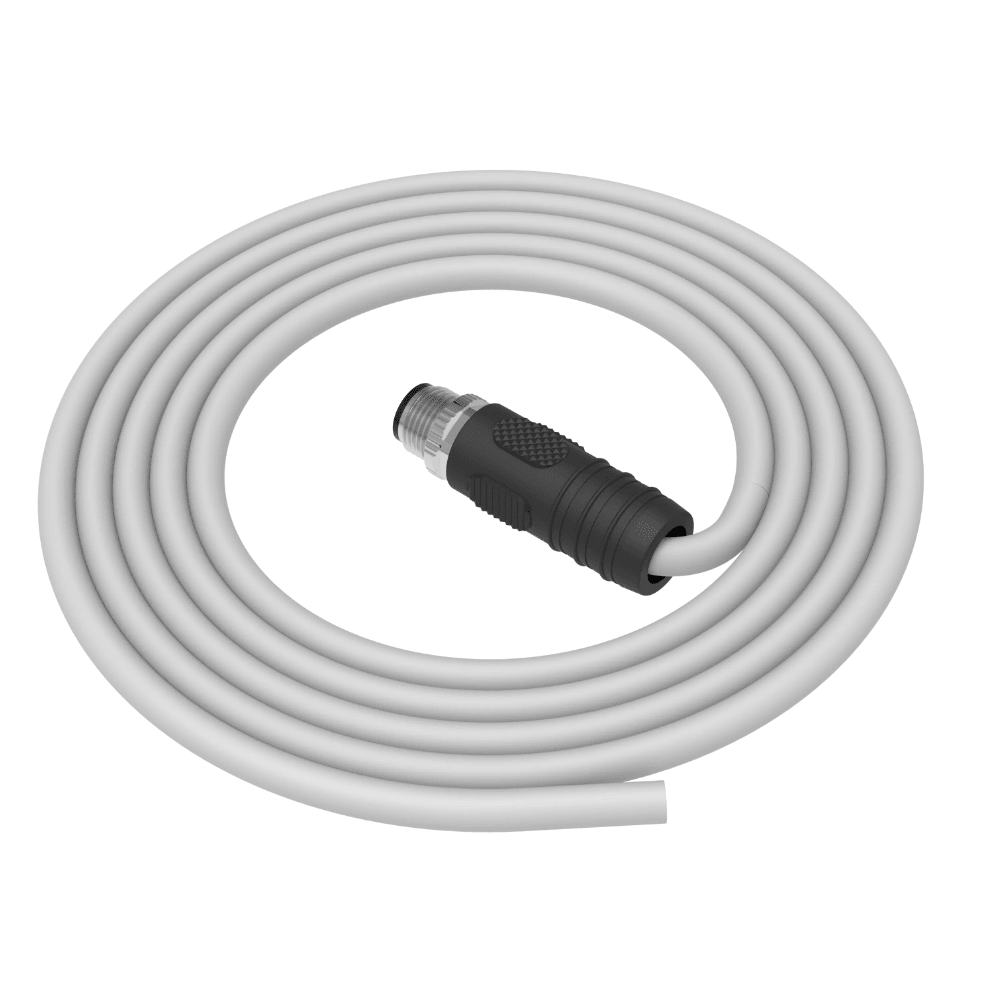

M12 L-Coded male straight to open end
-
5-position (4+FE) configuration
-
14AWG (2.5mm²) copper conductors
-
Rated up to 63V DC
-
Up to 16A per pin (application dependent)
-
Integrated functional earth (FE)
-
IP67 rated connector
-
Shielded cable construction
-
PUR jacket for drag chain use
-
Designed for PROFINET 24V DC power systems
Connector Specifications
Connector A

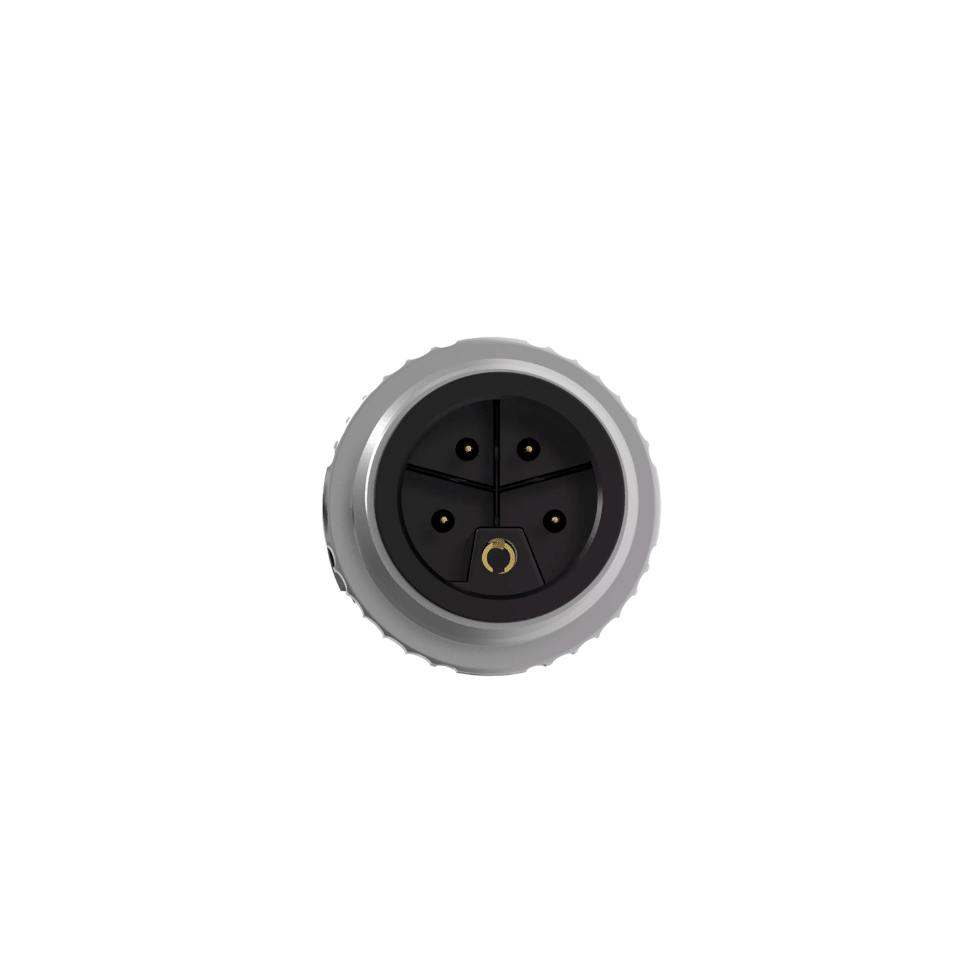

Connection: M12 L-Coded
Gender: Male
Poles: 5 (4+FE)
Orientation: Straight
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 5
Cable Specifications
Cable Type: L-Coded Power Cable
Conductor Material: Copper
Conductor Structure: AWG14 (2.5mm²)
Shield Type: Shielded
Jacket Material: PUR
Cable Colour: Grey
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Typical Applications
-
PROFINET 24V DC power distribution
-
Fieldbus Ethernet I/O systems
-
Motors and drives
-
Industrial automation panels
-
High-current field devices requiring functional earth
-
Control cabinet integration
