M12 L-Coded Male to Male 5-Pin (4+FE) 14AWG Power Cable – Shielded PUR, IP67

High-Current M12 L-Coded 5-Pole Power Cable with Functional Earth

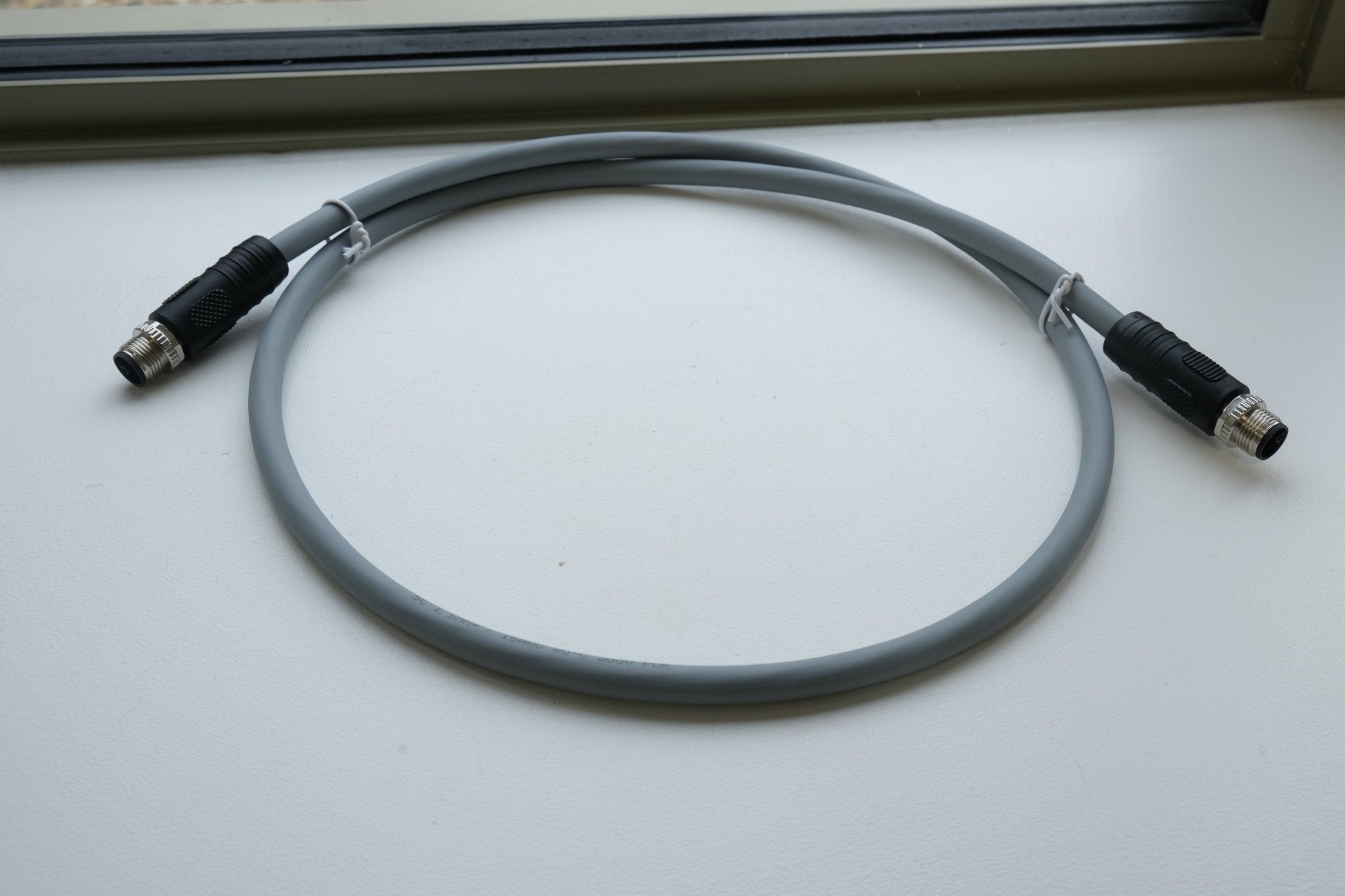

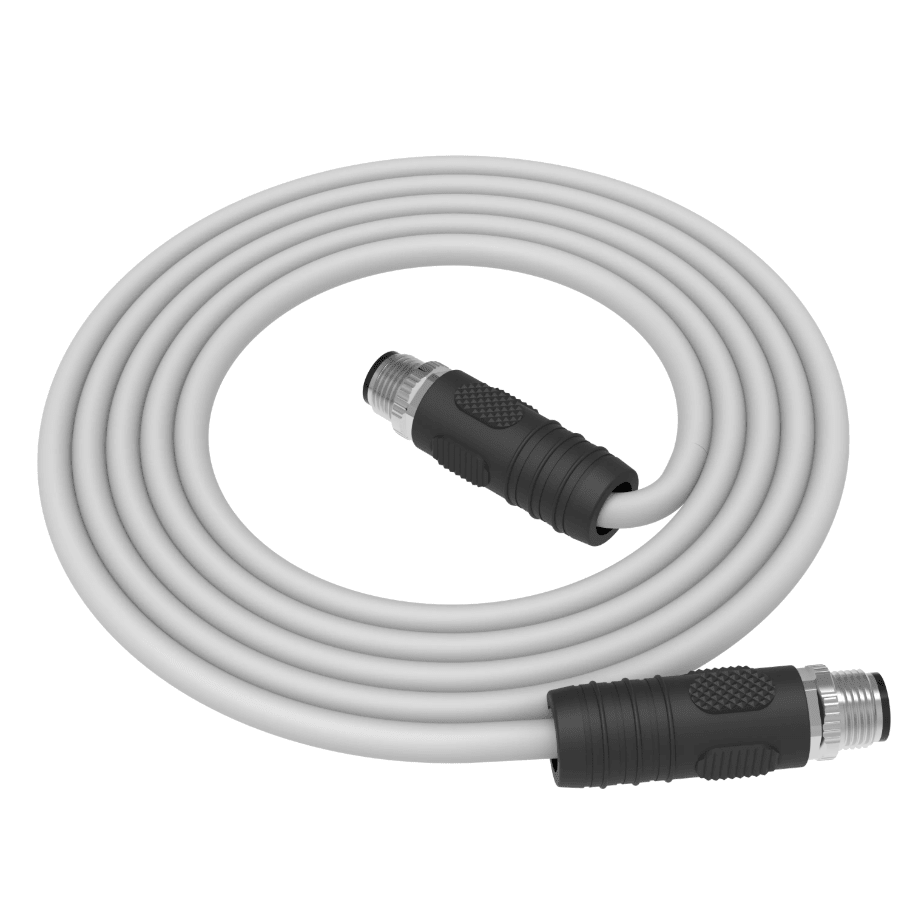

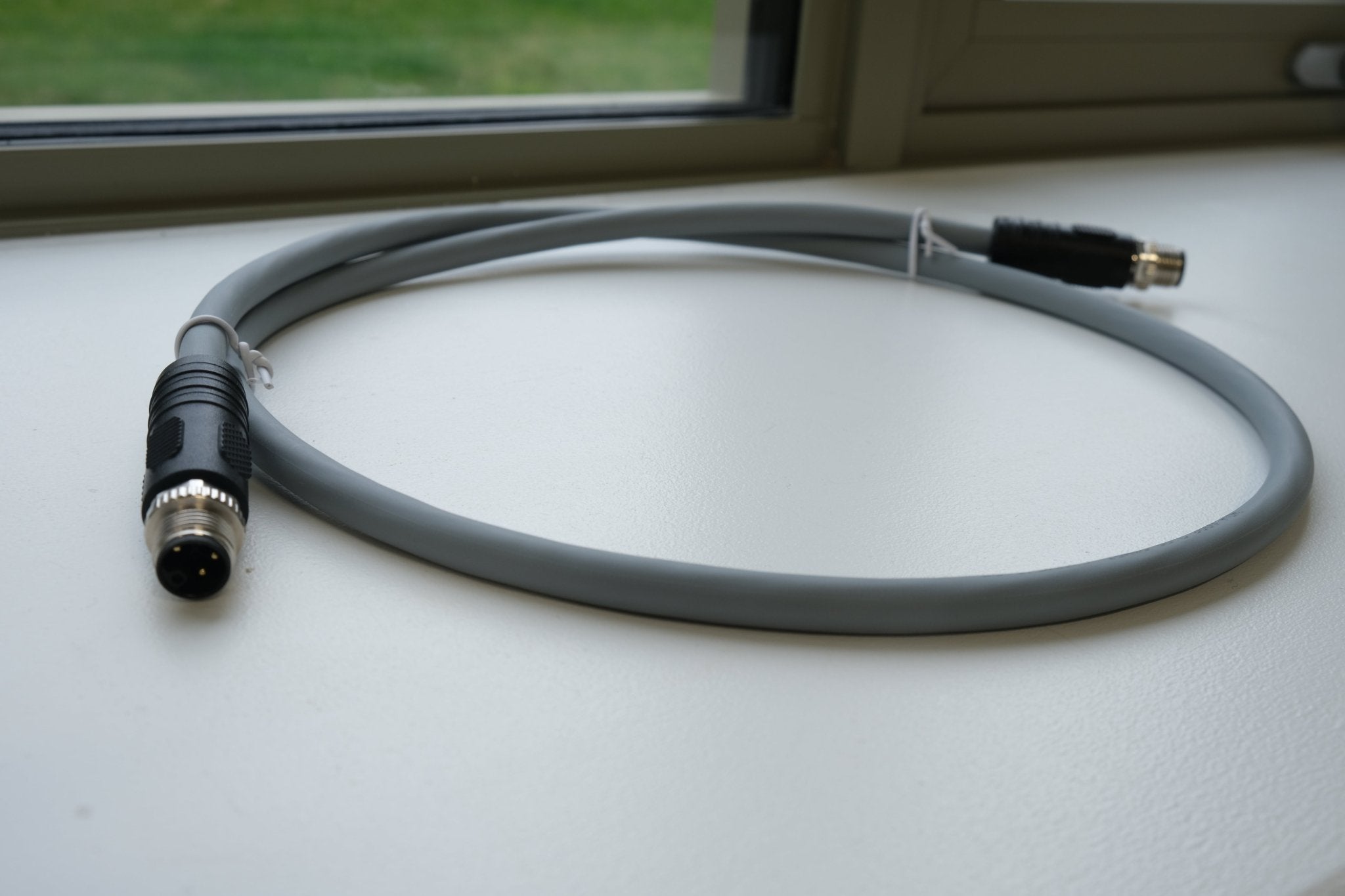

This M12 L-Coded male to male straight 5-position (4+FE) cable assembly is designed for high-current 24V DC industrial power distribution where enhanced grounding and EMC protection are required.

The 5-pole configuration (4 power contacts plus functional earth) provides improved shielding continuity and system grounding for demanding PROFINET and industrial automation applications. Built with 14AWG (2.5mm²) copper conductors, this cable supports up to 16A per pin at 63V DC, making it suitable for motors, drives, industrial Ethernet I/O modules, network devices and high-power control systems.

The compact M12 L-coded interface delivers significantly higher current capacity compared to standard M12 connectors while maintaining a space-saving design compared to traditional 7/8” power connectors.

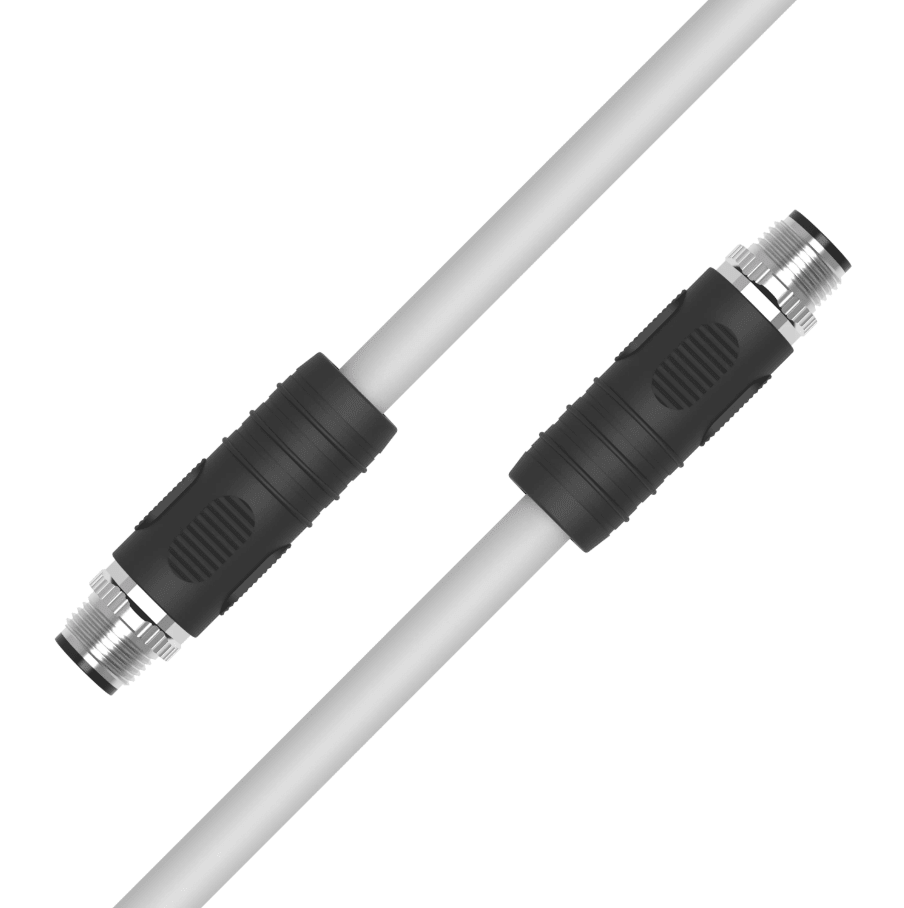

Overmoulded male connectors on both ends provide IP67 ingress protection against dust and temporary water immersion. The durable PUR outer jacket ensures suitability for drag chain and continuous flex applications, offering resistance to oil, abrasion and mechanical stress.

Key Features

• M12 L-Coded male to male straight

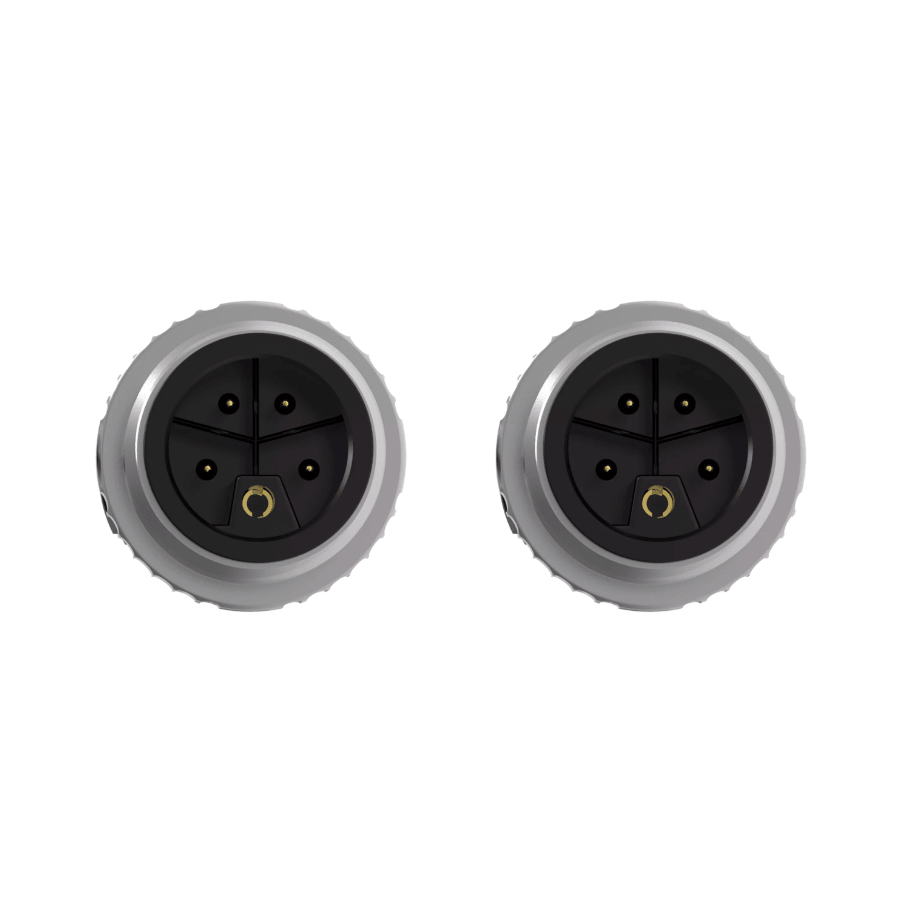

• 5-position (4+FE) configuration

• 14AWG (2.5mm²) copper conductors

• Rated 63V DC

• 16A nominal current

• Shielded construction

• Integrated functional earth (FE)

• IP67 rated connectors

• PUR jacket for drag chain use

• Suitable for PROFINET 24V DC power systems

Connector Specifications

Connector A
Connection: M12 L-Coded
Gender: Male
Poles: 5 (4+FE)
Orientation: Straight

Connector B
Connection: M12 L-Coded
Gender: Male
Poles: 5 (4+FE)
Orientation: Straight

Cable Specifications

Cable Type: L-Coded Power Cable
Conductor Material: Copper
Conductor Structure: AWG14 (2.5mm²)
Shield Type: Shielded
Jacket Material: PUR
Cable Colour: Grey
UL Type: UL AWM 20549
Length Range: 0.3m – 20m

Electrical Data

Nominal Current: 16A
Nominal Voltage: 63V DC
Contact Resistance: Max. 5 mΩ
Insulation Resistance: ≥1 GΩ·km

Typical Applications

• PROFINET 24V DC power distribution

• Fieldbus Ethernet I/O modules

• Motors and drives

• Industrial automation panels

• High-current field devices

• Power distribution in harsh environments
