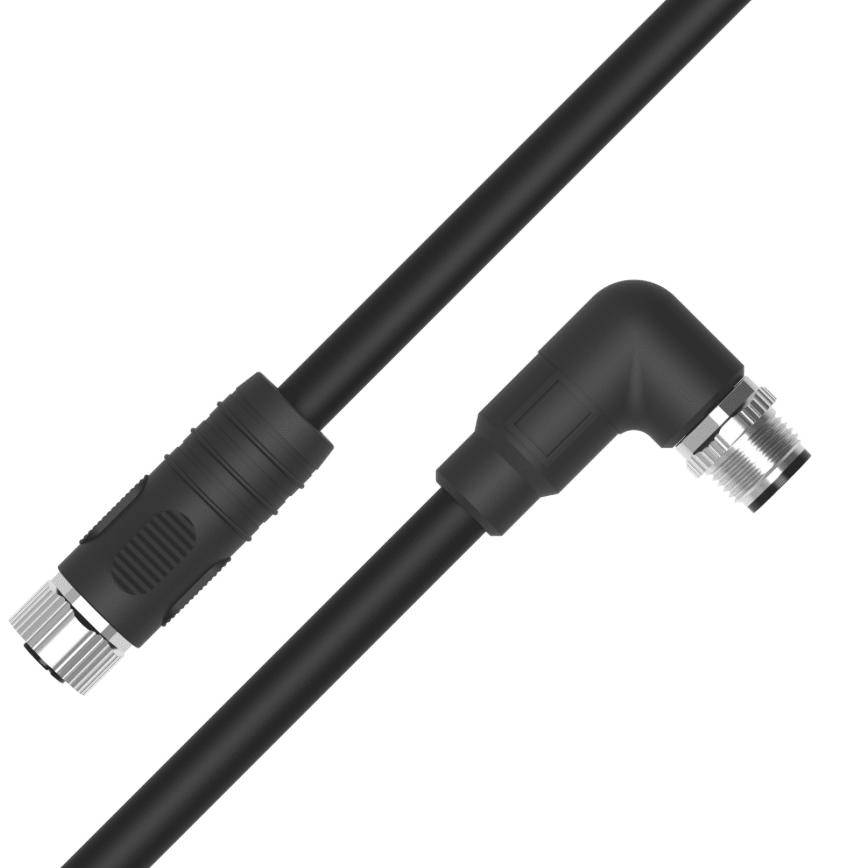

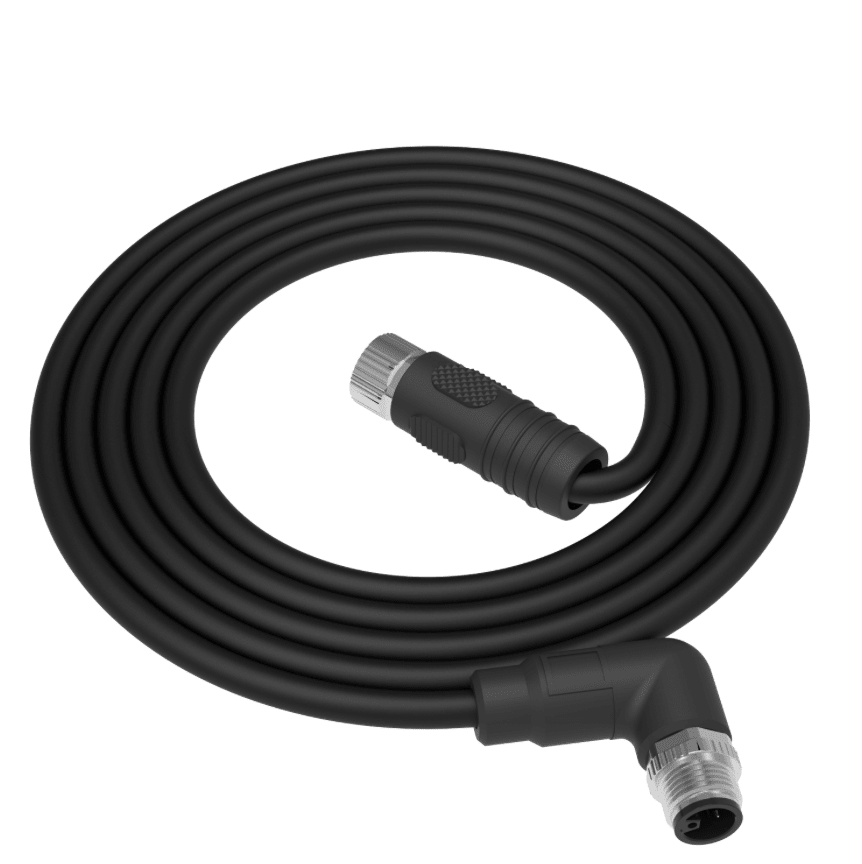

This M12 L-coded male right-angle to female straight 4-pin cable assembly is designed for reliable power transmission in industrial automation and motion control environments. The L-coded M12 interface supports higher current capacity compared with traditional A-coded connectors, making it suitable for modern decentralised power distribution systems.

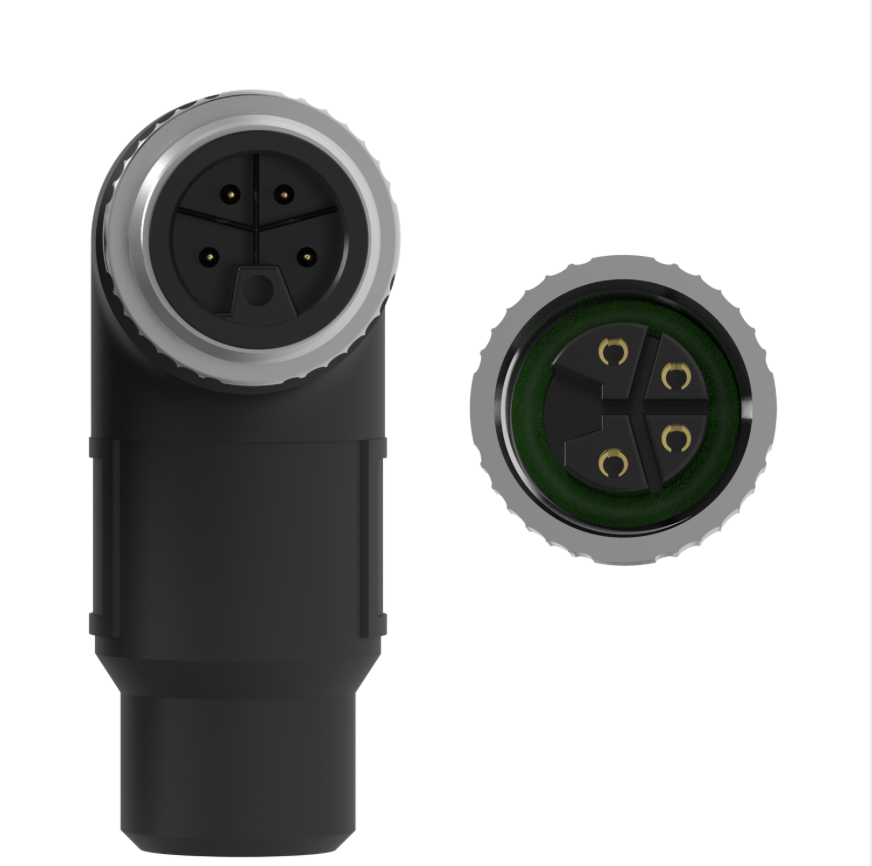

The assembly features a right-angle M12 L-coded male connector on one end and a straight M12 L-coded female connector on the other, enabling compact installation where space constraints or cable routing requirements demand an angled connection. Both connectors are overmoulded and engineered for secure mating and long-term mechanical stability in demanding industrial conditions.
The cable uses 16AWG conductors to support higher current loads and is jacketed with halogen-free PUR material, providing excellent resistance to oils, chemicals, abrasion and mechanical stress. The construction is suitable for continuous movement in drag-chain and torsional applications, making this cable ideal for machinery, automation equipment, power distribution modules and industrial control systems.
Key technical features
M12 L-coded power connector system
4-pin configuration
Male right-angle to female straight
16AWG conductors for higher current capacity
PUR jacket, halogen-free and oil-resistant
Suitable for drag-chain and dynamic motion
Designed for industrial power distribution
Robust overmoulded connector construction
Premium made-to-order product manufactured to your specifications and supplied subject to MOQ. Message your required cable lengths and quantities to receive wholesale pricing, estimated lead times (typically 2–4 weeks), and a formal quotation with our most competitive manufacturing price.
