High-Current M12 L-Coded 5-Pole Power Cable with Functional Earth

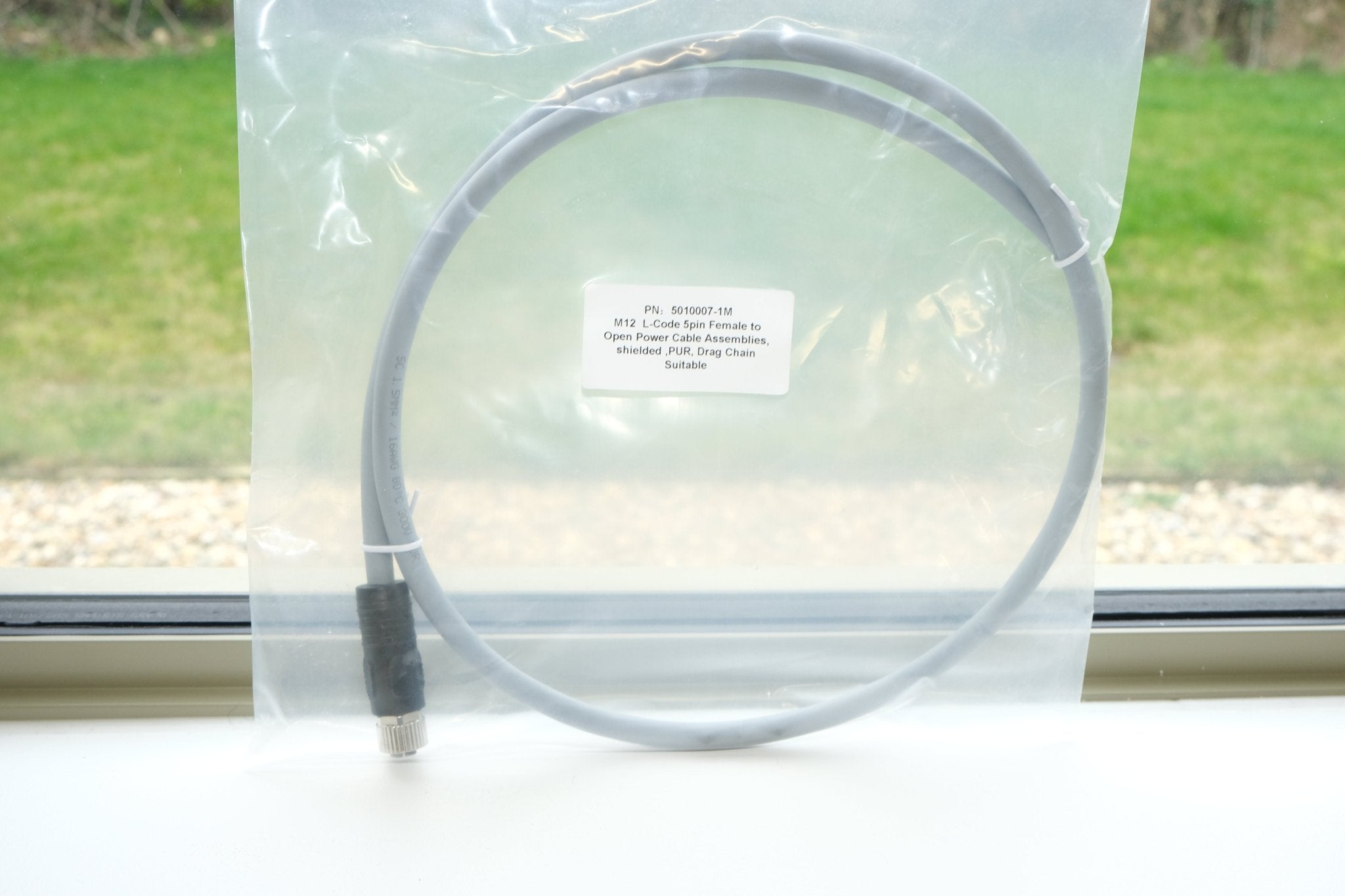

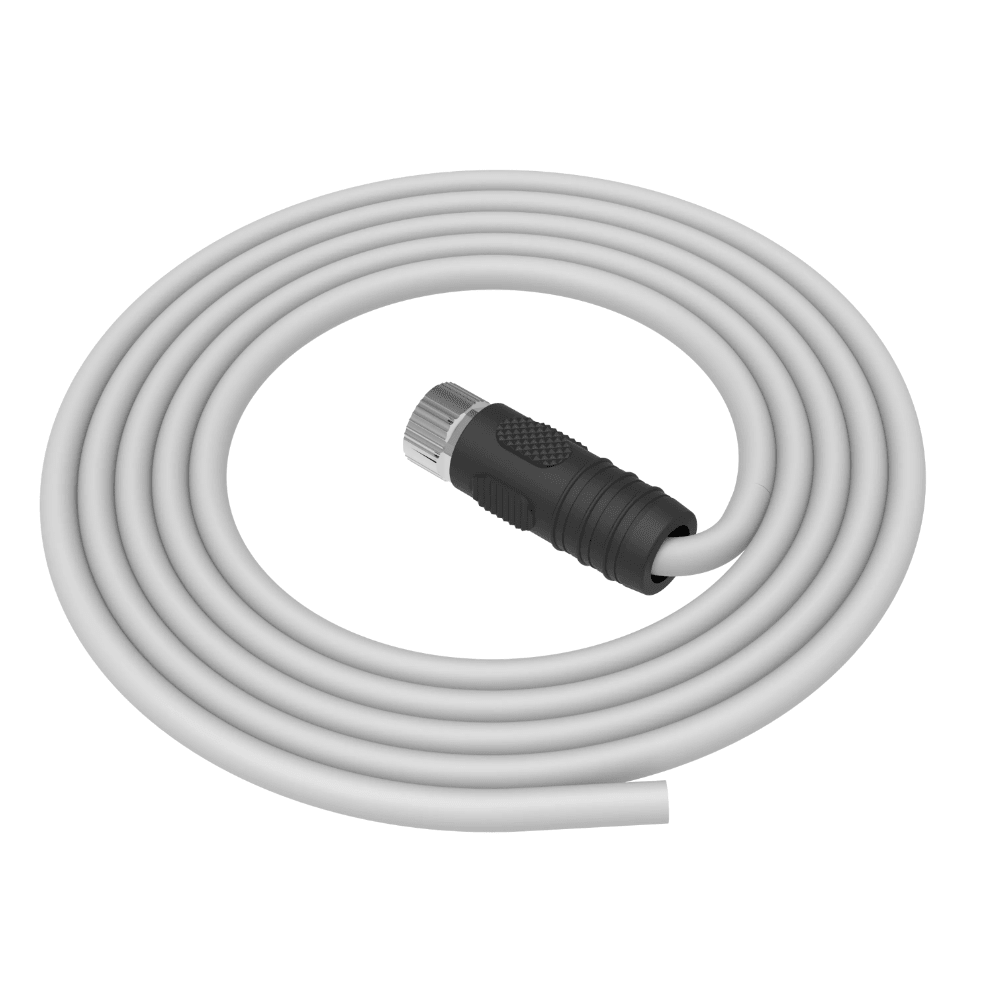

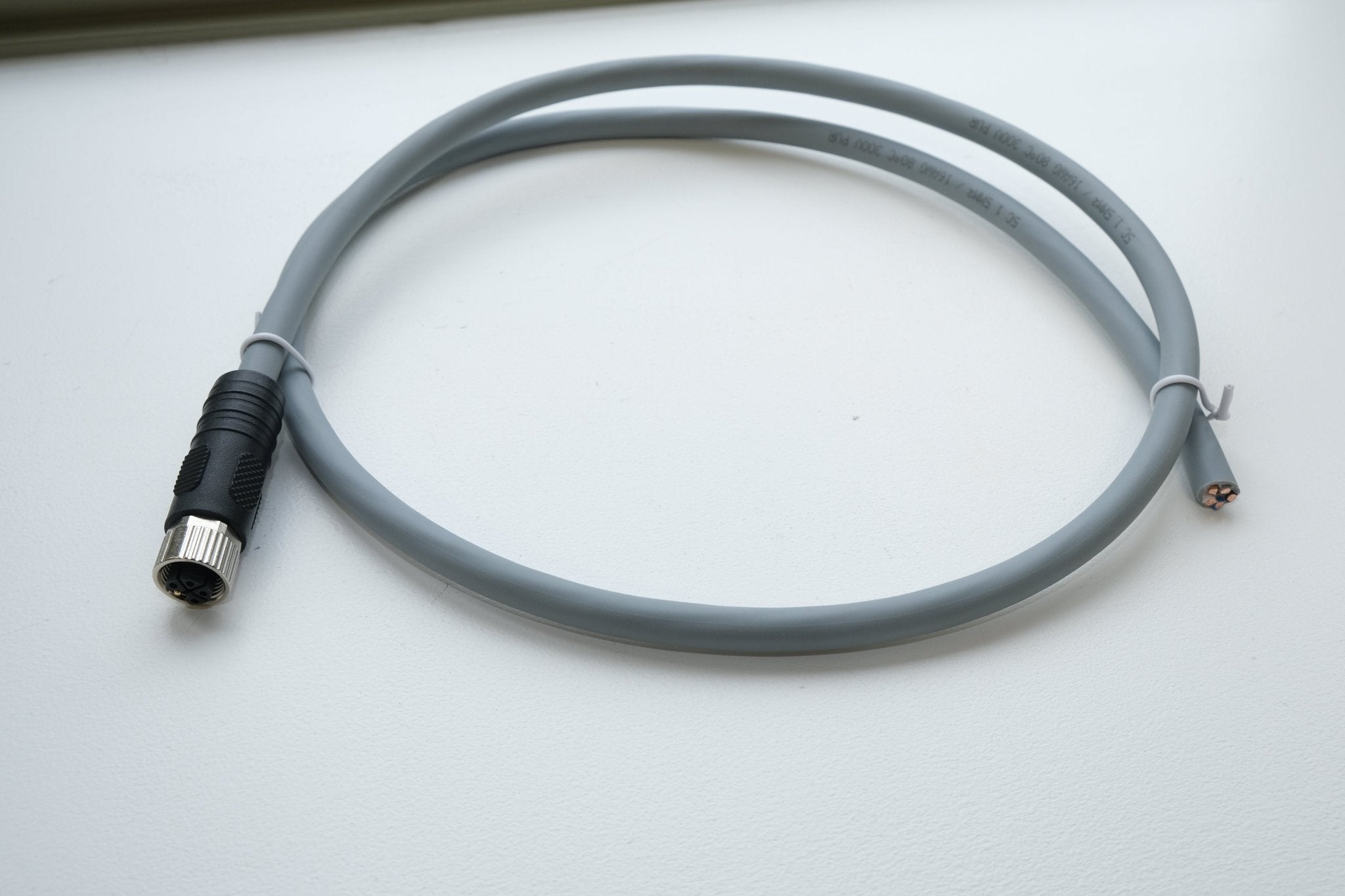

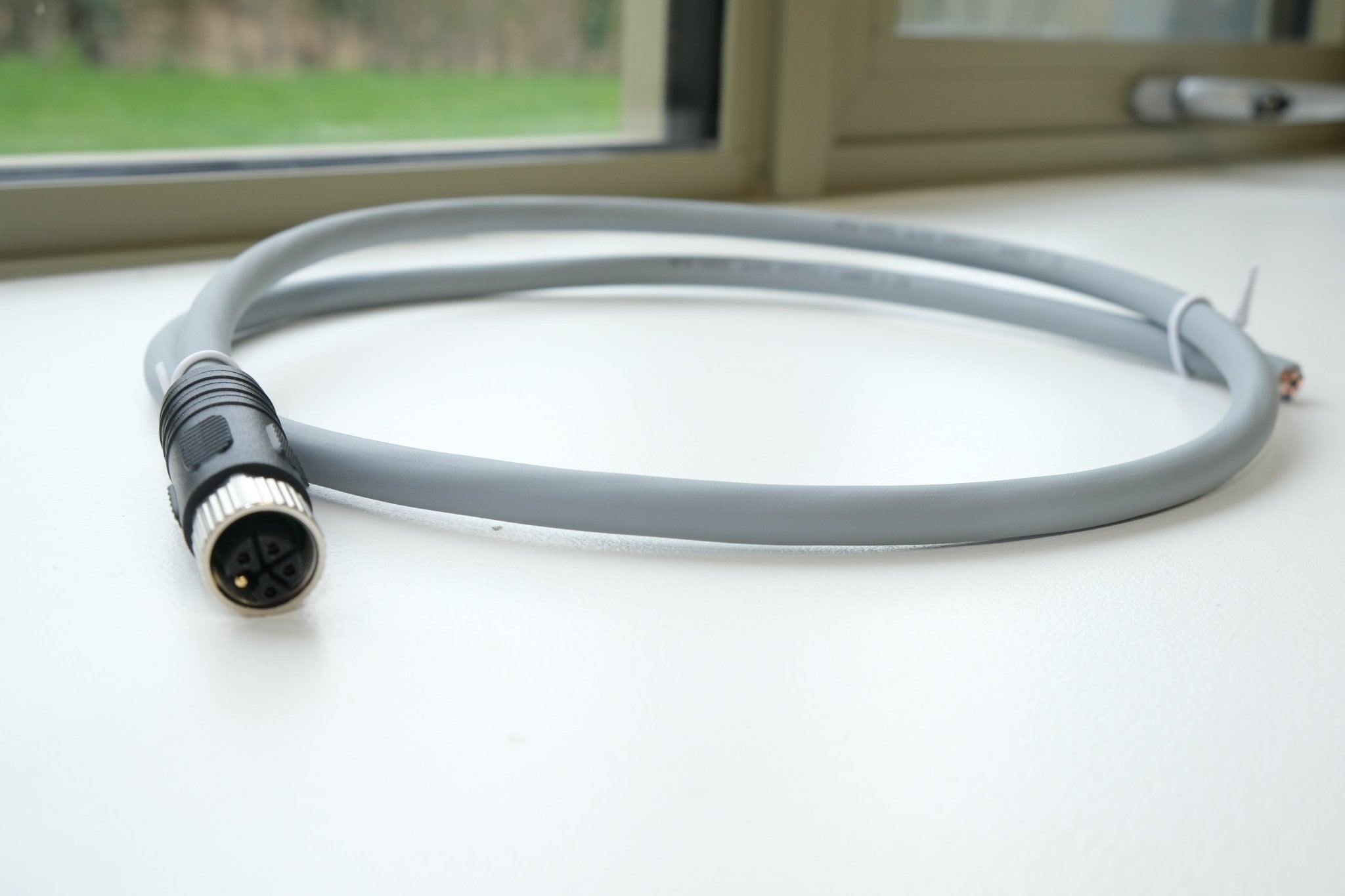

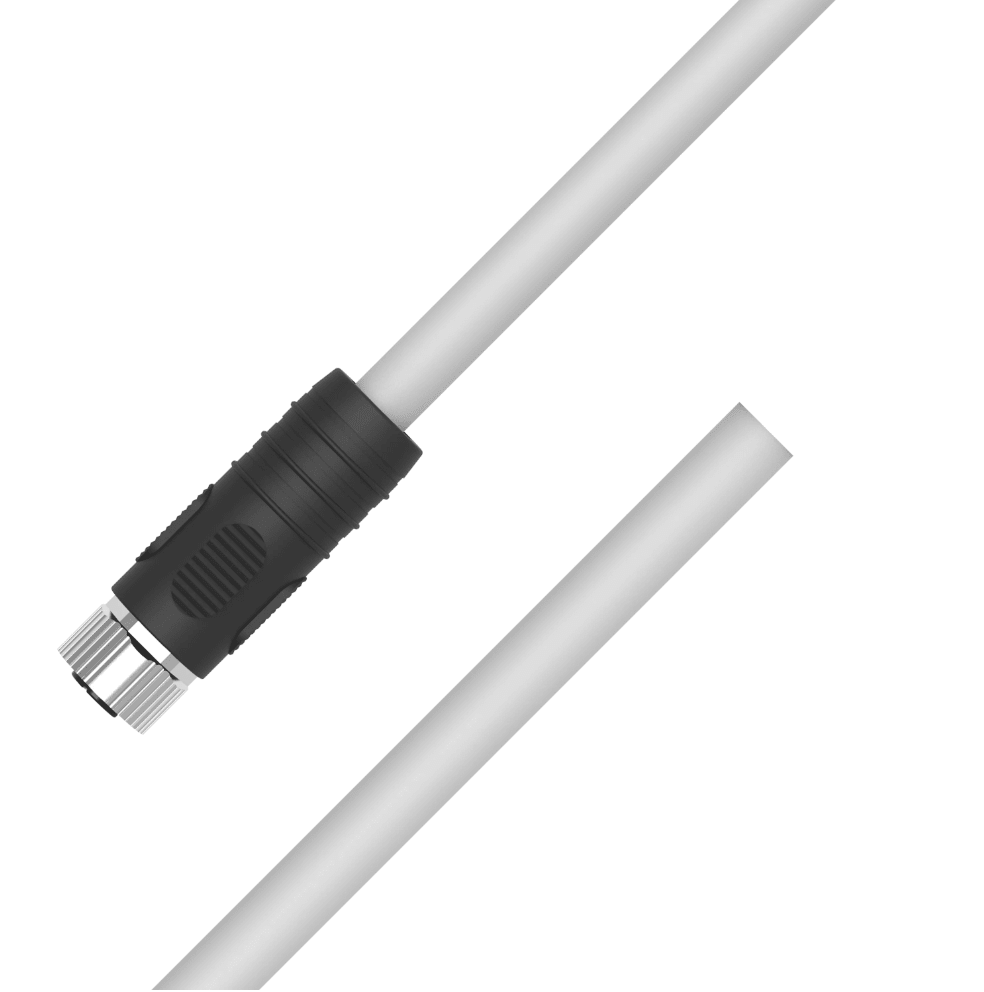

This M12 L-Coded female straight to open 5-position (4+FE) cable assembly is designed for high-current 24V DC industrial power distribution where enhanced grounding and EMC performance are required.
Featuring four power contacts plus functional earth (FE), this 5-pole L-coded configuration supports high-current applications in PROFINET power systems, industrial Ethernet field devices, motors, drives and automation control equipment.
Manufactured with 14AWG (2.5mm²) copper conductors, this cable supports up to 16A per pin (installation dependent) at 63V DC. The integrated functional earth improves shielding continuity and system grounding in demanding industrial environments.
The overmoulded M12 L-coded female connector is IP67 rated for protection against dust and temporary water immersion. A durable PUR jacket makes the cable suitable for drag chain applications and continuous motion systems, offering excellent resistance to oil, abrasion and mechanical stress.
Key Features
-
M12 L-Coded female straight to open end
-
5-position (4+FE) configuration
-
14AWG (2.5mm²) copper conductors
-
Rated up to 63V DC
-
Up to 16A per pin (application dependent)
-
Integrated functional earth (FE)
-
IP67 rated connector
-
Shielded cable construction
-
PUR jacket for drag chain use
-
Designed for PROFINET 24V power systems
Connector Specifications
Connector A

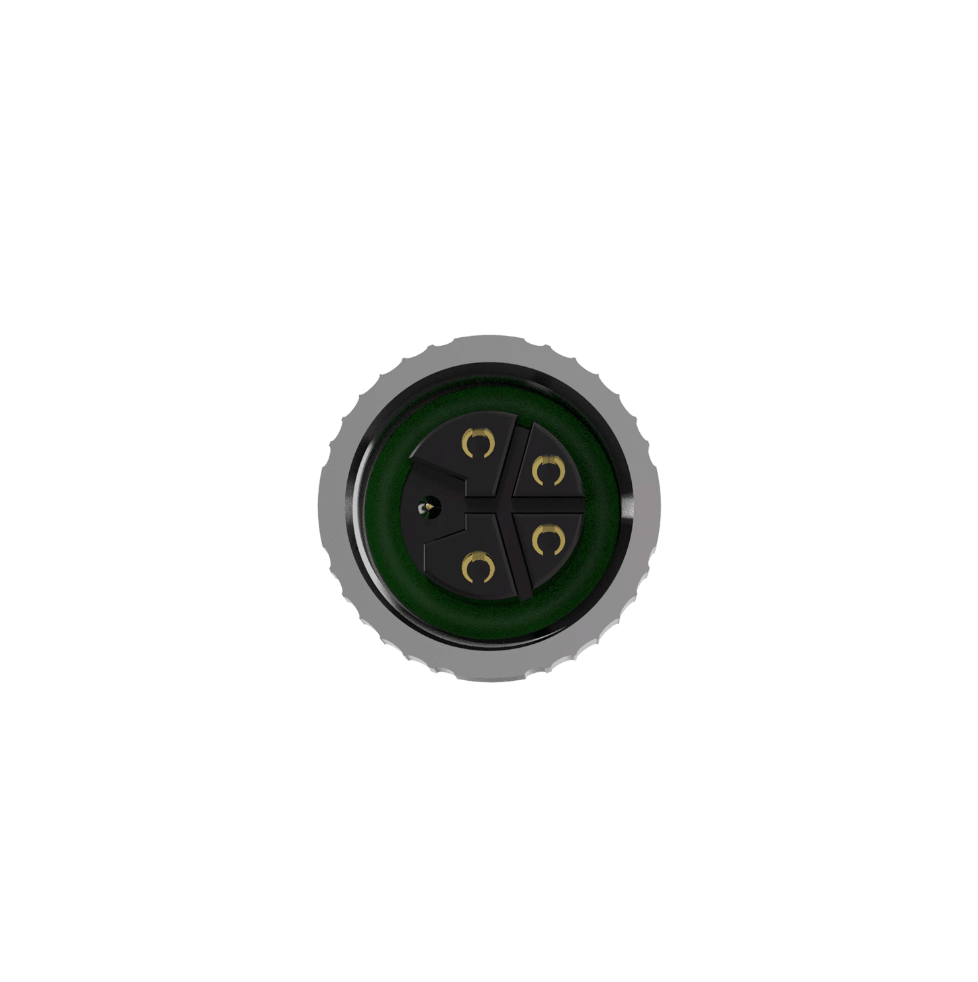

Connection: M12 L-Coded
Gender: Female
Poles: 5 (4+FE)
Orientation: Straight
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 5
Cable Specifications
Cable Type: L-Coded Power Cable
Conductor Material: Copper
Conductor Structure: AWG14 (2.5mm²)
Shield Type: Shielded
Jacket Material: PUR
Cable Colour: Grey
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Typical Applications
-
PROFINET 24V DC power distribution
-
Fieldbus Ethernet I/O systems
-
Motors and drives
-
Industrial automation panels
-
High-current field devices requiring functional earth
-
Control cabinet integration
