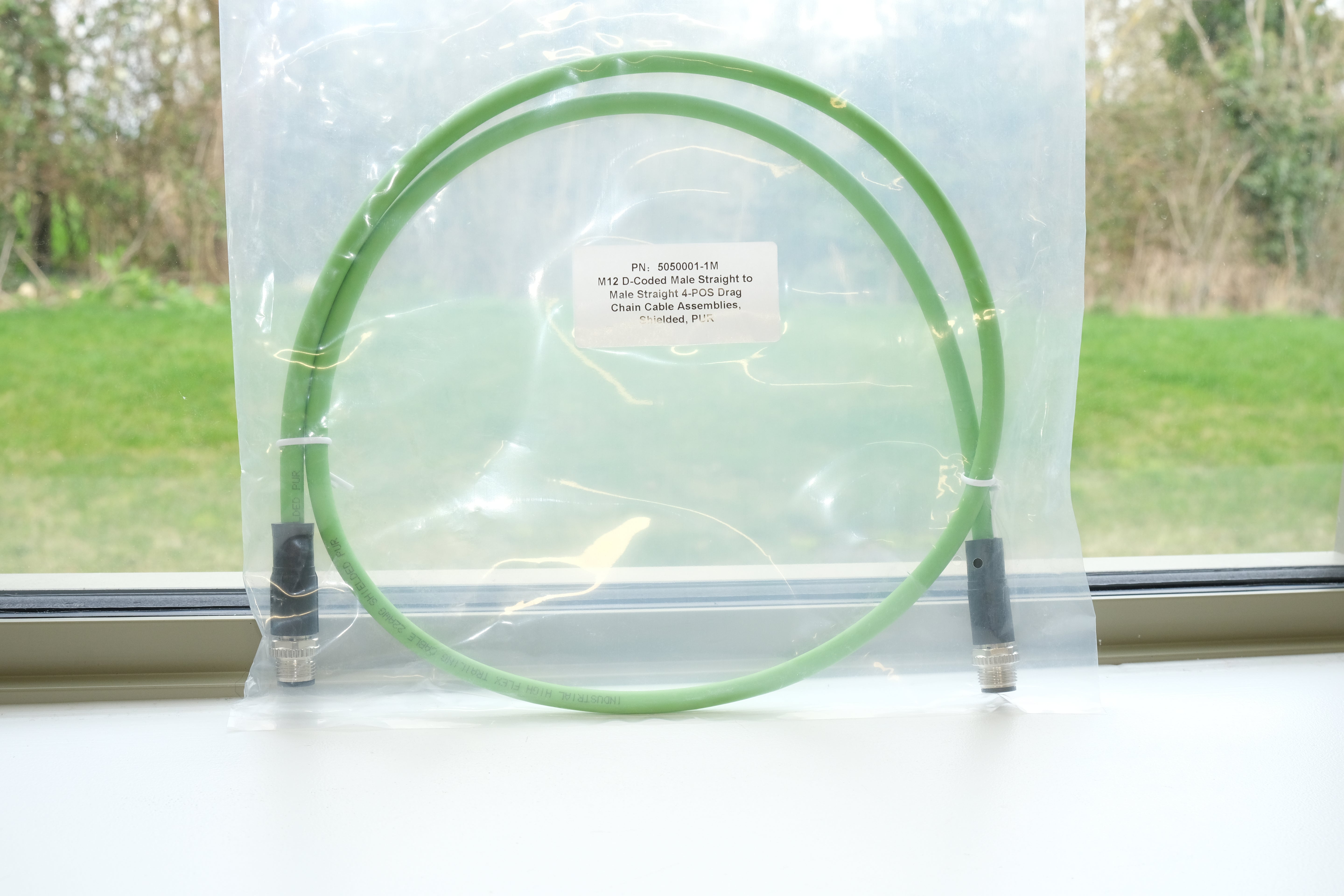

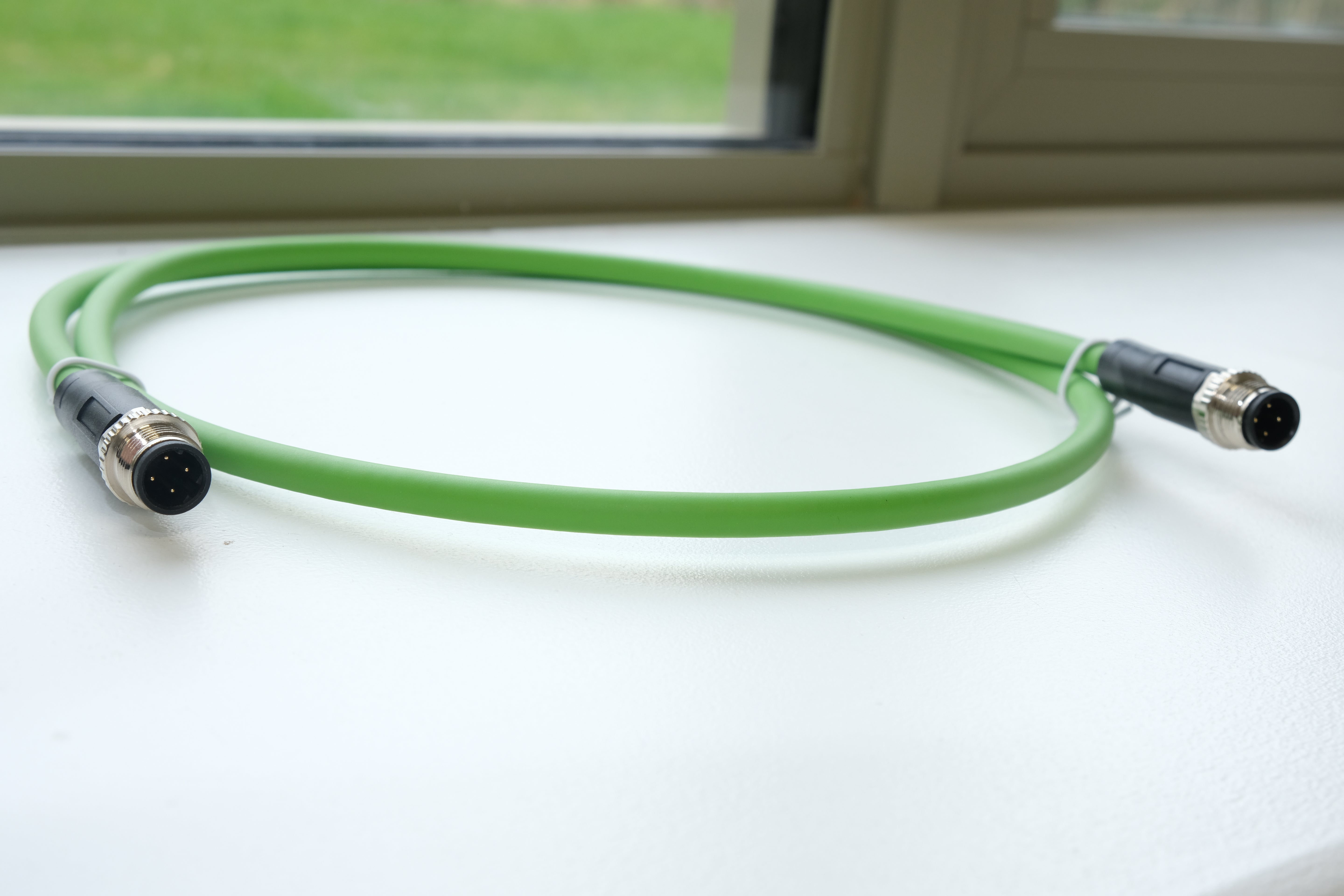

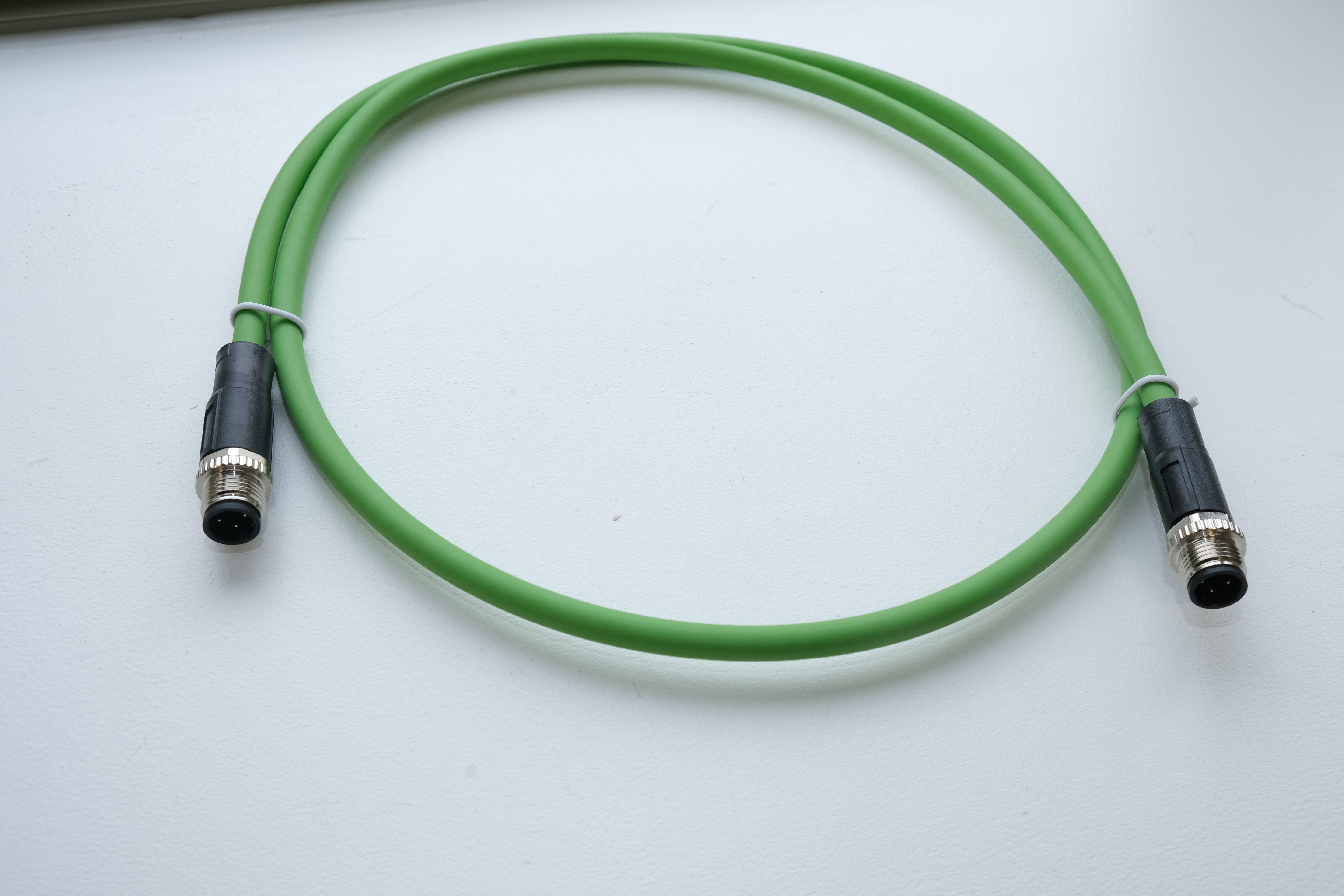

This M12 D-coded male-to-male straight 4-pin Ethernet cable assembly is designed for reliable industrial Ethernet and data transmission in demanding automation environments. The cable supports Ethernet protocols and features full shielding to provide effective EMI protection, ensuring stable and high-integrity signal transmission.

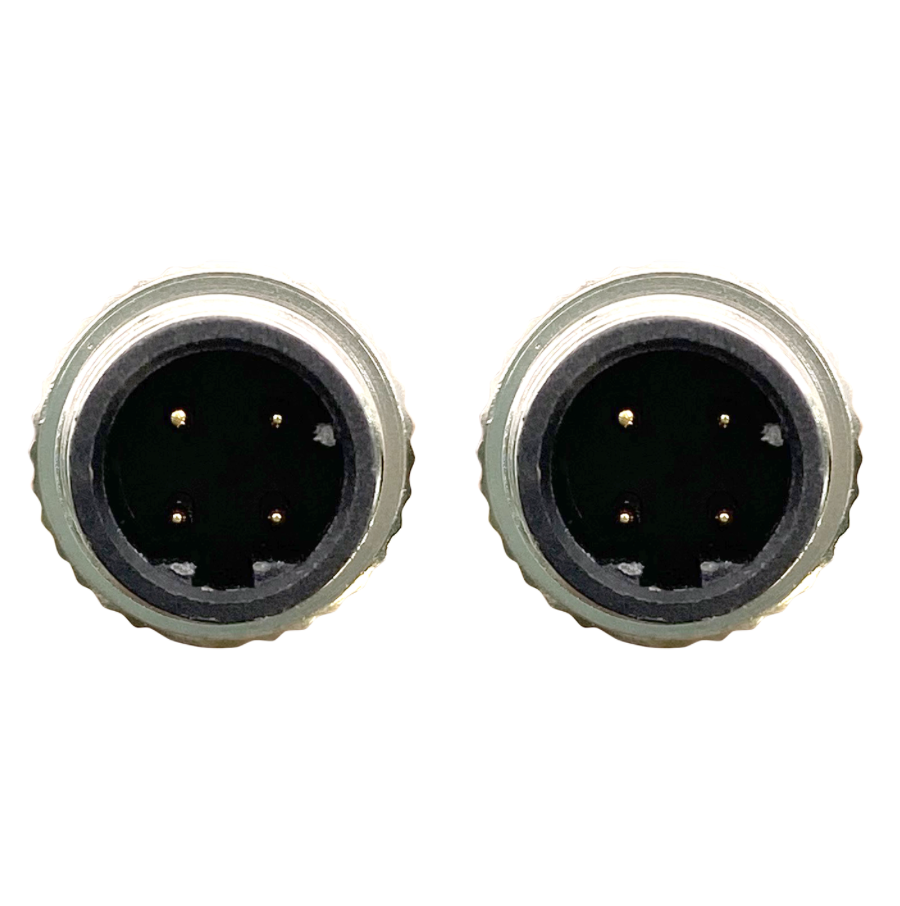

Both ends are fitted with straight M12 D-coded male connectors that are overmoulded for durability and rated IP67, offering protection against dust and water ingress in harsh industrial conditions. The cable uses a CAT5e, Profinet-compliant construction with an AWG22 conductor to support transmission rates up to 100 Mbps.
The halogen-free PUR jacket delivers excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. With high flex and torsion life, this cable is ideal for use in industrial Ethernet networks, automation systems, sensors, switches and control equipment.
Key technical highlights
-
Connector type: M12 D-coded male to male
-
Connector orientation: straight to straight
-
Pins: 4 positions
-
Cable type: CAT5e, Profinet compliant (Type C)
-
Shielded cable for EMI protection
-
PUR jacket, halogen-free and oil-resistant
-
Suitable for drag chain and torsional applications
-
IP67 rated connectors
-
UL AWM 20549 approved
-
Approx. 5,000,000 bending cycles
-
Approx. 2,000,000 torsion cycles
This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times (typically 2–4 weeks), please provide the required cable lengths and quantities and we will issue a formal quotation with our best available pricing to support your project.
