This M12 D-coded male right-angle to RJ45 female 4-pin Ethernet cable assembly is designed for reliable industrial Ethernet and data transmission in demanding automation environments. The cable supports Ethernet protocols and features full shielding to provide effective EMI protection, ensuring stable and high-integrity signal transmission.

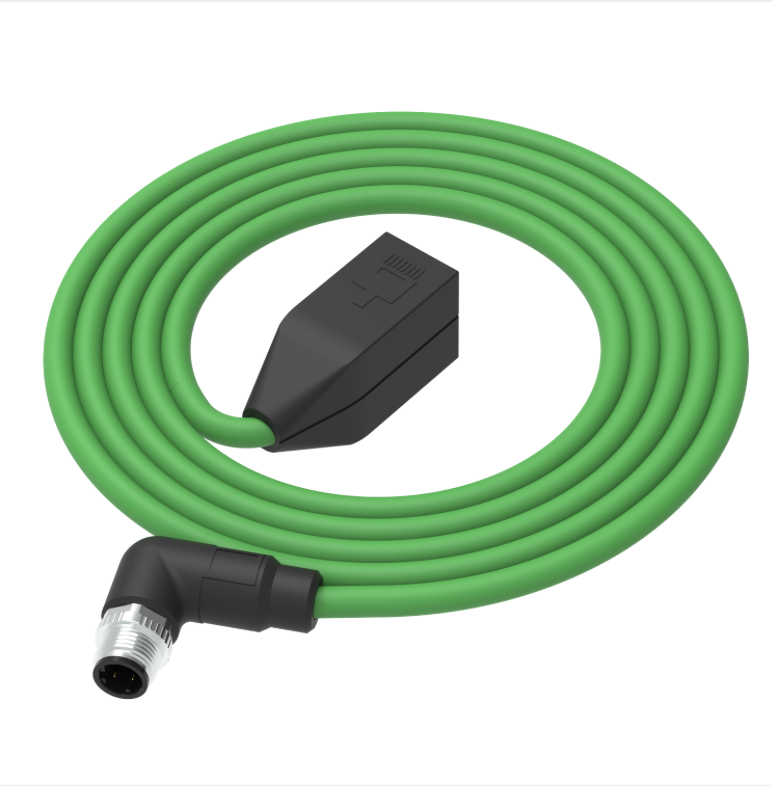

The assembly is fitted with a right-angle M12 D-coded male connector on one end and a straight RJ45 female connector on the other, enabling efficient installation in confined spaces while allowing connection to standard Ethernet patch leads and network equipment. The M12 connector is overmoulded and rated IP67 for protection against dust and water ingress, while the RJ45 female connector is intended for use within control cabinets and protected environments.
The CAT5e, Profinet-compliant cable construction with AWG22 conductors supports transmission rates up to 100 Mbps. The halogen-free PUR jacket provides excellent resistance to oils, chemicals, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications. This cable is ideal for industrial Ethernet networks, automation systems, sensors, switches and control equipment.
Key technical highlights
-

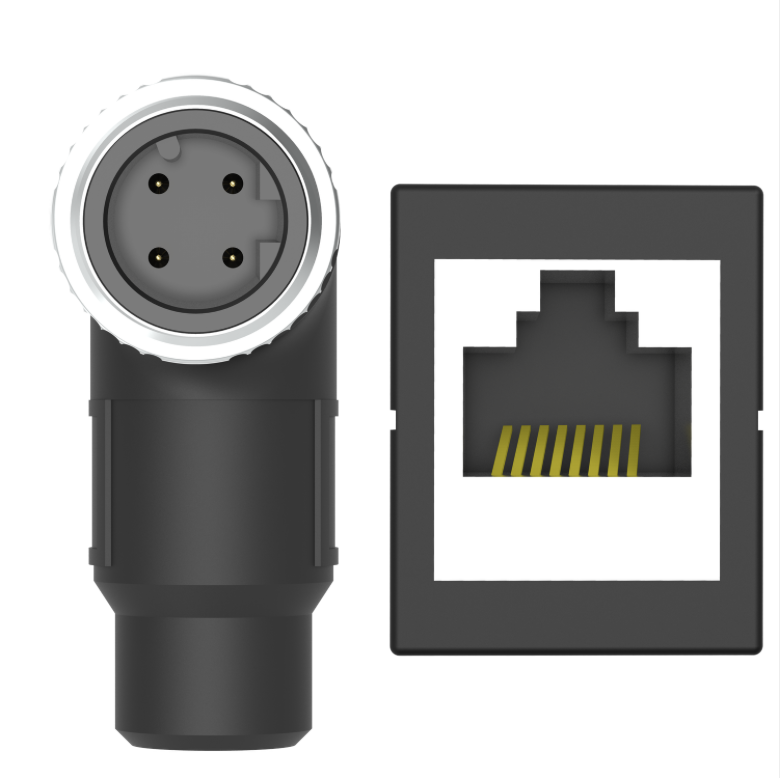

Connector A: M12 D-coded male, right angle, 4-pin
-
Connector B: RJ45 female, straight, 8-pin
-
CAT5e, Profinet compliant (Type C)
-
Shielded cable for EMI protection
-
PUR jacket, halogen-free, oil-resistant and UV-resistant
-
Suitable for drag chain and torsional applications
-
Protection rating: IP67 (M12), RJ45 for protected environments
-
UL AWM 20549 approved
-
Approx. 5,000,000 bending cycles
-
Approx. 2,000,000 torsion cycles
This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times (typically 2–4 weeks), please provide the required cable lengths and quantities and we will issue a formal quotation with our best available pricing to support your project.
