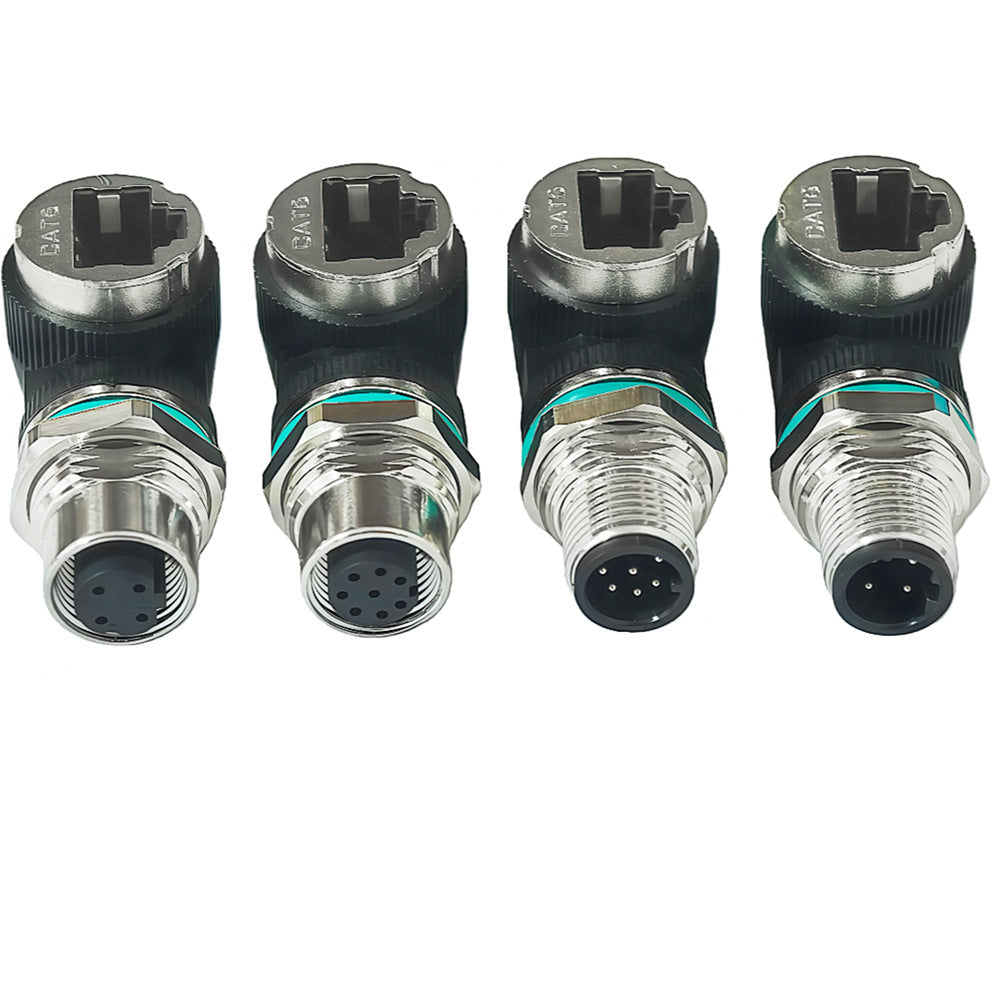

M12 D-Code 8-Pin to RJ45 female industrial Ethernet connector IP68

Set of four black and silver connectors on a white background

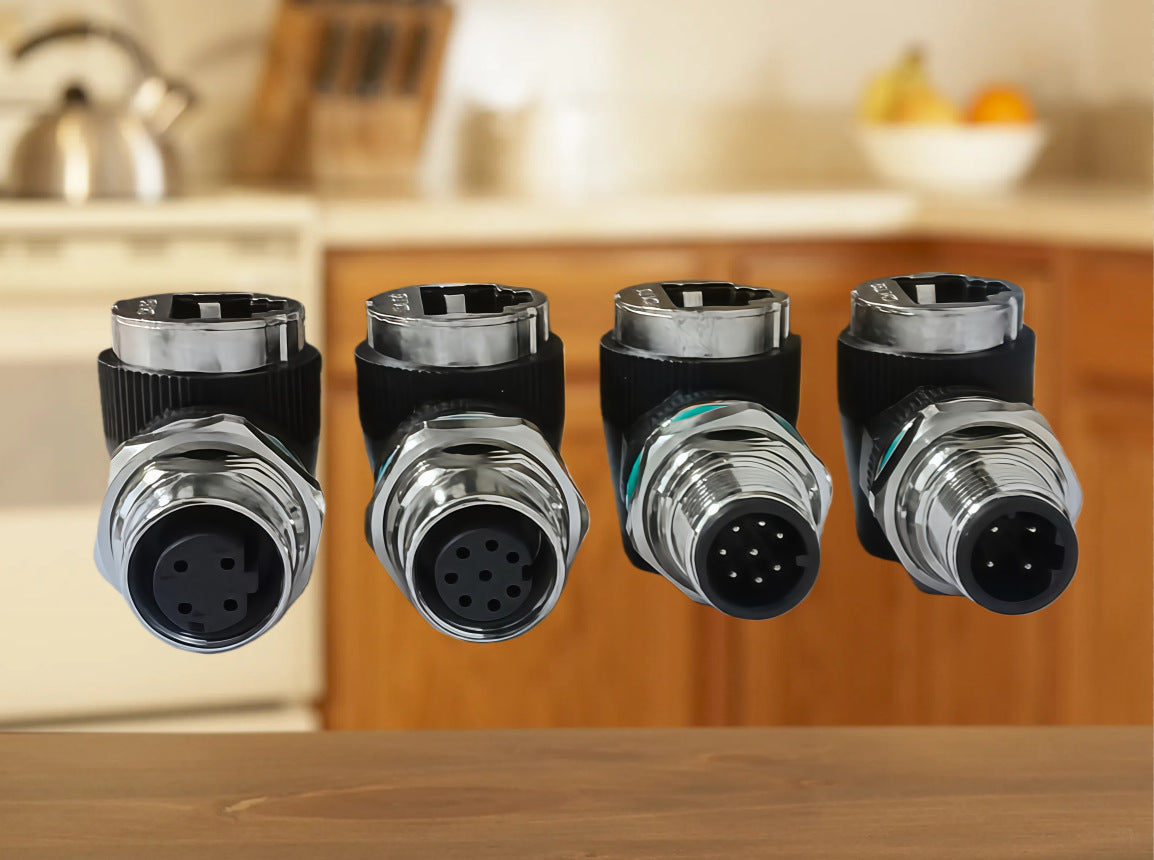

Four metallic connectors on a kitchen counter with blurred background

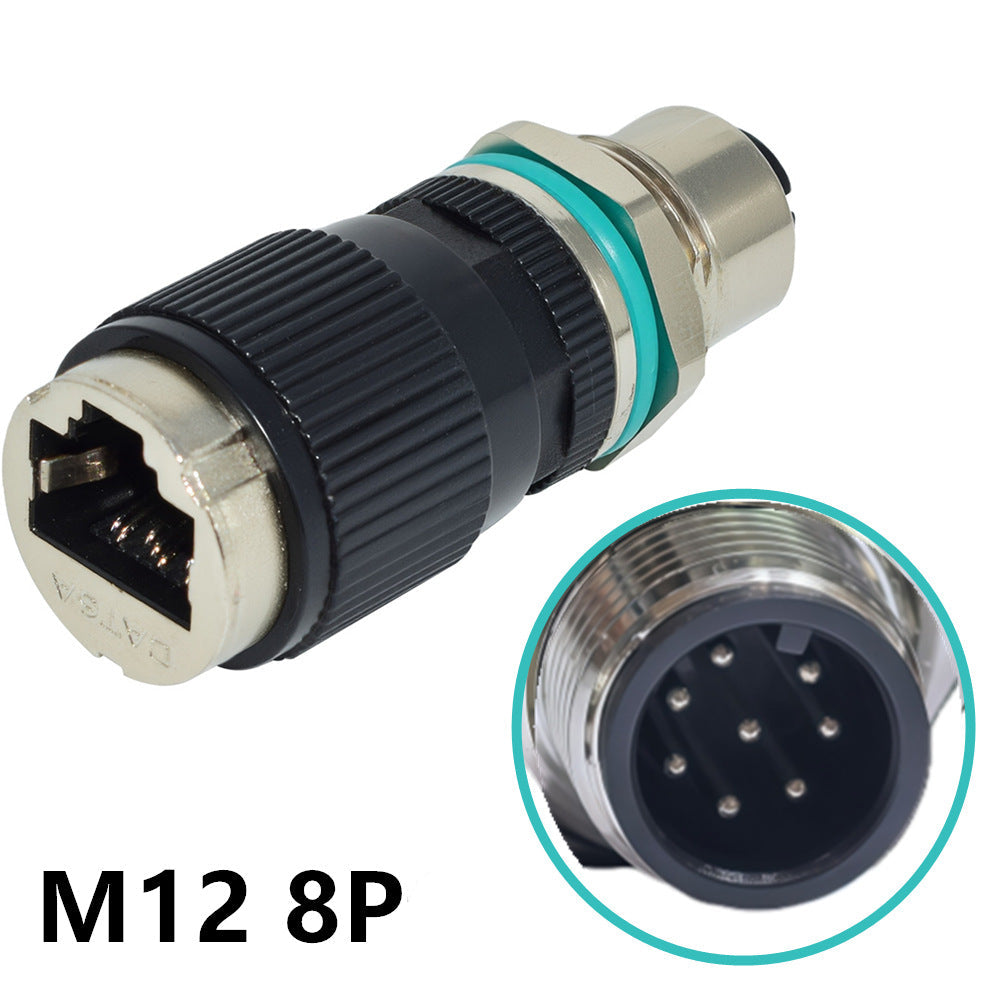

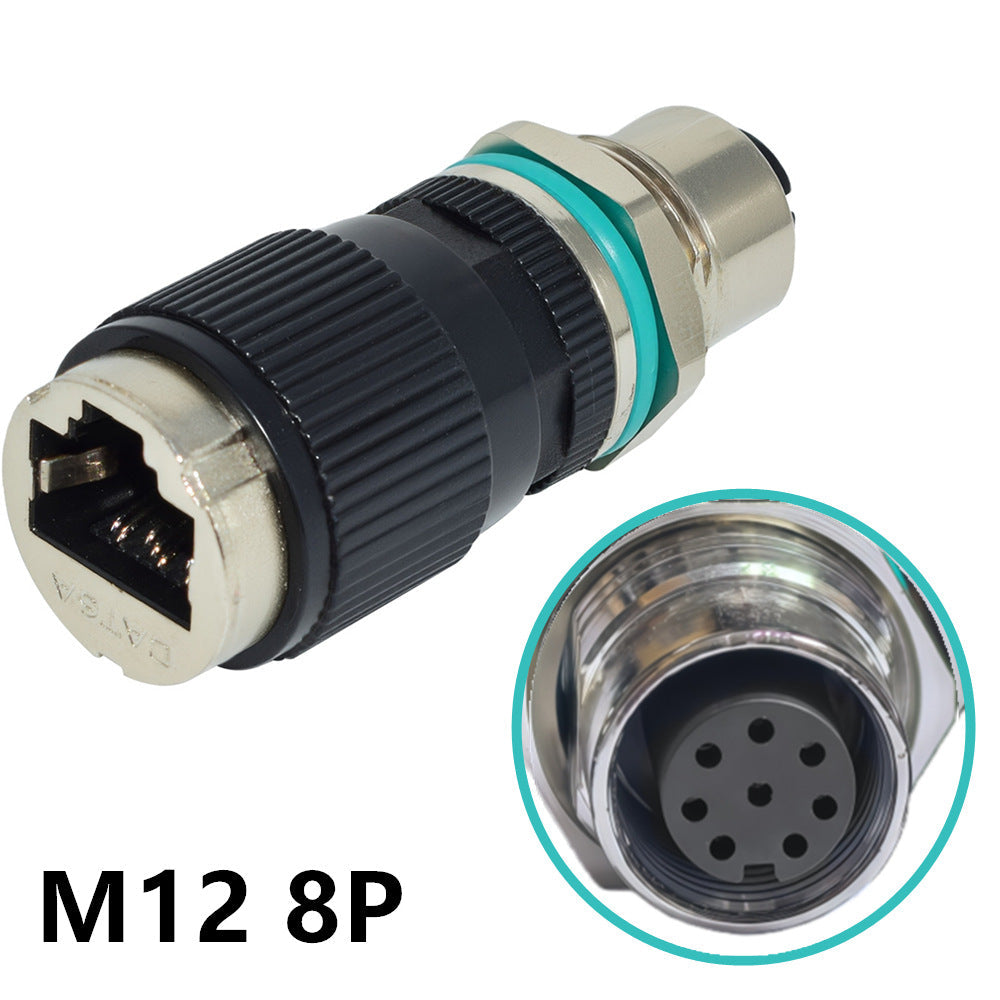

M12 8P connector with close-up detail on a white background

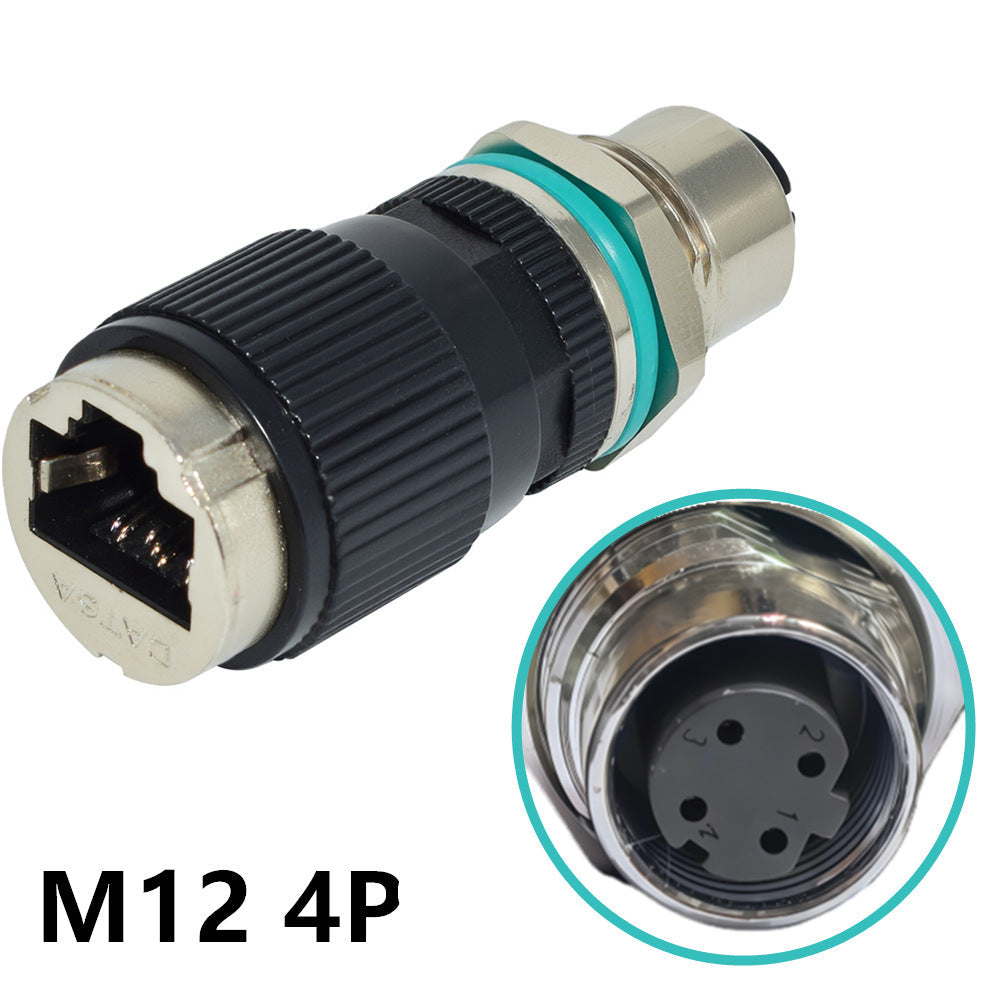

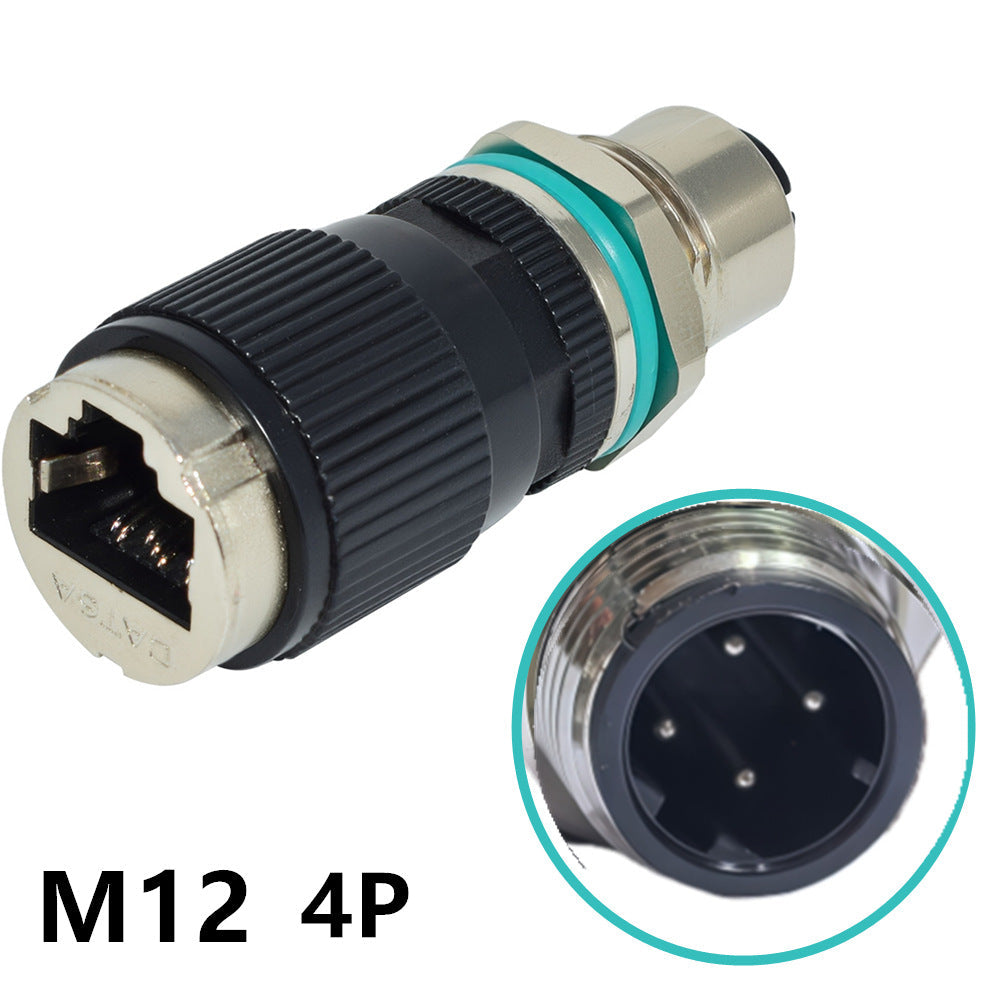

M12 4P connector with close-up detail on a white background

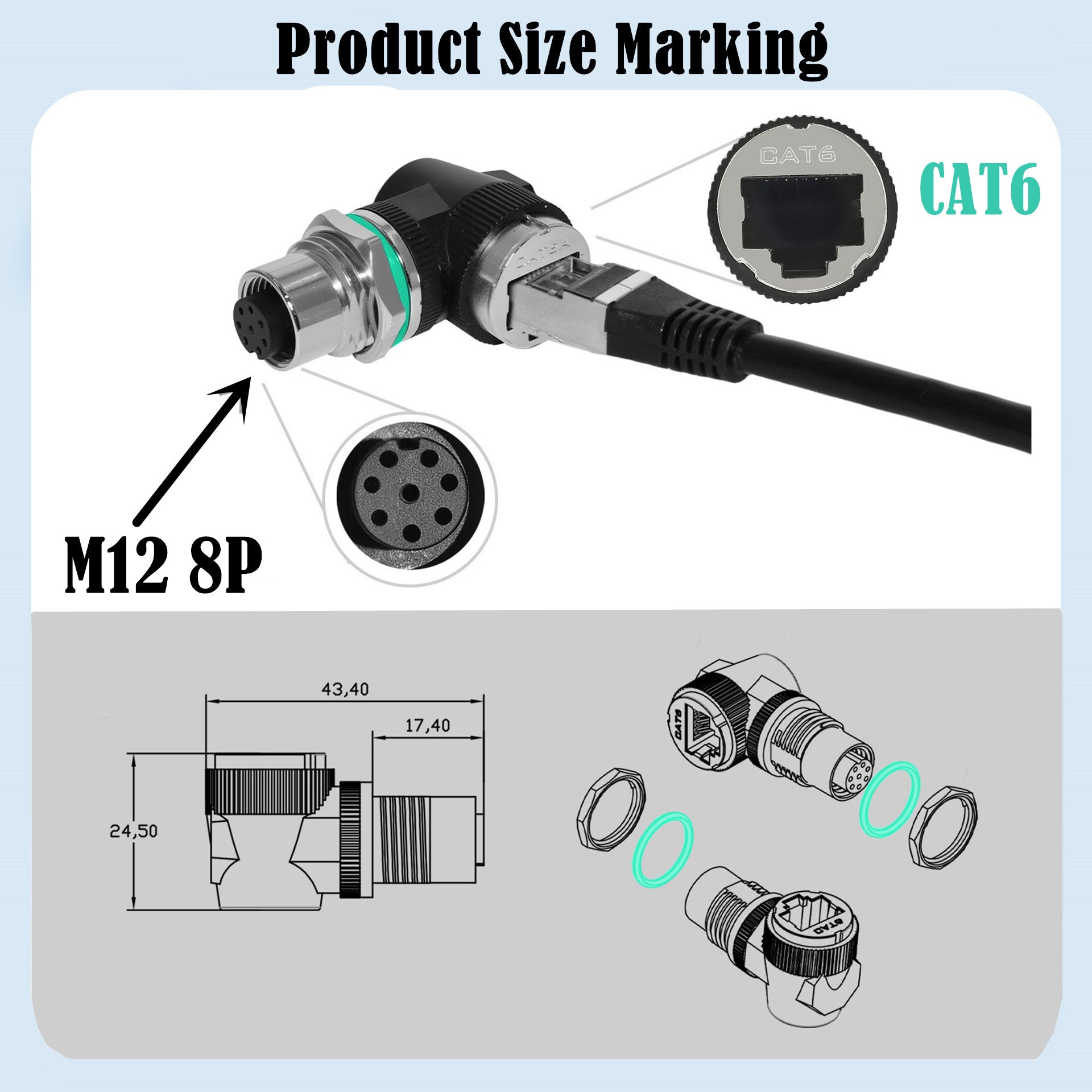

Technical diagram of a M12 8P connector and CAT6 cable with size markings.

Technical diagram of a product with size markings and component illustrations.

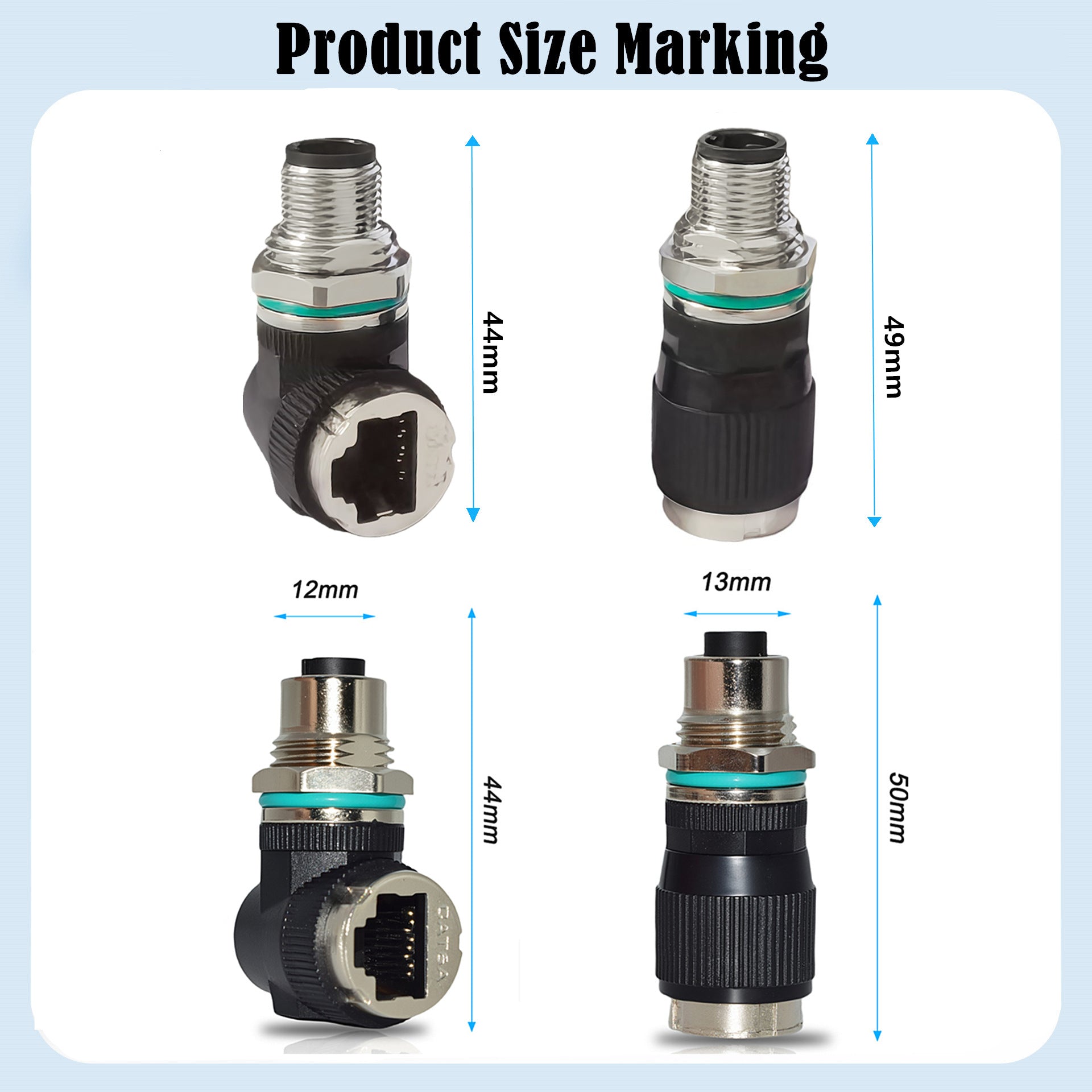

Four metal connectors with dimensions marked on a white background

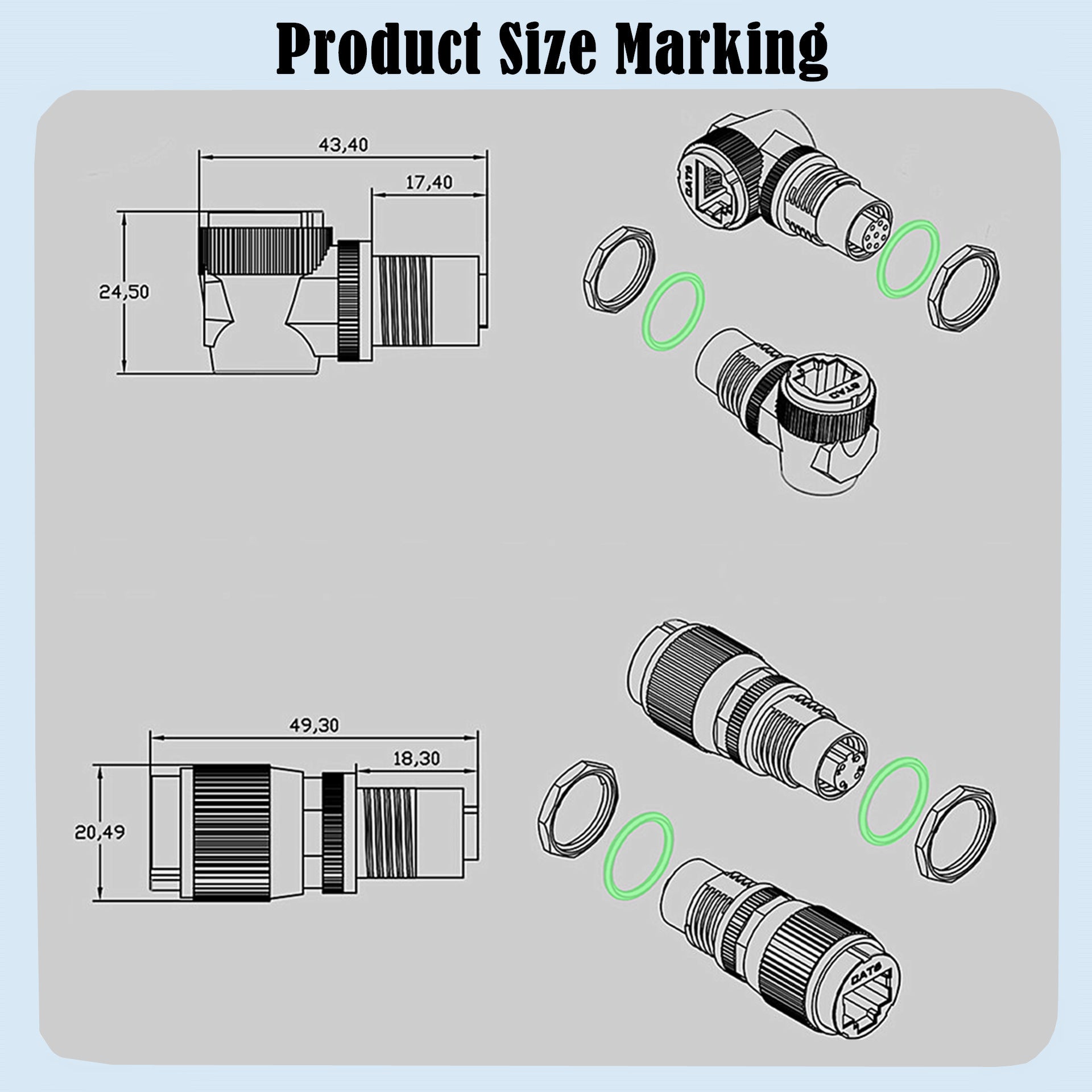

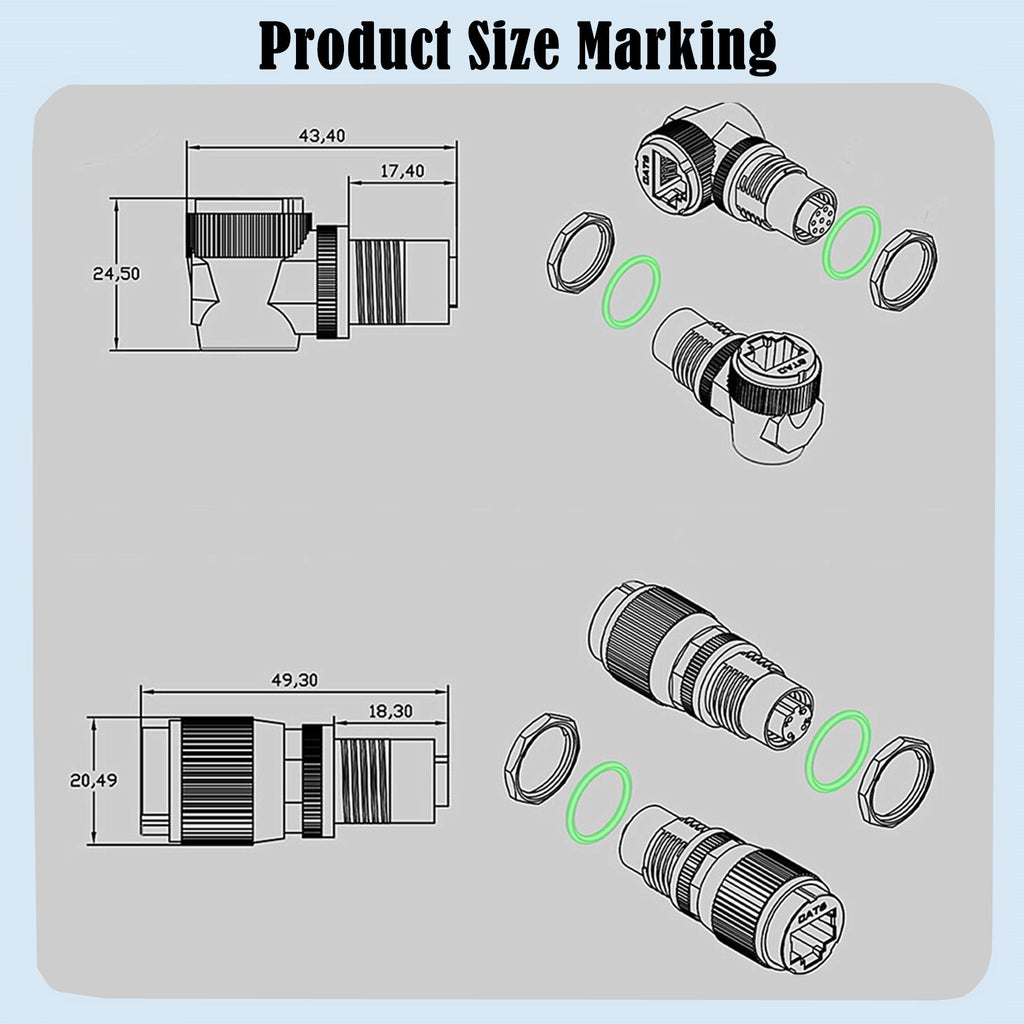

Technical drawings and measurements of mechanical components on a gray background

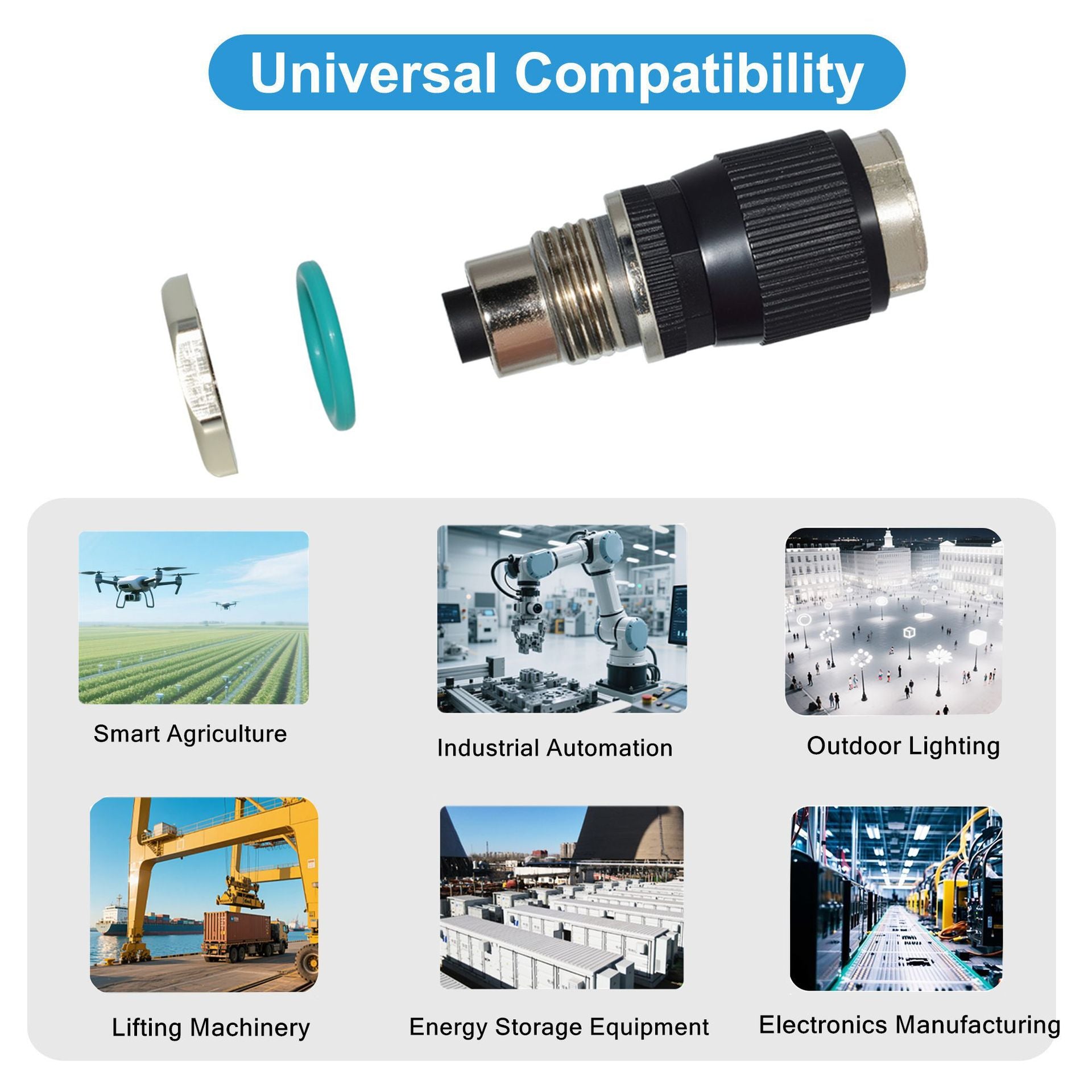

Technical component with 'Universal Compatibility' text and applications in various industries.

Roll over image to zoom in Click on image to zoom

M12 D-Code 4Pin / 8Pin to RJ45 Female Industrial Ethernet Connector – IP68 Waterproof, Cat5e

Name: M12 D-Code 4Pin / 8Pin to RJ45 Female Industrial Ethernet Connector – IP68 Waterproof, Cat5e
Brand: Innov8 Wholesale Ltd
SKU: M12-RJ45-D8-M
Price: 14.99 GBP
Availability: InStock

SKU: M12-RJ45-D8-M

Type: RJ45-M12-8P Male

Variant

Price:

£14.99

inc. VAT (Shipping calculated at checkout)

Stock:

Only 3 units left

Require more than 3 items? Click for more information

Quantity:

This M12 D-coded 4-Pin / 8-Pin to RJ45 female industrial Ethernet connector is designed for reliable high-speed data transmission between industrial Ethernet devices and standard RJ45 network equipment. Built for harsh environments, it features a rugged metal housing, thread-lock coupling, and IP68 waterproof protection, making it ideal for factory automation, outdoor installations, and industrial networking applications.

Key Features

M12 D-Code to RJ45 Female Adapter
- Available in 4-Pin or 8-Pin, male or female M12 configurations
- Seamless interface between industrial Ethernet devices and standard RJ45 networks
High-Speed Industrial Ethernet
- Compatible with Cat5e / Cat5
- Supports data rates up to 10Gb/s
- Stable signal transmission with fully shielded construction
IP68 Waterproof & Dustproof
- High-elastic sealing ring + threaded locking nut
- Resistant to water, dust, oil, vibration, and corrosion
- Suitable for outdoor and harsh industrial environments
Durable Metal Construction
- Zinc alloy housing
- Gold-plated brass contacts for superior conductivity and corrosion resistance
- Anti-vibration threaded locking design (M12 × 1.0)

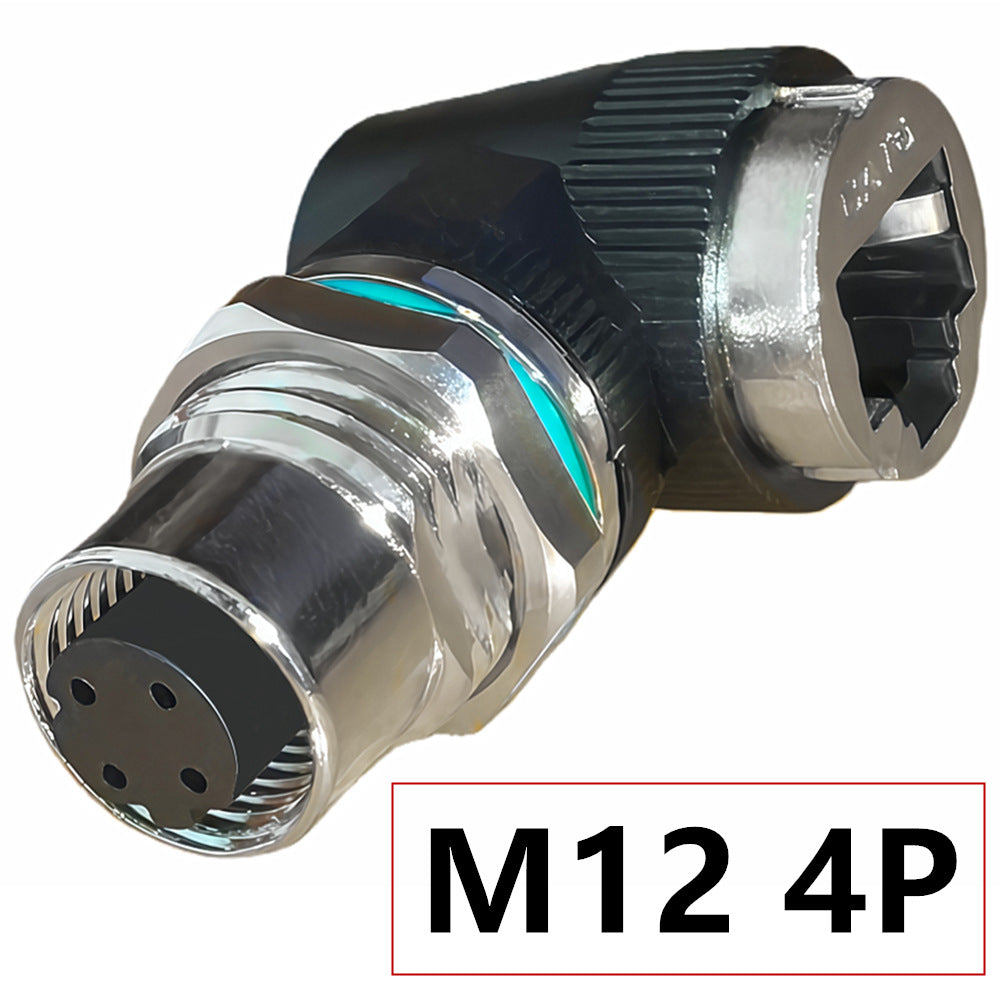

Right-Angle RJ45 Socket
- Space-saving 90-degree design
- Ideal for tight installation spaces
- Prevents cable bending and strain
Tool-Free Installation
- Plug-and-play design
- Fast deployment for field devices and control cabinets

Technical Specifications

Connector Type: M12 D-Code → RJ45 Female
Pin Options: 4-Pin / 8-Pin
Gender: Male or Female (options available)
Ethernet Standard: Cat5e / Cat5
Max Data Rate: Up to 10Gb/s
Rated Current: 2A
Rated Voltage: 30V
Operating Temperature: -25°C to +80°C
Protection Rating: IP68
Locking Mechanism: Threaded screw-lock
Housing Material: Zinc alloy
Contact Material: Gold-plated brass

Applications

Widely used in:

Industrial Ethernet systems
Factory automation & PLC networks
Industrial cameras & machine vision
Sensors & actuators
Logistics & warehouse automation
Fieldbus modules
Electric vehicles & e-bike systems
